O-Z/Gedney    Rosemont, IL 60018

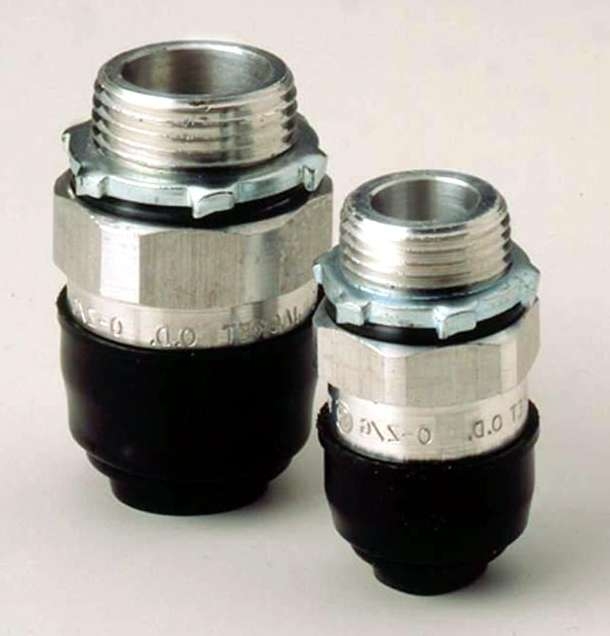

Apr 14, 2005 TEK-NUTâ„¢ Cable Connectors terminate teck and jacketed metal clad cable to junction boxes, control centers, panelboards, and enclosures used for electrical distribution or motor control. They come with knockout sealing O-ring to provide environmental seal, along with locknut, anti-short bushing, and rainboot for wet locations. Featuring copper-free aluminum body, corrosion-resistant connectors provide pullout protection and come in ½, ¾, and 1 in. sizes.

Starlinger North America, Inc.    Hanover Park, IL 60133

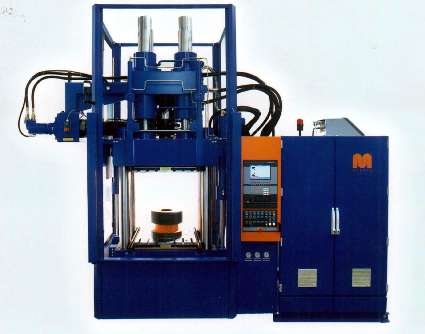

Apr 14, 2005 Ergo Series is equipped with FIFO screw/ram injector that delivers uniformly plasticized and metered-size shot. Constant L/D ratio guarantees homogenous preparation of compound. Microprocessor control allows process parameters to be set digitally on control panel. Presses include linear positioning system for clamping and injection side, 5 temperature control zones, separate control panel for manual operation, and cooling unit for plasticizing cylinder and injection pot.

Columbia Okura LLC    Vancouver, WA 98661

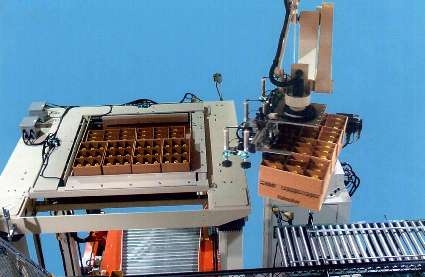

Apr 14, 2005 Using mechanical gripper, Robotic Palletizers de-stack pallet load of cases that are tab-locked open, placing them on conveyor. Indexing hoist mechanism presents case layers at consistent pick height, allowing robot to perform at highest possible speeds in working zone. Palletizers can be used when cases of empty plastic or glass containers are supplied to alternate location for filling with product.

Jewell Instruments LLC    Manchester, NH 03103
Apr 14, 2005 With non-linearity better than 0.05%, LCA-100 30g Series offers ±5.0 V full range output, 200 Hz bandwidth, less than 1° transverse axis misalignment, and operating temperature range of -55 to +71°C. Seal meets MIL-STD-202, Method 112 standards. Able to withstand shock to 300 g, 0.011 sec, ½ sine, accelerometer is suited for use in aircraft missile controls, missile orientation, fatigue monitoring, and performance testing.

Lumex Inc.    Carol Stream, IL 60188

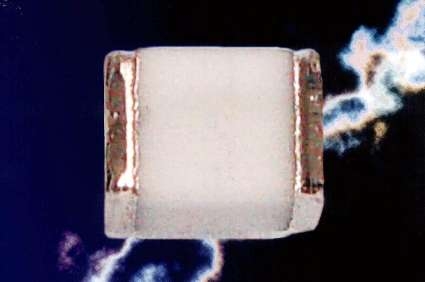

Apr 14, 2005 Measuring 0.177 x 0.126 in., Series GT-SMD1812 provides dc breakdown voltage ratings of 150, 200, 300, 350, and 400 Vdc, each offered with 1,000 or 2,000 A impulse current rating. Hermetically sealed units have insulation resistance of 10⁴ Mohm and inter-electrode capacitance of 1.0pF. Arresters are suited for PBX telephone circuits, voice and data lines, solid-state circuitry, or anywhere protection against ESD or switching surges is needed.

Harting KGaA      Germany

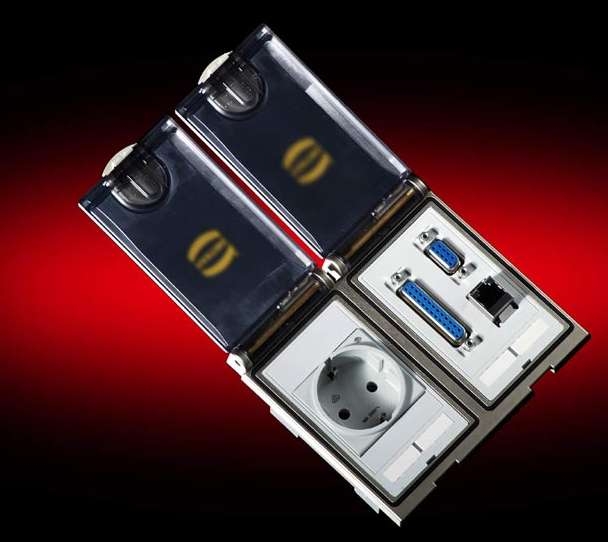

Apr 14, 2005 Han®-Port provides ability to connect external devices, such as laptops or PCs, for set-up, programming and error diagnosis of industrial installations directly at control cabinet without opening cabinet door. Zinc die cast frames are equipped with transparent covers, while locking system protects against accidental opening. Modular design allows combination of different inserts for power and signals.

Keyence Corporation of America    Elmwood Park, NJ 07407

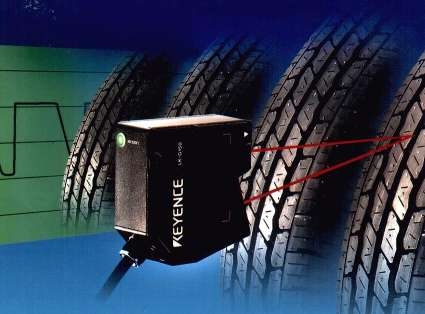

Apr 14, 2005 Non-contact Series LK-G provides measurement range of 7 in. with 0.0004 mil resolution, ±0.03% accuracy, and 50 kHz sampling speed. Units offer stability with fast moving, rotating, and vibrating targets, as well as inline applications requiring data averaging. Active Balanced Laser Control Engine senses target surface conditions and adjusts laser light intensity to optimal level. Performance is unaffected by reflections, color, or surface coatings.

Allegro MicroSystems Inc.    Worcester, MA 01615

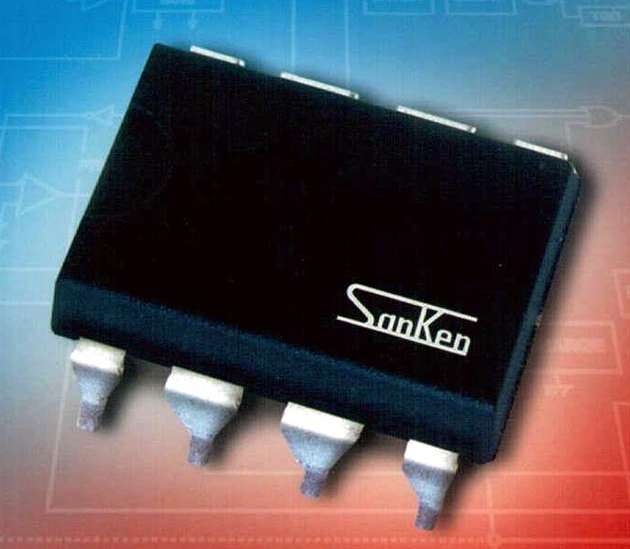

Apr 14, 2005 Series STR-A6100 is designed for power supplies with output power up to 20 W at universal input or 24 W at 230 Vac. Auto-standby function reduces input power consumption to less than 50 mW at 230 Vac by burst-mode operation, which is stabilized by auto-bias function. Series STR-W67xx includes quasi-resonant topology ICs in fully molded TO-220 package that contains controller chip and MOSFET. Units enable output power up to 140 W at universal input, or 240 W at 230 Vac.

Stratasys, Inc.    Minneapolis, MN 55344 2020

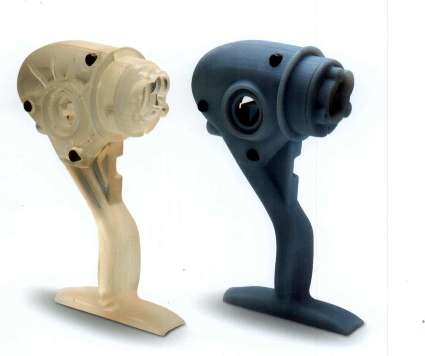

Apr 14, 2005 Designed for Eden333 PolyJet system, VeroBlue(TM) acrylic photo-polymer resin allows users to see more detail than transparent model allows, and achieves resolution of 16 microns. Opaque, blue-colored material helps make models look more like injection-molded part without need for paint. Changeover steps from transparent resin to VeroBlue take less than 15 min, and require replacing material cartridge and following automated wizard set-up process.

USG Corp.    Chicago, IL 60680-4678
Apr 14, 2005 Utilizing fiber-reinforced technology, SECUROCKâ„¢ Roof Board is installed over roof insulation and under membrane, supplying protection, separation, and support. It resists wind uplift and protects against moisture and mold. SECUROCK can be used in single-ply, fluid-applied, built-up, spray foam, and modified bitumen roofing. Made from 95% recycled materials, board emits no VOCs and comes in 4 x 4 and 4 x 8 ft panels with choice of ¼, 3/8, and ½ in. thicknesses.

Advanced Anti-Vibration Components - AAC    New Hyde Park, NY 11040
Apr 14, 2005 Series V10Z4 features Finger Flex ring and bushing isolators designed for loads up to 37 lb per mount. Radial fingers on top and bottom surfaces absorb vibration parallel to axis of mounting. Available in 30 and 60 durometer hardness, corrosion-resistant, zinc-plated mounts feature natural frequencies from 6-30 Hz, 1 1/8 in. freestanding height, 2 3/8 in. square base dimension, and 4-hole tie-down pattern that conforms to MIL-Size 2.

Advanced Anti-Vibration Components - AAC    New Hyde Park, NY 11040
Apr 14, 2005 Light-duty Series V10Z22 ranges in static load capacity from 1.55-132.30 lb with natural frequency of 7-10 Hz vertical and 4.5-6 Hz transverse, for displacement input of ±.030 in. Units have stainless steel springs and mesh pads enclosed in aluminum alloy housing. Heavy-duty Series V10Z28 ranges in static load capacity from 10-1,000 lbs with natural frequency of 13-17 Hz for amplitude of ±.012 in. Units feature knitted stainless steel mesh and Alochrome 1200-coated aluminum alloy housings.

Applied Process Technology,Inc    Conroe, TX 77304
Apr 14, 2005 Available with throughputs from 10-10,000 gpm, Centra-flo(TM) Upflow Filter provides continuous supply of filtered water without interruptions for backwash cleaning cycles. It combines upflow design with deep bed filtration for low headloss at varying flow rates. Unit has no internal or external moving parts. Continuous backwash design provides steady reject stream that eliminates backwash hydraulic surges.

Norgren    Littleton, CO 80120
Apr 14, 2005 With design that optimizes use of space, VP12 Miniature Proportional Motion Control Valve features IP30 weatherproof protection and operating temperature range of 32 to 140°F. Valve enters fail safe mode upon loss of signal or power, and is available in pressure ranges up to 116 psi with has max flow capacity of 200 L/min. Product is suited for applications within automotive, packaging, process, and medical industries.

Sipex Corp.    Miliptas, CA 95035-1701
Apr 14, 2005 Used for backlighting color displays in portable applications, SP6687 charge pump can generate regulated output current using 3 operating modes: linear regulator, 1.5x charge pump, or 2x charge pump. Architecture has 1 µA shutdown current and built-in soft start. Providing matched current source of up to 120 mA total for all channels, driver is designed with integrated current sense circuitry and operates at 1 MHz with 95% peak efficiency.

Kistler Instrument Corp.    Amherst, NY 14228 2119
Apr 14, 2005 Equipped with LCD, 300 Hz Butterworth low pass filter, and RS-232 interface capability, Type 2515A1 engine peak meter simplifies maintenance and monitoring programs. Calculations include arithmetic mean value of peak pressure, standard deviation, steepest slope of pressure curve, and engine speed. Able to operate for 20 hr from 9 V battery, unit provides data storage for 36 successive pressure cycles and can store waveforms from 20 locations.

North American Video    Brick, NJ 08723
Apr 14, 2005 Flat screen displays, offered in 15, 17, and 20 in. models, come with jack pack for multiple inputs and VESAâ„¢ mounting interfaces. With 1024 x 768 resolution and 250 cd/m2 brightness, NAVLCD15 offers 400:1 contrast ratio, built-in speakers, and distortion-free viewing. NAVLCD17, offering 1280 x 1024 resolution, has 450:1 contrast ratio. For viewing by larger audience, NAVLCD20 offers 500:1 contrast ratio, 800 x 600 resolution, and 500 cd/m2 brightness.

Beckman Coulter, Inc.    Fullerton, CA 92834-3100
Apr 14, 2005 Hemoglobin A1c2 (HbA1c2) ready-to-use liquid reagent helps clinical laboratories automate process steps for testing and monitoring of diabetic patients. Bar-coded assay, which offers efficient measurement of hemoglobin A1c in whole blood, is available on SYNCHRON LX® chemistry systems. Analyzer proportions appropriate pre-treated sample and reagent volumes into cuvette then monitors change in absorbance at 340 nm.

Wisconsin Infrared Systems    East Troy, WI 53120
Apr 14, 2005 Featuring 3 zones that provide uniform heat across web, model Web Dryer/IR/E removes moisture on steel web from 1/8-½ in. thick. Oven uses medium-wave, rapid response heaters and lets users turn off zones when drying smaller web widths. With heaters mounted to heat from top-down and bottom-up, unit can operate coil temperatures up to 2,000°F. Casters enable unit to be moved off web line as required and heating capacity is rated at 200 kW.

CDCLarue Industries, Inc.    Sand Springs, OK 74063
Apr 14, 2005 Hum-B allows users to stand upright during operation. Equipped with 6,000 rpm Dewalt grinder, 12-segment diamond wheel, and 5 in. caster wheels, unit features gas-filled shocks for level grinding. Product, suited for use on concrete, stone, or masonry, is also equipped with 150 W halogen light, 2 in. vacuum port, and Dust Grabber shroud, providing 99% dust-free performance with no suction lock.
