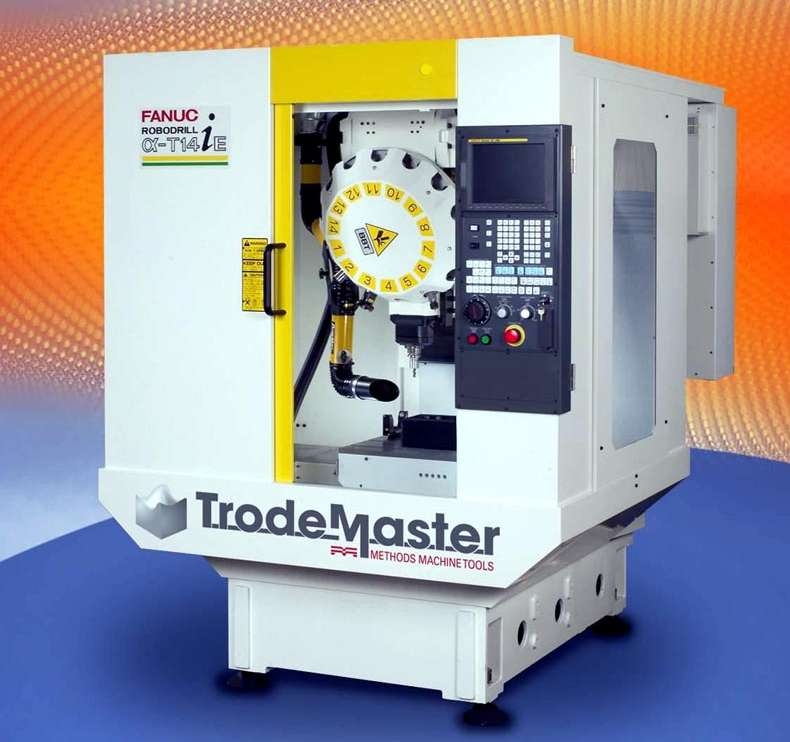

Methods Machine Tools, Inc.    Sudbury, MA 01776
Apr 15, 2005 Featuring 1,000 cfm Torrit dust collector, fully enclosed TrodeMaster(TM) CNC uses 30-taper tooling and offers 3D contouring capabilities. It features feedrates to 2,125 ipm, accelerations of 1.5 G or more, 24,000 rpm Big Plus(TM) spindle, and 0.9 sec tool changes. Machine includes AI Contour Control II with 1,000 block look-ahead, jerk control, and 0.4 ms block processing speed. Spindle HRV control and thermal compensation ensure circularity to 0.00011 in. TIR.

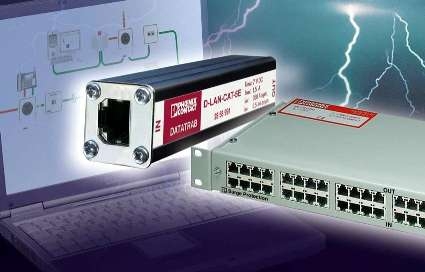

Phoenix Contact    Harrisburg, PA 17111 0100
Apr 15, 2005 D-LAN Surge Protectors are suited for sensitive data and Ethernet networks certified to Cat 5e interface requirements. Hybrid circuit using silicon avalanche diodes and gas discharge tubes provides surge current handling capacity greater than 2.5 kA and clamping voltage less than 7 V. Attenuation values of 1 dB at frequencies up to 100 MHz ensure no effect on normal data traffic. Packaging options include stand-alone, DIN rail mount, and 19 in. multi-port rack mount.

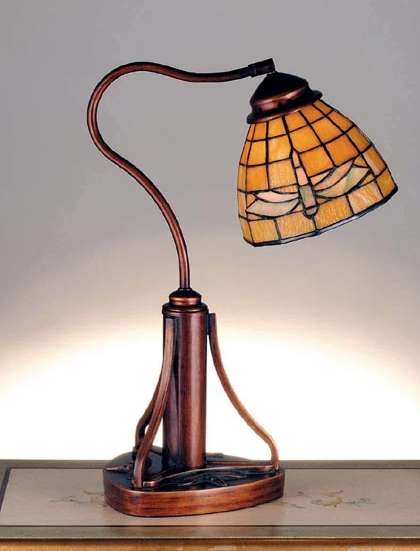

Meyda Tiffany    Yorkville, NY 13495
Apr 15, 2005 Arts and Crafts Dragonfly Series features classic green dragonfly on honey-colored stained glass, combined with bases and profiles hand-finished in copper. Series includes desk lamp, table lamp, wall sconce, 4-light chandelier, and mini pendant.

Advantech Automation Corp.    Cincinnati, OH 45240
Apr 15, 2005 Model PCI-1747U has 64 analog input channels, 16-bit resolution, and 250 kS/s sampling rate. Onboard SRAM stores differential gain, single-ended/differential, and bipolar/unipolar values for each channel. Automatic channel/gain/SD/BU scanning circuit controls multiplexer switching during sampling. Board includes BoardID switch and plug-and-play function, as well as universal PCI interface to support 3.3 and 5 V. Device drivers are available for Windows® XP/2000/98.

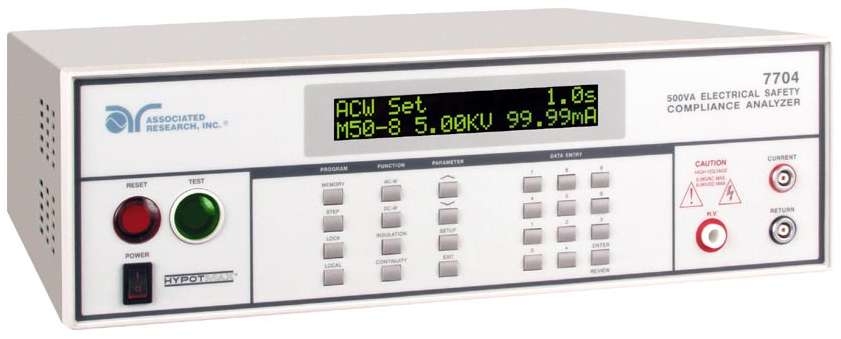

Associated Research, Inc.    Lake Forest, IL 60045
Apr 15, 2005 HypotMAXâ„¢ series multifunction electrical safety compliance analyzers perform various product safety tests from one instrument. Model 7700 is 3-in-1 tester with 5 kV ac Hipot @ 100 mA, 6 kV dc Hipot @ 10 mA, and Insulation Resistance testing, and Model 7704 is 4-in-1 tester that adds 30 A Ground Bond testing. Both models, which include auto discharge and remote safety interlock, are fully automated and come with RS-232 or GPIB interfaces.

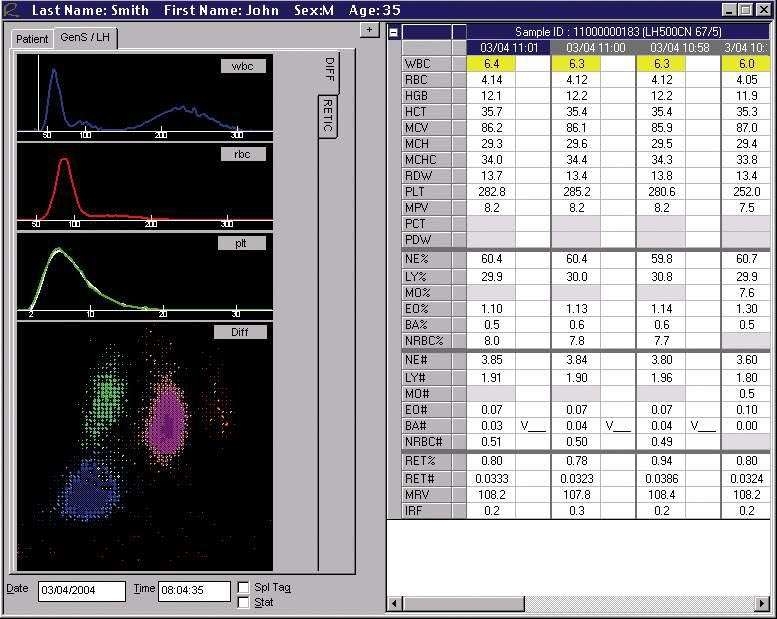

Beckman Coulter, Inc.    Fullerton, CA 92834-3100
Apr 15, 2005 Operating in conjunction with laboratory information system, DL2000 v6.4 facilitates patient test result management. Clinical labs can consolidate test information from various instrument systems and manage data in real-time. Able to control multiple lab processes, software performs auto-validation based on user-defined criteria and alerts operator to abnormal results. Reflex testing and delta checking can be performed automatically.

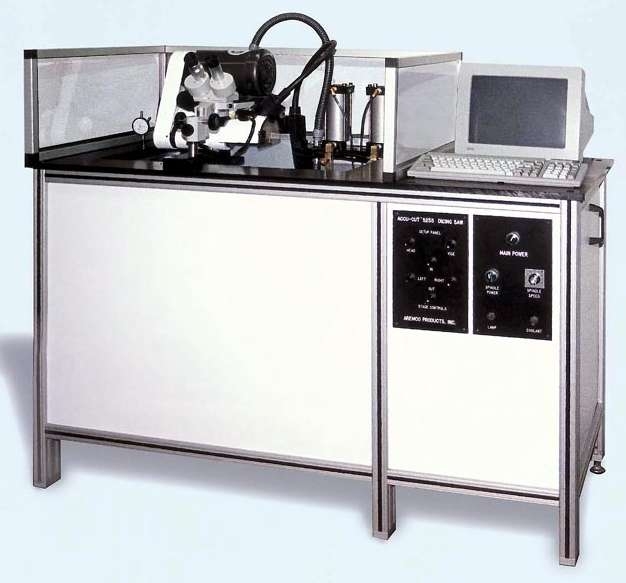

Aremco Products, Inc.    Valley Cottage, NY 10989
Apr 15, 2005 Fully automatic Accu-Cut™ Model 5255 is suited for diamond dicing of ceramic, ferrite, quartz, and semiconductor substrates up to 6 x 6 x 1 in. Able to handle metal- and resin-bonded diamond wheels up to 4.5 in. dia, unit features menu-driven software for entering cut profile and variable-speed spindle with 0–10,000 rpm control. Indexing is handled in steps of .0001 in., and optic system with electronic cross-hair generator assists in part alignment.

Stabilus    Gastonia, NC 28052
Apr 15, 2005 Master-Lift® maintenance-free springs counterbalance covers and objects on Recreational Vehicles (RVs), offering capabilities for safe lifting, lowering, and positioning of doors and lids . Along with compact design, they feature speed-controlled dampening, cushioned end motion, and flat force curve. Standard line, available in various forces, comes in different geometric configurations to accommodate vertical, offset, and horizontal door types.

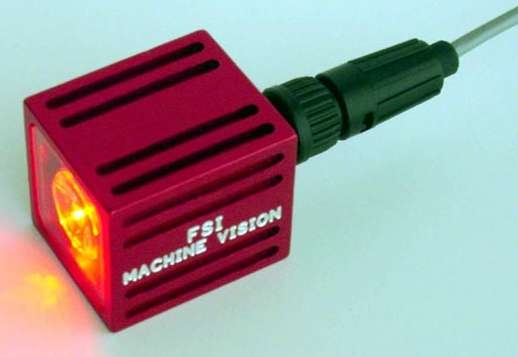

FSI/Fork Standards Inc.    Lombard, IL 60148 2097
Apr 15, 2005 Offered in various colors, X-Beam features solid aluminum housing with one ¼ in. 20 bolt or two 8-32 bolts mounted on 1 in. centers. Single assembly measures 1.5 x 1.75 x 1.5 in., and product is also available in configurations with up to 5 LEDs. It can be used with line or load-side switching, depending on application speed, and connects to power supply via circular, 4-pin, water-resistant connector.

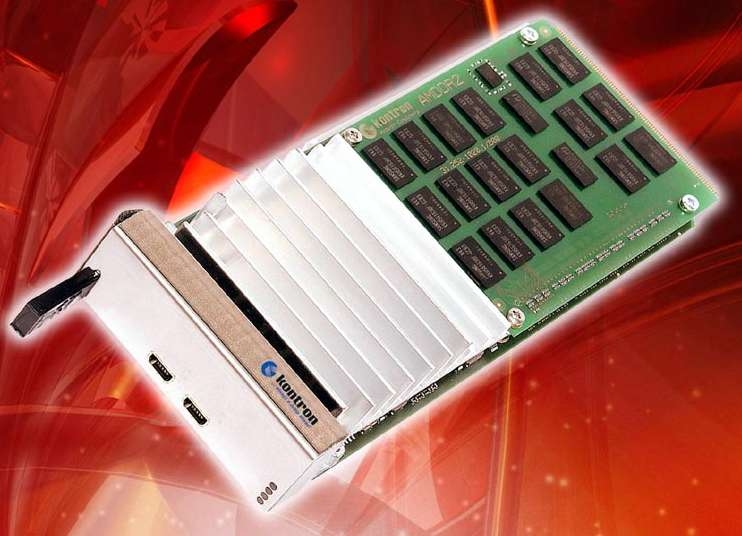

Kontron    Poway, CA 92064
Apr 15, 2005 Hot-swappable Advanced Mezzanine Card (AMC), AM4001, is suited for data processing, storage, I/O, and other tasks. Qualified for use under 99,999% carrier-grade availability, it communicates via serial interconnects with aid of Gigabit Ethernet and PCI Express. Unit features 2.0 GHz Pentium M 760 processor and Intel E7320 chip set. With support for AMC specification, AT8001 ATCA board features individually adjustable I/O functionality and processor performance.

Kurt Manufacturing Co., Industrial Products Div.    Minneapolis, MN 55413 1540
Apr 15, 2005 Used on knee-type milling machines to speed tool changes, Automatic PowerLock® Drawbars are actuated by pushing button while Mechanical Model is actuated by pushing lever. Both models ensure uniform collet tightening without hand tools or manual tightening. They prevent under-tightening and tool slip as well as over-tightening and drawbar breakage. Operated on shop air supply, products include filter/lubricator, regulator, and gauge.

Midwest Motion Products    Watertown, MN 55388
Apr 15, 2005 Measuring 2.14 in. dia x 7.25 in. long, Model MMP.TM55-24V.GPK52-029.1 has keyed output shaft of 12 mm dia by 25 mm long. Mounting is accomplished with 4 face-mount M5 threaded holes, equally spaced on 40 mm dia BC. Output is rated for 2.9 Nm continuous torque at 160 rpm and 9 Nm peak. Motor requires 3.0 A at 24 Vdc to generate full load output torque. Options include optical encoders, failsafe brakes, analog tachometers, and planetary gear heads.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Apr 15, 2005 Rack-mount eServerâ„¢ xSeries® 336 and 346 include dual Intel® Xeonâ„¢ processors with 64-bit extension technology and Calibrated Vectored Coolingâ„¢. With tower design, 64-bit eServer xSeries 236 and 226 offer hot-swap redundant hard drive and power capabilities. IntelliStation® Z Pro workstation includes Xeonâ„¢ processors with Extended Memory 64 Technology. Offered with dual Intel® Xeonâ„¢ processors, eSeries BladeCenterâ„¢ HS20 features 64-bit extension technology and Calibrated Vectored Cooling.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Apr 15, 2005 Suited for eServer® xSeries® and BladeCenterâ„¢ users, TotalStorage DS300 and DS400 are iSCSI and Fiber Channel (FC) workgroup storage subsystems suited for applications such as email, file, print, and Web servers. They also handle collaborative databases and remote boot for diskless servers. TotalStorage DS300 features iSCSI host connection and scalable storage to 4.2 Tb, while DS4000 features 2 Gb FC host connection and scalable storage to 12 Tb.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Apr 15, 2005 Home Page Reader v3.04 provides web developers and designers tools needed to test accessibility and usability of websites. This enables developers to hear and see what users who are blind or have low vision will experience when visiting sites. Software features minimized keyboard navigation and help tools that facilitate creation of accessible web pages. Online tutorial contains demonstrations that show how to test accessibility of web, PDF, and Flash content.

Loveshaw, An ITW Co.    South Canaan, PA 18459
Apr 15, 2005 Little David SP-304 semi-automatic case former and sealer is offered with electric head lift that reduces ergonomic stress involved in raising and lowering head and frame assemblies in response to changing case sizes on line. Head moves from minimum to maximum case range in under one minute. Able to deliver top and bottom flap folding, plug-in product features single mast design, self-tensioning belts, and continuous belt drive operating speed of 60 fpm.

ABB Industrial Power Products    New Berlin, WI 53151 2840
Apr 15, 2005 Available in NEMA 1 or NEMA 12 enclosures, Series AC550 features sensorless vector design, combined with 2 internal slots for options such as encoder feedback, 115/230 V digital interface card, I/O expansion, or fieldbus adapters. Units are suitable for end users, OEMs, system integrators, and panel builders that need compact drives to power fans, pumps, and other motors common to machines and processing equipment.

Kontron Modular Computers GmbH      Germany
Apr 15, 2005 Model AT8001 offers space for 2 Advanced Mezzanine Card modules on single processor board. It integrates Xeon processor with clock rate of 2.8 GHz and 1 Mb L2 cache with 800 MHz system plus PCI Express. Intel E7520 memory hub controller allows up to 8 Gb SDRAM with DDR-II 400. Board includes connections for dual Gigabit Ethernet and optional dual fiber channel connections. Compatible processor module AM4001 features Intel Pentium M 760 processor with 2.0 GHz and Intel E7320 chipset.

Kontron Modular Computers GmbH      Germany
Apr 15, 2005 Based on 120 MHz STPC Atlas processor, T-MOPSlcdSA PC/104 CPU Board operates from -40 to +85°C. It offers 1 Fast Ethernet and 2 USB ports, 1 parallel and 2 serial ports, as well as keyboard, PS/2 mouse, and CRT interfaces. Board is equipped with 32 Mb soldered SDRAM, IDE hard drive, and floppy disk controller. Graphics controller with 4 Mb VRAM UMA is integrated into processor and offers SVGA support as well as development tools for graphics and video functions.

Kontron Modular Computers GmbH      Germany
Apr 15, 2005 Constructed with 6 PCI slots, 886LCD-M/ATX features mPGA478 slot with 90 nm construction that accommodates Intel® mobile processors. It uses 855GME chipset for integrated graphics functions and 6300ESB chipset as I/O hub. Internal and external communications flexibility is ensured by serial ATA, LVDS, 3 Gigabit LAN interfaces, 4 COM ports, and 4 USB 2.0 ports. Additional features include up to 2 GB PC2700 DDR333 SDRAM and 2 SATA/150 and 2 ATA/100 IDE controllers.
