Meyda Tiffany    Yorkville, NY 13495

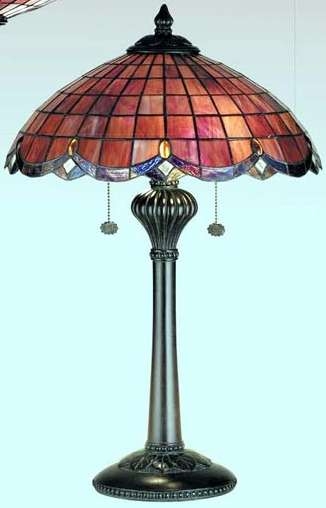

Apr 18, 2005 Elan Stained Glass Lighting Series features garnet-colored stained glass with early 20th century motif that integrates Art Nouveau and Victorian with bases and fixtures that feature leaf designs. Series includes 2-light bar billiard fixture, inverted and downlight ceiling pendants, as well as table lamp.

HBM, Inc.    Marlborough, MA 01752 3014
Apr 18, 2005 Designed for MGCplus amplifier system, CP22 and CP42 communications processors contain integral USB and Ethernet components that allow networks of several thousand channels to be created without additional hardware. Transfer rates vary between 57,600 values/sec in 4 byte format with CP22 on USB and 307,200 with CP42 on Ethernet. Connected via synchronization cables, devices recognize if they are master or slave and feature Linux OS.

MadgeTech    Warner, NH 03278

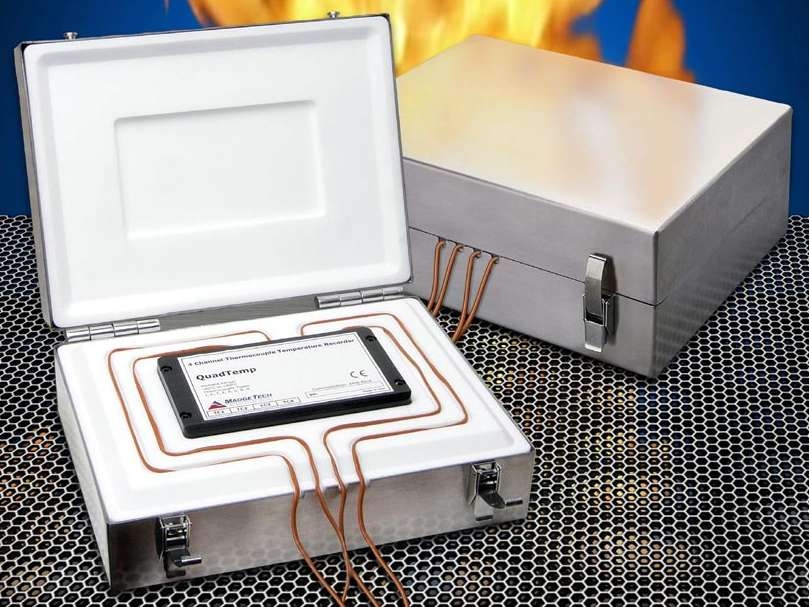

Apr 18, 2005 Thermocouple-based THERMOVAULT features heavy-duty 316 stainless steel case with PTFE insulation that enables it to profile ovens at 750°F for 12 min or 500°F for 45 min. Capable of instantly recording, storing, and date-stamping data, it can be controlled by PC and includes Windows®-based software. Product is available in 1- and 4-channel versions that can record 16,383 readings per channel at rates from one reading every 2 sec to one every 12 hr.

EAO Switch Corp.    Milford, CT 06460

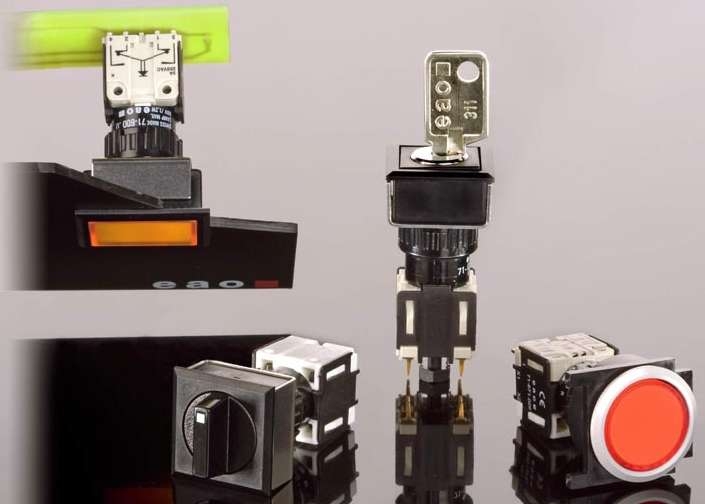

Apr 18, 2005 Suited for situations with limited behind-panel space, Series 71 pushbuttons, indicators, keylocks, and selector switches incorporate PCB assembly system and have depth of 44 mm. Mounted actuator and front panel detach and separate from contacts and PCB to facilitate maintenance. Offered with multiple options, flush-mount series is oil and water-tight to IP65 and available with colored lenses. Products can be illuminated by LEDs or incandescent lamps.

JDV Products, Inc.    Fair Lawn, NJ 07410

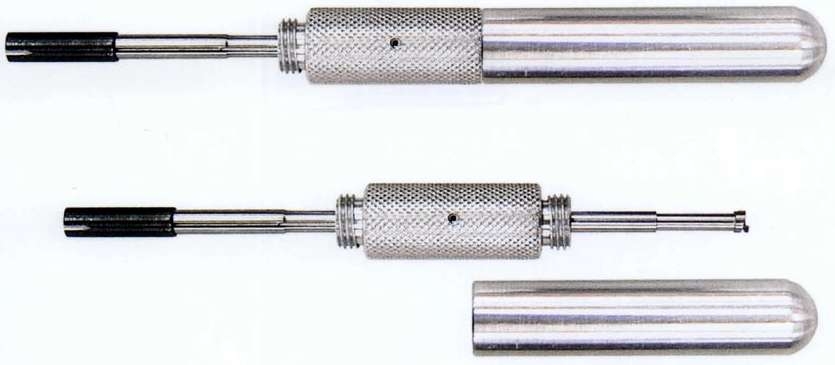

Apr 18, 2005 With overall length of 5.5 in., HWUR224 is made of aluminum and equipped with 1.2 in. knurl throughout grip area. Design features relieved area behind helix that accepts unwrapped wire coils, which are removed by pulling wire at right angle to tool. Product can be switched in seconds from wrap to unwrap by moving end cap from one end to other. Featuring threaded connection, end cap resists loosening during operation.

Keller, J.J., & Associates, Inc.    Neenah, WI 54957 0368
Apr 18, 2005 Back Safety: A User's Guide demonstrates proper lifting techniques and other safety practices at job and explains how off-the-job activities impact back health. Offered on VHS and DVD, program features 25 min informational portion and 5 min segment demonstrating simple stretches and exercises. Instructor's guide and 11 user handbooks also come with program. DVD supplemental material includes Message for Management, commentary, and interactive quiz.

JDV Products, Inc.    Fair Lawn, NJ 07410
Apr 18, 2005 Designed to facilitate fastening in hard-to-reach spaces, Vessel Bit Holder Model MBC and Screw Holder Model MBH are designed with magnetic, quick-release system capable of securely holding any bit or extra long screw. Retainer ring is designed to push, lock, hold in place, and release bit or screw for reliable and safe fastening.

Hoffman Products    Oak Park, MI 48237
Apr 18, 2005 Lugs are made from C-1100-R copper alloy, consisting of 99.98% copper and .02% zinc. Available with or without tin plating and with or without sight hole, products feature seamless barrels for secure and accurate crimp as well as annealed terminals that facilitate crimping. Lugs are available in lengths from 1.22-2.65 in., widths from .44-1.20 in. and IDs from .19-.69 in. Products are designed to aid in production of wire harnesses.

Dwyer Instruments, Inc.    Michigan City, IN 46361

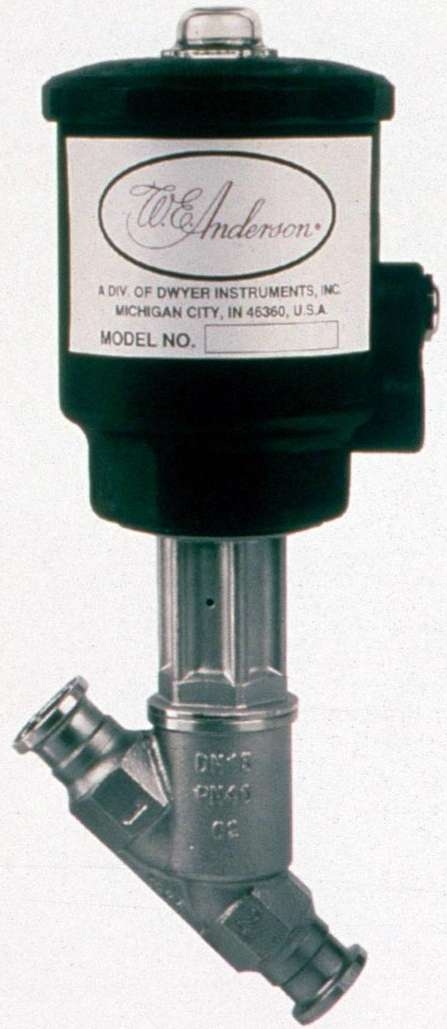

Apr 18, 2005 Featuring 316 stainless steel construction and Teflon® seals, Series SAV-SS come standard with full 360° rotating actuator and visual position indicator. They can be fully configured for complete valve system accommodation. Able to be used in gas, liquid, steam, and sanitary applications, ½ in. NC models offer lines sizes up to 2 in. and line pressure range of 0-290 psig.

Para Light Corp.    Walnut, CA 91789

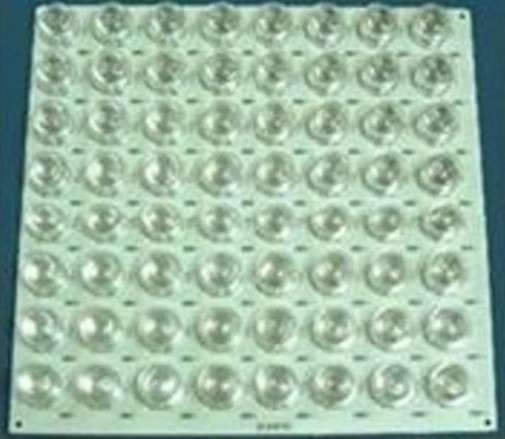

Apr 18, 2005 Available as component part or assembled into end product, enhanced-power LED light bar modules provide lighting source for spotlight projectors and architectural applications. They are comprised of 64 individual 150 mA E-power LEDs with total flux of 200–400 lumens. LEDs are available in amber, red, green, cyan, and blue in addition to RGB version with color-changing capability. Lens is available for focused output.

Copley Controls Corp.    Canton, MA 02021
Apr 18, 2005 Model XLS-FA-01 prevents motor power cables from coupling electrical interference into nearby sensitive circuits by reducing steepness of pulse edges. Product is suited for use when interference from motor drive cables could compromise other electrical circuits in system. It works with Xenus PWM servo amplifiers, which operate from 50/60 Hz ac power; permit stand-alone, networked, and indexed operation; and are rated to 7 kW output.

Fischer Technology Inc.    Windsor, CT 06095
Apr 18, 2005 XAN and XDAL instruments measure toxic metals in plastics to meet EU directives RoHS and WEEE, which state that electronic goods and waste may only contain lead, cadmium, mercury, chromium, and bromine up to legally permitted limit. XAN provides results within 30 sec, while XDAL system is suited for programmed measurements of several samples or scanning of larger specimens. Both instruments contain integrated video microscope.

Bunting Magnetics Company    Newton, KS 67114 0468
Apr 18, 2005 Sheet Fanners, designed for safe handling of sheet stock stacks, utilize non-electric permanent magnets to automatically fan sheets apart. By eliminating chance of jamming doubles into production equipment, product enables operators to safely handle one sheet at a time. All-stainless-steel units are self-contained and can be ganged to handle larger sheets. They come with carrying handles for portability and holes for permanent mounting.

Fette America    Rockaway, NJ 07886
Apr 18, 2005 Designed for use in trial and development stage of new product development, 102i is capable of running single- , bi-, or triple-layer tablets as well as core tablets. It offers direct scale-up capabilities with 1, 3, or 4 punches as well as interchangeable die tables with 6–12 stations, combined B and D table, or full die table. Included R&D Galenic software package tests compacting abilities of substances and analyzes and evaluates pressing procedures.

Kontron    Poway, CA 92064
Apr 18, 2005 Based on SIS 550 LV processor up to 400 MHz with integrated chipset, X-board(TM)<863> Computer-On-Module does not require any active cooling device and offers up to 256 Mb on-board DRAM and 128 Mb on-board FLASH storage. Offering 10/100 Base-T Ethernet capabilities, PCI- and LPC-compatible product offers connectivity through 3 USB 1.1, LAN, and serial interfaces. It provides outputs for sound as well as CRT and LCD/TFT displays with 1280 x 1024 resolution.

Siemens AG    Munich D-80333  Germany
Apr 18, 2005 WinCC flexible 2005 offers user-specific graphics that are linked to project and can be directly edited. Import/export interface is provided for export-oriented machine constructors since any project texts in Unicode can be edited using external tools and translated. Audit option covers pharmaceutical industry requiring validation to CFR 21 Part 11. Audit trails record operator inputs and modifications to variables, and can be visualized using audit viewer.

Industrial Safety Integration    Fergus, ON N1M-3E2
Apr 18, 2005 CIRSMAâ„¢ v2.1.0 examines individual hazards to determine severity, need for access to hazard area, and likelihood of person avoiding harm in hazard situation. Based on risk assessment methodology, software includes document management module and can track equipment or process modifications. Facility safety management system helps define what type of person should be allowed into hazardous area, hiring requirements, and corporate safety policy development requirements.

Weidmuller, Inc.    Richmond, VA 23236
Apr 18, 2005 Power Delivery Solutions protect switched mode dc power supplies against load failures by isolating overloads or short-circuit occurrences from active elements in control panel. WAVEGuard electronic fusing system prevents load failures from propagating back to dc power delivery system, prevents drops in dc power to control panel, and eliminates nuisance-tripping. Solutions also include diode modules, switched mode dc power supplies, and battery back up units.

Struktol Company Of America    Stow, OH 44224 0649
Apr 18, 2005 STRUKTOL® TPW 104 is designed for use in polyolefin compounds, whereas TPW 113 is designed for use in polyolefin-wood composites where formulation contains reactive chemical coupling agents. Suited for use in polyolefin and styrenic compounds, TPW 101 general-purpose lubricant blend improves pigment and filler dispersion and eliminates edge tearing. TPW 012 combines internal and external lubricants, providing optimal fusion characteristics for PVC composites.

Streamlight, Inc.    Eagleville, PA 19403
Apr 18, 2005 Powered by 2 lithium batteries, hands-free Argo HP Luxeon LED Headlamp weighs 4 oz and comes with rubber head strap for use with hardhat as well as elastic head strap for general use. Two digitally controlled brightness levels allow user to control output. At higher level, Argo HP projects 24 lumens for up to 4.75 hr. At lower level, unit projects 6 lumens and runs for 20 hr. Water-resistant lamp measures less than 3 in. wide and comes in impact-resistant ABS case.
