Samtec, Inc.    New Albany, IN 47151 1147
Apr 25, 2011 Edge Rate(TM) 0.5 mm pitch connector strips (ERM5/ERF5 Series) and right-angle socket (ERF5-RA Series) deliver performance ratings up to 10.5 GHz (SE) and 9.5 GHz (DP) and 8.0 GHz (SE) and 9.0 GHz (DP), respectively. This is enabled via Edge Rate(TM) contact system, which optimizes signal integrity and control impedance by minimizing broadside coupling and crosstalk. While strips offer up to 150 I/Os, right-angle Edge Rate socket offers up to 100 I/Os.

Calex Mfg. Co., Inc.    Concord, CA 94520
Apr 25, 2011 Designed for applications requiring input to output isolation, 10 Watt EW Single Output Series DC-DC converters are available with input ranges from 9-18, 18-36, and 36-75 Vdc. Output options are 2.5, 3.3, 5, 12, and 15 Vdc, and all have input to output isolation of 1,500 Vdc. Fully encapsulated for improved thermal performance, case size measures 1.25 x 0.80 x 0.4 in. Operating temperature range is -40 to +90ºC and switching frequency is 400 kHz with efficiencies as high as 87%.

Rockwell Automation    Milwaukee, WI 53204
Apr 25, 2011 NEMA CENTERLINE 2100 and IEC CENTERLINE 2500 low-voltage motor control centers include EtherNet/IP, providing manufacturers with access to production information throughout enterprise and enabling them to configure and commission devices with RSLogix 5000 software. Products let users access information remotely, eliminating exposure to dangerous conditions and power equipment. Featuring embedded IntelliCENTER technology, they use pre-configured and pre-tested network to simplify installation.

E Instruments International LLC    Langhorne, PA 19047
Apr 25, 2011 Along with transparent fluid chamber reservoir for easy viewing of fluid levels, scissor-action HHP 1000 Hydraulic Hand Pump features fine adjustment vernier and pressure release value. Able to produce pressures from 0-15,000 psi, pump options include hydraulic hose with fitting, set of 5 adapters, pump-only carrying case, and carrying case for pump, adapters, and hose.

Dassault Systemes    Suresnes Cedex BP 310, 92156  France
Apr 25, 2011 Abaqus WorldSID (Worldwide Side Impact Dummy) 50th percentile male dummy model helps engineers develop vehicle designs that maximize side impact protection and reduce injuries to occupants. Model is representative of average male in terms of height, mass, and proportion, and incorporates Nitinol material in rib cage region to optimize biofidelity. Dummy has been validated against nearly 300 physical calibration tests for material, component, subassembly, and full dummy load cases.

CUI, Inc.    Beaverton, OR 97005
Apr 25, 2011 Suited for use in consumer electronics and electrical equipment, PJ-06xA and PJ-06xB series have center pin diameter of 2.1 or 2.5 mm and OD of 5.5 mm. Contact resistance is 30 mW max, and insulation resistance is 100 MW min @ 500 Vdc. Able to withstand 500 Vac RMS for 1 min, products have voltage rating of 20 Vdc at 5 A. Options include long bushings, locking nuts with washer, and pins designed to solder directly to wire leads or PCBs in vertical and right-angle orientations.

Air Control Industries    Windsor, ME 04363
Apr 25, 2011 Powered by ACI variable-speed, multi-stage blower, LINE-Dry System removes residual moisture film from water-cooled extruded products up to 25 mm dia at speeds of 500 m/min. Enclosed version has one pair of facing air delivery plenums that can be adjusted to suit different product dimensions and are sprung to allow flexing to accommodate product distortions/kinks. Open version consists of 2 pairs of facing drying heads that are also sprung.

TE Connectivity Ltd.    Berwyn, PA 19312

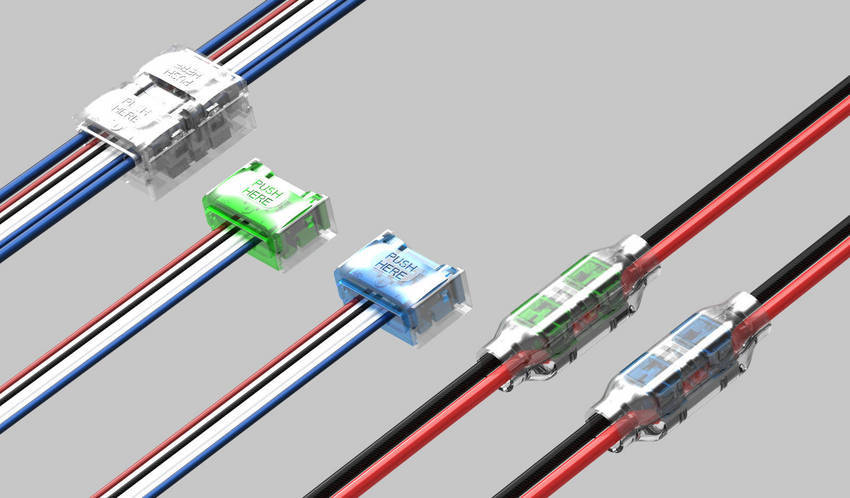

Apr 25, 2011 CoolSplice wire connectors feature left and right independent pushbuttons that can be used with common hand tools to establish ergonomic termination. Insulation Displacement Connectors provide wire-to-wire or wire-to-flat ribbon terminations, and have symmetrical-contoured design that fits through 0.630 in. dia hole or PVC tube. Included viewing window shows whether wire is fully seated. Units accept 18 AWG stranded, fused, or solid wire in unsealed and sealed, color-coded configurations.

Newport Corp.    Irvine, CA 92606
Apr 25, 2011 Model CONEX-AG-M100D is remote-controllable, piezoelectric-motor-driven mirror mount with 2-axis absolute position sensor. Unit is capable of repeatable or absolute positioning tasks, for scanning and laser beam steering applications, and also enables user to save position into memory and recall it upon startup. In open loop, minimum incremental motion of mount is 2 µrad over ±0.75º range and, in closed loop, minimum incremental motion is 0.001º with bidirectional repeatability of 0.01º.

Kurt Manufacturing Co., Industrial Products Div.    Minneapolis, MN 55413 1540

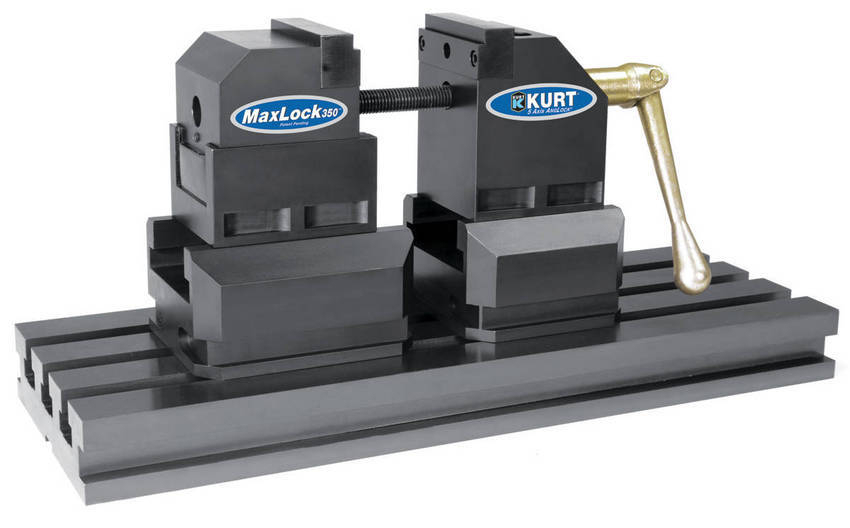

Apr 25, 2011 Equipped with Anglock® feature that minimizes part lift, MaxLock(TM) 350 holds parts with up to 10,000 lb clamping force at 60 lb-ft input torque for max rigidity and close tolerance repeatability in all axes. It enables obstruction-free, high-speed machining in all 5 axes and is constructed with steel components. Featuring 0.625 in. stroke, vise is adjustable to handle any desired clamping length. Available screw lengths are 8, 12, 18, and 24 in., and jaw opening ranges from 0.5-15.5 in.

Creform Corp.    Greer, SC 29652-0830
Apr 25, 2011 Flow rack has ergonomic design and drop-in low-friction roller tracks suited for use with carboard boxes or totes with soft bottoms or open cell designs. Featuring 750 lb capacity and 42 x 78 in. footprint, product includes six 4 in. dia urethane casters, and aluminum roller tracks available in 6, 9, 12, and 15 in. widths, with roller spacing at 1, 2, or 3 in. centers and lengths up to 12 ft. Boxes and totes are angled in supply lanes to optimize viewing and picking.

Calex Electronics Limited    Bedfordshire   United Kingdom
Apr 25, 2011 Able to detect IR radiation at wavelengths from 2.0-2.4 microns, PyroUSB 2.2 utilize short-wavelength measurement method. Model PU151LT2.2 is designed for measuring targets from 45 to 300°C, and other models cover 250 to 1,000°C and 450 to 2,000°C ranges. Supporting direct connection to PC via included USB cable, non-contact sensors provide selectable 0-20 mA or 4-20 mA output linear with temperature. Other features include CalexSoft software, alarms, and OPC Server interface.

Yamaichi Electronics U.S.A. Inc.    San Jose, CA 95134
Apr 25, 2011 Model D38999 plug connector is suited for use in harsh environments in aerospace, military, motor sports, maritime, and rail industries. Insertion molding of housing parts results in permanent connection, at molecular level, between individual components of plug connector, injection molded material, and cable sheathing. Protected from moisture, product is available in any shape or color, or take-off angle, as well as different degrees of hardness.

Servo-Robot Corp.    Bruno, QC J3V6E1  Canada
Apr 25, 2011 Based on digital high-speed laser camera head, AUTO-TRAC/PWP handles products ranging from thin sheet metal to 50 mm thick steel. Weld joint validation feature ensures that joint fit-up meets weld requirement before welding is allowed to start, while real-time adaptation to part function compensates for joint variability. If weld joint is out of camera field of view, system automatically searches until joint is found. With 2 cameras, users can simultaneously track joint and inspect weld.

Sodick    Schaumburg, IL 60173
Apr 25, 2011 With X/Y/Z travel of 12.59 x 7.87 x 9.84 in., AD30L can accommodate workpieces up to 1,212 lb. Voltage control via SVC Circuit enables surface finish to be uniformly and efficiently regulated to provide high-grade texture or mirror surfaces. Integrated technology also allows electrical discharge machining of steel materials with virtually zero electrode wear when using graphite or copper electrodes. There are no ball screws or couplings, and backlash is completely eliminated.

Trek, Inc.    Medina, NY 14103 9710
Apr 25, 2011 Featuring 4-quadrant, active output stage, Model 10/10B-HS provides high-speed response with slew rate greater than 700 V/µsec, output current to 40 mA peak AC, and signal bandwidth of DC to greater than 19.5 kHz (-3 dB). Solid-state product is configured as non-inverting amplifier with fixed gain of 1,000 V/V. It provides precise control of output voltages from 0 to ±10 kVdc or peak AC with output current range of 0 to ±10 mAdc or ±40 mA peak AC for 1 msec.

Acromag, Inc.    Wixom, MI 48393 7037
Apr 25, 2011 Designed for algorithm processing or execution of complex logic routines in embedded computer systems, 3U Series VPX-VLX can be ordered with Xilinx VLX85T, VLX110T, or VLX155T FPGA featuring up to 155,000 logic cells and 128 DSP48E slices. Dual-ported 1M x 64-bit SRAM enables high-speed DMA transfers to/from CPU while simultaneously writing data to memory. Field I/O interfaces to FPGA via rear P2 connector and/or with optional front mezzanine plug-in I/O modules.

Mott Corporation    Farmington, CT 06032 3159
Apr 25, 2011 Featuring 316 stainless steel housing with Buna N seal, Hypulse® Hyline 7710 Series is equipped with 10 in. long, 316L stainless steel cartridges in either double open ended or 1 in. NPT connection configuration. Inline units support max operating pressure of 300 psi and include ¼ in. NPT housing drain, ¼ in. NPT gauge ports, and 1 in. FNPT line connections. Outside-In filter area is 0.54 ft², and each porous metal filter element is 100% leak tested to bubble point.

Aimtec, Inc.    Dollard Des Ormeaux, QC H9G3B9  Canada
Apr 25, 2011 Model AMSRW-78Z has up to 8:1 input voltage range spanning from 9-72 Vdc and steps down to output voltages from 3.3-15 Vdc. Featuring up to 6:1 input voltage range from 4.5-30 Vdc, AMSRB-78-NZ also steps down to regulated outputs ranging from 3.3-15 Vdc and offers output ripple and noise of 25 mV p-p. Both products operate in ambient temperature range of -40° to +85°C and include continuous short circuit protection, output current limit, and thermal shutdown protection.

Paine Electronics, LLC    East Wenatchee, WA 98802
Apr 25, 2011 Designed for downhole environments, 212-40-020 Series employs Silicon On Insulator (SOI) technology and survives temperatures from -40 to +437°F and pressures from 0-5,000 to 0-30,000 psia. Products feature amplified voltage output and measure less than ½ in. dia. Alternate pressure port fittings and electrical connections are available to meet specific requirements.
