ifm efector, Inc.    Exton, PA 19341
May 12, 2005 Incorporating giant magnetoresistive technology, 3-wire dc Proximity Sensors detect magnets through all non-magnetizable materials. With switching frequencies of 5,000 Hz, polarity-independent units operate from -13 to 158°F and provide accurate position detection regardless of magnet orientation. Tubular style sensors are 316 SS quick disconnect units in M8, M12, and M18 dia housings. For washdown applications, IP69K-rated sensors are available in Ml2 and Ml8 dia housings.

Nilfisk Industrial Vacuums    Morgantown, PA 19543
May 12, 2005 Compressed-air Vacuum Model CFM A15 safely collects nuisance materials such as ultra-fine powders, dust, and debris. Multi-stage filtration system features large main filter that helps prevent premature clogging; optional paper-bag filter that captures 99.7% of dust down to 3 microns; and optional HEPA exhaust filter that captures 99.995% of all ultra-fine particles down to 0.18 microns. Unit is powered by venturi system and includes 6.6 gal wheeled collection container.

DJ Products, Inc.    Little Falls, MN 56345
May 12, 2005 CartCaddy5WP attaches to all types of heavy carts and equipment, allowing one person to safely push, pull, and maneuver load. It can handle carts with overhanging product, eliminating need to install tow arms or receivers. Quick connect electric lift kit reaches underneath material and grabs frame of cart. Compact design allows unit to maneuver in tight areas, hallways, and aisles. Utilizing 36 V motor, CartCadd5WP handles loads from 2,500-50,000 lb.

GDS, Inc.    West Chester, PA 19382
May 12, 2005 Specifically designed for fieldwork and in-plant maintenance and construction, handiDandy Universal Pipe Stand Adapter(SM) allows users to change from one setup to another without wasting time. It instantly provides portable vise or other bench-mounted tool.

Roland DGA Corporation    Irvine, CA 92618
May 12, 2005 Used for packaging design, feature animation, or custom manufacturing, 3D scanner models LPX-1200 and LPX-250 come with plug-in that enables users to setup and run scanners with Rhinoceros® surface modeling software. Rhino v3.0 can create, edit, analyze, and translate NURBS curves, surfaces, and solids in Windows and also supports polygon meshes and point clouds. LPX-1200 has 0.0039 in. scanning resolution, while LPX-250 scans objects up to 0.008 in.

Honeywell Power Supplies    Northford, CT 06472
May 12, 2005 Featuring sealed, non-corrosive, non-metallic enclosures, power supplies mount in outdoor areas alongside weatherproof camera housings. Products feature electronically regulated outputs, power disconnect switch, and surge protected outputs in addition to output LED indicator and diagnostic LEDs for each circuit. Each circuit is individually protected with automotive style fuses rated 3 A 35 V, and board is protected with 5 A main fuse.

Linear Technology Corp.    Milpitas, CA 95035
May 11, 2005 Constant frequency, current mode, step-down controller model LTC3772 operates from 2.75-9.8 V input and delivers up to 5 A of output current to voltages as low as 0.8 V. Without requiring current sense resistor, product automatically switches into Burst Mode® operation at light loads. It consumes 40 µA quiescent current under no-load condition and features undervoltage lockout, 550 kHz switching frequency, and internal soft-start.

Mitutoyo America Corp.    Aurora, IL 60504 9176
May 11, 2005 Quick Vision Apex® Series CNC video measuring systems are equipped with black and white or color cameras and offer illumination options of programmable ring lights with halogen ring-fiber or white/RGB LED. With 0.1 µm resolution, models are available with measuring ranges from 200 x 200 x 200 mm to 600 x 650 x 250 mm. Along with QVPAK® software, machines incorporate pattern focusing function and programmable power turret tube lens or programmable power zoom lens.

Dorner Mfg. Corp.    Hartland, WI 53029 0020

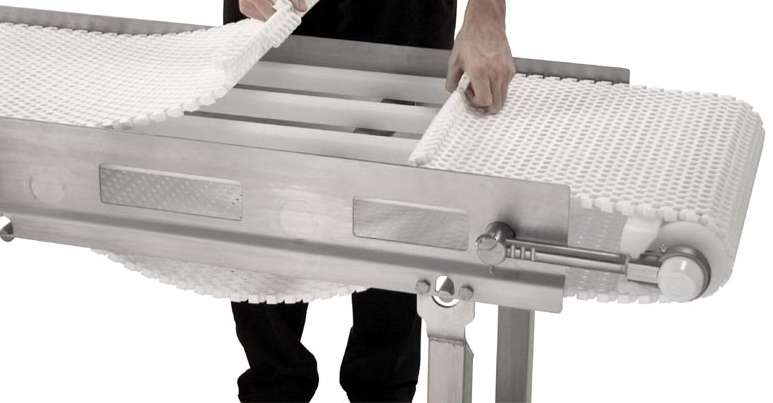

May 11, 2005 Designed for bakery, confection, snack, and prepared foods and protein markets, AquaPruf 7400 Series uses open hinge plastic chain, threadless belt tensioning system, and fully welded frame with no horizontal surfaces or lap joints. All bearings are located outside of product zone, and tip up tail and belt lifters facilitate access for cleaning. Product is available with anti-microbial belting and does not require tools for component removal.

Altronix Corp.    Brooklyn, NY 11220
May 11, 2005 Featuring UL2044/CUL certification, 2U rack - EIA 19 in. models R248ULI, R248ULCBI, R2416ULI, and R2416ULCBI incorporate master power switch with built-in circuit breaker, individual power LEDs, and removable terminal blocks with locking screw flanges. First 2 models offer 8 fuse-protected outputs and total supply current of 12.5 A (300 VA), while latter 2 models offer 16 Class 2 rated PTC outputs and total supply current of 25 A (600 VA).

Altronix Corp.    Brooklyn, NY 11220
May 11, 2005 With 115 Vac input power, Series ALTV248UL AC Wall-Mount Power Supplies deliver 24 Vac output and either 12.5 or 25 A total supply current. All units are UL2044/CUL listed and include master power switch with built-in circuit breaker as well as electronically isolated outputs. Output protection is provided by fuse or Class 2 Rated PTC, depending on model.

Altronix Corp.    Brooklyn, NY 11220
May 11, 2005 With input power of 115 Vac, 2U rack mount Models R615DC416UL, R615DC616UL, R615DC416ULCB, and R615DC616ULCB feature adjustable 6–15 Vdc output range that is filtered and electronically regulated, making them suited for CCTV cameras and accessories. All units include short circuit/thermal overload protection, master power switch with built-in circuit breaker, individual power LEDs, and removable terminal blocks with locking screw flanges.

Altronix Corp.    Brooklyn, NY 11220
May 11, 2005 Models VB1 and VB1T both convert 12–24 Vdc power source to 24 Vdc, .75 A regulated output. Model VB1 offers modular connector/cable assembly to facilitate wiring, while Model VB1T utilizes conventional screw terminal block. In addition to compensating for voltage drop due to long cable runs, boosters can also provide power for 24 Vdc access control devices from 12 Vdc power source.

USG Corp.    Chicago, IL 60680-4678
May 11, 2005 Made of perforated aluminum, TRUE(TM) CLIMAPLUS(TM) Panels are covered with fine-textured, smooth acoustical facing and are designed to fit into slotted suspension tees. Ceiling facing supplies light reflectance of .90 LR value, minimizing eyestrain and number of light fixtures needed in given space. Panels withstand conditions up to 104°F/95% RH without visible sag when used with DONN® Brand FINELINE® Suspension System. Sizes include 2 x 2 ft and 2 x 4 ft. THIS PRODUCT IS NOT AVAILABLE

Allegro Industries    Garden Grove, CA 92841-1410

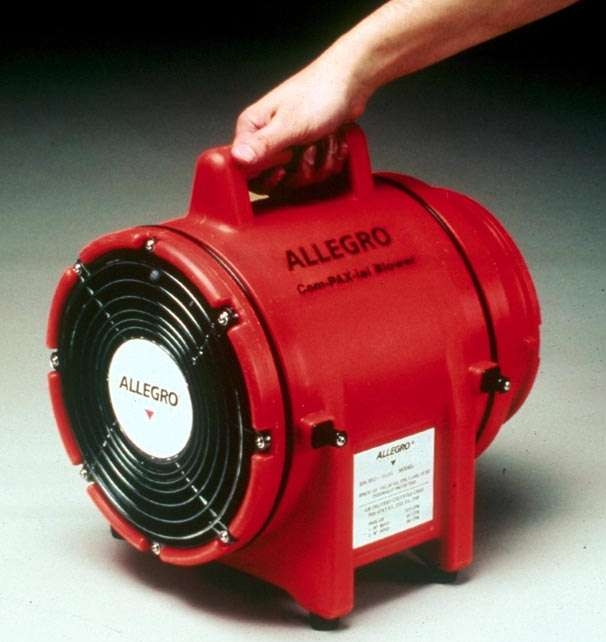

May 11, 2005 Eight inch Compaxial Blower features 1/3 hp motor and 9-blade polypropylene fan encased in powder-coated steel grill. Blower and canister are corrosion-, UV- and chemical-resistant polyethylene with handles for transport. Unit can be set up to ventilate or evacuate airflow with canister locking system. Design allows user to remove canister and ducting from outlet side and attach it to inlet side in seconds. Weather-resistant canister houses 15 and 25 ft ducting.

Dortronics Systems, Inc.    Sag Harbor, NY 11963
May 11, 2005 Designed for environmentally unprotected areas, 6495 Series uses weather-resistant switch contacts and fits any standard 36 in. wide door; special widths are available for doors up to 48 in. wide. Single or dual contact outputs can be used for REX input to card access systems or EDR-101 Delayed Egress Systems. Imprinted with Push to Exit in black accent, aluminum egress bar has clear anodized finish and can be supplied as mechanical rim device.

Panasonic Security & Digital Imaging Company / Vision System    Secaucus, NJ 07094

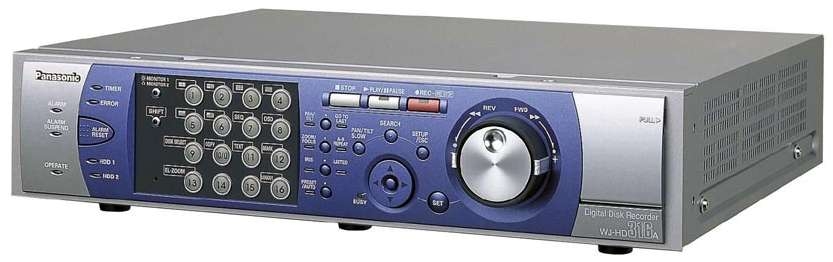

May 11, 2005 Designed for IP-based systems operating on LAN/WAN, WJ-ND300 offers scalable operation and ability to record cameras from various manufacturers. Digital recorder facilitates installation with auto IP detection and set-up. Performance features include refresh rate of 960 ips from 32 cameras using MPEG4; multi-format recording (JPEG/MJPEG/MPEG4); and data stream control between live and recorded images. Unit supports up to 4 optional, on-board hard drives.

Allegro Industries    Garden Grove, CA 92841-1410
May 11, 2005 Defibrillator Wall Cases come in plastic and metal versions with front windows, turn latch handle, defibrillator graphics, and battery-operated alarm. LED visual alarm with key shut off is available on smallest model. White, metal cases are constructed with corrosion-resistant steel, and white, ABS plastic models come with 3 optional slide-in shelves. Specific models are listed as Dual SCBA, PAPR, Lockout/Tagout, and Generic Wall Cases.

Siemens Energy & Automation, Inc., Spring House Location    Spring House, PA 19477-0900
May 11, 2005 SITRANS P MPS includes submersible sensor for measurement in wells, tanks, channels, and dams. Transmitters are available for various measuring ranges and with optional explosion protection. With 0.3% accuracy, temperature-compensated product features flush-mounted piezo-resistive sensor with stainless steel diaphragm as well as electronic circuit fitted together with sensor in stainless steel housing. Cable contains strength cord and vent pipe.

C & M Corporation    Wauregan, CT 06387 0348
May 11, 2005 DuraFloat Cable relies on foam core extrusion capabilities to achieve precise cable buoyancy requirements. It is flexible, UV-stable, and abrasion-resistant and may be fitted with choice of jackets to achieve resistance to various chemicals including acids, salt water, oil, and gasoline. Cable is suited for powering and controlling robotic cleaning systems in swimming pools and aquarium facilities as well as marine applications and submersible environmental pumping systems.
