Kooltronic Inc.    Pennington, NJ 08534
Apr 21, 2005 Designed to cool electronic cabinet interiors, Profile Series 43 panel mounted air conditioner measures 43 x 17 x 9 in. and has 6,000 BTU/hr capacity. Unit is usable in ambient temperatures up to 131ºF, carries NEMA 3R rating, is UL/CUL Recognized, and is tamper-resistant when internally mounted. Available in 115 and 230 Vac, 50 or 60 Hz, unit incorporates EMI/RFI suppressor, condenser impeller speed controller, and low temperature control thermostat.

Bud Industries, Inc.    Willoughby, OH 44094

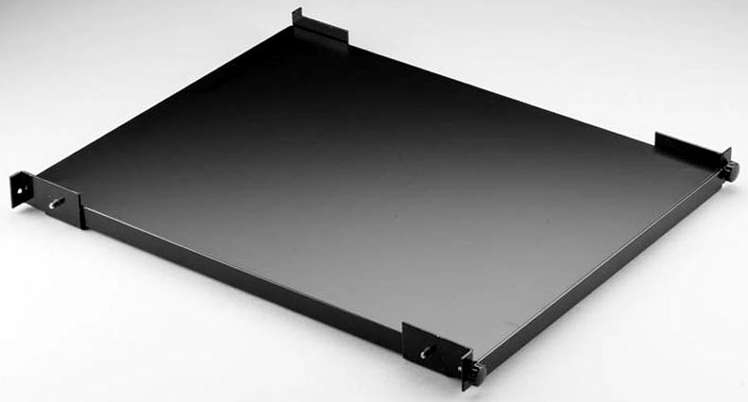

Apr 21, 2005 Installable in less than 5 min, heavy-duty Tool-Less Shelf is constructed of 16-gauge steel with 12-gauge steel mounting brackets and has smooth black powdercoat finish. Panel width is 19.00 in., and shelf dimensions are 17.68 in. wide x 23.00 in. deep. Ventilated version and custom sizes are available. Able to support up to 150 lb of equipment, shelf suits cabinet or rack assemblies that require installation of non-rack-mountable equipment.

Osram Sylvania, Inc.    Danvers, MA 01923
Apr 21, 2005 Available in 200, 400, 575, 700, and 1,200 W versions, double-ended, SharXS HTI Series features eXtreme Seal technology, which enables lamps to withstand thermal stress. Thermally sensitive area at seal is covered by protective layer that allows lamps to withstand temperatures up to 450°C. With arc gap of 3, 4, or 7 mm, units render color temperature ranges from 6,000–7,500 K. Pre-aligned lamp base and SFc10-4 lamp holder allow proper installation.

Osram Sylvania, Inc.    Danvers, MA 01923
Apr 21, 2005 DULUX® L SUPERSAVER® Lamps are 28 W, singled-ended, T5 twin-tube lamps that replace 40 W DULUX L CFLs. With color rendering index of 82, units feature color temperatures of 3,000, 3,500, and 4,100 K. They are suitable for 2 x 2 recessed direct or indirect applications as well as wall wash type applications. Lamps operate on QUICKTRONIC® Instant Start DL ballasts with QUICKSENSE® shutdown circuitry that protects against overheated bases and sockets.

Osram Sylvania, Inc.    Danvers, MA 01923
Apr 21, 2005 MINISTAR™ lamps, suited for use even in unshielded luminaires, utilize silver coating that reduces thermal load on luminaire by directing heat outward. They can be used in accent and display case lighting fixtures as well as track, pendant, recessed, and wall sconce fixtures. With average rated life of 2,000 hr, products are available in axial versions from 20–35 W and side reflector versions from 10–20 W with color temperatures from 2,900–3,000 K.

Osram Sylvania, Inc.    Danvers, MA 01923
Apr 21, 2005 DRAGONtape® and DRAGONpuck® Modules are available in color temperatures of 4,700, 5,400, and 6,500 K with color rendering index of 80. Both offer service life up to 50,000 hours when temperature is maintained at 40°C. Packaged in flat module, DRAGONtape system uses 6 Golden DRAGONâ„¢ LEDs connected in series and spaced 1 in. apart. DRAGONpuck utilizes 3 Golden DRAGON hi-flux LEDs mounted on metal substrate circuit board with optical lens.

Osram Sylvania, Inc.    Danvers, MA 01923
Apr 21, 2005 Available in clear or coated versions, METALARC® POWERBALL® 320-Watt MCP Lamps use arc tube technology to deliver 117 lumens/W and CRI of 85+. Units offer energy efficient alternative to 350 and 400 W ceramic metal halide lamps, and are suited for big box retail stores, grocery stores, industrial paint shops, gymnasium lighting, canopy lighting, and other color critical areas. Lamps comply with 2005 National Electric code for use in open fixtures.

Osram Sylvania, Inc.    Danvers, MA 01923
Apr 21, 2005 Available in 23 W model, DURA-ONEâ„¢ Lamp offers direct replacement for medium-base incandescent and compact fluorescent lamps. Magnetic induction technology eliminates need for coils, while amalgam technology allows lamp to provide 90% rated light output from 25–150°F with reliable starting at temperatures as low as 0°F. Lamp offers flicker-free, instant-on starting and provides bright warm light with color temperature of 2,700 K and CRI of 82.

Cognex Corp.    Natick, MA 01760 2059
Apr 21, 2005 Model In-Sight® 5403 captures full-frame 1,600 x 1,200 images at up to 15 frames/sec for detailed inspection of fast moving objects. Self-contained, industrial-grade vision sensor meets IEC specifications for shock and vibration and has IP 67 rating for dust and wash-down protection. With built-in Ethernet communications and In-Sight Explorer software, applications include precision gauging, alignment, and fine-defect inspection on very small parts.

Banner Engineering Corp.    Minneapolis, MN 55441
Apr 21, 2005 Self-contained World-Beam® Q12 Series ultra-miniature sensors offer IP67 environmental protection rating and withstand harsh industrial environments. Available in opposed, retroreflective, polarized retroreflective, and fixed-field modes, sensor has range of up to 2 m. Bright green and amber status LEDs visible from 360º. All units feature solid-state bipolar outputs, one current sourcing, and one current sinking.

Dynamic Conveyor Corp./Dyna-Con    Muskegon, MI 49441 6031
Apr 21, 2005 DynaCon® System is constructed of high-impact plastic modules that are assembled in interlocking sectional units, including belts, sides, legs, motors, and accessories. Self-tracking belts are available in 10 styles in 4–60 in. widths. Selection of components enables manufacturers to adapt to changing situations. Accessories include feed shields, drop-zone reinforcement modules, electrical components, electronic eyes, metal detection equipment, and electrical controls.

Kimberly-Clark Professional    Roswell, GA 30076
Apr 21, 2005 Available in WINDOWS or IN-SIGHT dispenser lines, SCOTT® Roll Control Center-Pull Towel System enables single-handed towel dispensing that reduces risk of spreading germs. Towels are dispensed one-at-a-time via Z-shaped aperture, while one-handed loading mechanism facilitates loading and maintenance. Product features SCOTT® Towels with Absorbency Pocketsâ„¢.

Surfware, Inc.    Westlake Village, CA 91362
Apr 21, 2005 SURFCAM Velocity utilizes TrueMill technology to control tool engagement with material. Software uses aggressive machining parameters to increase material removal rates for reduced cycle times. It generates smooth, fluid tool paths, free from spikes or sudden changes in tool load, that leverage motion-control capabilities of CNC machine tools and that also minimize stress on cutting tool and machine.

MWH Soft    Broomfield, CO 80021
Apr 21, 2005 Available for power ArcGIS (ESRI, Redlands, CA) users, InfoSWMM v2.0 sewer network analysis program provides GIS-centric modeling and design solution for management and operation of stormwater and wastewater collection systems. Urban drainage modeling product integrates all operations of sanitary, storm, and combined sewer system in one geoengineering environment, optimizing BMP and LID designs. Software includes multiple reporting and graphics features.

Lennox Industries Inc.    Richardson, TX 75080
Apr 21, 2005 Engineered with SilentComfortâ„¢ technology, XC21 central air conditioner features fan design, compressor with vibration insulators, sound-dampening fan grill, and Hushtone® cabinet, all designed to reduce noise during operation. Energy Star product meets EPA standards and uses chlorine-free R410A refrigerant. Unit comes equipped with system operations monitor and 2-stage scroll compressor with high and low levels of operation.

Meggitt (Maryland), Inc.    Germantown, MD 20876
Apr 21, 2005 DIN-rail mount iT 401 Alarm offers front panel LED readout, push button controls, and 3 programmable relays for vibration monitoring or process control. It operates with any 4-20 mA signal input directly from loop-powered sensor or vibration transmitter that converts accelerometer signals to 4-20 mA data. Used as part of condition based monitoring system or or connected directly to plant PLC or DCS, unit can directly operate smaller motors and valves.

Gagne, Inc.    Johnson City, NY 13790 0487
Apr 21, 2005 Used to correct misalignment in push-pull applications, rod-end couplings are offered in 6 different sizes with 3 styles of threaded connections: flange type, 2 tap, and male-female. Able to meet load requirements of any application, couplings have yellow zinc chromate finish to resist effects of corrosion and lengthen life of application.

Tra-Con, Inc.    Bedford, MA 01730
Apr 21, 2005 Tra-Sheet BFGA electrically insulating silicone sheet is suited for applications requiring thermal resistance as low as 0.12°C/W and thermal conductivity to 5.0 W/m•K. Reinforced with glass-fiber layer to maximize reworkability, product remains flexible enough to avoid cracking and stay stable over extended periods. Film, offered in thicknesses from 0.20–0.80 mm, is available in standard shapes or can be custom die-cut to specifications.

Tra-Con, Inc.    Bedford, MA 01730
Apr 21, 2005 Clear, low-viscosity TRA-BOND F230 offers Shore D hardness of 85, pot life of 1 hour, and can be cured in as little as 1 min at 150°C. Product is suited for termination of single and multi-mode connectors, and bonds to variety of optical materials. Featuring operating temperature of -60 to 175°C, adhesive offers impact and thermal shock resistance. Unmixed components are light yellow, while mixture is light green, and fully cured adhesive is reddish-amber.

Accu-Sort Systems, Inc.    Telford, PA 18969 1196
Apr 21, 2005 AccuVision® AV4000 v2.0 incorporates long-range camera, illumination, and decoder. Digital zoom is located in camera, which offers filterless design, mirror blower option, and ability to save parameters. Packaged in industrial housings, camera and illumination are permanently aligned. Software enables side-to-side detection, dimensioning to 0.5 in., and quadrant scanning. Unit integrates with network via Ethernet, serial, and modem connections.
