Amperite Co., Inc.    Union City, NJ 07087

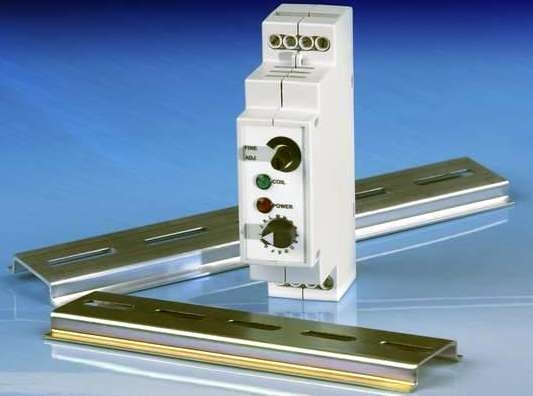

Apr 27, 2005 Offered with M36 DIN rail 22.5 mm wide package enclosure, Series SWRDC Time Delay Relays feature solid state CMOS circuitry, delay on operate timing mode, and SPDT isolated 8 A contacts. Timing is user selectable with 16 position rotary switch and potentiometer in overlapping timing ranges from 0.10 sec to 120 min. SWRDC Series is available in 12 and 24 Vdc voltages with -40° to +185°F operating temperature range.

Cole-Parmer Instrument Co.    Vernon Hills, IL 60061
Apr 27, 2005 Universal Mass Flow Control System allows user to monitor 4 flowmeters or flow controllers from anywhere Internet-connected PC is available. Each flowmeter channel features totalizer and dedicated alarm, and there are 2 dedicated relay outputs per controller. Batch control program allows execution of up to 16 steps in batch process, while flow control program directs flow control through user-defined series of up to 96 steps, ramping flow rates up, down, on, or off.

Carr Lane Manufacturing Co.    St. Louis, MO 63119
Apr 27, 2005 Available in straight or tapered versions, Index Plungers are heavy-duty assemblies with retractable spring-loaded plunger. Straight version features cylindrical plunger with slight radius at top and straight bushing. Tapered version offers 15° taper on plunger tip with mating taper on bushing to facilitate alignment. Both types come in rotary cam versions, with standard or flange mounting, or with blank machineable end.

Baumer Ltd.    Southington, CT 06489 1534

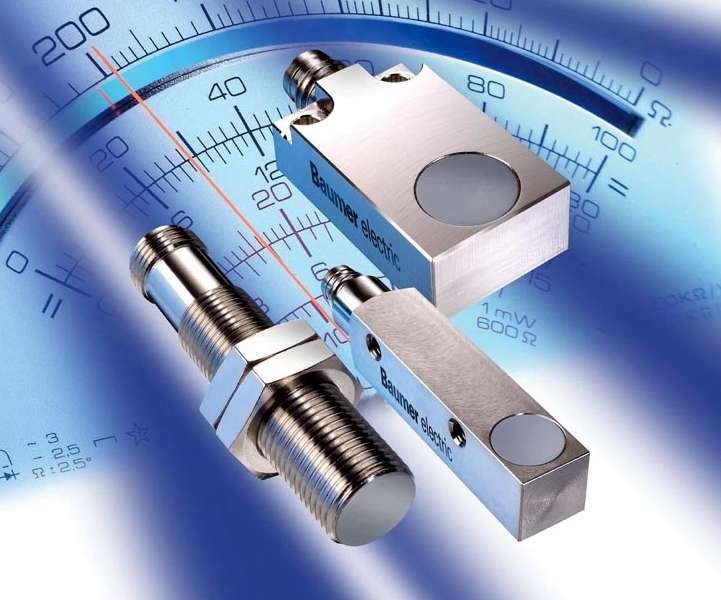

Apr 27, 2005 Measuring 2.5 in. long with 0.5 in. dia, IWRM 12Z8704/S14C analog inductive proximity sensor features reversible digital output with 2 programmable trigger points. Supply voltage range is 10-30 Vdc and response time is less than 2.5 ms. With IP 67 rating, operating range of 0-4 mm, and resolution of 0.005 mm with deviation of 0.05 V, sensor may be used for sorting metal objects, assessing wear measurement and circularity, and thickness measurement.

Southco    Concordville, PA 19331 0116
Apr 27, 2005 With all-metal construction, mini R4 combines security of rotary latch closure with smooth, push-to-close operation in 1.1 in. deep x .56 in. thick package. Concealed latch mounts on inside of enclosure door and engages with striker bolt mounted to frame. Able to be hand- or remote-actuated, it is offered in different styles that permit actuation force to be applied in line with, or perpendicular to, latch body.

Foster Transformer Co.    Cincinnati, OH 45223 2571

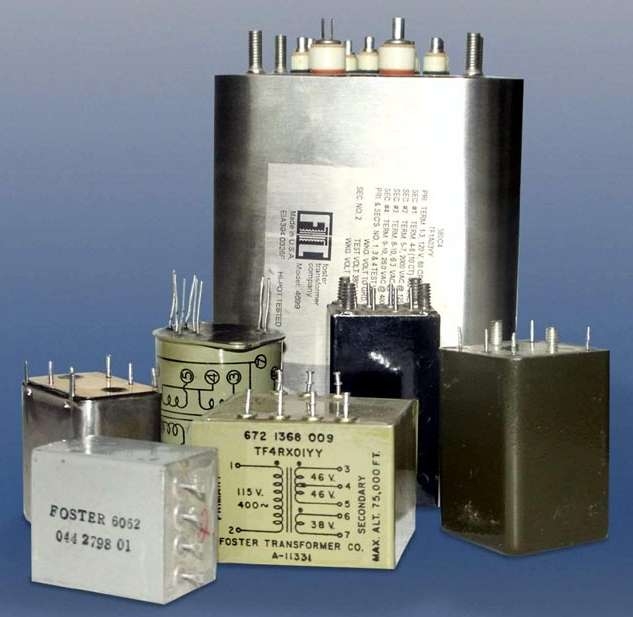

Apr 27, 2005 Hermetically Sealed Transformers and inductors feature glass-to-metal hermetically sealed terminals, MIL SPEC paints and finishes, and deep drawn and fabricated enclosures. Quality of epoxies and silicones maximize service life and offer resistance to heat, vibration, and other environmental factors. Suited for military and commercial applications, products meet MIL-T-27 requirements and can be used in new designs as well as legacy products.

Branson Ultrasonics Corp.    Danbury, CT 06813 1961
Apr 27, 2005 Connected directly to 2000 Series hand-held welding devices, 2000LP Ultrasonic System is configurable to run in automation and features digital LED read out and process controls. Visual, audible, and logic alarms provide continuous monitoring, while closed loop amplitude control ensures constant power and consistency in welding cycle. Available in 20, 30, and 40 kHz frequencies, product offers 5 levels of power supply protection and LPt or LPe control level.

Camfil Farr    Riverdale, NJ 07457
Apr 27, 2005 CamsorbT CF4A adsorber modules are suited for commercial, industrial, and medical facilities where control of gaseous contaminants or odors may be of concern. Each unit uses 12 Camsorb CF 1 in. panels filled with loose-fill or application-specific sorbent media. Sorbent section is sandwiched between 2 particulate filter frames that allow installation of various combinations of prefilters and ASHRAE grade final filters. Assemblies may be stacked up to 6 units high.

Revvo Caster Co., Inc., The    West Seneca, NY 14224

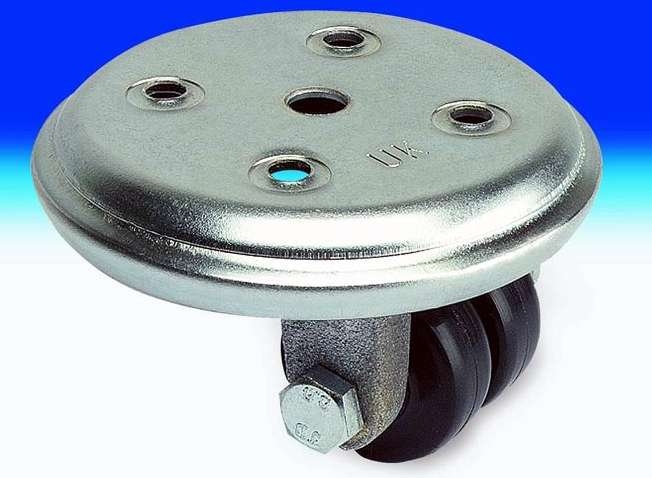

Apr 27, 2005 Series 2SL twin-wheel casters feature 1 3/8 in. dia wheels with caster height of 2¼ in. and load capacity of 264 lb. Tread width for 35 mm wheels is 9/16 in., and top plates have fixing holes to suit ¼ in. dia countersink head screws. Designed for moving equipment and loads over level surfaces, casters feature non-marking black nylon wheels that are resistant to oils, fats, alkalis, soaps, and detergents.

General Monitors    Lake Forest, CA 92630

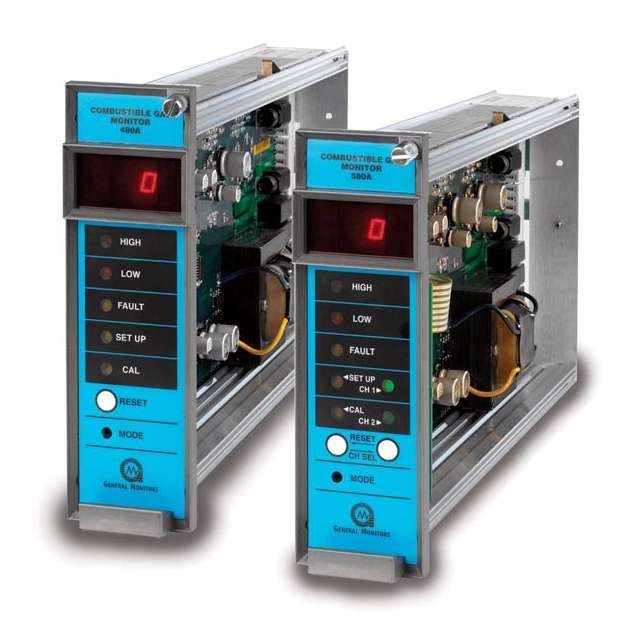

Apr 27, 2005 Single-channel Model 480S and dual-channel Model 580S provide continuous, fixed-point monitoring of combustible gas concentrations in 0-100% Lower Explosive Limit, and are factory-calibrated to particular gas or vapor. Utilizing continuous diffusion, electro-catalytic bead sensing technology, units operate on 117 Vac or 24 Vdc input power with 24 Vdc battery back-up capability. They include digital LED display along with LED indicators for alarm, fault, and status.

FocalSpot, Inc.    San Diego, CA 92131

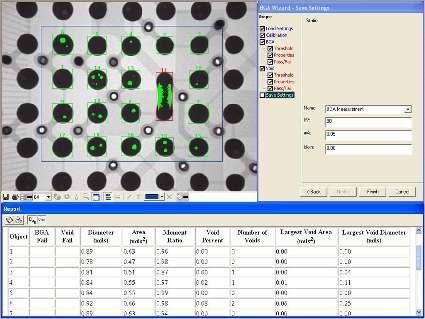

Apr 27, 2005 PC/Windows XP(TM)-based, VIP Plus offers diagnostic capabilities for visualization, measurement, and analysis of PCB assemblies, components, and internal electrical interconnections. Software enhances x-ray image quality through image averaging and algorithm-based filters. It offers Print and Save functions, live image display, arrow and text annotation tools, point-to-point measurement tools, user-defined pass/fail criteria, BGA and Bump measurement, and void measurement.

Advanced Thermal Solutions Inc.    Norwood, MA 02062
Apr 27, 2005 Controllable Wind Tunnel, Model CWT-PCBâ„¢ accommodates 6 PCBs with 0.5 in. card-to-card spacing, or 3 PCBs with 1 in. spacing. It can be fitted with various fan trays to accommodate broad airflow range or with heating elements to allow for elevated air temperature testing. Clear polycarbonate panel enables smoke flow visualization. Measuring 70.5 x 40 x 25 in., wind tunnel sits on casters and can be manually operated or driven by programmable fan controller.

Imperx Inc.    Boca Raton, FL 33487
Apr 27, 2005 Smart Camera Model IPX-2M30-L delivers max frame rate of 33 fps with 1,600 x 1,200 pixel resolution. Incorporating Lynx 32-bit RISC processor, high-speed unit offers horizontal windowing, subsetting to capture only particular area of interest, automated iris to prevent saturation in high-light situations, and 10 sec integration time. Camera provides environmental tolerance of -5 to +55°C, dynamic range greater than 60 dB, and gain range of 6–41 dB.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Apr 27, 2005 Suited for small and medium businesses, ThinkPad® X32 is based on 1.8 GHz Intel Pentiumâ„¢ M processor with 2 Mb L2 cache, 400 MHz FSB, and Intel SpeedStep technology. Unit features Intel 855 PM chipset, 12.1 in. TFT display with 1,024 x 768 pixel resolution, 40 Gb hard disk drive, accelerated graphics port, and 256 Mb memory expandable to max of 2.0 Gb. Optional extended life battery provides up to 10 hours of life when used with main battery.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Apr 27, 2005 ThinkPad® X41 is based on 1.5 GHz Intel Pentium M, low voltage processor with 2 Mb L2 cache and 400 MHz FSB. It includes Intel 915GM chipset, 12.1 in. TFT display with 1,024 x 768 pixel resolution, 40 Gb HDD, Intel Graphics Media Accelerator 900, variety of network connections, and 512 Mb DDR2 memory expandable to max of 1.536 Gb. Integrated fingerprint reader on selected models helps to prevent unauthorized access to notebook and data.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Apr 27, 2005 Featuring 1.8 in. form factor, ThinkPad 60 GB Mini Hard Drive includes IDE interface with Ultra-DMA transfer mode and advanced power management technology. Unit provides rotational speed of 4,200 rpm, interface transfer rate of 100 Mb/sec, max media transfer rate of 240 Mbits/sec, and average access time of 15 ms.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Apr 27, 2005 ThinkPad® X30 Series rechargeable Li-ion battery, No. 92P1097, contains 6 cells that produce 10.8 Vdc nominal and 4.8 Ah output. Able to be recharged in 3–6 hr, product provides up to 5 hr of battery life on selected models and features over-discharge protection. It is supported on all models of ThinkPad X30 Series, machine types 2672, 2673, 2884, and 2885, and can also be used with optional ThinkPad X3 UltraBase as second battery.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Apr 27, 2005 Rated at 4.5 A, ThinkPad X40 Series 8-Cell Battery provides output of 14.4 V and can replace original system battery or be swapped in as spare. Unit features over-discharge protection and can be recharged in 4.3–12 hours, depending on ThinkPad system usage.

Honeywell, Inc., Industrial Automation & Control    Phoenix, AZ 85023
Apr 27, 2005 Asset Managerâ„¢ Release 310 is an integrated asset management component of Experion PKS that identifies and analyzes symptoms and faults from thousands of data points collected from plant systems, historians, field sensor networks, and other plant databases. It continuously monitors, trouble-shoots, and maintains Experion PKS control loops and field device assets, as well as process-based assets. Root cause failure analysis helps minimize process and equipment failures.

Omron Electronics, LLC    Schaumburg, IL 60173
Apr 27, 2005 Safety Network Controller features modularly configured safety functions for programming safety circuits. It can allow safety control and machine control to be performed in parallel via single wiring. Machine conditions can therefore be monitored without requiring other wiring for maintenance. Controller meets guidelines of SIL3 of IEC61508 for functional safety and category 4 of EN954-1 regarding safety of machinery.
