Mocon    Minneapolis, MN 55428
Apr 23, 2012 As combination testing system for packages with one-way degassing valves, MultiCheck® 425 measures headspace carbon dioxide (CO2) and oxygen (O2). System also performs pressure decay leak test, seal strength burst test, and one-way degassing valve performance test via Valve Test Unit(TM) (VTU). By combining 5 tests in one unit, product conserves time, labor, and samples needed to conduct individual testing; single package cycles through all tests on one unit.

Process Control Corp.    Atlanta, GA 30340
Apr 23, 2012 Available with up to 4 elements and up to 350 PPH, 1 kg Guardian® Series 2 blender has design that facilitates clean-out and material changes. Elements of construction include cartridge style metering gates, stationary loading platform, quick removal agitator, and sightglass style polycarbonate access doors. Equipped with color PLC-based touchscreen control system, blender also incorporates all-in-one removable metering unit and material hopper.

KNF Neuberger, Inc.    Trenton, NJ 08691-1810

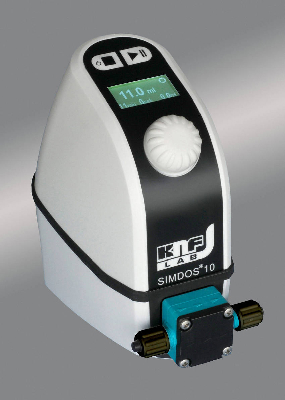

Apr 23, 2012 Effective against pressures up to 90 psig, KNF SIMDOS® 10 Series transfers neutral or corrosive liquids with flow rate of 1-100 mL/min and dose volumes from 1-1,000 mL. Pumps can transfer viscous media at full flowrate up to 150 centistokes. Equipped with touch-control knob for setup and operation, pumps can run dry without damage, are self-priming up to 9 ft of water, and available with variety of wetted materials, including corrosion-resistant PTFE/FFPM.

STMicroelectronics    Lexington, MA 02421
Apr 23, 2012 Supplied in 4-bump flip-chip package with 1.14 mm² footprint, DIP1524 enables handsets to connect receivers for GPS/GLONASS satellites, Bluetooth, Wi-Fi, and LTE band 7 from same antenna. IC can deliver high signal strength to several RF receivers simultaneously, accelerating GPS startup time while providing position detection accuracy and location-based service reliability. Diplexer utilizes Integrated Passive Device technology, fabricated on glass substrate, that minimizes insertion losses.

Matrox Graphics Inc.    Dorval Quebec H9P 2T4, CD   Canada
Apr 23, 2012 Using single duplex LC-LC fiber-optic cable, Avio(TM) F120 Transmitter/Receiver extends 2 single-link DVI video, keyboard, mouse, audio, and USB HID devices from host system by up to 984 ft in multi-mode and 6,562 ft in single-mode. Uncompressed fiber-optic transmission maintains graphics performance and full frame-rate HD video playback with no latency at remote station, while computer remains safely secured in climate-controlled machine room.

CartoPac Field Solutions    Fort Collins, CO 80525
Apr 23, 2012 Integrating mobile and office GIS functionality, CartoPac® Spatial Asset Management enables field asset information to be collected, viewed, and shared across enterprise, automating processes, streamlining communications, and enforcing data standards. Upgraded Mobile Server facilitates data transfer, while WebOffice offers intuitive web-based access and editing of GIS data, wizard-based queries and reporting, and role-based user management.

Ixonos    Helsinki   Finland
Apr 23, 2012 Platform- and chipset-agnostic Ixonos 3D Engine(TM) can deliver customized 3D user interfaces (UIs) for diverse devices to enhance consumer interaction. Use of optimized 3D rendering and utilization of device's own CPU and GPU chips ensure customer-specific UI implementations perform according to standards. Mimicking way objects behave in physical world, 3D UI offers interactions that match users' expectations and promote natural feel.

Symmetricom Inc.    San Jose, CA 95131
Apr 23, 2012 GPS Disciplined Oscillator (GPSDO) Modules and High-Frequency Source Modules provide time and frequency reference signals with same long-term accuracy as GPS signal. To maintain system synchronization during GPS reception outages, Quantum(TM) SA.45s Chip Scale Atomic Clock (CSAC) provides holdover for GPS-2700 and GPS-2750 versions. Options include standard and extended temperature ratings and 10 or 100 MHz OCXO-, DOCXO-, or CSAC-based design.

Extreme Engineering Solutions (X-ES)    Middleton, WI 53562
Apr 23, 2012 Intended for industrial and communications applications that require high-performance PowerPC processor on industry-standard mezzanine module, XPedite5600 is based on Freescale Semiconductor QorIQ(TM) P2040/1 processor with 4 PowerPC e500mc cores at up to 1.5 GHz. Additional features include up to 8 GB DDR3-1333 ECC SDRAM and x4 PCIe Gen2 XMC interface or 32-bit PCI PMC interface. I/O flexibility is offered via 4 GbE, 4 RS-232/422/485 serial, 2 USB 2.0, and 2 SATA 3.0 Gbps ports.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Apr 23, 2012 Measuring 2 x 4 x 1.35 in., MVAB120 series open frame single output 120 W power supplies are capable of delivering up to 75 W using convection cooling. To operate at 120 W full load output requires 250 lfm forced airflow. Accommodating full universal range of input voltages from 90-264 Vac and 120-300 Vdc, unit meets EU PFC directive for active power factor correction. Series can deliver full load from -10 to +50°C, and is capable of start up from -20°C.

Measurement Specialties, Inc.    Hampton, VA 23666

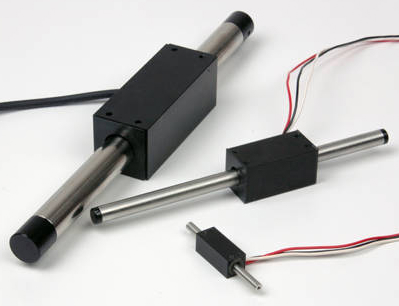

Apr 23, 2012 Manufactured under ISO9001 quality system, XS-B Linear Variable Differential Transformer (LVDT) has 3/16 in. dia, with custom design capability to diameters of 1/8 in., that allows grouping for high-density surface profile measurements in space-restricted applications. This position sensor, supplied in stainless steel housing, features electromagnetic shielding and resistance to shock and vibration. Standard operating temperature range is -67 to +302°F, with 430°F optional.

Orb Optronix. Inc.    Kirkland, WA 98033
Apr 23, 2012 SpectralSuite v3.0 offers automated measurement of LEDs and LED products. It features automated PWM and trigger delay measurements when connected to supported power supply. Product offers multiple data viewing modes, allowing users to load saved profiles and use existing bin sets for analysis. Measurement tool features irradiance and flux calibration using built-in calibration wizard with auto-ramping and stabilization monitoring.

Stealth.Com Inc.    Woodbridge   Canada
Apr 23, 2012 Measuring 6.5 x 6 x 2 in., LPC-680 LittlePC utilizes second generation Sandy Bridge Intel® Core i7/i5/i3 mobile processor and supports up to 8 GB DDR3 memory. Unit has built-in 2.5 in. mobile hard drive with up to 750 GB of storage space. Operating from external 20 Vdc power adapter, PC is suited for mobile and in-vehicle applications. It provides 2 USB 3.0 ports, 2 USB 2.0 ports, 1 DVI-I, 1 DisplayPort, 1 Gigabit LAN, Wi-Fi 802.11n, 1 RS232 serial port, and line in/out audio ports.

Remcom    State College, PA 16801
Apr 23, 2012 Intended for MR community, Bio-Pro version of XFdtd® Release 7 provides accurate predictions of interaction of electromagnetic fields with biological tissues. Program features automatic calculation of Specific Absorption Rate including whole body, 1 gram, and 10 gram averages. Part of Release 7, Birdcage Designer and MR Phased Array Designer guide user through project creation, manage circuit components automatically, set up waveforms automatically, and deliver automatic grid definition.

The Original DOORBRIM Store    Ft. Lauderdale, FL 33331
Apr 23, 2012 Providing shield for top and upper sides of door, Original DOORBRIM(TM) diverts rain and snow away from areas vulnerable to intrusion of water. Product also protects window openings and allows windows to be left open for ventilation during light rains. Constructed of recyclable ABS plastic, Original DOORBRIM(TM) is available in thicknesses of .187 and .250 in., and is sized to fit over standard 36 in. wide commercial exterior door or window giving approximately 6 in. overlap or extension on each side.

Hexagon Metrology Inc.    North Kingstown, RI 02852
Apr 20, 2012 Brown & Sharpe 4.5.4 SF shop floor coordinate measuring machine has footprint of 52.2 x 32.8 x 79.5 in., which fits through standard door. Its computer, controller, and interface boxes are integrated into one self-contained unit with locking wheels. Device uses standard 110/220 V outlets with no need for shop air. Inverted high resolution Heidenhain scales, covered ways and internal cable management protect machine components from ambient dust and debris while minimizing friction.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Apr 20, 2012 TSOP57x series of remote control infrared receivers combine height of 0.8 mm, wide angle of sensitivity of 150°, and receiving distance of 40 m. At an off-axis angle of 45°, receiver retains 85% of on-axis sensitivity. Noise suppression technology has peak sensitivity of 940 nm and offers modulation frequencies of 36 kHz, 38 kHz, 40 kHz, and 56 kHz. Receivers do not use lens and are designed for TV's, set-top boxes, stereo systems, and in-room air-conditioners.

CW Industries    Southampton, PA 18966
Apr 20, 2012 Rated at 16 A, GRHI-2000 Series is made with high impact thermoplastic blend that has been field tested and approved for applications where likelihood of switch impact and mechanical failure is prevalent. SPST and SPDT switch can be mounted in .550 x 1.125 in. panel opening requiring no screws or other fasteners. Applications include kill switches in generators, power washers, or pull start engine applications where recoil could adversely affect switch performance.

Aven, Inc.    Ann Arbor, MI 48108
Apr 20, 2012 Along with camera featuring ¼ in. color CMOS sensor, Digital Mighty Scope combines adjustable magnification from 10x-200x and image capture in compact inspection instrument with USB interface. Brightness wheel allows fingertip control of 6 white LEDs to suit varied indoor/outdoor environments, and Windows®-compatible software supports capture of still images, interval shots, or video. Latter can be recorded at rates from 15-30 fps. Live/stored comparison capabilities are also standard.

Nippon Pulse America, Inc.    Radford, VA 24141
Apr 20, 2012 Able to achieve sub-micron resolution, S605 Linear Shaft Motor is available with double, triple, or quadruple windings and has acceleration force range of 1,000-3,100 N and acceleration current from 34-35 A. Acceleration force and current can be maintained for up to 40 sec. Rated for 420-780 N continuous force and 8.4-8.8 A continuous current, motor has 60.5 mm dia shaft and is available with effective strokes from 200-2,000 mm. Non-critical air gap is 1.75 mm, and rated voltage is 240 V.
