Cummins Power Generation Americas    Minneapolis, MN 55432
May 27, 2005 Available in 50 and 60 Hz frequencies, Series DQC consists of 600, 750, and 800 kW generator sets intended for standby and prime power use in wide range of applications. Units include PowerCommand® digital control system for total system integration, including automatic remote starting/stopping, precise frequency and voltage regulation, alarms and status message display, alternator protection, output metering, and auto-shutdown-at-fault detection.

Advantech Co.Ltd.      Taiwan
May 27, 2005 Manufactured in 10.41 x 2.72 x 5.4 in., cast aluminum chassis, ARK-3380 Series offers fanless operation, scalable processing, and customizable I/O. It accepts low-voltage Intel® Celeron/Pentium® M processors to 1.4 GHz and choice of CFC SSD drive or 2.5 in. HDD. Mounted inside machinery or used as standalone product, series includes models with multimedia I/O support (ARK-3380), multiple I/O (ARK-3381), and support for intensive networking capability (ARK-3382).

Henkel Loctite Corporation    Rocky Hill, CT 06067
May 27, 2005 Suited for packaging of vehicle sensors, Macromelt® low-pressure molding solution is composed of polyamide hotmelt and available in various formulations. Material and process solution simultaneously encapsulates sensor's circuitry and forms outer shell of component to enable self-contained, integrated component. Available in translucent amber or black, product is resistant to fluids found in automotive environment.

Toshiba America Information Systems, Inc.    Irvine, CA 92618-1697
May 26, 2005 Able to record up to 12 hr of HD movies, triple-layer HD DVD-ROM disc features data capacity of 45 GB and is approved and standardized at DVD Forum. Double-sided, dual-layer hybrid ROM disc, comprised of dual-layer HD DVD-ROM side and dual-layer DVD-ROM side, stores 30 GB of HD content on HD DVD-ROM side and 8.5 GB of standard-definition content on DVD-ROM dual layer side. Both discs share same disc structure: two 0.6 mm thick discs bonded back-to-back.

Neutronics, Inc.    Exton, PA 19341 2541
May 26, 2005 Suited for both R134A and R12 systems, QuickDetect A/C Sealant Detection Kit includes A/C coupler, hose, test cartridge, and flow meter. When connected to mobile A/C system, it mimics A/C leak. If sealant is present in system, it will quickly solidify in disposable test cartridge and cause flow meter to show no-flow. Except for test cartridges, all Quick Detect components are reusable. Additional cartridges are available separately.

Heraeus Noblelight Inc.    Duluth, GA 30096
May 26, 2005 Suited for production of brake pads, dual-zone, 162 kW oven employs 30 medium-wave emitters on wire belt conveyor for curing anti-corrosion coating that provides protection to pad against water damage during operation. Control panel features 5 selector switches that each control 6 emitters, which may be set to zero, 50%, or 100% power. Control panel also features potentiometer that sets conveyor speed from 0.5–2.0 m/min.

Heraeus Noblelight Inc.    Duluth, GA 30096
May 26, 2005 Ultrapure Water Heater consists of quartz glass twin-tube IR emitter enclosed by larger quartz glass tube with internal gold coating. Offering heating efficiencies exceeding 95%, halogen-free unit can be fit in-line and achieves temperature rises to 80°K depending on liquid throughput and emitter arrangement. Power rating is 6.3 kW for heated length of 600 mm, but heated lengths up to 2 m are possible. Max emission is rated from 900–1,400 nm.

UV Process Supply, Inc.    Chicago, IL 60614-4805
May 26, 2005 Measuring ¼ in. thick, CON-TROL-CURE UV-MICROLOG Dâ„¢ data-logging radiometer incorporates microprocessor that measures UV intensity (mW/cm²), UV dose (mJ/cm²), and temperature. Measurements can be viewed as numerical results on 2-line 16-digit display, or graphically after download to computer via USB link. Along with DAQ software, unit features 230–400 nm spectral range, 0–5,000 mW/cm² max power input, 30 sec measuring period, and 0.005 sec sampling rate.

UV Process Supply, Inc.    Chicago, IL 60614-4805
May 26, 2005 CON-TROL-CURE MICRO PUCKâ„¢ enables UV measurement in difficult-to-access environments. Available in UV-A, UV-B, UV-C, or full UV measuring ranges, system consists of UV sensor and hand-held base unit with display. MICRO PUCK MULTI accommodates up to 8 different sensors that read from same base unit, enabling full spectrum, 3D UV evaluation. Sensors are available as rectangular or round. Display range is 0–1,999 mJ/cm², standard, or 0–19,990 mJ/cm², x10 type.

UV Process Supply, Inc.    Chicago, IL 60614-4805
May 26, 2005 Hand-held UV-Profiler-3000™ measures UV from 250–410 nm, has color viewing screen, and comes with one UV sensor and one temperature sensor. UV-T Profiler series has no onboard viewing screen, but is offered in 4 UV ranges that collectively cover 230–410 nm. Equipped with 3 UV sensors, UV-3C can simultaneously measure UV-A, UV-B, UV-C, and full UV. Model UV-3C-T Profiler radiometer offers ability to measure temperature.

UV Process Supply, Inc.    Chicago, IL 60614-4805
May 26, 2005 Diskureâ„¢ 4Scan Radiometers are equipped with 3 UV sensors for individual measuring of UV-A/B/C and total UV. Ability to measure and display UV intensity and UV dose lets users determine total energy and how that energy is delivered. Models include base model, Diskure 4Scan (M007-111); Diskure 4Scan-C, which adds USB port; Diskure 4Scan-T (M007-113), which adds temperature sensor; and Diskure 4Scan-TC (M007-114), which adds USB port and temperature sensor.

UV Process Supply, Inc.    Chicago, IL 60614-4805
May 26, 2005 Equipped with ccDot engine and graphic display, X-RiteDot portable dot-analysis instruments provide digital screen ruling assessment, on-board video dot magnification, and dot shape analysis on any media. They adjust for plate background image and feature 14,000 dpi optics. This allows measurement of AM amplitude modulated screens from 85–250 LPI as well as FM frequency modulated screens as fine as 20 microns. Models include BASICDOT, PLATEDOT, COMBODOT, and PRINTDOT.

UV Process Supply, Inc.    Chicago, IL 60614-4805
May 26, 2005 Designed for monitoring quality in print jobs, X-Rite 508 Spectrodensitometer (M003-021) measures GATF proofing bars, QuarkXPress® color bars, and Ugra/Fogra color control elements. It also includes 4-color newsprint functions and lets user select measurement aperture of microspot 1.6 x 3.2 mm, small 2.0 mm, medium 3.4 mm, or large 6.0 mm. Operated via interactive menu and key system, product features RS-232 serial interface and measurement time of 0.9–1.4 sec.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
May 26, 2005 Suited for printing bar codes, Model 4400 prints 4, 6, and 8 in. widths at up to 300 dpi. It provides error detection and recovery with IPDSâ„¢ support for Twinax and Ethernet, and offers choice of thermal transfer or direct thermal printing. Optional bar code validator scans labels during printing to assure readability. Users can manage printers remotely and enable proactive alert notification using Printer Management Utility and Ethernet option.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
May 26, 2005 With support for cutsheet and continuous form paper, IBM 4247 impact printer provides automatic forms loading and thickness adjustment as well as customizable forms delivery with dual front tractors. Unit permits user-installable and switchable interface cards and features integrated Ethernet card that supports IPDSâ„¢ and SNMP. Print speeds reach 240, 800, and 1,100 cps in near letter quality, data processing, and fast draft modes respectively.

Astec America Inc.    Carlsbad, CA 92008
May 26, 2005 Offering power densities up to 90 W/in.³, surface-mount Astec AIH-300Vin Series delivers up to 250 W from 250-420 Vdc input range. Series is comprised of 6 models with single-output dc voltages of 1.8, 3.3, 5, 12, 15, and 24 V. All models provide set of embedded functions that include monitoring, protection, and adjustment capabilities. Communication bus stores end-user information and device also includes I2C interface to internal EEPROM for data storage.

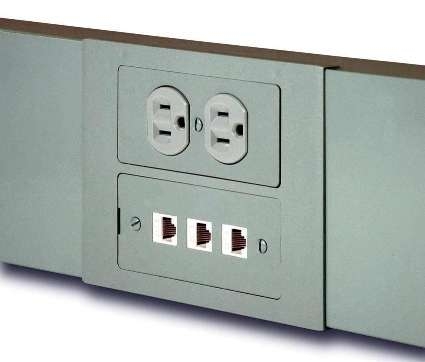

Thomas & Betts Corp.    Memphis, TN 38125
May 26, 2005 Model SR600 Metallic Surface Raceway features Steel City? Nonmetallic Overlapping Faceplates for tamper resistance. Faceplates have one-piece design with 2-step latches for installation. They can accept 2 device plates for power and data connections and are suited for dual voltage applications featuring SR600 raceway with factory-installed voltage divider. Available in ivory or gray, faceplates are UL listed and CSA approved.

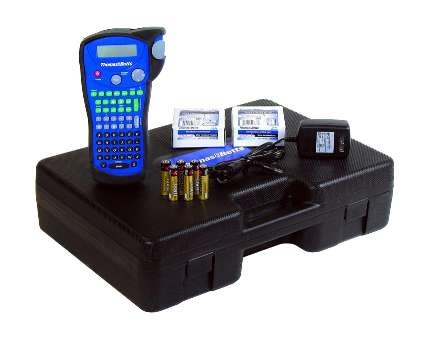

Thomas & Betts Corp.    Memphis, TN 38125
May 26, 2005 E-Z-Code? EZL 100-Kit includes E-Z-Code EZL100-Label Printer with dedicated 1-touch hot-keys, 2 label cassettes, instructions, ac adaptor, and 6 AA batteries, packaged in hard-sided case. Hand-held printer enables user to create labels for wire wrapping, terminal blocks, and patch panels. Built-in memory automatically recalls last label and stores up to 8 custom labels. Available in flexible nylon or permanent polyester, labels come in ?, 3/8, ?, and ? in. tapes.

Danaher Industrial Controls    Gurnee, IL 60031
May 26, 2005 Plus Series features 1/16 and 1/8 DIN digital panel indicators for Partlow and West brand controllers. Configurable via plug-in output boards, units feature numerical LED display that changes from green to red during alarm condition. They incorporate universal input and include latching alarms, multipoint scaling, tare function, auto detection of installed output modules, PC configuration software, 10 V SSR driver output, and transmitter power supply option.

Kyocera Display America, Inc.    Plymouth, MI 48170
May 26, 2005 Available in sizes from 6.5-15.0 in. diagonal in VGA, SVGA, and XGA formats, active matrix digital TFT LCDs offer 90°C-wide operating temperature range. Designed for high-information-content display of images from static to full-motion video, units suit variety of non-PC industrial applications including instrumentation, process control systems, medical diagnostics, office equipment, POS and ATM devices, and high-end appliances/white goods.
