Pipeline Inspection Company Ltd    Houston, TX 77055
May 04, 2005 Self-contained SPY® Models 780 and 790, equipped with topside handle and ergonomic pistol grip, have built-in jeep meter that lets users inspect coatings on 2–60 in. pipe diameters. To test integrity of thin film coatings, Model 780 has 1,000–5,000 V range, while Model 790, with 5,000–35,000 V range, inspects extra thick and somastic coatings. Both feature infinite voltage settings, audible alarm, and positive ground indicator light.

Cool-Space, Inc.    Fishers, IN 46038
May 04, 2005 Designed for cooling individual workers as well as spot cooling in open spaces, COOLSPACE Jr. utilizes 3 in. thick cross corrugated cooling pads and 2-speed centrifugal blower. It provides up to 20° cooler air for hours with 12 gal reservoir. Stand-alone unit can also be connected to garden hose for automatic water level maintenance. Mounted on 4 casters, portable unit has recessed, rubber-matted top for tools and operates from 115 V electrical supply.

Advance Lifts, Inc.    St. Charles, IL 60174
May 04, 2005 Offered in various capacities, sizes, and travels, combination lift and tilt table line of work positioners tilt bins of parts for order picking or position loads for assembly operations. Lift tables raise loads up and down for ergonomic positioning, while tilt tables position load up to 60°. Lift and tilt operations are individually controlled via joystick. Products use lifetime-lubricated bearings on all pivot points and have chrome plated axles and shafts.

CDF Corporation    Plymouth, MA 02360
May 04, 2005 Suited for mixing, pumping, and storing liquids, powders, or pastes, DrumSaverâ„¢ inserts protect steel drums from product while ensuring product purity. Straight-sided liners are available for use with follower-plates; accordion inserts feature flexible, pleated side walls; and combination inserts have straight-sided design with band of accordion pleats. Seamless, vacuum-formed products are secured with contoured lip snapped over open-head drum's top bead.

Keller, J.J., & Associates, Inc.    Neenah, WI 54957 0368
May 04, 2005 Keller-Soft® Safety Training Customizer® v8 provides training material on 185 workplace, construction, and transportation safety topics. It also offers Spanish-language quizzes, ability to add company-specific graphics to materials, and tool that helps users create reports. For each topic, users receive introduction, outline, employee handout, quiz, exercise, and PowerPoint® presentation. Software also includes needs-assessment and recordkeeping tools.

ITW Switches, An Illinois Tool Works Co.    Harwood Heights, IL 60656 3512

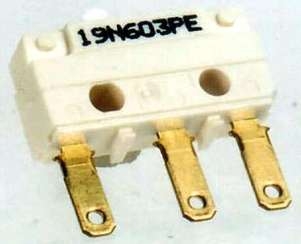

May 04, 2005 Series 19N switches are sealed to IP67 standards with insert molded terminals and fully sealed base. Offered with various termination and actuator options, sub-miniature switches have UL94-V0 flammability rating and are BEAB- and ENEC-approved. They carry currents from 100 mA to 5 A, with choice of gold or silver contacts.

Cal Test Electronics    Yorba Linda, CA 92887-4604
May 04, 2005 General-purpose MiniProâ„¢ series test clips, suited for circuit and basic test interconnections, feature smooth, soft touch actuation and gold-plated beryllium copper hooks. Offered in 10 colors, series features secure, snap-lock assembly that withstands heavy use. EU- and RoHS-compliant products are available individually, with lead wires, or in 10-piece kit.

Hayward Industrial Products Inc., Hayward Flow Control Systems    Clemmons, NC 27012

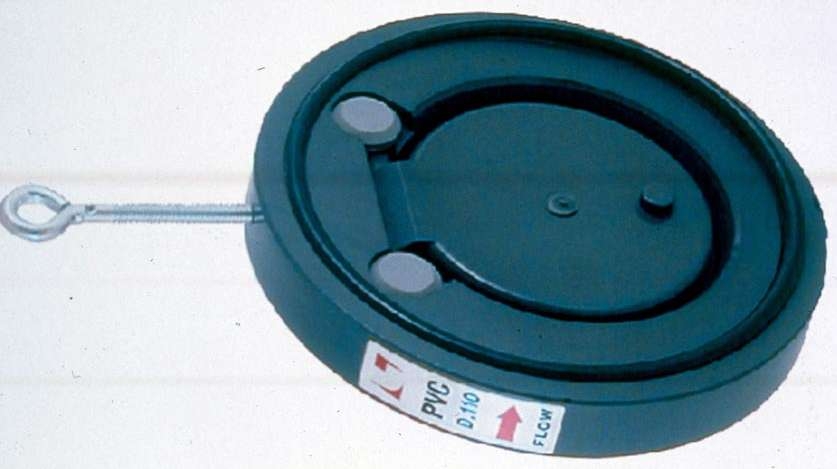

May 04, 2005 Cepex Wafer Check Valves prevent reversal of flow in piping systems, protecting pumps, filters, and other process equipment. With straight through design, products operate without requiring adjustments or settings and will not stick, jam, or fail due to rust or corrosion. Valves, available to fit 4, 6, or 8 in. pipelines, feature PVC construction with flanged connections and choice of EPDM or FPM seals that will not contaminate sensitive fluids.

Master Bond, Inc.    Hackensack, NJ 07601

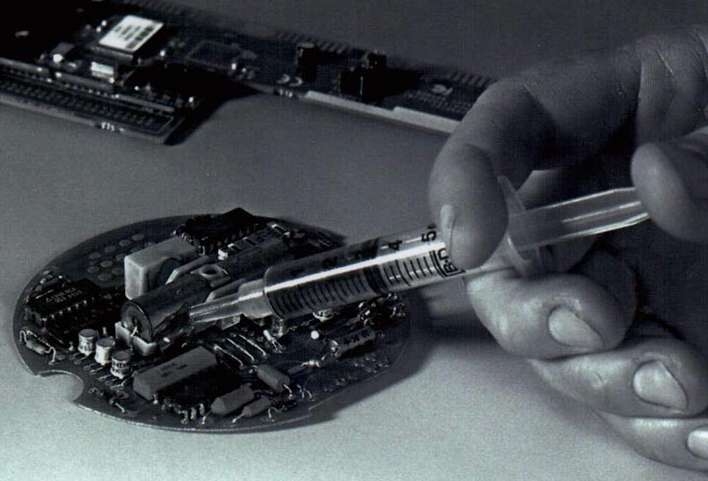

May 04, 2005 Thermally conductive, 2-part EP21TDCAOHT bonds dissimilar substrates with different coefficients of expansion and contraction. Adhering to metals, ceramics, glass, rubbers, and plastics, product has 1:1 mix ratio by weight or volume and cures at room temperature or more rapidly at elevated temperatures. Exhibiting thermal and mechanical shock resistance, it has paste viscosity, 35 pli T-peel strength, and service operating temperature range of -100 to +350°F.

Inpro/Seal Co.    Rock Island, IL 61204 7331

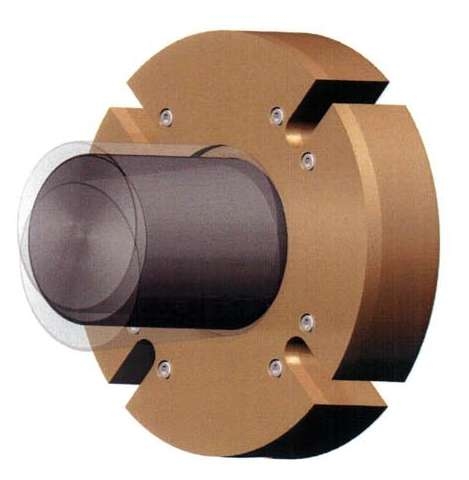

May 04, 2005 Custom-engineered Articulating Air Mizerâ„¢-PS is suited for containment of powders, abrasives, liquids, and toxic vapors in dry powder and bulk process applications. Able to handle shaft misalignment and deflection, product uses solid wall of air that functions as barrier for contamination and works to retain product in equipment. Non-contact design with air purge accepts radial and angular shaft runout up to 14 in. and shaft diameters from ½â€“36 in.

Torch Wear    Twinsburg, OH 44087

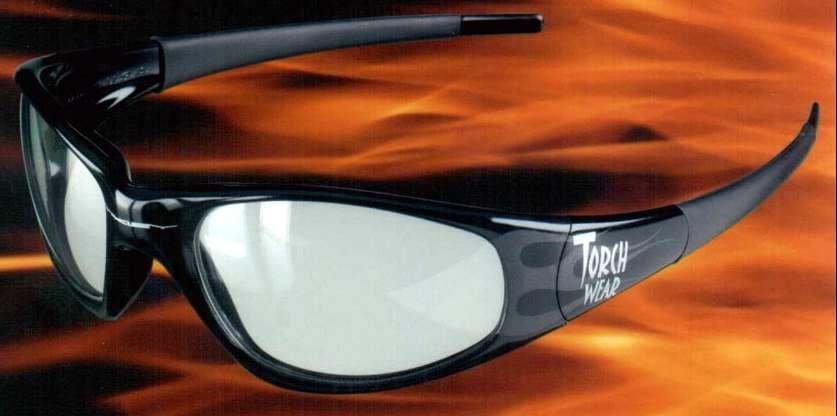

May 04, 2005 Worn alone or as primary eye protection under welding or grinding helmets, Torch Wear® safety glasses employ XYZ Optics® to maintain visual clarity at all angles. Lenses, milled from solid plastic blanks, have contour mapped to human eye. Offered with clear or high-intensity yellow lenses, each pair of glasses meets ANSI Z87.1-2003 safety specifications and comes with Microclearâ„¢ storage bag, which can be used to help clean lenses.

ATI Industrial Automation    Apex, NC 27639
May 04, 2005 Compact, lightweight, G19-Swivel Electrical Module is used to pass electrical signals from robot side to tool side of quick-connect robotic tool changers. Cable can be positioned at any of 5 different angles through a 180° span to facilitate robot cable dress. Constructed of anodized high-strength aluminum alloy, module features 19-pin electrical interface, 5 A/250 Vac capacity, and mates with all R, S, and T Series tool changers.

Dynaflow Engineering, Inc.    Perth Amboy, NJ 08861 2048

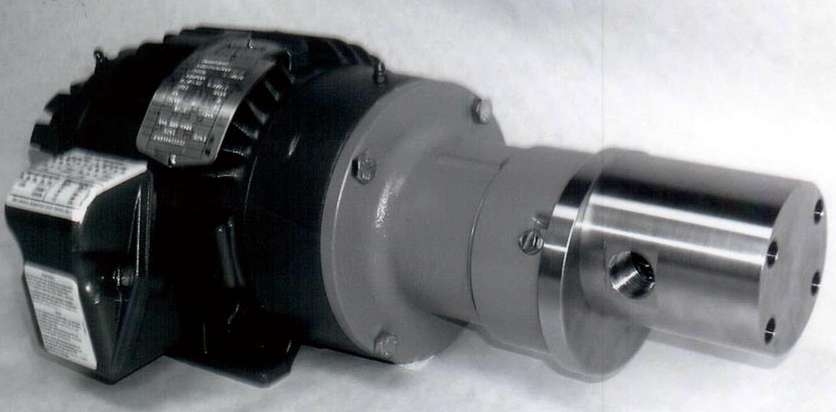

May 04, 2005 Mag-Drive configured and machined from wrought bar stock, G6000 series alloy gear pumps can be close coupled to variable speed motors for accurate, pulseless metering. Non-lubricating low viscosity liquids can be metered with alloy against plastic gear combinations, while low flow rate accommodates emulsion polymers without shear degradation. Standard construction for pumps is 316 stainless steel.

Bosch Power Tools & Accessories    Mt. Prospect, IL 60056

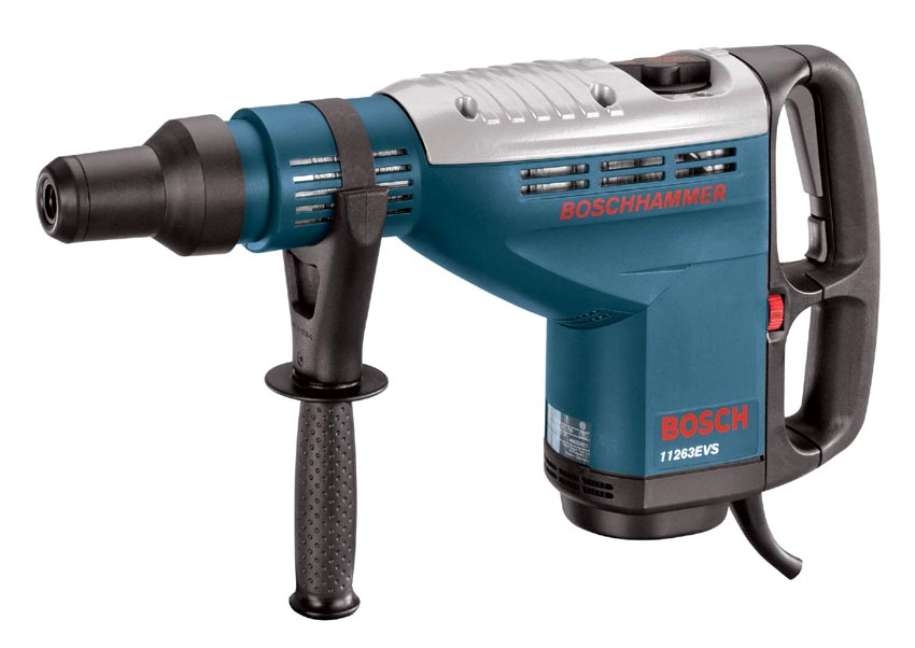

May 04, 2005 Model 11263EVS 1¾ in. SDS-max® Combination Hammer targets concrete drilling or chipping tasks. Tool's 13.5 A motor powers 145-280 rpm and 1,350-2,800 bpm with 9.6 and 11.1 ft/lb impact energy in drilling and chipping, respectively. Vario-Lock(TM) positioning rotates and locks tool holder into 12 different positions. Additional handle space, 360° auxiliary handle, Constant Response(TM) Circuitry, and padded handle provide for user comfort.

Methods Machine Tools, Inc.    Sudbury, MA 01776
May 04, 2005 Suited for unattended machining, Fanuc RoboCell(TM) combines multi-axis robotic loading and unloading with ability to stage enough small parts for entire shift. System, comprised of Fanuc 30-taper RoboDrill E Series VMC and Fanuc 5- or 6-axis robot, is suited for drilling, tapping, and milling. It features 2,125 ipm traverses rates; 0.9 sec tool changes; and 6 sec load/unload times. Included software permits robotic feeding from rows, columns, or layers.

Cognex Corp.    Natick, MA 01760 2059
May 04, 2005 Available in 3 configurations, ProofReadâ„¢ ensures information is correctly printed onto labels and packages. Optical character verification (OCV) system includes OCVMaxâ„¢, which verifies characters printed on curved/flexible surfaces as well as those distorted during printing or packaging process. Equipped with GUI and touchscreen interface, system provides built-in security, change tracking, and logging capability for FDA 21 CFR Part 11 compliance.

Mills Industries    Laconia, NH 03246 3351
May 04, 2005 Milplast™ stackable, interlocking tote is custom-designed to fit and protect parts while maximizing space utilization in manufacturing areas, shelves, and truck cubes. Measuring 90 x 16 x 20 in., products weigh 14 lb. and are offered with walls from 2.5–10 mm thick. Totes can include options such as part dividers, foam cushioning, custom imprinting, and color coding. Handholds are available to facilitate manual lifting.

Mate Precision Tooling    Anoka, MN 55303

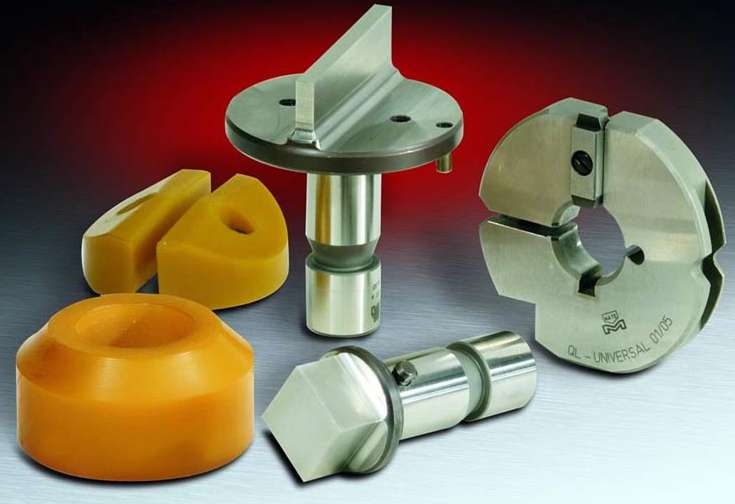

May 04, 2005 Designed for Trumpf presses, QuickLock(TM) features keyed alignment ring that engages alignment key in punch to facilitate tool alignment. Performed by hand, tool components snap together without resorting to off-line alignment tool setup fixtures. Tool system consists of punches, strippers, and dies, available with max die opening of 1.181 + 0.078 in. or 3.000 + 0.078 in. Both sizes use same alignment ring. Tooling is offered in 11 standard shapes.

Dow Corning Corp.    Midland, MI 48686 0994
May 04, 2005 Dow Corning® 111 heavy-consistency, dimethyl silicone compound maintains serviceable consistency from -70 to +400°F. Acceptable as release agent under FDA 21 CFR 175.300, it carries NSF 51 and NSF 61 approvals. Product can be used as lubricant for rubber and plastic O-rings, water softener and faucet valves, and electronic and ignition systems. It may also be used as sealant in transformer gaskets, equipment enclosures, and equipment subject to harsh environments.

MC Machinery Systems    Wood Dale, IL 60191
May 04, 2005 HV Series 2D Hybrid Processing Machine features open table that facilitates operability and maintenance. Equipped with servo control system, product offers 11.8 in. z-axis stroke and stable beam path. It also comes with MC Diamond Soft® CAD/CAM software, which minimizes setup and processing time while reducing secondary operations.
