Tripp Lite    Chicago, IL 60609
Jun 01, 2005 NetDirectorâ„¢ 32-port Matrix KVM Switch controls and monitors over 1,000 connected PCs or servers by up to 4 users. Console and Server Interface Modules are available to connect switch to each user's console as well as each connected server. Occupying 1U of rack space, switch incorporates 3-level password security feature and provides video quality up to 1,024 x 768 pixels at 500 ft. It also offers plug-and-play setup and hot-pluggable capability.

Eagleware-ElanixCorporation    Norcross, GA 30092
Jun 01, 2005 GENESYSâ„¢ 2005 includes WhatIF frequency planning tool, which uses simulation technique that analyzes spurious performance of Intermediate Frequencies. CAYENNE Spice-like time domain simulator incorporates direct use of S-parameter data. MIXER synthesis module allows user to design and analyze mixer configurations using variety of topologies as starting points, while AMPLIFIER synthesis module facilitates design of linear low-noise RF amplifiers.

Sakor Technologies, Inc.    Okemos, MI 48864-3547
Jun 01, 2005 DynoLAB LT provides fixed I/O configuration, test control, and DAQ capabilities required for basic electric motor testing. Along with provisions for measuring speed and torque, turn-key system can also determine voltage and current supply to motor under test. It works with Accudyneâ„¢ line of AC motoring dynamometers, which offer full 4-quadrant operation with seamless transition between loading and motoring modes.

Precision Brand Products, Inc.    Downers Grove, IL 60515 4054
Jun 01, 2005 Branded Shim solves problems related to product identification and storage. Shim stock is branded with material type, thickness, and width allowing identification regardless of product packaging condition or location. Lot number is printed on each piece to give users true traceability.

CIRCOR Tech    Spartanburg, SC 29305
Jun 01, 2005 Series R6000 includes low-pressure models from 5–550 psig and high-pressure versions from 150–6,000 psig. Both feature raised seal lip that minimizes contact with seat, eliminating friction and preventing O-ring overstressing. Frictionless poppets ensure consistency of cracking and reseat pressures. High-pressure models are equipped with Delta stem seal, while low-pressure models have encapsulated seat seal. Orifice sizes include 0.082, 0.094, and 0.188 in.

Moyno Inc. Unit Of Robbins & Myers, Inc.    Springfield, OH 45501 0960

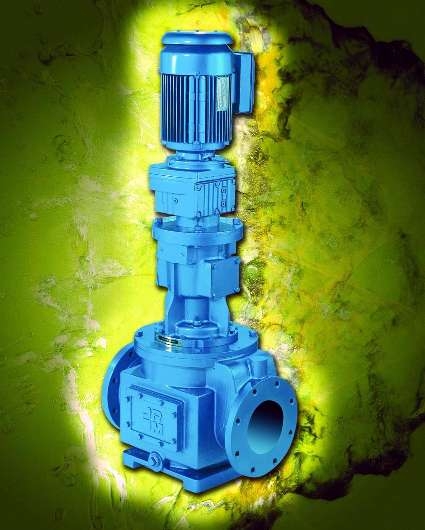

May 31, 2005 Self-contained Pipelinerâ„¢ Grinder eliminates ragging in secondary and tertiary sludge applications. Single-shaft unit features tungsten carbide adjusting cutters, spring-loaded cutter assembly that maintains constant force against shearplate, on-site cutter replacement without disconnecting piping, and single mechanical seal with silicon carbide faces. Standard shearplate hole is 15 mm, with optional hole sizes of 6, 8, 10, and 20 mm available.

Phoenix Contact    Harrisburg, PA 17111 0100
May 31, 2005 With working depth of 71 mm, Managed Compact Switch features 16 10/100 TX ports with multimode fiber option. It combines full industrialization with complete range of message filtering, VLAN, redundancy, and security functions to meet needs of distributed real-time applications and control protocols such as Profinet, EtherNet/IP, and Modbus TCP.

AR Worldwide    Souderton, PA 18964

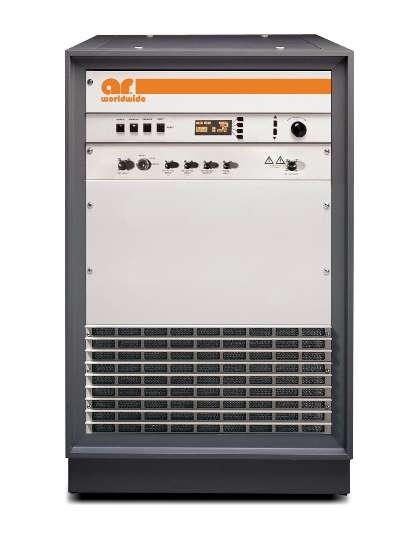

May 31, 2005 Designed for 100 kHz to 250 MHz frequency range, Model 1000A250 provides RF power for applications such as RF susceptibility testing, antenna and component testing, and Watt meter calibration. In addition to remote control and remote status indicators, unit features gain control, internal/external automatic level control, pulse input capability, and RF output level protection. Internal RF detector provides output for use in self-testing or operational modes.

Agilent Technologies, Inc.    Santa Clara, CA 95051
May 31, 2005 Wireless connectivity test set, Model N4010A, with Bluetooth(TM) Enhanced Data Rate Option 105, allows engineers to test Bluetooth connectivity during development, integration, and manufacturing of chipsets, modules, and devices. Key transmitter measurements include carrier frequency stability, modulation accuracy, and relative transmitter power. Receiver measurements include EDR sensitivity, EDR BER floor performance, and EDR maximum input level.

Binks ITW Industrial Finishing    Glendale Heights, IL 60139

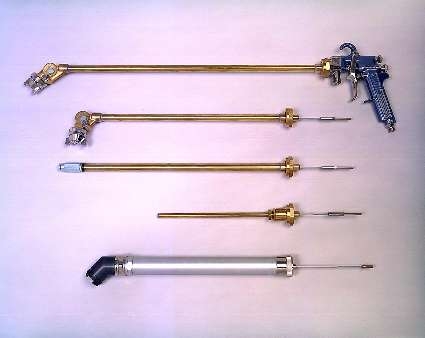

May 31, 2005 Available for conventional and HVLP spray guns, Nozzle Extensions fit applications from fine-line finishing to overglazes. Air and fluid nozzles are used with extensions for manual, touch-up, automatic, line striping, specialty, airless-hand, and airless-automatic spray guns. Small nozzles are suited for inks, stains, and dyes for fine line results, while medium nozzles meet needs of enamel and lacquer finishing, and larger nozzles suit under glazing.

Linear Technology Corp.    Milpitas, CA 95035
May 31, 2005 With input voltage of 1-3.2 V, synchronous boost dc/dc converter, Model LTC3490, delivers up to 350 mA from single or dual cell alkaline/NiMH battery. Output voltage of 2.8-4 V is fully compliant with forward voltage requirements of high-current LEDs. Housed in 3 x 3 mm DFN package, unit features 1.3 MHz switching frequency and operates at up to 90% efficiency. Onboard analog dimming capability reduces drive current proportionally to CTRL/SHDN pin voltage.

Tol-O-Matic, Inc.    Hamel, MN 55340 9499
May 31, 2005 With fully integrated APF technology, pneumatic Model BC3 and electric Model B3S provide analog feedback to controller or PLC to determinate actual load position, eliminating homing routine on reset. Available in incremental stroke lengths from 2-156 in., APF option utilizes non-contact, linear displacement transducer that measures position directly. Work point variances can be accommodated throughout cycle, eliminating stoppage for manual set-ups.

Jefferson Tool, LLC.    Charleston, SC 29417
May 31, 2005 Addressing problems associated with removal of exposed nails and fasteners encountered during projects, The Extractor features self-locking jaws that automatically increase gripping force as greater resistance is encountered. Product is constructed from forged, chrome-nickel alloy with serrated teeth that are induction-hardened to HRC 53-56. It also features non-slip cushioned handles and black phosphate coating that prevents rust and corrosion.

NP Photonics, Inc.    Tucson, AZ 85747

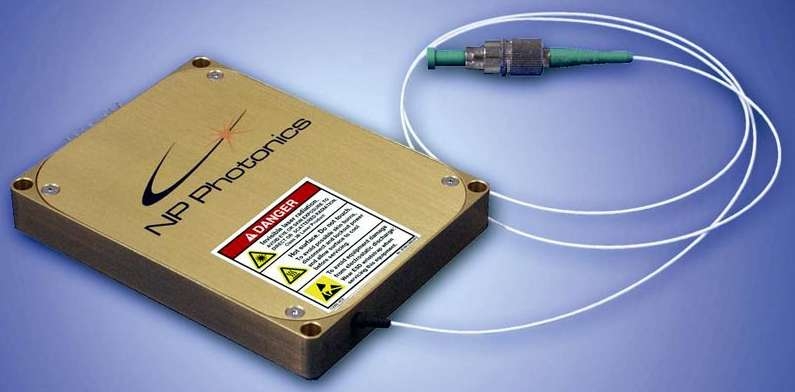

May 31, 2005 Maintaining spectral and power stability, Scorpionâ„¢ ASE sources are offered in C-band (1525–1570 nm) and C- and L-band (1525–1610 nm) versions that deliver up to 100 mW output power. They can be supplied with monitoring and control electronics, software, standard pin functions, and MSA-compliant footprint. They are also available as completely enclosed, turn-key, CDRH-compliant benchtop unit or mounted on Windows®-compatible PCI card or 3U Compact PCI card.

Scientific Technologies Inc.    Fremont, CA 94555

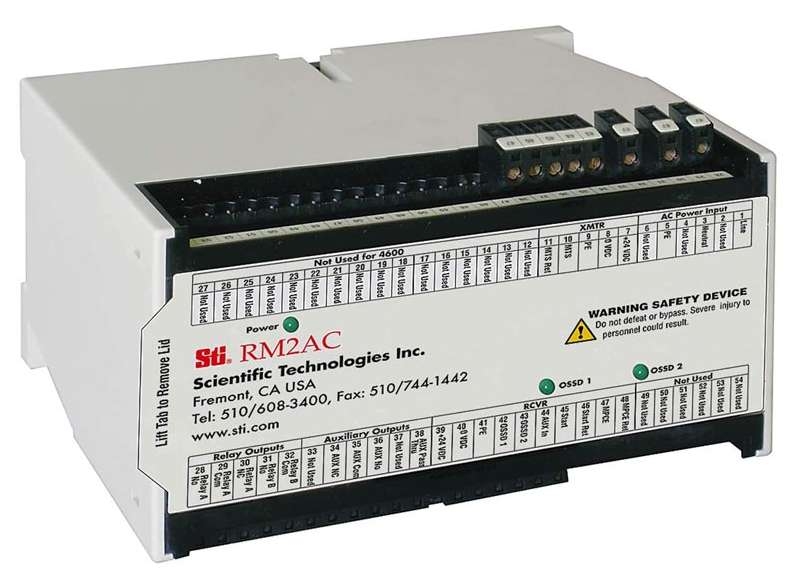

May 31, 2005 Equipped with power supply and removable terminal blocks, RM-2AC serves as central point for terminating all signals to and from solid-state safety device. It converts solid-state outputs to force-guided relay outputs. One NO and one NO/NC safety relay output rated at 250 Vac, 6 A can be used as primary switching device or to switch contactor. With 100–240 Vac input, module can monitor switching function of final switching device through MPCE monitoring circuit.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
May 31, 2005 Suited for compute-intensive applications in Linuxâ„¢ clustering, 1U high eServer® 326 supports 32- and 64-bit applications with 64-bit OS. Rack-optimized platform provides 1 or 4 GB of 2-way interleaved, Chipkillâ„¢ PC3200 400 MHz ECC DDR SDRAM RDIMM memory, upgradeable to 16 GB. It is offered with choice of up to 600 GB of internal hot-swap SCSI HDD storage or up to 250 GB of fixed SATA storage as well as integrated single-channel Ultra320 SCSI or SATA controller.

Avery Dennison, Printer Systems    Philadelphia, PA 19111
May 31, 2005 In network or standalone modes, AVERY DENNISON Label Management System (LMS) provides Windows-compliant, Wizard-driven program that supports linear and 2D bar codes as well as RFID label formats. It offers 20 language options and features multilingual interface that guides users through operation with minimal training or programming knowledge. LMS Suite, LMS Pro, and LMS Express are compatible with thermal printers and can create audit trail.

SumTotal Systems    Mountain View, CA 94043
May 31, 2005 SumTotal Enterprise Suite v7.1 enables organizations to mold platform to specific characteristics of business models. With TotalLMS' Report Manager, users can securely create reports from any LMS data to measure impact of learning activities on business metrics and objectives. Organizations can deliver, track, and report on SCORM 2004 learning content through TotalLMS. TotalAccess module enables offline delivery, interaction, and tracking of web based content.

SBS Technologies, Inc. Industrial Computers    Carlsbad, CA 92008
May 31, 2005 COTS-based Model PIO-PMC1 combines multiple I/O functions on one PMC capable of meeting multiple functions within single slot. Conduction-cooled card can withstand environments where extreme shock, vibration, and temperatures are present. Through FPGA, unit can be configured with several different serial and discrete options. Up to 8 serial RS-422/485 RX/TX pairs, 16 analog TTL inputs and outputs, and 16 discrete inputs are available for programming.

Banctec, Inc.    Dallas, TX 75244
May 31, 2005 With eFIRST suite of products, information can be captured in-field via mobile devices or extracted from paper, faxes, and e-mails. Business processes may be created to handle information analysis and intelligent routing. Companies can store high volumes of complex documents for future search and retrieval. Correspondence interpretation capability of eFIRST Capture classifies incoming documents, extracts key information, and routes it to appropriate business unit.
