Leonard Valve Co.    Cranston, RI 02910
Jun 03, 2005 Type TM valves control water temperature for hot water systems and multiple showers. Powered by DURA-trol® solid bimetal thermostat, thermostatic valves feature internal parts of bronze, brass, and stainless steel. Thermostat linked directly to valve porting controls hot and cold water intake and compensates for supply temperature or pressure fluctuations. High temperature limit stop is adjustable to 8°F below hot water supply temperature.

EGS ELECTRICAL GROUP • APPLETON    Rosemont, IL 60018

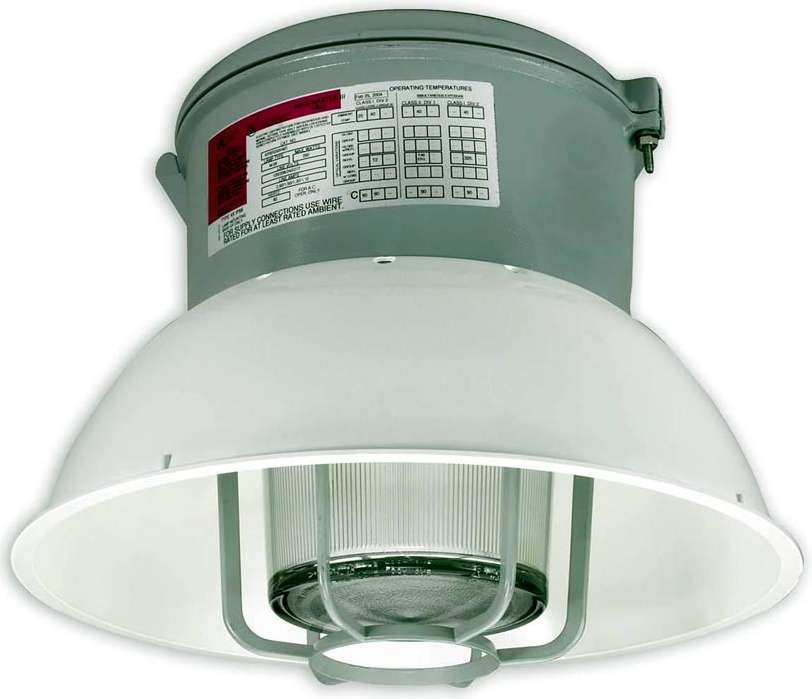

Jun 03, 2005 Engineered for Class 1, Div. 2 hazardous locations, Mercmaster G3 Series 100 W, High Pressure Sodium, explosion-proof lighting fixture is rated for temperatures to 200°C. Cool running fixture features cast copper-free aluminum construction protected by corrosion-resistant epoxy coat finish. Parts include stainless steel external screws, inserts, swing bolt, and nut; white finished metal inner reflector; and tubular silicone rubber optic gasket.

Honeywell Fire Group, Fire Control Instruments (FCI)    Westwood, MA 02090

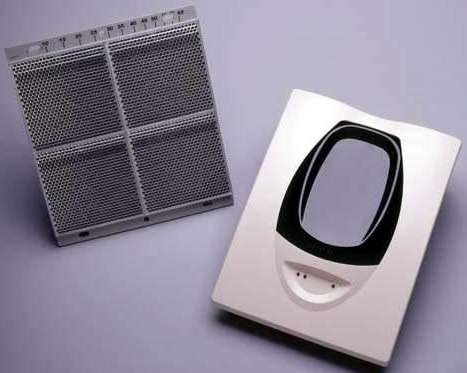

Jun 03, 2005 Suited for use in open areas with high ceilings, 4-wire System Sensor BEAM1224 Series is listed for operation from -22 to +131°F. Single-ended, reflective design allows for one-person installation, and alignment is accomplished using optical sight and 2-digit signal strength meter incorporated into product. Along with 4 standard sensitivity selections, series offers 2 Acclimate settings, combination transmitter/receiver unit, and reflector.

Hi-Tech Duravent    Georgetown, MA 01833
Jun 03, 2005 CVD Hose is constructed of clear, flexible PVC and is offered 4 styles to match dust, fume removal, and ventilation requirements. General-purpose version has .030 in. thick wall; CVD.020 has .020 in. thick wall; all-plastic CVD-AP is reinforced with rigid green PVC helix and has smooth interior; and CVD-SC provides static-conductive solution. FDA-acceptable hose, offered in sizes from ¾-18 in. in 25 and 50 ft lengths, operates from -20 to +180°F.

Baldor Electric Company    Fort Smith, AR 72901
Jun 03, 2005 Ethernet Powerlink-compatible system includes servo motor drives, machine controller, and license-free software. Mint(TM) software provides programming environment that exploits Ethernet-compatible machine control hardware, while NextMove e100 control platform offers real-time core that can control over 200 Ethernet Powerlink devices. MicroFlex e100 drives provide dual-port Ethernet hub interface to support daisy-chain connection, plus CANopen interface for I/O expansion.

Pioneer Eclipse Corp.    Sparta, NC 28675
Jun 03, 2005 Measuring 40 in., HammerHead Burnisher utilizes 19 hp Kawasaki 585 cc, air-cooled engine to power 2 offset, 21 in. padholders that operate at 1,875 rpm. Machine includes active vacuum, battery start, electronic clutch, and RokBak pad change. Applications include shopping centers and malls, supermarkets, retail, discount and warehouse stores, airports, and manufacturing facilities.

Mine Safety Appliances Co.    Pittsburgh, PA 15230
Jun 03, 2005 Hand-held Orion Plus IR Detector utilizes over 20 different sensors, including chemical, catalytic, and IR types. Functioning as personal monitor and pre-entry check device, unit detects combustible gases in atmospheric and inert applications. Backlit graphic display shows all gas readings at a glance, while text messages, LEDs, and audible alarm serve as additional alerts. Electrical Perma-Check function continuously controls built-in pump.

Thermal Dynamics Corp.    Chesterfield, MO 63017
Jun 03, 2005 Rated at 100 A, inverter-based CUTMASTER(TM) 151 operates on single-phase or 3-phase input power. It includes ATC(TM) quick disconnect, automatic Tip Saver(TM) circuitry, and 1Torch(TM) plasma torch, which eliminates high frequency starting and provides dross-free cuts. Arc remains constant, even on expanded metal or grating and is strong enough to cut directly through paint and rust. Wraparound roll bar provides protection. System is IP-23C, CSA/NTRL/C, CE, and CCC certified.

Baumer Ltd.    Southington, CT 06489 1534
Jun 03, 2005 Offered in 12 and 18 mm cylindrical as well as 20 and 30 mm square body styles, sensors deliver non-contact proximity, position, and distance sensing for any sound reflecting substrate. Products offer teach-in capabilities as well as lock out feature to prevent unwanted output programming changes. With sensing distances from 10 mm to 2 m and resolutions from 0.3-0.5 mm, sensors offer user-programmable measuring range, analog output slope, and switching point.

EZAutomation    Bettendorf, IA 52722

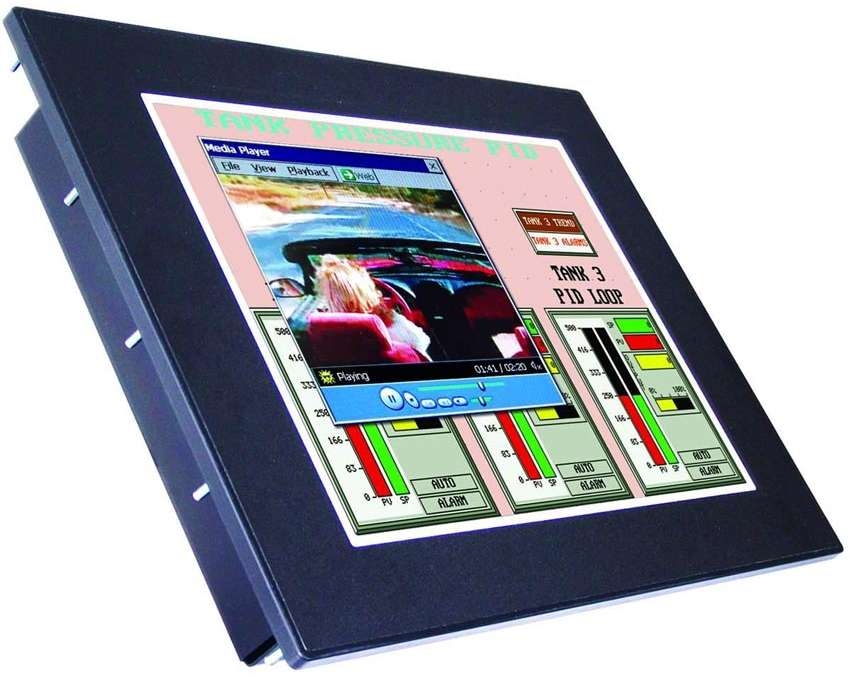

Jun 03, 2005 EZCE operator interface delivers open platform PLC touchpanel that provides functionality of disk-less industrial computer running Windows CE.net v4.2. It enables machine operators to view various file types and gain access to Internet, all on same HMI display that is running current automation applications. Offered in 6, 8, 10, and 15 in. sizes, touchpanel has 128-color capability, support for 3D graphical objects, and screen/object password protection.

Pres-On Tape & Gasket Corp.    Addison, IL 60101

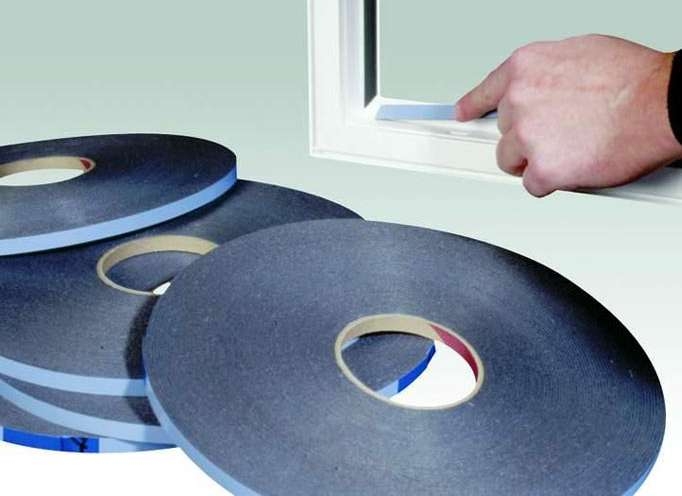

Jun 03, 2005 To facilitate window, door, and mirror fabrication, cross-linked polyethylene foam tape adheres instantly to vinyl, aluminum, treated wood, or glass. It complies with AAMA test standards and is resistant to water as well as UV, age, and temperature extremes. Offered in 1/32, 1/16, and 1/8 in. thicknesses as well as custom sizes, tape is available with rubber and acrylic adhesive systems, both offered in black or white.

Dr. Brockhaus Messtechnik GmbH & Co. KG      Germany
Jun 03, 2005 Hystograph measuring station is offered with segment measuring poles that allow simulation of magnet segment behavior under realistic conditions in electric motor operation. Air gap remains after insertion of test item into segment measuring pole, and alignment enables measurement of total flux of test item. Measuring insert consists of 2 pole shoes; flux measuring coil is integrated in lower part, and Hall sensor measures field strength in air gap.

PTG Industries    Lake Mary, FL 32746
Jun 03, 2005 Designed to help meet direct part marking and part identification requirements, service rents out FiberTower Mini(TM) and Hand-Held Fiber Laser Marking Systems for monthly charge. Compact systems can be plugged into any 110 Vac outlet for start-up. Used for production part marking, fiber laser marking systems work with metals, plastics, ceramics, coatings, and other materials. Rent-to-buy incentives are also available.

TruSeal Technologies Inc.    Beachwood, OH 44122
Jun 03, 2005 Siliporite® 3A/13X and 3A Molecular Sieves are compatible with manufacturing gas-filled IG units and help achieve low dew points. For use with solvent-based sealants, 3A/13X sieves blend synthetic zeolite of type X and A crystalline structure to remove water and solvent residues after sealing glass. Constructed of synthetic zeolite of type 3A crystalline structure, 3A sieves remove water and prevent condensation within insulating glass units using metal spacers.

Datakey Electronics Inc.    Savage, MN 55378
Jun 03, 2005 SlimLine(TM) Tokens withstand EtO sterilization process as well as autoclave sterilization at 265° for 30 min. Typical applications include limit-use, calibration data upload, firmware updates, data transfer, data logging, user authentication, and access control. Mating SlimLine SR4000 Token Receptacles include both miniaturized units and surface-mount designs suitable for portable medical applications.

Catalyst Systems    Gnadenhutten, OH 44629 0088
Jun 03, 2005 Openmake Fast Track Consulting Service Program is intended to assist new users of Openmake with onsite training needed for their unique development environment. It includes 2 days of hands-on Openmake training immediately followed by 3 days of pilot-build assistance. Openmake supports developers by managing complex build tasks from project birth to maturity, all in production-ready environment.

Cree, Inc.    Durham, NC 27703
Jun 03, 2005 Based on XThin® blue and green LEDs mounted to thermally conductive substrate, LED Backlight consumes 40 W, as compared with 100 W for other LED backlighting solutions and 45 W for CCFL-based solutions. It offers peak brightness of 300 NITS at thermal equilibrium. Color and brightness uniformity exceeds ANSII 9-point test for LCD displays. With LED backlighting, large computer and TV screens can be designed that do not require active cooling.

Cree, Inc.    Durham, NC 27703
Jun 03, 2005 Series XB(TM)900 LED Chips are available in blue and green with minimum radiant flux of 90 and 40 mW, respectively. For backlight systems using smaller chips, green XThin® LED Chips offer 10 mW brightness. Brighter chips mean less power is needed to meet brightness specifications for backlighting applications, minimizing energy consumption and need for active cooling systems.

Cambridge Consultants Ltd    Cambridge CB4 0DW  United Kingdom
Jun 03, 2005 Suited for ASIC and FPGA applications, 32-bit XAP3 features Von Neumann architecture that allows code and data to be freely mixed within flat 4 GB memory space. Development tools, which include Gnu Compiler Collection, C/C++ compiler, and uCLinux and Micrium µC/OS-II RTOS, provide support for embedded system applications. Core is available in Verilog RTL for ASIC use, can be fabricated in 40,000–50,000 gates, and delivers typ performance of 0.88 Dhrystone MIPS/MHz.

Accu-Sort Systems, Inc.    Telford, PA 18969 1196
Jun 03, 2005 Long-range camera and decoder, AV40002.0, is available with VisionCapture module, which helps analyze packages that are not read by scanners. If box goes under camera and camera gets no-read result, image is sent to VisionCapture's image depot server (IDS) for long-term capture and saving of images from camera. System can save 10 back-to-back no-read images at 600 ft/min, offers up to 1 Tb image data storage space, and can be tied to dimensioner.
