Westech Aerosol Corporation    Port Orchard, WA 98367

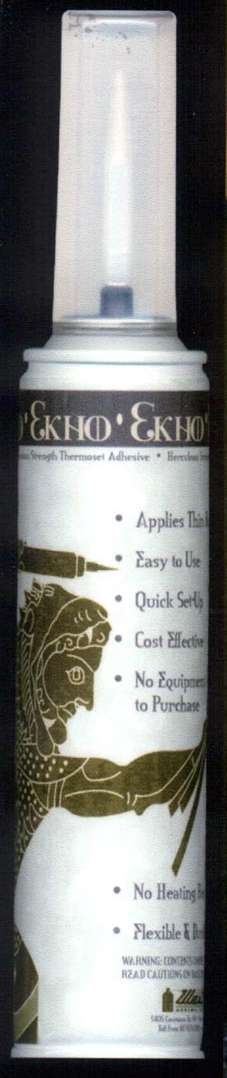

May 10, 2005 Ekho dispenses in thin bond line for optimal user control and smooth, consistent bead. It features post-application clamp time of 10–15 min and can be used in place of hot melt and polyurethanes as well as 2-part and multi-stage epoxy adhesive systems. For application, users are required only to trim nozzle.

Crystek Crystals Corp.    Fort Myers, FL 33913
May 10, 2005 Manufactured in 9 x 14 mm SMD package, CVSS-940 uses Inverted Mesa technology and provides -150 dBc/Hz noise floor as well as ±50 ppm min APR pullability. Product generates frequencies from 77.760–500 MHz, with output level of 0 dBm min into 50 ohm and harmonics under -20 dBc. Operating over -40 to +85°C temperature range, it consumes 25 mA typ and 30 mA max @ 3.3 V. Unit suits telecom applications such as broadband networks, network/switch, and ATM communications.

ATS RheoSystems    Bordentown, NJ 08505

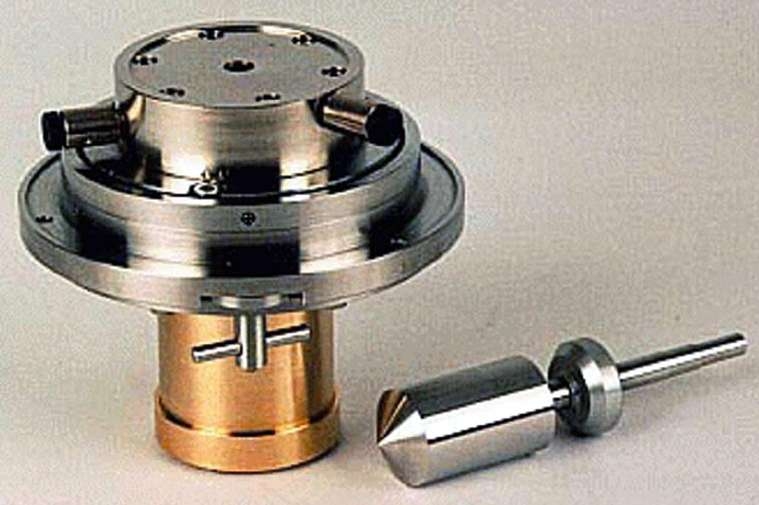

May 10, 2005 Sealed Cell measures viscoelastic rheological properties of solutions without loss of volatile components. Enabling measurements under pressure with full dynamic oscillation and viscometric capability, system has frictionless air-bearing seal that permits dynamic oscillatory testing throughout frequency range of rheometer. Product can also test pastes and semisolid materials at elevated pressures and temperatures utilizing parallel plate measuring system.

Saelig Co., Inc.    Pittsford, NY 14534
May 10, 2005 With minimum lifecycle of 5 years, Industrial ATX Motherboard, Model G4H875-N is based on Pentium 4/Celeron processor up to 3 GHz with 533/800 MHz FSB and 2 DDR SDRAM sockets. It includes 4 PCI expansion slots, 1 PCI-X, and AGP 8x/4x plus 4 USB 2.0 and 2 RJ45 LAN ports. Two Intel 82547EI Gigabit LAN supports 10/100/1000 Mbps data transmission and Intel 82551QM 10/100BaseTx Fast Ethernet.

Sauer-Danfoss    Ames, IA 50010
May 10, 2005 Normally closed, electro-proportional Model PRV controls pressure proportional to valve input signal, allowing operator to control pressure in hydraulic systems. Rated for pressures to 3,600 psi, unit fits 10-2 and 12-2 cavities with flow capability of 21 and 50 gpm, respectively. Four-way, 3-position Model PSV controls output flow proportional to electrical input. Rated for flows from 0-5.7 gpm, unit fits 10-4 cavity and handles pressures to 3,600 psi.

Radio Frequency Co., Inc.    Millis, MA 02054
May 10, 2005 Macrowaveâ„¢ Foam Drying Systems heat and uniformly dry hydrophilic foams evenly throughout entire thickness. Systems apply radio waves to foam webs or buns up to 4 ft thick at frequency of 40.68 MHz, which rapidly remove water without surface discoloration, cupping caused by non-uniform shrinkage, and surface hardening. They can also dry water-based glues in construction of foam laminations up to several feet thick.

EGS ELECTRICAL GROUP • APPLETON    Rosemont, IL 60018

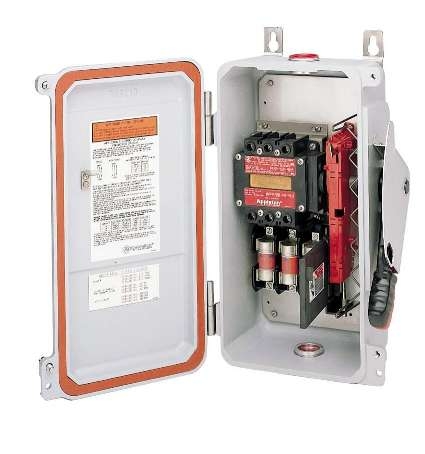

May 10, 2005 Factory-sealed, dead-front interlocked, Model MD2SR is listed by NEC for use in Class I and Class II hazardous locations. It includes positive polarization, defeatable door interlock, and dual-color operating handle that indicates when switch is energized. Waterproof, corrosion-resistant unit has copper-free aluminum enclosure with epoxy powder coating. Fused and non-fused designs offer short-circuit rating of 200,000 and 10,000 rms symmetrical amps, respectively.

PIRTEK USA    Rockledge, FL 32955
May 10, 2005 O-Ring Kits each include 85 rings that are shaped like a D, which provides added sealing properties when working in high-pressure hydraulic systems. O-rings are specifically designed for use with flange fittings.

Sony Electronics Inc.    Park Ridge, NJ 07656
May 10, 2005 Camera Link-compatible, color Model XCL-U1000C incorporates 1/1.8 in. progressive scan CCD that produces 1,600 x 1,200 UXGA images. Monochrome VGA digital camera, Model XCD-V50, features 1/3 in. progressive scan CCD with square pixels and 1394.b interface that supports cables up to 100 m. It provides 648 x 494 pixel resolution at 60 fps in 8-bit mode and offers drop-in replacement for most analog cameras.

Samtec, Inc.    New Albany, IN 47151 1147
May 10, 2005 Series DPAM/DPAF offers up to 168 usable signal pairs, which are on staggered layout with perimeter grounds to simplify signal routing on boards. Connector set has .394 in. mated height and features solder crimped to tails for processing. Final Inch® data is available for 168 signal pairs. Other standard sizes include 48 and 104 signal pairs.

Adcole Corp.    Marlborough, MA 01752-3067
May 10, 2005 Model 1200 is capable of measuring fillet undercut depth before and after rolling at 35° roll angle, journal straightness, and radial distance of journal shoulder to journal. Insensitive to dust and dirt over 40 mm focal range, it provides ±3 µm accuracy, ±1 µm repeatability, and 0.25 µm resolution with all outputs included in summary report. LED micrometer is available as addition to or as retrofit package for gauge, and is attached to follower carriage.

G-Raff Systems    Cleveland, OH 44130-0905
May 10, 2005 Self-supporting Elevating Platforms feature level access platform that raises and lowers to exact height of vehicle, providing fall protection. Available in variety of models that can be customized, units feature machine screw actuation, push button operation, and self-adjusting stairway.

Edmund Optics    Barrington, NJ 08007
May 10, 2005 Able to serve as both primary dispersive element and primary focusing element, Concave Blazed Holographic Gratings are aberration-corrected to eliminate astigmatism. Products, available with groove densities from 265-800/mm, simplify system design and integration by allowing for compact and sensitive instrumentation. Applications include analytical instruments used in food analysis and plastics manufacturing, as well as biotechnology and medical instrumentation.

PACOTHANE Technologies    New York, NY 10028

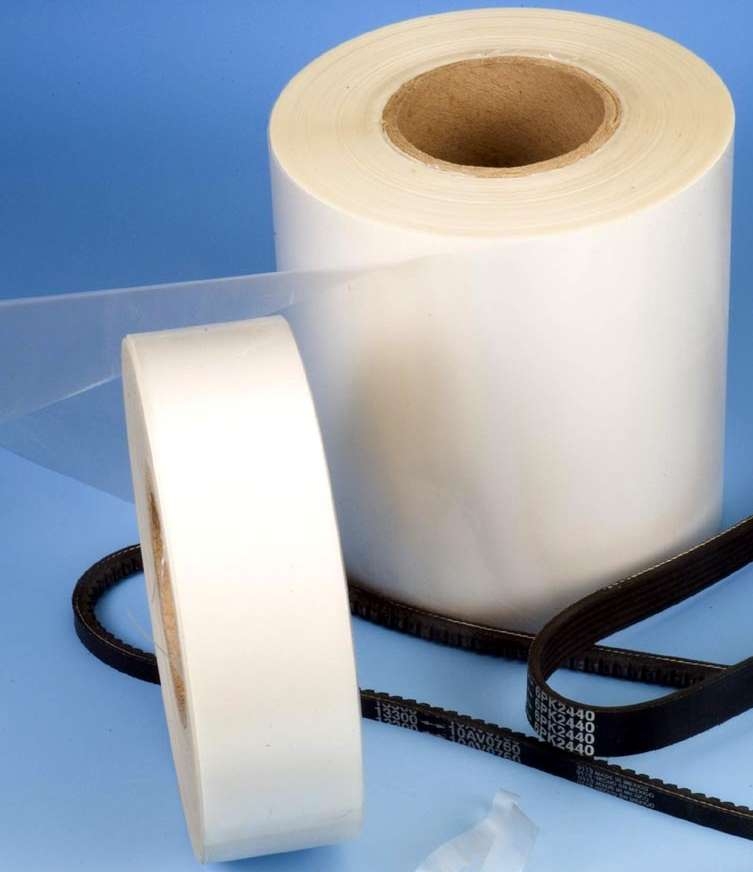

May 10, 2005 Dimensionally stable PACOTHANE® Release Film is polyester-based and inert, with no out-gassing and minimal static potential. Printable release surface is used for transferring print onto reinforced carbon and rubber compounds, epoxies, phenolics, and polyesters. Available in 1.2 and 1.5 mil thicknesses, product can be supplied in widths up to 81.5 in. on rolls or sheets and withstands operating temperatures to 400°F for up to 6 hr.

Kontron Modular Computers GmbH      Germany

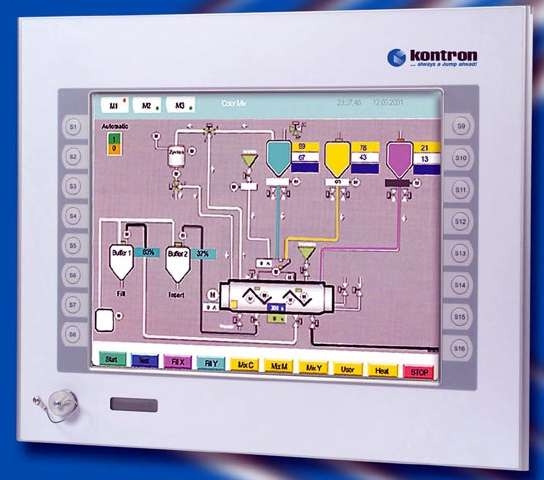

May 10, 2005 Featuring on-board field bus connections, V Panel modular HMI computer is based on ETX technology, supports Pentium® M processors up to 1.1 GHz, employs passive, fanless cooling. Display dimensions are scalable from 10.4–19 in., and up to 112 programmable function buttons and 16 special buttons can be integrated into display frame. Connectivity is provided via 4 serial ports, 3 USB ports, 2 x PS/2, 1 x LPT, as well as LAN 10/100 and LAN 100/1000 Base-TX.

Baker Co., The    Sanford, ME 04073
May 10, 2005 Available in 4 or 6 ft combinations, Pass-Thru System Biological Safety Cabinets employ differential pressure design that offers vivarium protection. Thru-the-wall animal transfer and receiving system uses SterilGARD® III, Class II, Type A2 cabinets equipped with integrated tunnel connection for passage of items into and out of cabinets without compromising integrity of clean area. Features include configurable alarms and timers, RS-232 port, and 12 in. sash opening.

Kontron Modular Computers GmbH      Germany

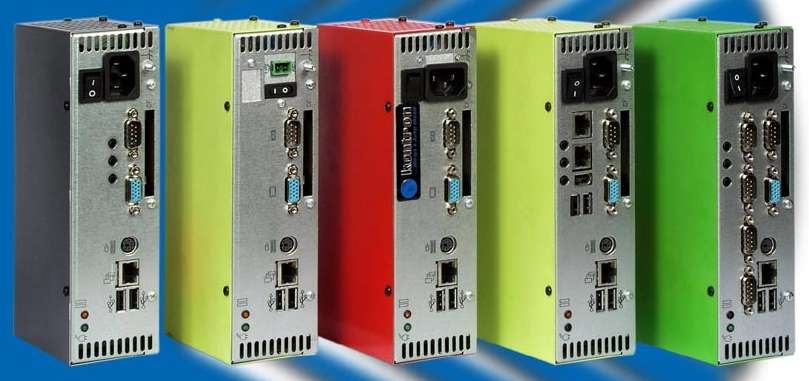

May 10, 2005 Suited for automation and control, JRex IBOX supports processors from 600 MHz VIA Eden to 1.6 GHz Intel Pentium M. All CPU assemblies are fanless and passively cooled. Measuring 226 x 59 x 122 mm, modular product incorporates PCI slot and between 256 Mb and 1 Gb of RAM. Compact Flash, between 128 Mb and 1 Gb, or internal, shock-resistant 20–60 Gb HDD can be implemented as storage device. Interfaces include 2 USB 2.0, Gigabit-LAN, COM1, PS/2, LPT, and VGA.

Kontron Modular Computers GmbH      Germany

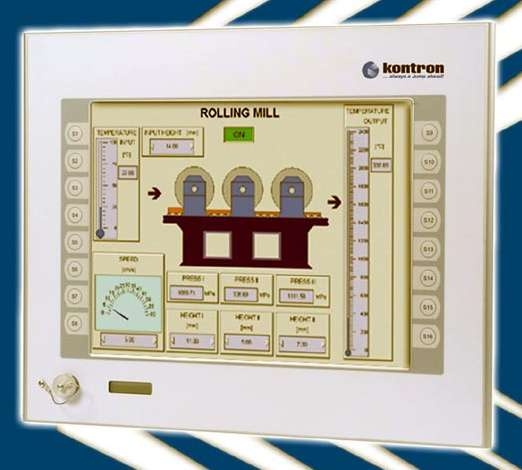

May 10, 2005 Business Panel has half-size slot-CPU design, front-side IP 65 protection, and comes with choice of processors from 850 MHz to 1.4 GHz Pentium III or 1,200 MHz Celeron. Up to 112 programmable function keys and 16 special keys can be integrated in display frame, and display can be separated from computer. CANopen, DeviceNet, or Profibus field buses can be integrated directly on board. Features include 2 PCI slots, dual LAN, USB ports, and 3 serial interfaces.

Pentalift Equipment Corp.    Buffalo, NY 14240 1510
May 10, 2005 Hot dip galvanizing on Hydraulic Lift Tables provides protective, corrosion-resistant finish to all components, allowing tables to withstand repeated hosedowns and washings with disinfectant solutions without damage. Suited for food processing plants, tables include PentaFlow Hydraulic Cylinders and full-width hinge pins for stability. Top bars installed below perimeter of platform automatically stop downward travel of table if any obstruction is contacted.

Aved Electronics, Inc.    Lowell, MA 01851-2729
May 10, 2005 Custom Cable Harnesses are manufactured to specification with regard to flexibility and cycling, exposure to chemicals and harsh environments, signal and power requirements, and connector types. Featuring 100% electrical and mechanical testing, units are UL/CSA approved and can be fabricated from 4–30 ga wire with virtually any type of positive locking connector and quick-disconnect. Harnesses support low signal loss applications down to 1 ohm and systems up to 6,000 V.
