GE Intelligent Platforms    Charlottesville, VA 22911
May 16, 2005 Scalable to 100,000 data points per server, Proficy(TM) Historian v3.0 collects, archives, and distributes all types of real-time, plant floor production data. It can retrieve data from multiple sources and identify root causes of undesirable events. Able to integrate with existing plant floor systems, it provides OPC alarm and events collection and storage capabilities as well as co-existence and integration with OSI Software PI systems through 2-way data sharing.

Crossbow Technology Inc.    San Jose, CA 95134
May 16, 2005 Used to provide attitude and heading measurement, AHRS500GA solid-state attitude and heading reference system (AHRS) is suited for installation in tail or wing of general aviation aircraft. It incorporates FAA certified (TSO C6d) CRM500 remote magnetometer, which comes in multiple form factors and configurations to facilitate plug-and-play upgrades from existing floated flux gate sensor systems. System passes multiple lightning strike test.

Gateway    Irvine, CA 92618
May 16, 2005 Offered in 15 (FPD1560), 17 (FPD1760), and 19 in. (FPD1960) models, VESA mountable LCDs incorporate EzMenuâ„¢ on-screen display technology and support for selectable analog as well as digital DVI-D inputs. Design incorporates clip mechanism for cable routing, attachable/removable base, and optional Ergotron New-Flex LCD Stand with 6 degrees of adjustability. Operating at 40 W, LCDs offer resolutions from 1,024 x 768 and contrast ratios of 400:1 or 450:1.

Kanguru Solutions    Millis, MA 02054
May 16, 2005 Kanguru Bio Drive is equipped with biometric fingerprint recognition sensor that scans user's fingerprint. Once fingerprint match is confirmed, user can access encrypted part of drive. Unit stores up to 5 fingerprints and offers option to set recovery password should sensor undergo substantial damage. Fingerprints are matched with up to 15° of recognizable rotation. Able to be used on any PC, drive offers storage capacities from 256 MB up to 1G.

Rockwell Automation    Milwaukee, WI 53204
May 16, 2005 Visible from up to 25 ft away, panel-mount InView P22R includes firmware with independent line control that lets different information appear on display's 2 message lines simultaneously. Messages can be programmed for each line, allowing multiple employee groups to view pertinent data. Support for alphanumeric variables facilitates scanning and reading of bar codes. Communication options enable unit to connect to legacy, serial, and Ethernet TCP/IP networks.

Hudson Control Group    Springfield, NJ 07081
May 16, 2005 Featuring full robotic control of manifold, Micro10â„¢ is capable of dispensing to shallow and deep SBS plates without use of spacer or manual adjustment. With 50 mm of vertical travel, manifold moves up and down as microplate is stationary in plate nest and 12 tips dispense liquid into wells of microplate. Unit, equipped with touchscreen operator panel, uses Softlinxâ„¢ scheduling software to ensure proper alignment of dispensing and plate heights.

Brudi Bolzoni Auramo    Homewood, IL 60430
May 13, 2005 With load capacities from 3,800–10,000 lb, Series AR accommodates rolls from 10–72 in. dia. Rack-and-pinion mechanism allows for true 180° operation to minimize roll edge damage. Clamps include controlled long and short arm movement, and check valves installed in clamping and rotation cylinders. Operators can adjust clamping force with optional 4-stage pressure selection valve. With split arm option, users can lift 2 rolls of different diameters at same time.

Hytrol Conveyor Co., Inc.    Jonesboro, AR 72401

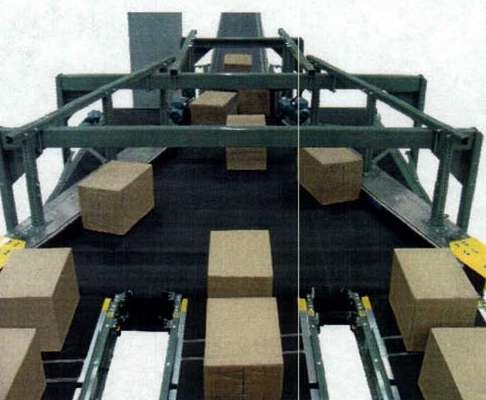

May 13, 2005 Utilizing belt designed for tracking on low length-to-width ratio, Zipper Conveyor merges cartons from multiple parallel lines. Floor-supported plow structure spans conveyor width and supports belt plows over conveyor belt and near belt for low profile cartons. Conveyor and plows are direct driven with shaft-mounted gearmotors and variable speed drives.

Acromag, Inc.    Wixom, MI 48393 7037

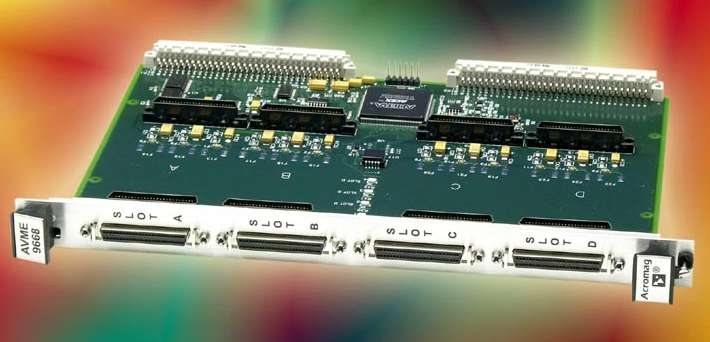

May 13, 2005 Model AVME9668 non-intelligent slave board interfaces IP modules to VMEbus. The 6U board holds 4 IP modules. Field I/O connections are made through front panel of carrier board. To accommodate rugged, high-performance applications, front-panel SCSI-2 connectors provide screw-down or spring latch connections that hold cables securely. With support for 8 and 32 MHz clocks, data can be processed at high speeds. Shielded SCSI-2 cable field I/O connections provide noise immunity.

PAM Fastening Technology    Charlotte, NC 28208

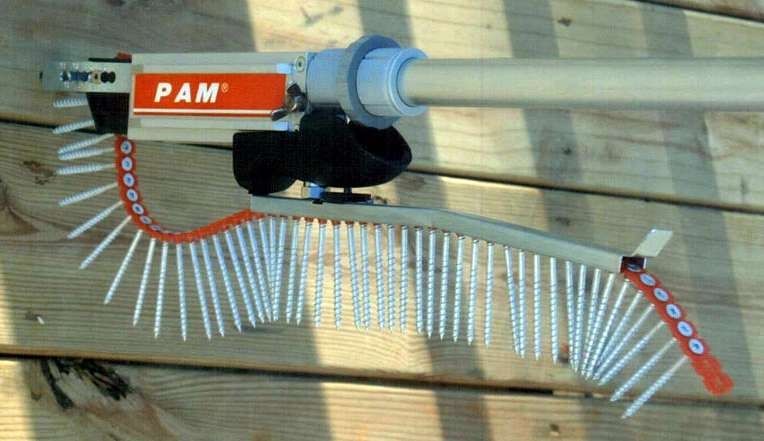

May 13, 2005 Designed for use with P13 autofeed screwdriver system, Copperhead wood screws are available in 2, 2½, and 3 in. sizes, in sharp point and type 17 styles, and in collated strips of 50 screws. They feature anti-corrosion coating that withstands 1,500 hr of salt spray testing to enhance long-term performance.

Shimadzu Scientific Instruments, Inc.    Columbia, MD 21046

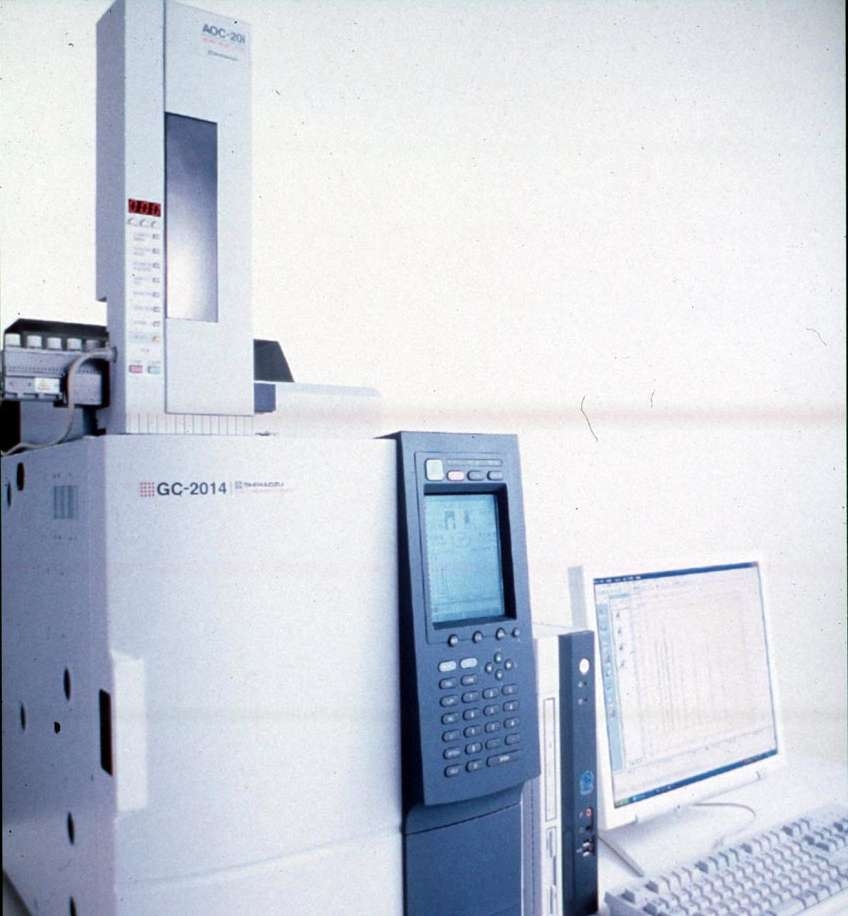

May 13, 2005 Series GC-2014 utilizes Advanced Flow Controller (AFC) technology, which provides users with automatic as well as manual flow or pressure control. Featuring retention time repeatability of 0.0084% CV, product provides flexibility to expand systems by installing up to 4 detectors and 3 injectors. System is equipped with detector control system, auto-ignition and re-lite features, LCD that graphically monitors flow rate and column inlet pressure.

Mitsubishi EDM/MC Machinery Systems, Inc.    Wood Dale, IL 60191
May 13, 2005 Series HV 2D Hybrid Processing Machine's beam path is highly stable, and an 11.8 in. z-axis stroke offers expanded application range. Diamond Soft® CAD/CAM software decreases setup and processing time and reduced secondary operations for faster turnaround. Other features include faster processing speeds, increased machine tool rigidity, and cutting-edge servo control system.

HD Electric Co.    Waukegan, IL 60085

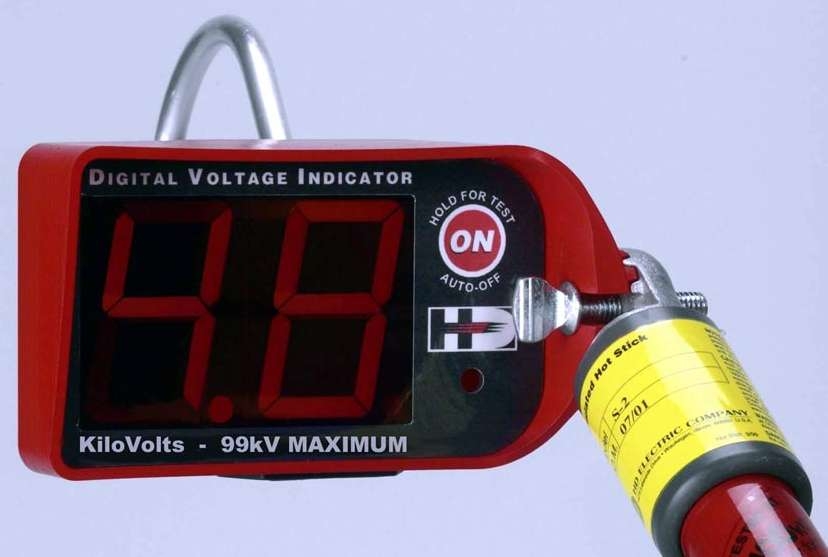

May 13, 2005 Direct contact DVI Digital Voltage Indicator reads voltage on conductors rated up to 99 kV line-to-ground. Its 2.5 in. tall LED display is positioned on end of long hotstick and can be used on overhead lines or in underground applications by contacting conductor and reading display. Compact instrument provides audible indication of voltage detected and allows user to distinguish between nominal and induced voltages.

HD Electric Co.    Waukegan, IL 60085

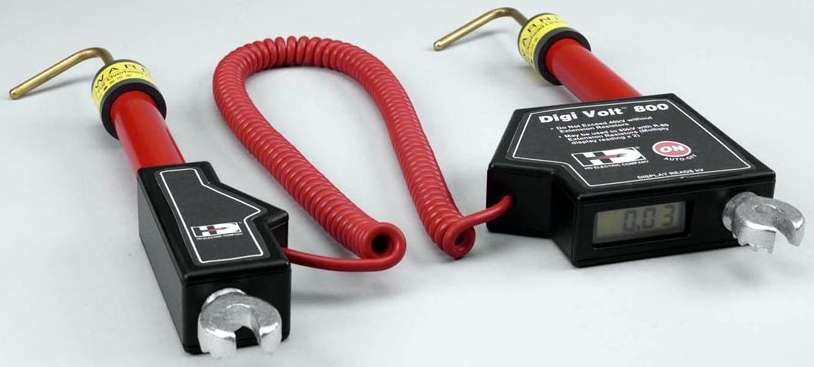

May 13, 2005 Model DVM-80 incorporates Phase Accurate Technology, which makes all voltage readings, from line-to-line or line-to-ground, accurate and repeatable to within 1%. Dual-stick design can be used in overhead and underground applications for measuring voltages up to 40 kV, or up to 80 kV when used with pair of add-on resistors. Digital meter displays true RMS voltage on conductor.

Haydon Switch & Instrument, Inc.    Waterbury, CT 06705 3910

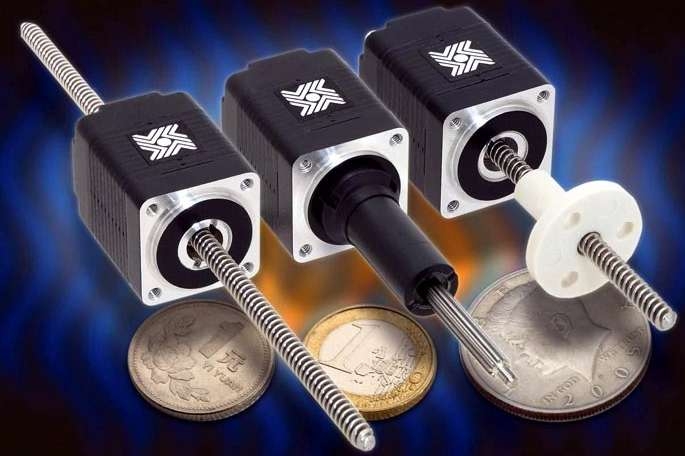

May 13, 2005 Offered in captive, non-captive, and external linear versions, 21000 series (Size 8) linear actuators are manufactured with stainless steel acme lead screw and engineering thermoplastics in rotor drive nut. Hybrid motors offer resolutions from 0.0015–0.04 mm per step and deliver thrust up to 4.5 kg. Able to be micro stepped, product are suit for use in medical equipment, semiconductor handling, hand-held instruments, and X-Y tables.

American ELTEC, Inc.    Las Vegas, NV 89102

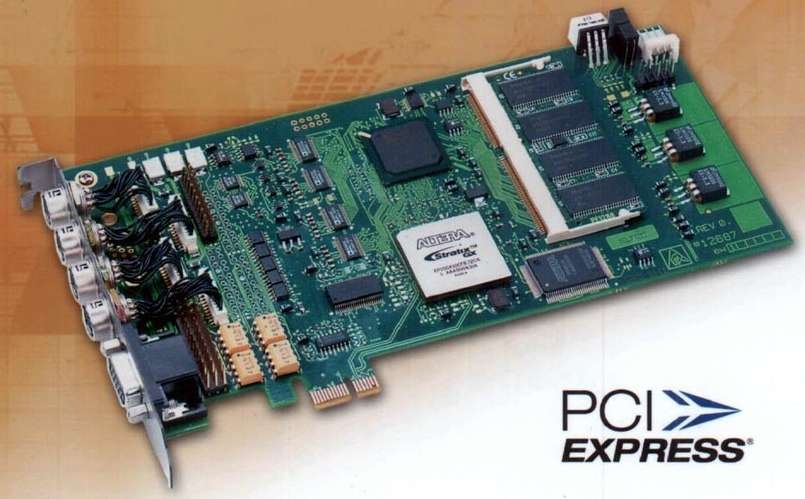

May 13, 2005 PC_EYE/ASYNC employs PCI Express bus interface for acquisition and simultaneous digitization of up to 4 independent (non-synchronized) camera signals. Images are stored in memory as 4 separate monochrome images in 8 bit-per-pixel format. Board is based on 2 programmable FPGAs with FIFOs, sequencers, and sync generators. Modifications to functionality of board's hardware are through software update, facilitating use of newer cameras.

AST Products, Inc.    Billerica, MA 01821 3902

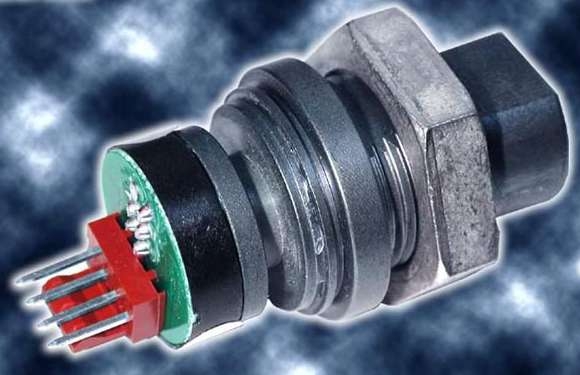

May 13, 2005 Model AST4200 features one-piece bulkhead design made of 17-4PH or 316L stainless steel that mounts through panel to keep hazardous media out of control box. Able to measure benign and corrosive media from –70 to +300°F, product employs titanium and nickel alloy wetted materials with Krystal Bondâ„¢ Technology. With 10 mV/V, 4–20 mA, or 1–5 V outputs, transducers provide gauge, sealed gauge, or compound gauge pressure measurement in ranges up to 10,000 psi.

Beswick Engineering Co., Inc.    Greenland, NH 03840
May 13, 2005 Measuring 18 mm in diameter, single-stage diaphragm Model PRDB-18MM-A-B-C is offered with 2 inlet and 2 outlet ports, allowing inlet and outlet lines to be connected in 4 different configurations. Regulator controls output pressures from 0–20 psig and is suited for low pressure regulation, even below 1 psig. Maximum rated inlet pressure is 300 psig. Four M3 tapped ports can be plugged with M3 screw plugs when not in use.

Beijer Electronics, Inc.    Schaumburg, IL 60173
May 13, 2005 Panel-mount QTERM-G55 uses graphics and keypad to interface with user. It can be equipped with 2 EIA-232, -422, -485 serial ports; Ethernet 10-BaseT; or Power-over-Ethernet interface. Unit features 320 x 240 pixel, 3.8 in. color LCD display; 24- or 40-key membrane/steel snap dome keypad with LEDs; and 2 MB Flash/16 MB SDRAM. Terminal has overmolded rubber boot around ABS polycarbonate plastic case. It uses Qlarity(TM) object-based graphic terminal programming language.

Multiquip Inc.    Carson, CA 90746

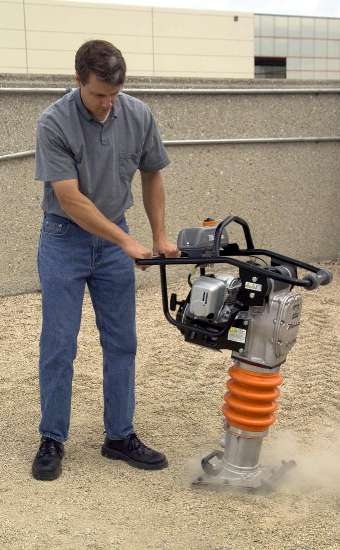

May 13, 2005 Fueled by 3 hp Honda GX100 engine, Model MT-65HA delivers 2,900 lb of impact force on 645–695 bpm. Model MT-74FA generates 3,100 lb of centrifugal force with energy of 3.5 hp Robin EH12 engine. For more demanding applications, Model MT-84FA delivers 3,500 lb impact force on 660–700 bpm. It is driven by 3.5 hp Robin EH12 gasoline engine and travels up to 36 fpm. All models feature 2.1 quart fuel tank, duck bill fuel caps, diaphragm carburetors, and contoured handles.
