Adcole Corp.    Marlborough, MA 01752-3067
May 10, 2005 Model 1200 is capable of measuring fillet undercut depth before and after rolling at 35° roll angle, journal straightness, and radial distance of journal shoulder to journal. Insensitive to dust and dirt over 40 mm focal range, it provides ±3 µm accuracy, ±1 µm repeatability, and 0.25 µm resolution with all outputs included in summary report. LED micrometer is available as addition to or as retrofit package for gauge, and is attached to follower carriage.

G-Raff Systems    Cleveland, OH 44130-0905
May 10, 2005 Self-supporting Elevating Platforms feature level access platform that raises and lowers to exact height of vehicle, providing fall protection. Available in variety of models that can be customized, units feature machine screw actuation, push button operation, and self-adjusting stairway.

Edmund Optics    Barrington, NJ 08007
May 10, 2005 Able to serve as both primary dispersive element and primary focusing element, Concave Blazed Holographic Gratings are aberration-corrected to eliminate astigmatism. Products, available with groove densities from 265-800/mm, simplify system design and integration by allowing for compact and sensitive instrumentation. Applications include analytical instruments used in food analysis and plastics manufacturing, as well as biotechnology and medical instrumentation.

PACOTHANE Technologies    New York, NY 10028
May 10, 2005 Dimensionally stable PACOTHANE® Release Film is polyester-based and inert, with no out-gassing and minimal static potential. Printable release surface is used for transferring print onto reinforced carbon and rubber compounds, epoxies, phenolics, and polyesters. Available in 1.2 and 1.5 mil thicknesses, product can be supplied in widths up to 81.5 in. on rolls or sheets and withstands operating temperatures to 400°F for up to 6 hr.

Kontron Modular Computers GmbH      Germany
May 10, 2005 Featuring on-board field bus connections, V Panel modular HMI computer is based on ETX technology, supports Pentium® M processors up to 1.1 GHz, employs passive, fanless cooling. Display dimensions are scalable from 10.4–19 in., and up to 112 programmable function buttons and 16 special buttons can be integrated into display frame. Connectivity is provided via 4 serial ports, 3 USB ports, 2 x PS/2, 1 x LPT, as well as LAN 10/100 and LAN 100/1000 Base-TX.

Baker Co., The    Sanford, ME 04073
May 10, 2005 Available in 4 or 6 ft combinations, Pass-Thru System Biological Safety Cabinets employ differential pressure design that offers vivarium protection. Thru-the-wall animal transfer and receiving system uses SterilGARD® III, Class II, Type A2 cabinets equipped with integrated tunnel connection for passage of items into and out of cabinets without compromising integrity of clean area. Features include configurable alarms and timers, RS-232 port, and 12 in. sash opening.

Kontron Modular Computers GmbH      Germany
May 10, 2005 Suited for automation and control, JRex IBOX supports processors from 600 MHz VIA Eden to 1.6 GHz Intel Pentium M. All CPU assemblies are fanless and passively cooled. Measuring 226 x 59 x 122 mm, modular product incorporates PCI slot and between 256 Mb and 1 Gb of RAM. Compact Flash, between 128 Mb and 1 Gb, or internal, shock-resistant 20–60 Gb HDD can be implemented as storage device. Interfaces include 2 USB 2.0, Gigabit-LAN, COM1, PS/2, LPT, and VGA.

Kontron Modular Computers GmbH      Germany
May 10, 2005 Business Panel has half-size slot-CPU design, front-side IP 65 protection, and comes with choice of processors from 850 MHz to 1.4 GHz Pentium III or 1,200 MHz Celeron. Up to 112 programmable function keys and 16 special keys can be integrated in display frame, and display can be separated from computer. CANopen, DeviceNet, or Profibus field buses can be integrated directly on board. Features include 2 PCI slots, dual LAN, USB ports, and 3 serial interfaces.

Pentalift Equipment Corp.    Buffalo, NY 14240 1510
May 10, 2005 Hot dip galvanizing on Hydraulic Lift Tables provides protective, corrosion-resistant finish to all components, allowing tables to withstand repeated hosedowns and washings with disinfectant solutions without damage. Suited for food processing plants, tables include PentaFlow Hydraulic Cylinders and full-width hinge pins for stability. Top bars installed below perimeter of platform automatically stop downward travel of table if any obstruction is contacted.

Aved Electronics, Inc.    Lowell, MA 01851-2729
May 10, 2005 Custom Cable Harnesses are manufactured to specification with regard to flexibility and cycling, exposure to chemicals and harsh environments, signal and power requirements, and connector types. Featuring 100% electrical and mechanical testing, units are UL/CSA approved and can be fabricated from 4–30 ga wire with virtually any type of positive locking connector and quick-disconnect. Harnesses support low signal loss applications down to 1 ohm and systems up to 6,000 V.

Parvus Corp.    Salt Lake City, UT 84115 2913

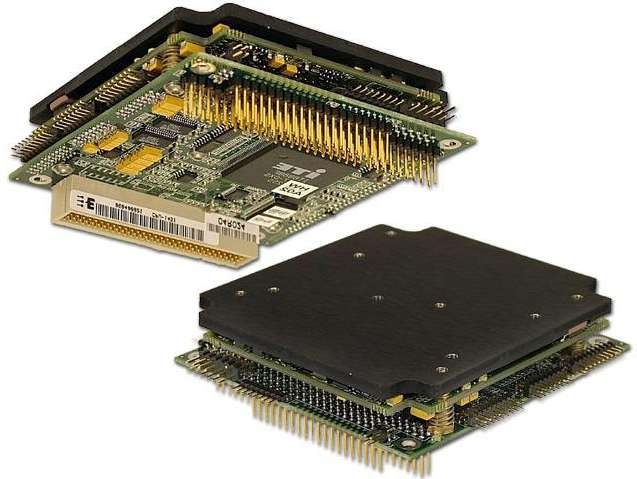

May 10, 2005 Designed around ULV Intel Celeron Tualatin processor and 815E chipset, SpacePC 1450, 1451, 1453, and 1850 CPU modules are hardware-compatible with RTOS. PC/104-Plus models feature fanless operation from -40 to +85°C and integrate 256 Mb RAM soldered directly onto boards. PCI-104 form factor model includes same onboard peripherals as above models with integrated finned heatsinks on top of components, 512 Mb SO-DIMM SDRAM, and LVDS video interface in addition to VGA.

Flexicon Corporation    Bethlehem, PA 18020 8006

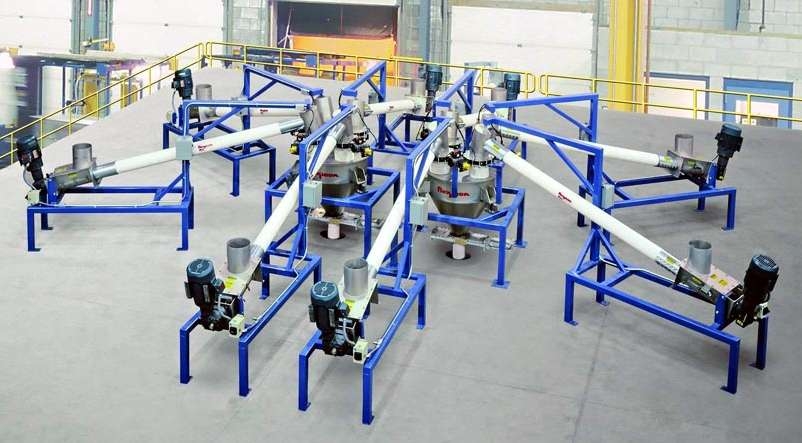

May 10, 2005 Weigh Batching System is comprised of 8 low profile, motor-driven, screw conveyors fed by roof-mounted storage vessels, with each group of 4 conveyors feeding either of 2 gain-in-weight hoppers. System controller starts and stops each conveyor to weigh ingredients in sequence, stopping material flow once accurate batch weight has been gained. Enclosed, dust-free conveyors can handle products ranging from sub-micron powders to large pellets.

HBControls, Inc.    Fall River, MA 02720
May 10, 2005 HBC-EZ series features pre-installed controller wiring harness for single-phase, 3-phase/2-pole, or 3-phase/3-pole applications. Relays offer zero cross-switching, max output of 6 A/pole at 40°C ambient temperature, and input control voltage range of 4-15 Vdc for dc model and 90-140 Vrms for ac model. Mounted on DIN rail clip and measuring 3 x 9 in., controls are suited for use in plastics molding, semiconductor manufacturing, medical, and food processing equipment.

O'Keefe Controls Co.    Monroe, CT 06468
May 10, 2005 Series of miniature valves includes standard check valves, fixed flow controls, checked orifices, and bidirectional flow controls. Set screw style for manifold applications is offered with size 10/32, 1/4-20, 5/16-18 and 3/8-16 threads. In-line construction is produced in 10/32 as well as 1/8 and ¼ in. NPT sizes.

Dematic Corp.    Grand Rapids, MI 49505

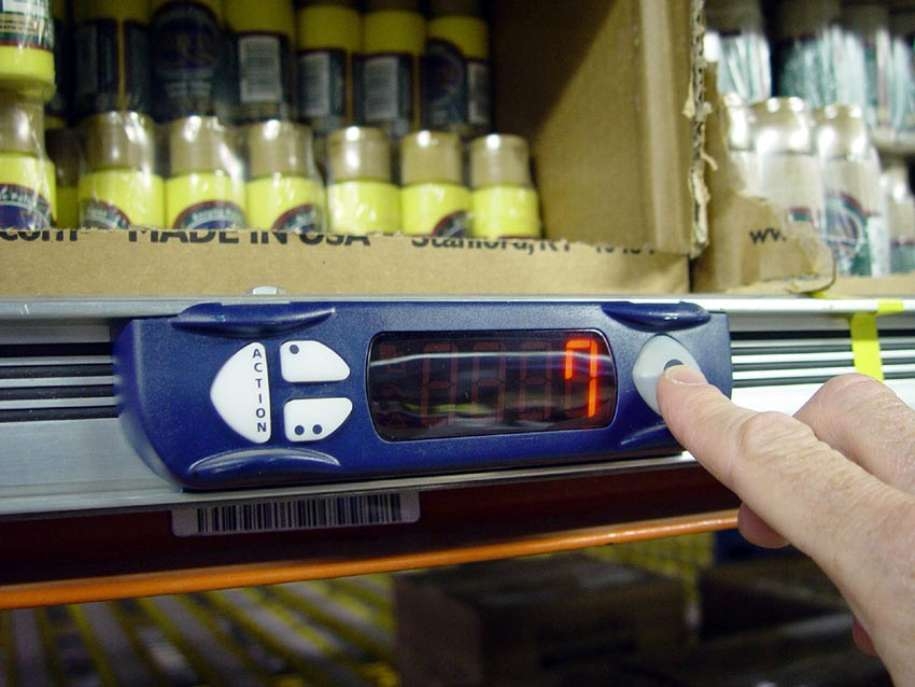

May 10, 2005 Configurable modules within PickDirector v3.0 architecture direct and manage pick-to-light, put-to-light, voice-directed picking, pick carts, and RF-directed replenishment picking solution types. Order management functionality includes wave processing, batch optimization, and ability to sort orders by priority, destination, or customer. Label printing, order editing, workload analysis, and dynamic zone balancing are also supported.

Rousseau Metal    St. Jean-Port-Joli, QC G0R 3G0  Canada
May 10, 2005 Made from PVC, NC Tool Rack protects tools from blows and can be perforated for Taper, Straight, Sandvik Capto, HSK, KM, and VDI tools. It is also available blank, allowing users to personalize unit for specific needs. Rack includes Tool Identification zone for tool retrieval and ergonomic handles to facilitate carrying.

AZCO Corp.    Fairfield, NJ 07004
May 10, 2005 Driven by stepper or servomotor, FGW SUR-CUT features all ball bearing construction, digital controls, and knife assembly with self-adjusting hardened tool steel blades. Designed for low to moderate volumes, cutter is available in sizes from 4–39 in. in either bench model or with adjustable stand that can be rolled to areas needing cut product. Unit is sutied for cutting films, foils, non-woven textiles, filter material, paper, Velcro, multi-laminates, and composites.

Mark-10 Corp.    Copiague, NY 11726
May 10, 2005 Utilizing rigid column that minimizes bend, TSFM500 is designed for compression and tension testing of springs, packaging, metals, and fabrics. Clearance and throat depth accommodate variety of sample shapes and sizes, and remote control unit adds to testing safety. Along with 0.2-5.5 ipm user-selectable speed range, product has stepper motor design that eliminates speed variation with load. Digital travel display and set of limit switches are options.

Norplex Micarta    Postville, IA 52162
May 10, 2005 Suited for indoor or outdoor use by skateboarders, roller skaters, and stunt bikers, SkatePlate 3000 composite material has non-splintering surface resistant to wear, abrasion, and moisture. Product, made by fusing weather-resistant resin system into natural fiber reinforced core under heat and pressure, is bondable to frames and subsurfaces with adhesives, nails, or screws. Surface provides solid grip for skaters, but permits controlled slips as needed.

Taylor-Winfield Corp., The    Brookfield, OH 44403 0500
May 10, 2005 Featuring force range of 675–1,055 lb, 24 in. throat rocker arm welders are offered with 25, 30, and 50 KVA ac transformers. With force range of 1,000–4,045 lb, RWMA Size 0–3 press welders have ac transformers rated from 50–250 KVA. Press welders rated 80, 100, and 150 KVA, as well as 50 KVA rocker arm welder, are stocked with 440 V primary power. Product line can also be customized to specifications.
