Rice Lake Weighing Systems    Rice Lake, WI 54868
May 16, 2005 Featuring analog to digital technology, iQUBEâ„¢ Digital Diagnostic Junction Box, combined with VIRTUiâ„¢ software, allows digital calibration and diagnostic monitoring of load cells as well as ability to remotely view load cell status via web browser. NTEP-approved software turns PC workstation into virtual weight indicator, displaying weight data and allowing operator interface directly from computer.

Kardex Remstar LLC    Westbrook, ME 04092
May 16, 2005 Shuttle(TM) XP VLM can handle loads up to 132,000 lb and reach up to 65 ft high to maximize overhead storage cube. Design of steel belted tooth belt drive allows multiple points of fully engaged contact, minimizing ambient unit sound. With no metal on metal moving parts or friction, belts require no lubrications and are not prone to stretching or metal wearing.

Rockwell Automation / Reliance Electric    Euclid, OH 44117
May 16, 2005 Variable-speed Model GV6000 comes in 7 frame sizes ranging from 0.5–200 hp at 480 V. Removable Operator Interface Module provides metering, programming, and operator control, and contains CopyCat functionality for transferring parameter sets between drives. Model GV6000 incorporates general-purpose control, sensorless vector control, and flux vector control with or without encoder feedback. Closed-loop vector control ensures precise operation over 1,000:1 range.

Rice Lake Weighing Systems    Rice Lake, WI 54868
May 16, 2005 Constructed of Fiberglass Reinforced Polyester with NEMA 4X enclosure, SURVIVOR 420HE is non-condensing and inert to most chemicals, oils, and solvents. Watertight front panel switches are covered with silicone rubber polymer membrane for additional protection. Capable of driving up to eight 350 ohm load cells, unit offers speeds up to 60 updates/sec and RATTLETRAPâ„¢ 3-stage digital filtering. Two setpoint outputs can activate alarms or buzzers.

Measurement Systems International, Inc. (MSI)    Seattle, WA 98168 4660
May 16, 2005 Electronic Porta-Weigh Plus MSI-4300 includes 6-digit, 1.6 in. high, alphanumeric LCD with LED backlighting and sealed lead acid battery that provides up to 300 hours of operation between charges. Available in 9 standard capacities from 500–100,000 lb, scale includes digital calibration and self-diagnostic circuitry. It is available with infrared remote controller, RS-232 and relay output options, and alkaline battery power or universal direct power supply.

Norbar Torque Tools, Inc.    Willoughby, OH 44094
May 16, 2005 USM-2 Ultrasonic Bolt Meter with operating software v1.6 provides precise measurement of elongation and load in threaded fasteners from 1 in. to 50 ft long made of any metal material. Field-portable unit features onboard flash memory that stores up to 5 elongation and load measurements for each bolt to verify multiple pass tightening procedures. Integral data recorder stores bolt information and makes it available for download through RS232 port.

Control Company    Friendswood, TX 77546
May 16, 2005 Calculator performs science, math, common/hyperbolic trigonometric, logs/natural logs, powers, roots, reciprocals, factorials, percentages, hexadecimals, random number generation, and degree/decimal conversion. Statistical features include standard deviation, mean, sum of squares, and sum of data. Three-key memory and Forever Memory store data when unit is off, and powerdown function conserves battery life. Answers are shown on 10-digit numerical, 2-digit exponent display.

Dynasonics, Div. Of Racine Federated, Inc.    Racine, WI 53404
May 16, 2005 Intrinsically Safe, clamp-on Series DTTN is certified for use in Class 1 Division 1, Groups C and D hazardous environments. Two high-frequency barriers permit RF signals to transmit back and forth to transducers, while preventing potentially explosive levels of dc or ac voltage from passing through to hazardous area. Transducers are suited for liquid flow measurement on closed fixed pipe systems 2 in. and larger, and are compatible with transit time permanent mount meters.

Telatemp Corp.    Fullerton, CA 92831
May 16, 2005 TelaSHOCK 3-axis, battery-powered recorder measures and records peak acceleration levels to which package or container is subjected, along with date and time of occurrence. For setup and data recovery, device uses host PC running Windowsâ„¢-based software. Once activated, unit records shock and vibration levels that occur within preset time bin periods, which are programmable from .125 sec to 1 hr. TelaSHOCK can record 43,680 time-tagged peak acceleration levels per axis.

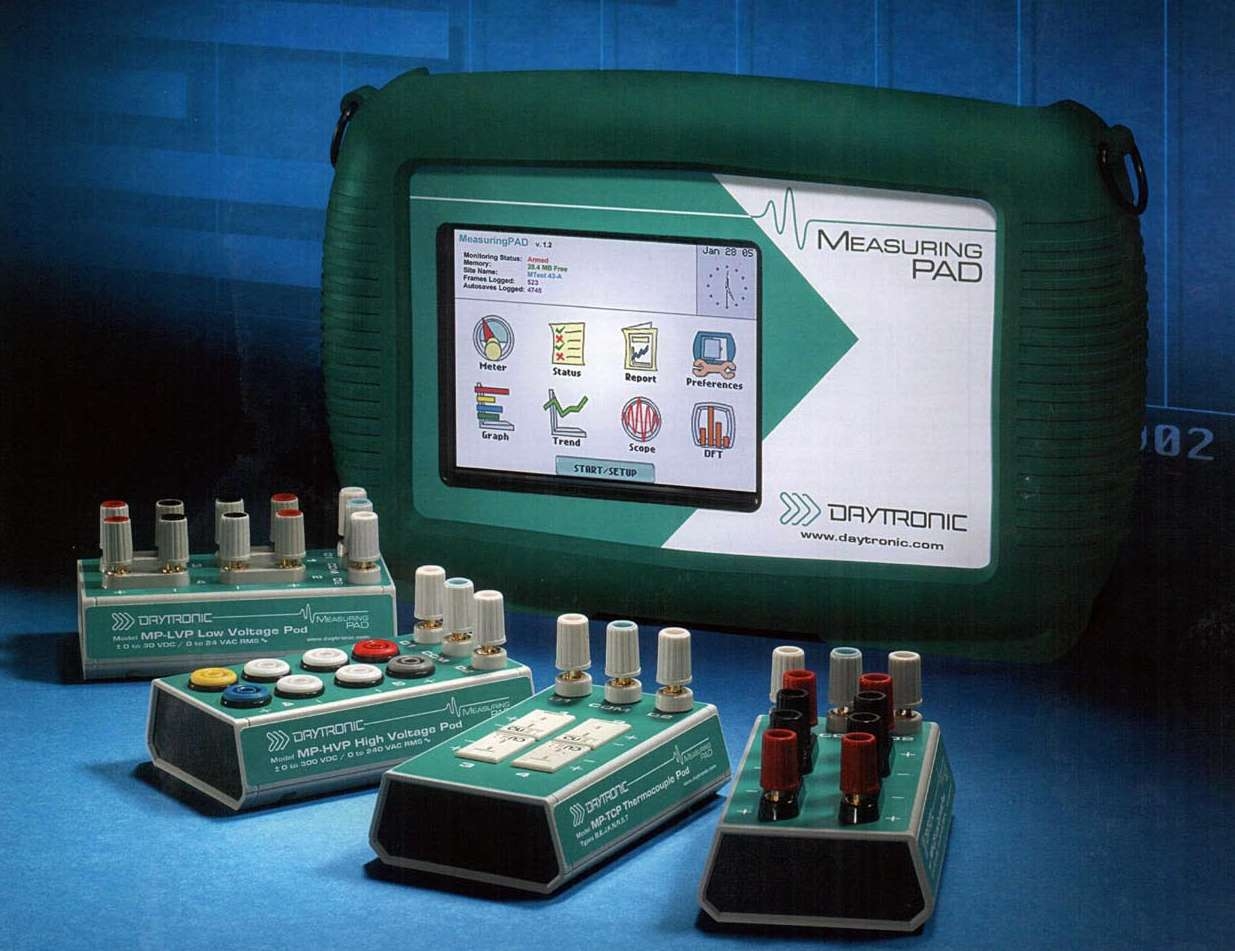

Daytronic Corp.    Dayton, OH 45439 1521
May 16, 2005 MeasuringPADâ„¢ collects, monitors, and displays multiple sensor inputs and is suited for troubleshooting, process tuning, fault recording, and trend analysis. Configured and operated through graphical interface, unit continuously scans all active inputs, digitizing with 16-bit A/D while checking for limit-violation triggers and refreshing memory buffer at 10 kHz/input. MeasuringPAD provides live readout of up to 16 differential analog inputs and 8 logic-level digital inputs.

Arista Corp.    Fremont, CA 94538
May 16, 2005 Ruggedized ARP-2019 is 3.75 in. deep and features 19.0 in. LCD screen supplied with strengthened glass or resistive touchscreen and NEMA 4/IP65 compliant front bezel. Computer is powered by Intel P4 or Pentium-M CPU, supports up to 1 Gb SDRAM, has one PCI expansion slot, and is equipped with a CD-ROM or DVD-CDRW combo drive. Unit also incorporates 2.5 in. IDE HDD, 4 USB 2.0 ports, up to 4 RS-232 ports, and one RJ45 10/100 Ethernet port.

Cal-Chip Electronics, Inc.    Ivyland, PA 18974
May 16, 2005 Featuring chips in 8 EIA sizes ranging from 0603-8060, CHV Series multilayer ceramic chip (MLCC) capacitors are suited for surge suppression and temperature compensation in high-voltage applications with limited PCB space. They feature operating temperature of -55 to +125°C, with temperature coefficient of capacitance of ±15%/°C for X7R dielectric, 0±30 ppm/°C for COG dielectric, and +22 to -56% for Y5V and Z5U dielectric. Capacitance ranges from 1.0 pF to 1.2 µF.

Men Micro Inc.    Lago Vista, TX 78645-4160
May 16, 2005 Utilizing Pentium III or Celeron® processors from 400-933 MHz, 3U Model F11 can function as single-slot cPCI system master or as standalone computer. It accommodates up to 512 Mb of SO-DIMM and includes CompactFlash socket, 2 Fast Ethernet and 2 RS-232 interfaces, 2 USB ports, and VGA or UXGA graphics port. Additional I/O can be implemented by loading function cores into on-board Cyclone® FPGA. Model F11 is suited for embedded systems in transportation applications.

SBS Technologies Inc.    Albuquerque, NM 87110
May 16, 2005 Incorporating Sockets Direct Protocol (SDP) and IP over InfiniBand® (IPoIB) technology for InfiniBand host channel adapters (HCAs), IB4X-VXWORKS driver enables up to 200 Mb/s data throughput for VxWorks embedded applications. Along with subnet manager, driver provides mirror API application programming interface. Specific applications include medical imaging and avionics, military, and commercial simulation.

Vicon Industries Inc.    Hauppauge, NY 11788
May 16, 2005 Offering support for DVR and IP video solutions, ViconNet VN1000 v3.0 Digital Management System gives PC and server platforms running Windows XPâ„¢ video management capabilities. GUI is used to overlay camera icons for physical positioning as well as selection and control of fixed and PTZ cameras. Software offers low bandwidth selection and audio quality setup capabilities as well as support for 16 x 4 matrix output.

GE Intelligent Platforms    Charlottesville, VA 22911
May 16, 2005 Scalable to 100,000 data points per server, Proficy(TM) Historian v3.0 collects, archives, and distributes all types of real-time, plant floor production data. It can retrieve data from multiple sources and identify root causes of undesirable events. Able to integrate with existing plant floor systems, it provides OPC alarm and events collection and storage capabilities as well as co-existence and integration with OSI Software PI systems through 2-way data sharing.

Crossbow Technology Inc.    San Jose, CA 95134
May 16, 2005 Used to provide attitude and heading measurement, AHRS500GA solid-state attitude and heading reference system (AHRS) is suited for installation in tail or wing of general aviation aircraft. It incorporates FAA certified (TSO C6d) CRM500 remote magnetometer, which comes in multiple form factors and configurations to facilitate plug-and-play upgrades from existing floated flux gate sensor systems. System passes multiple lightning strike test.

Gateway    Irvine, CA 92618
May 16, 2005 Offered in 15 (FPD1560), 17 (FPD1760), and 19 in. (FPD1960) models, VESA mountable LCDs incorporate EzMenuâ„¢ on-screen display technology and support for selectable analog as well as digital DVI-D inputs. Design incorporates clip mechanism for cable routing, attachable/removable base, and optional Ergotron New-Flex LCD Stand with 6 degrees of adjustability. Operating at 40 W, LCDs offer resolutions from 1,024 x 768 and contrast ratios of 400:1 or 450:1.

Kanguru Solutions    Millis, MA 02054
May 16, 2005 Kanguru Bio Drive is equipped with biometric fingerprint recognition sensor that scans user's fingerprint. Once fingerprint match is confirmed, user can access encrypted part of drive. Unit stores up to 5 fingerprints and offers option to set recovery password should sensor undergo substantial damage. Fingerprints are matched with up to 15° of recognizable rotation. Able to be used on any PC, drive offers storage capacities from 256 MB up to 1G.

Rockwell Automation    Milwaukee, WI 53204
May 16, 2005 Visible from up to 25 ft away, panel-mount InView P22R includes firmware with independent line control that lets different information appear on display's 2 message lines simultaneously. Messages can be programmed for each line, allowing multiple employee groups to view pertinent data. Support for alphanumeric variables facilitates scanning and reading of bar codes. Communication options enable unit to connect to legacy, serial, and Ethernet TCP/IP networks.
