B & K Precision Corp.    Yorba Linda, CA 92887

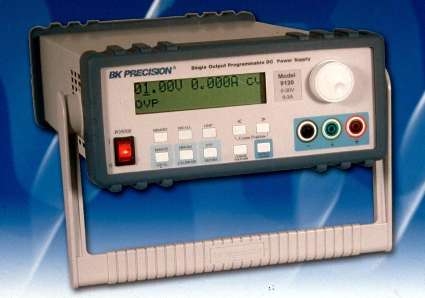

May 12, 2005 Single output, benchtop Model 9120 utilizes standard 115 Vac outlet as power source and provides programmable output of 0–30 V, 0–3 A. Non-volatile memory stores up to 100 power supply settings, while RS-232 interface permits user to program voltage and current though serial COM port. With resolution of 10 mV and 1 mA, unit is suited for low power surface mount circuits that require precise voltage and current settings. Model 9120 uses 4 mm sheathed banana jacks for safety.

Techcon Systems    Garden Grove, CA 92841

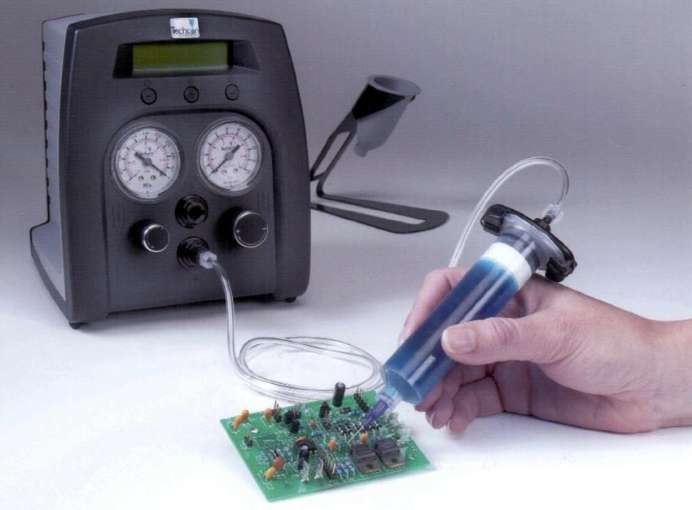

May 12, 2005 Microprocessor-driven, digital-timer DX-300 Series provides operating pressure of 0-100 psi. It suits general fluid dispensing and controlling dispensing valves. To provide accurate, consistent, precise, and repeatable dispensing of fluids, 10 programmable memories store and recall most frequently used dispensing cycle timing. DX-300 has full shot time range of 0.008-99.999 sec in 1 ms increments. DX-315, with operating pressure of 0-15 psi, suits low viscosity fluid dispensing.

AustriaMicroSystems USA Inc,    Raleigh, NC 27615
May 12, 2005 Model AS5043 provides analog voltage proportional to measured angle, in addition to 10-bit digital position information. Depending on angular range settings, step size of analog output may vary from 0.35-0.09°/step. Daisy chain mode allows connection of several devices in series over 2-wire bus. Available in a lead-free SSOP 16 package, AS5043 operates at 3.3 or 5 V from -40 to +125°C. Device includes zero position programming as well as diagnostic features.

Snap-on Industrial    Kenosha, WI 53141 1410
May 12, 2005 Suited for vehicle technicians, 3/8 in. MG31 aids in removing lug nuts, loosening tie rod ends, and securing other fasteners. Construction incorporates balanced design with slim nose, cushioned trigger, anvil stop lock, and metal reverse and power controls. Weighing 2.9 lb, unit features internal twin hammer mechanism that delivers 300 lb-ft torque at impact. Unit is powered by low-vibration, reverse bias motor with 8-vane rotor.

Toshiba Teli America, Inc.    Irvine, CA 92618

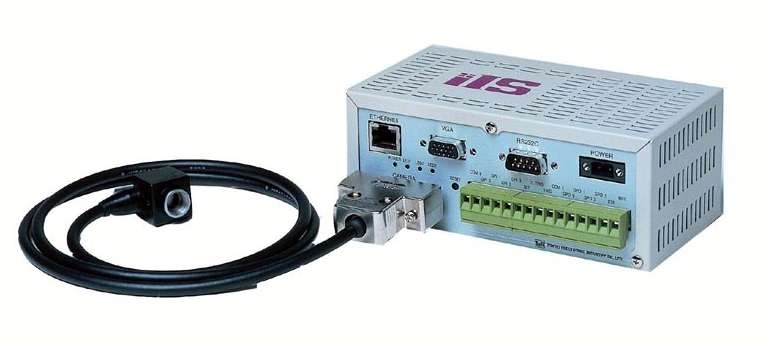

May 12, 2005 Consisting of CCD camera, control unit, and software, Model iIS-010 performs packaging and label inspection, barcode reading, pattern matching, and feature presence/absence. Camera electronics support 60 Hz progressive scan frame rate and are housed in 150 x 60 x 80 mm assembly with single cable connecting remote head, double-speed VGA sensor. With 10/100BaseT Ethernet networking connectivity, system can be linked throughout factory floor.

K-Tek    Prairieville, LA 70769
May 12, 2005 Featuring compact switching mechanism that is isolated from process fluid, magnetically coupled Series LS operates at specific gravities as low as 0.25, temperatures to 1,000°F, and pressures to 4,500 psi. Hermetically sealed, 360° externally adjustable cam action switching mechanism results in zero maintenance. Using either float or displacer, units provide 1-step access to switching mechanism, eliminating need to remove bulky housing of cage level switches.

Value Engineering Alliance, The    Cambridge, MA 02139-4772

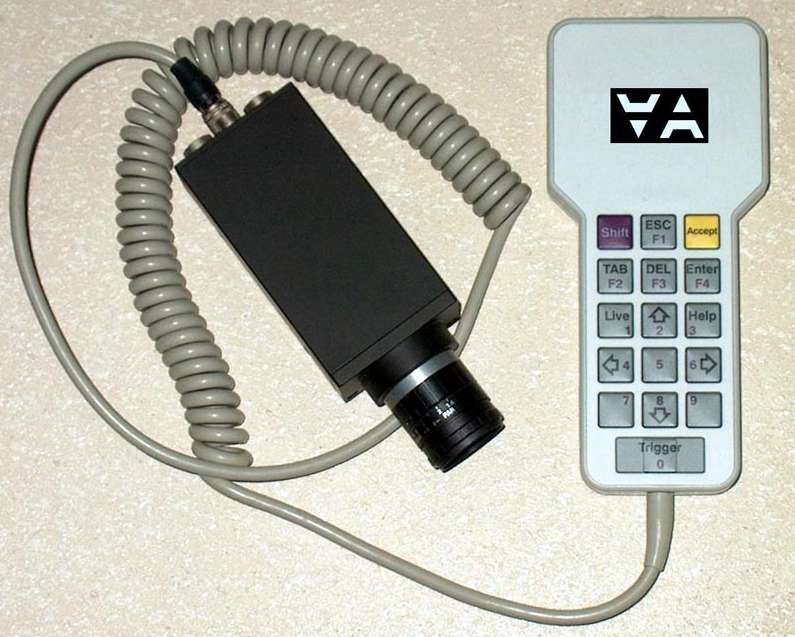

May 12, 2005 PQEyeâ„¢ smart camera-based instrument addresses narrow web print inspection tasks, checking position, correctness, and quality of text and graphics that are machine-printed on discrete parts. Operated using multifunction keypad and GUI, product can detect defects down to a few pixels in size on media moving at rates to 300 m/min. Inspection speeds range from 3 parts/sec on individual items to 20 frames/sec in web applications.

Anderol Company    East Hanover, NJ 07936
May 12, 2005 AOSynâ„¢ DE diester-based lubricants, formulated for oxidative resistance and minimal hydrocarbon deposit formation, incorporate ester basestock and additive technology to decrease risk of compressor detonation. With operating range of -40 to +210ºC, series minimizes power consumption through lubricity and is available in ISO viscosity grades 32, 46, 68, 100, and 150. IT may be used on screw, vane, axial, centrifugal, and reciprocating compressors.

Matrox Graphics Inc.    Dorval Quebec H9P 2T4, CD   Canada
May 12, 2005 Designed for PCI, AGP, and PCI Express graphics products such as Parheliaâ„¢, Millennium P-Series, QID, and Millennium G-Series, 64-bit SE display drivers for MS Windows XP Professional x64 Edition support both AMD64 processors and 64-bit Intel® Xeonâ„¢ processors. Architecture supports 64-bit applications as well as most existing 32-bit applications.

Wagner Companies, The    Bulter, WI 53007
May 12, 2005 Angle roll bending services are provided for materials such as aluminum, steel, stainless steel, brass, and bronze. Tooling exists for bending shapes, including round pipe, round and square tube, angles, and channel up to 4.50 in. OD. Other services are provided via CNC measuring devices and pipe and tube cleaning, finishing, and forming machines.

Agilent Technologies, Inc.    Santa Clara, CA 95051
May 12, 2005 Portable, dual-channel, digital-storage oscilloscopes in DSO3000 Series offer 60 (DSO3062A), 100 (DSO3102A), 150 (DSO3152A), or 200 (DSO3202A) MHz bandwidth. Featuring menu keys grouped by function, front-panel design offers dedicated knobs for each channel and lets users control main and delayed time bases. Series offers 1 Gsa/s max sample rate and 4k memory per channel. Areas of use include communications, computing, industrial, and aerospace.

Dometic Corp., The    Elkhart, IN 46516
May 12, 2005 Auxiliary Air Conditioner consists of self-contained, 7,000 BTU air conditioning unit, packaged with 2,500 W inverter/charger and separate dedicated battery bank. Shorepower plug is included, so that system can run on external ac power when hookups are available. HVAC batteries automatically recharge whenever main engine is running or shorepower is hooked up. Truck’s starting batteries are isolated from HVAC system’s batteries.

Data Connection Limited    Enfield,EN2 6BQ   United Kingdom
May 12, 2005 Session Border Controller Software, DC-SBC, offers portable source code solution that provides upgrade path to complete Session Border Controller functionality for routers and softswitches. Modular, scalable, fault-tolerant solution is suited for OEMs looking to provide address translation, security/firewall, call routing, CAC, QoS, Interworking, and CALEA/regulatory services to their products.

Midwest Motion Products    Watertown, MN 55388

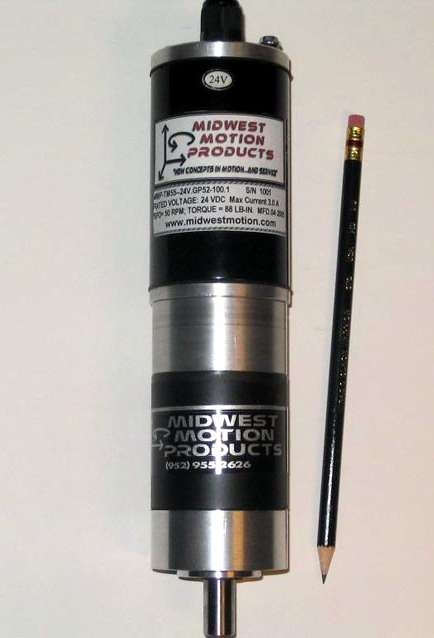

May 12, 2005 Measuring 2.14 in. dia x 7.75 in. long, Model MMP.TM55-24V.GP52-100.1 features keyed output shaft measuring 12 mm dia x 25 mm long. Output is rated for 10.0 NM continuous torque at 46 rpm and 40 Nm peak. Unit requires 3.0 A at 24 Vdc to generate full load output torque. Mounting is accomplished with 4 face-mount M5 threaded holes spaced on 40 mm dia BC. Options include integral optical encoders, failsafe brakes, analog tachometers, and planetary gear heads.

Ircon Inc.    Niles, IL 60714
May 12, 2005 ModView Configuration Software v1.2.1 for Modline® 5 infrared sensors, provides setup, configuration, monitoring, and trending. Utilizing sensor's RS485 digital communications, software enables viewing and adjusting of operating parameters for up to 36 sensors in network. Users can view real-time and graphical trends of measured temperatures for each sensor, with ability to archive temperature data as comma separated value files for use with other programs.

Dixon Valve & Coupling Co.    Chestertown, MD 21620 1135
May 12, 2005 Designed for transfer of hazardous materials, dry disconnect couplings facilitate connection and disconnection of hoses and pipelines while eliminating accidental spillage and product loss. They are available with stainless steel, aluminum, or brass construction in 1–4 in. sizes and feature built-in swivel. Design options include Hastelloy® C276 internal parts, Teflon® bushings, and Viton® seals. Couplings have working pressure of 260 psi or 360 psi.

Cotronics Corp.    Brooklyn, NY 11232

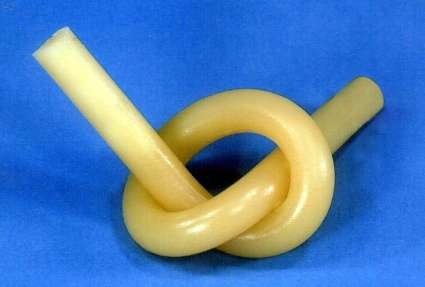

May 12, 2005 Duralco 4538 can be tailored to meet application requirement by varying mix ratio of resin to hardener, resulting in exact degree of flexibility needed. Product cures at room temperature, without odors, to provide thermal and mechanical shock resistance, adhesion to dissimilar substrates, and electrical and chemical resistance. Duralco 4538 will not gum up or soften at elevated temperatures and withstands thermal cycling from -100 to +300°F.

ifm efector, Inc.    Exton, PA 19341

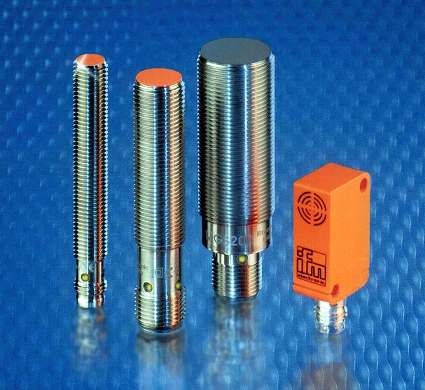

May 12, 2005 Incorporating giant magnetoresistive technology, 3-wire dc Proximity Sensors detect magnets through all non-magnetizable materials. With switching frequencies of 5,000 Hz, polarity-independent units operate from -13 to 158°F and provide accurate position detection regardless of magnet orientation. Tubular style sensors are 316 SS quick disconnect units in M8, M12, and M18 dia housings. For washdown applications, IP69K-rated sensors are available in Ml2 and Ml8 dia housings.

Nilfisk Industrial Vacuums    Morgantown, PA 19543
May 12, 2005 Compressed-air Vacuum Model CFM A15 safely collects nuisance materials such as ultra-fine powders, dust, and debris. Multi-stage filtration system features large main filter that helps prevent premature clogging; optional paper-bag filter that captures 99.7% of dust down to 3 microns; and optional HEPA exhaust filter that captures 99.995% of all ultra-fine particles down to 0.18 microns. Unit is powered by venturi system and includes 6.6 gal wheeled collection container.

DJ Products, Inc.    Little Falls, MN 56345

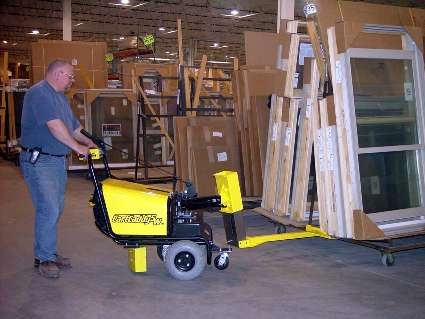

May 12, 2005 CartCaddy5WP attaches to all types of heavy carts and equipment, allowing one person to safely push, pull, and maneuver load. It can handle carts with overhanging product, eliminating need to install tow arms or receivers. Quick connect electric lift kit reaches underneath material and grabs frame of cart. Compact design allows unit to maneuver in tight areas, hallways, and aisles. Utilizing 36 V motor, CartCadd5WP handles loads from 2,500-50,000 lb.
