Edmund Optics    Barrington, NJ 08007
May 23, 2005 Featuring encased dc gearmotor with rubber O-ring belt drive and bracket, models VZM(TM) 300, VZM(TM) 450, and VZM(TM) 1000 provide users with CE analog/RS-232 control to vary zoom as well as speed and direction at which zooming occurs. Video Zoom Microscope lenses come with 10 ft motor/controller cable, RS-232 cable, and CE universal power supply. Included LabVIEW® operation interface software disk runs on Windows® 98/2000/XP.

Creative Manager, Inc.    Lakewood, NJ 08701
May 23, 2005 Creative Manager Pro and Creative Project Manager v7.8 enable automatic assignments and allocation of hours as well as Project-based P and L reporting from within General Ledger. All expenses in estimate are fully integrated through to purchasing, and users can automatically generate purchase orders from estimates. Beyond costing, software offers project management, CRM, digital asset management, billing and accounting, and Extranet capabilities.

Canto Software, Inc.    San Francisco, CA 94105
May 23, 2005 Internet Client Pro v3.0 and Web Publisher Pro v3.0 are designed for users who publish their assets and intend to use them for marketing purposes and business generation. They support central features of Cumulus v6.5 and allow remote teams and customers to search for images and other documents within Cumulus catalogs using Web browsers. Internet features include RSA-encrypted login password transfer, URL reference creation, and email notification of asset changes.

Ortronics, Inc.    New London, CT 06320
May 23, 2005 OptiMo Fiber Patch Panels allow data center designers to utilize installation space beneath raised floor structure of data center. Design accommodates all installation approaches including conventional field termination, pre-terminated cabling with Momentum cassette-based ribbon cabling solutions, and pre-terminated trunk style installations. Removable/reusable labeling fields are provided for cabling administration and record keeping.

Henkel Loctite Corporation    Rocky Hill, CT 06067
May 23, 2005 Multicore® MF101 and MF300 are VOC-free, no-clean liquid fluxes suited for low solderability surfaces such as oxidized copper. They minimize or eliminate solder balling and are non-flammable. To complement lead-free wave soldering applications, MF200 helps eliminate micro solder balling, leaves minimal residue, and offers maximum process window. No-clean, sustained activity flux, MFR301 is suited for fast soldering on conventional leaded and SMD components.

Spyraflo, Inc.    Peachtree City, GA 30269
May 23, 2005 Mounted in non-corrosive, sintered aluminum housings, Pillow Blocks and Housing Flange Bearings are available in needle roller models from .250-.750 in., Teflon® bronze from .250-1.000 in., and SAE 840 bronze from .250-1.250 in. Offering ±5° static self-alignment, units feature spherical insert that is held in place by outer retainer, allowing insert to pivot 5° in any radial inclination, ensuring smooth shaft alignment and rotation.

Electronics Workbench.    Toronto Ontario, CD M5V  Canada
May 23, 2005 Providing follow-me trace placement, Ultiroute v8 delivers automation of autorouter with flexibility and control of manual routing. Ultiboard v8 provides error reporting with jump-to functionality and real-time DRC. Integration of products permits users to nudge components even after they have been connected by rubberbanding existing traces. Ultiboard 8 includes PCB transmission line and differential impedance calculators that complement Ultiboard’s high-speed rule checks.

Indala Corp.    San Jose, CA 95134 2017
May 23, 2005 FlexSmart? Series of 13.56 MHz solutions feature sector/file programmability, encryption key management, and outputs such as Wiegand and ABA Track 2. FlexSmart DX200 DESFire Series offers 3DES encryption and support cards and tags with 4 Kb standard memory. FlexSmart MX200 MIFARE Series accepts cards and tags with 1 Kb standard memory, while FlexSmart IX200 Series utilizes ISO 15693 compatible cards and tags with up to 2 Kb memory.

Computer Conversions Corp.    East Northport, NY 11731
May 20, 2005 Measuring 2.6 x 3.1 x .51 in., reference-powered Digital-to-Synchro Converter modules accept 14-bit natural binary angle and convert it into 3-wire synchro signal. Output is short circuit proof and current limited with transient protection and thermal cutoff. Units rated at 400 Hz have 4.5 Va load capability, while 60 Hz units feature 2 Va capability. All utilize thermally conductive encapsulant and metal top plate. Operating temperatures are 0–70°C or -55 to +90°C.

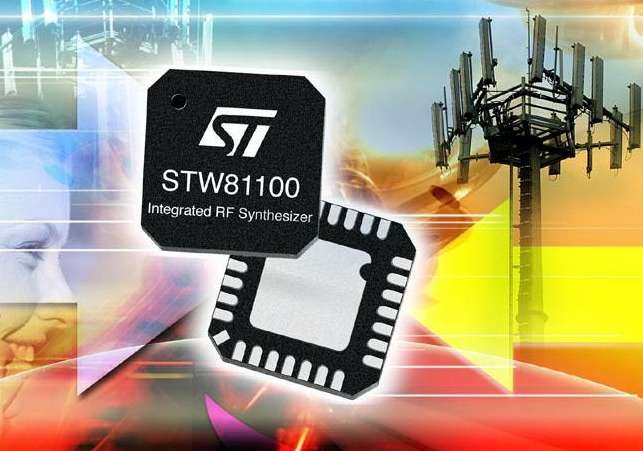

STMicroelectronics    Lexington, MA 02421
May 20, 2005 Model STW81100 is a multi-band, integrated RF synthesizer featuring 2 voltage-controlled oscillators with low phase noise performance and noise floor of -153 dBc/Hz. It offers single-chip alternative to discrete PLL and VCO solutions, which typically require 2 chips. Combination of wide frequency-range VCOs and multiple output options, including direct output, divided by 2, or divided by 4, allows synthesizer to cover 820-1,100, 1,640-2,200, and 3,280-4,400 MHz bands.

HBM, Inc.    Marlborough, MA 01752 3014
May 20, 2005 Model MP85 facilitates 2-channel monitoring by checking 2 inter-related signals. Almost any sensor can be connected to amplifier, including strain gage sensors, inductive or incremental transmitters, and SSI transducers. Model MP85 uses algorithms for curve evaluation with max of 9 predefined windows for each curve, or 1 master curve with envelope as evaluation criteria. Digital I/Os save statistics on component quality, either on PC or internal MMC card.

Westfall Mfg. Co.    Bristol, RI 02809-2721
May 20, 2005 Variable Head Loss Static Mixer consists of 2 in-line static mixers in series: one with fixed plate and other pivoting to achieve mixing range from ½-10 fps with head loss of 3 psi from ½-8 fps. Offered with beta ratios from 0.7-0.9, plates create combination of vortex shedding and intense shear zone turbulence. Mixers are available in sizes from ½-120 in. ID, and can be made from PVC, FRP, 316 stainless steel, titanium, or Hastelloy®.

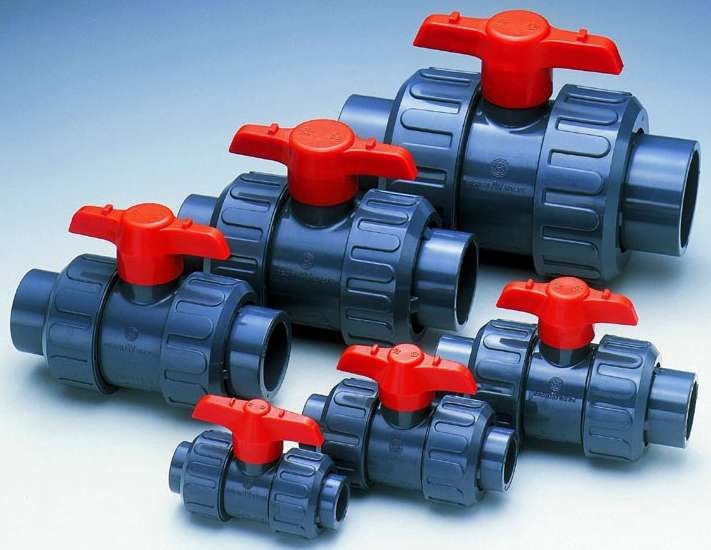

Asahi/America    Malden, MA 02148
May 20, 2005 Quarter-Bloc PVC Ball Valve, certified to NSF-61, features all-thermoplastic construction, full orifice opening equivalent to ID of corresponding piping, and safe blocking design that allows downstream pipe removal. Offered ½â€“2 in. sizes, valve includes stem equipped with double O-ring sealing arrangement and handle that doubles as built-in spanner wrench. Interference fit between stem and handle eliminates use of metallic screws.

Linear Technology Corp.    Milpitas, CA 95035
May 20, 2005 Manufactured in 10-Lead DFN or MSOP packages, LTC3026 very low dropout (VLDO(TM)) linear regulator offers input voltage capability down to 1.14 V and adjustable output voltage from 0.4-2.6 V. It maintains dropout voltage of 100 mV while delivering up to 1.5 A output current. For operation at low input voltages, unit has integrated boost converter. Regulator optimizes stability and transient response with low-ESR, ceramic output capacitors as small as 10 µF.

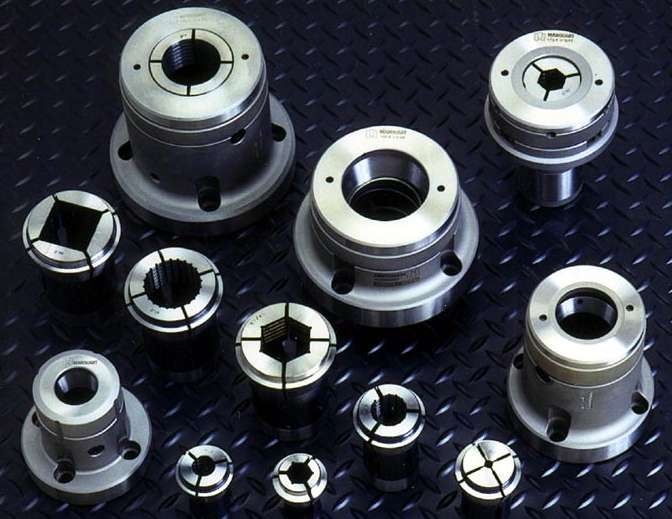

Lexair, Inc.    Lexington, KY 40511 1018
May 20, 2005 ProDyne® Fixed Length Collet Chuck features quick change quarter turn collar system that enables setup changes to be performed in seconds. Compatible with machines using A-4, A-5, A-6, or A-8 spindle nose, product can be mounted using existing draw tube and actuator. Fixed length results in no drawback as collet closes. In typical applications, chuck offers TIR of .0005 in. and repeatability of .0002 in. using B42, B60, and B90 solid collets.

Sealed Air Corp.    Saddle Brook, NJ 07663-5291
May 20, 2005 Suited for shipping sensitive, small parcels, TuffGard Extremeâ„¢ products combine protection of 5/16 in. Bubble Wrap® cushioning with multi-layer, co-extruded film that is moisture-, puncture-, and tear-resistant. Mailers, available in 5 sizes from 7¼ x 12 in. to 14¼ x 20 in., feature fully laminated construction and tamper resistant, self-seal closure. Fine, textured surface can be printed with up to 8 colors.

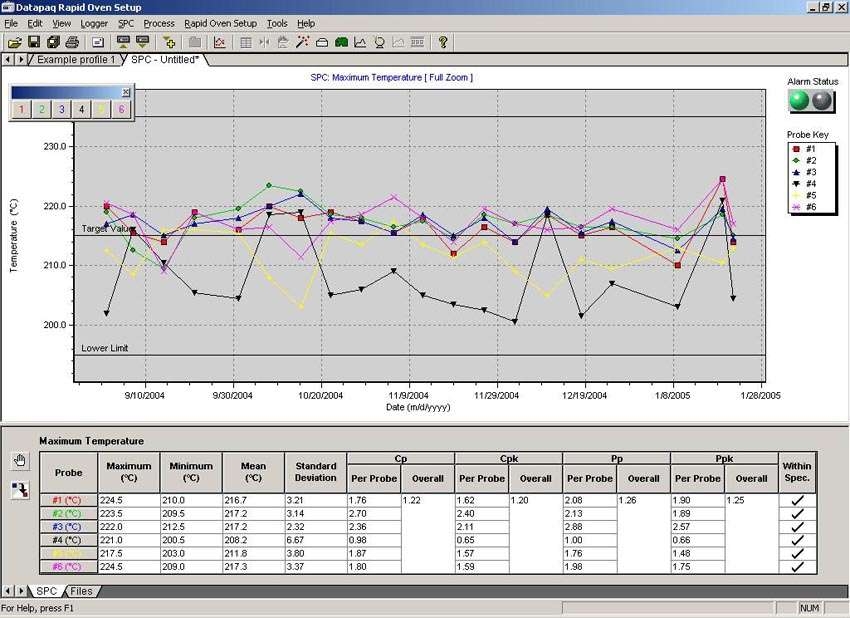

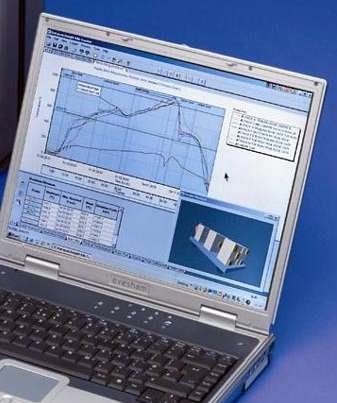

Datapaq Inc.    Wilmington, MA 01887
May 20, 2005 Designed to meet manufacturers' demands for process analysis, Insight Software v3.0 comes with SPC that confirms process is in control over weeks, months, and years to ensure consistent quality. Users can immediately identify changes and prevent problems in thermal processing before they occur. With no need to manually export information or create spreadsheets, users can apply SPC to previously saved profile data via SPC Wizard.

Datapaq Inc.    Wilmington, MA 01887
May 20, 2005 Insight Software v3.0 offers SPC that confirms process is in control to ensure consistent quality. It enables users to identify changes and prevent problems in thermal processing before they occur. Users can apply SPC to previously saved profile data via SPC Wizard, and library of ovens from reflow oven manufacturers enables user to select oven from drop down menu and dimensions are automatically transferred to profiles.

Applied Science Laboratories (ASL)    Bedford, MA 01730
May 20, 2005 Model R6 VHT tracks eye movement of any subject, from infants to elderly, even with significant head motion. Able to reacquire eye when subject looks away and returns or sits down, system features automatic discrimination and calibration. It uses bright pupil technology for capture and contrast and provides real-time feedback during tracking session. Additional features include video head tracking and software development kit.

American Zettler, Inc.    Aliso Viejo, CA 92656 4115
May 20, 2005 Suited for tight layouts, AZ9831 Series Super-ISO PCB-mount relay is available with internal diodes or resistors and can be ordered as RoHS-compliant. Vibration- and shock-resistant product, with max switched power rating of 1,000 W, is offered with 6, 12, or 24 Vdc coils. Supplied in SPST, NO configuration, it is suited for high-current applications such as light bars, light flashers, winches, and motors.
