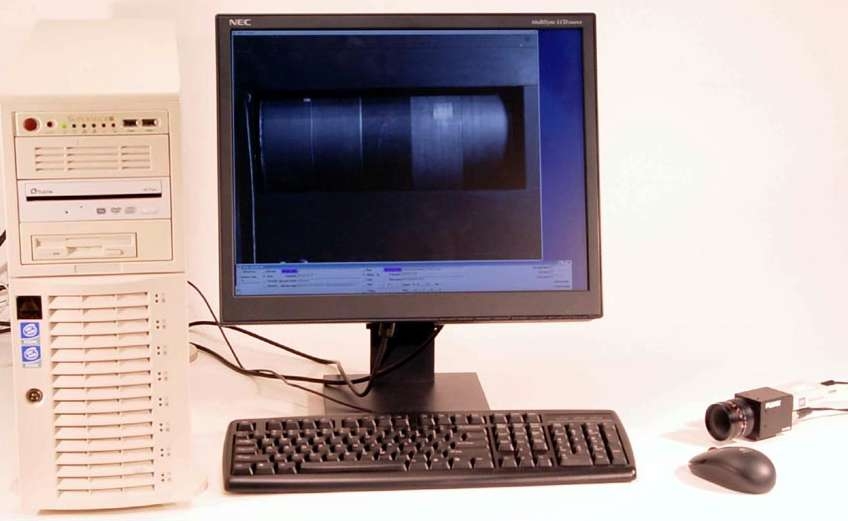

Unilux, Inc.    Saddle Brook, NJ 07663
May 19, 2005 Available as single- or double-sided remote inspection system, Q-EYE enables one inspector to spot defects as small as 0.04 in. across 60 in. wide strip at speeds to 4,400 fpm in real time. Menu-driven software enables unit to be programmed for video capture, storage, and replay. System uses Unilux inspection lights and two 8-bit black and white cameras with video resolution of 1,392 x 1,040 pixels and comes with 20 in. flat-panel monitor.

Devcon    Danvers, MA 01923
May 19, 2005 Safety Clear Coat™ seals and protects glass, metal, ceramics, wood, phenolics, composites, fabrics, and concrete against impact and wear. Self-leveling, UV-stable product is water-clear, maintains clarity over time, provides tensile elongation of 150%, and has no VOC emissions. Epoxy formulation features mixed viscosity of 3,500 cps, working time of 30–40 min, and functional cure time of 8–10 hr. After 24 hr, adhesive provides hardness of 55 Shore D.

SMC Corporation Of America    Indianapolis, IN 46226
May 19, 2005 Model ASR Pressure Valve consists of regulator with check valve and speed controller, while Model ASQ Flow Valve combines quick supply/exhaust valve and speed controller. Body and one-touch fitting allow 360° rotation. Fixed set pressure type and variable set pressure type are available. Both valves can cut air consumption by operating return stroke at minimized pressure, preventing jerky movement of working stroke and operation delay in return stroke.

Alemite LLC    Fort Mill, SC 29715
May 19, 2005 Made of die-cast aluminum, hose reel contains powder-coated aluminum and corrosion-resistant internal components. It is effective in high-moisture areas, including marine and paper mill applications. Stainless steel reel is suited for areas involving food handling, corrosive environments, metals processing, mines, and general manufacturing. Additional reels include hand-crank reel, electric cord reels, and standard-duty light reel for illuminating work areas.

Fire Control Instruments, Inc.    Waltham, MA 02451 1122
May 19, 2005 Consisting of transmitter/receiver and reflector, System Sensor BEAM1224 Reflective Beam Detectors are capable of sensing smoke where spot-type detectors are difficult to install and maintain. They include 4 standard sensitivity selections and 2 acclimate settings. Listed for operation from -22 to 131°F, 4-wire units feature single-ended reflective design that allows for 1-person installation. Alignment is accomplished using optical sight and 2-digit signal strength meter.

Ideal Industries, Inc.    Sycamore, IL 60178
May 19, 2005 With built-in leads that store snugly behind built-in test stand, PocketProâ„¢ fits inside pants or shirt pocket. Three buttons and thumb switch allow electrician to select between continuity/resistance, diode, and ac/dc voltage testing, as well as cycle through test ranges and hold measurement. Unit includes 3.5 digit LCD screen, overload protection on all ranges, audible continuity, low battery indicator, and auto power off.

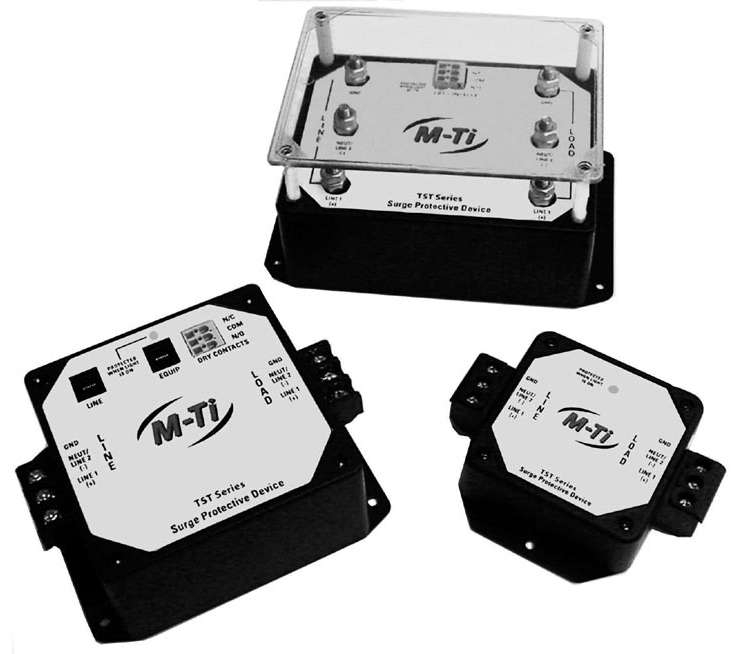

Meter-Treater Inc.    Lake Park, FL 33403
May 19, 2005 TST/TS Models are Series Hybrid SPDs (surge protection devices) configured for parallel or series installation. They include RFI/EMI filtering, are line load sensitive, and interface with power cables via screw terminals. Each unit is self-contained in plastic enclosure. Dry Contacts are standard on 30 and 60 A models, and telephony interface is available option on 30 A model. All models employ 20 mm T-MOVs as prime suppression elements.

Fire-Lite Alarms    Northford, CT 06472 1653
May 19, 2005 Lite-Calcsâ„¢ v2.0 aids in developing voltage drop calculations for fire alarm control panels, Notification Appliance Circuits (NACs), and auxiliary power supplies, informing user if additional NAC power boosters are required. Offering automatic calculation, software includes database for editing, adding, and deleting parts as well as storing job information and contacts. Favorites feature lets users save and access frequently used notification appliances.

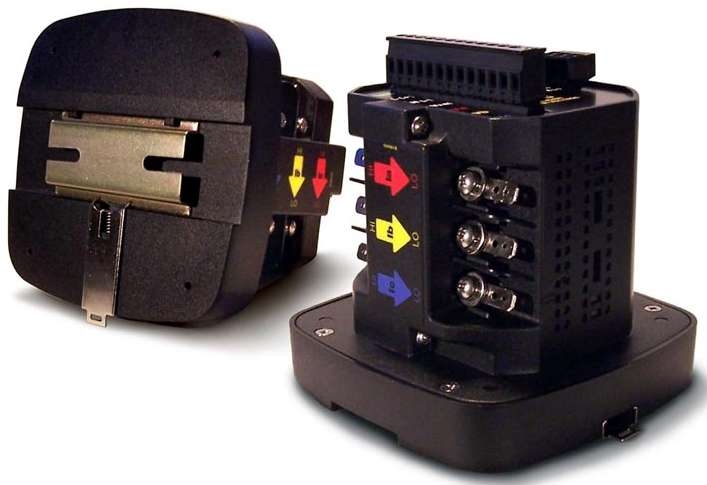

Electro Industries/Gaugetech    Westbury, NY 11590
May 19, 2005 Able to measure 3-phase voltage, current, and power, Shark 100 provides RS485 digital output using Modbus or DNP 3.0 protocols. Design facilitates installation and makes unit suited for embedded power telemetry for industrial, OEM, and Utility applications. DIN rail-mount product offers 120/220 AC or DC power supply, with 24–48 Vdc power supply also available.

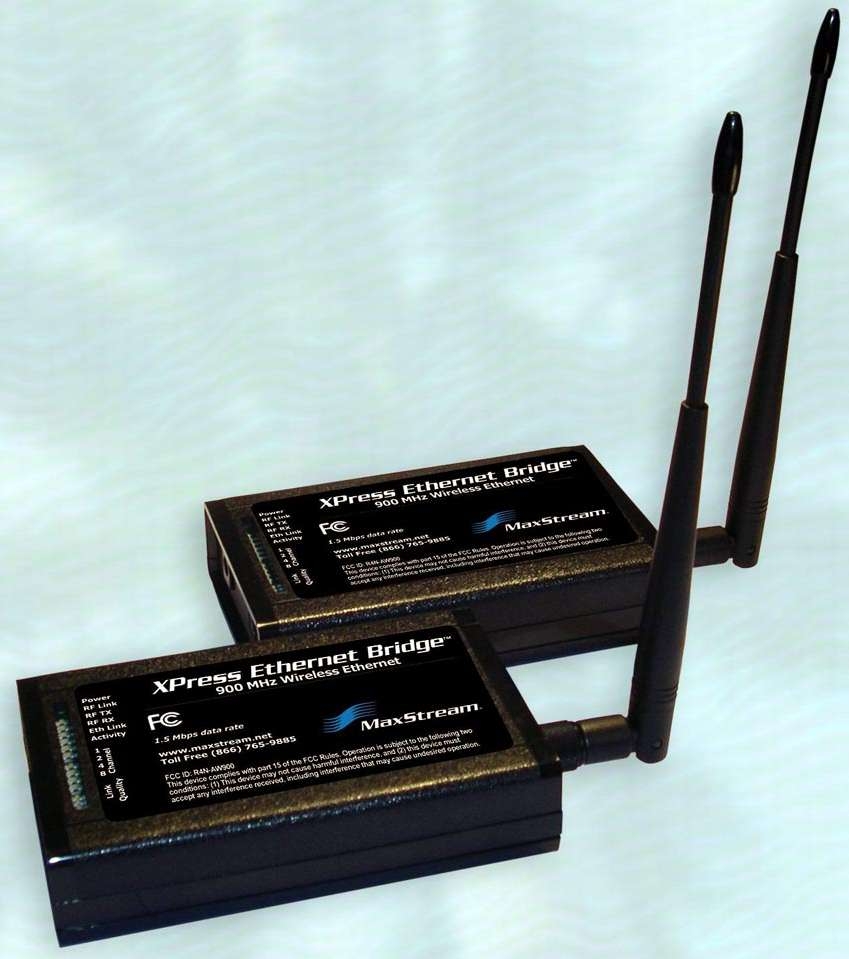

MaxStream Inc.    Orem, UT 84058
May 19, 2005 XPress Ethernet Bridge (XEBâ„¢) facilitates communication between host and client Ethernet connections at speeds up to 1.5 Mbps. Operating in 900 MHz ISM band, product is suited for applications where RF environment is full of interference from 2.4 GHz signals emanating from 802.11 networks, portable phones, and microwave ovens. In indoor/urban applications, units can communicate through as many as 10 walls using included 2.5 dBi omni-directional antennas.

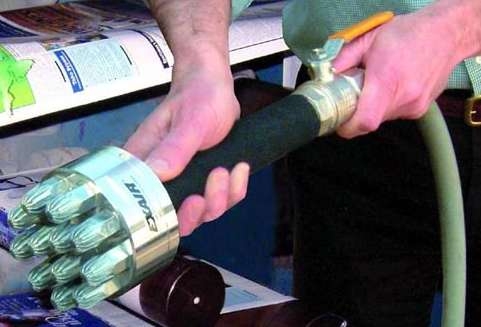

EXAIR Corporation    Cincinnati, OH 45249-1621
May 19, 2005 Offered in 3 sizes, Super Blast Air Guns are available with 4, 7, or 12 Super Air Nozzles that maximize entrained airflow and force while reducing compressed air use and noise. Design features zinc aluminum alloy construction, aluminum body, soft grip handle, and manual valve. Airflow that exits guns cannot be blocked. At full pressure of 80 psig, products have air consumption of 56, 98, and 168 scfm and deliver blowoff force of 3.2, 5.7, and 9.8 lb.

Norstat, Inc.    Rockaway, NJ 07866
May 19, 2005 Designed for performance tasks in areas of mobile automation and display, KeTOP T50 features 12-function membrane keypad, compact Flash slot, and RS-422-A and RS-232-C interfaces. Unit can be fitted with additional key switches, buttons, enabling switches, and E-stop button to suit application. With protection rating of IP 65 and weight of 1,300 g, terminal provides alternative to stationary display panels.

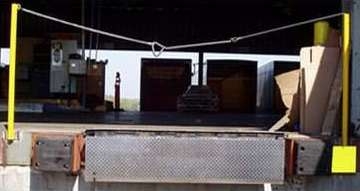

Pioneer Loading Dock Equipment    Spring Hill, TN 37174
May 19, 2005 Driver's Signal Safety Flag enables drivers to visually determine when it is safe to back in or pull away from dock. It can save as much as 2–3 minutes every time trailer is moved, allowing truck driver and dock employee to use time more efficiently.

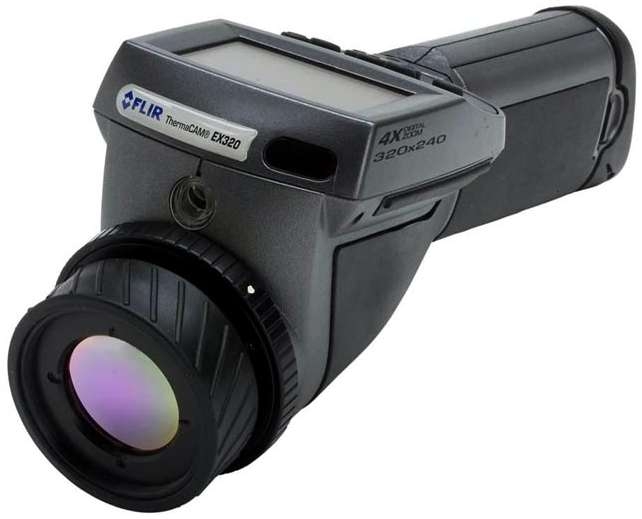

Flir Systems, Inc.    North Billerica, MA 01862
May 19, 2005 With un-cooled FPA IR detector, ThermaCAM® EX320 provides thermal sensitivity to 0.08° and image quality of 76,800 pixels in each image. Calibrated thermal images can be captured and recalled using on-board memory or downloaded to PC via USB or serial cables and included ThermaCAM Quickviewâ„¢ software. Radiometric jpeg format lets user go back to any image at any time and add or remove spots, measure temperatures, and perform analysis.

Bosch Rexroth AG Industrial Hydraulics      Germany
May 19, 2005 Suited for demanding applications and control of working equipment, variable displacement axial piston pumps feature aluminum alloy casing and taper roller bearing used to accommodate thrust load. To accommodate radial load, products utilize CARB toroidal roller bearing type: C 2207 TN9/C3 lubricated by complete oil immersion. Bearing is self-aligning and accommodates misalignment between shaft and housing. Speed is rated to 2,500 rpm.

PresenterNet    Carlsbad, CA 92008
May 19, 2005 Showrooms provides publicly accessible online areas where companies can display PowerPoint or interactive presentations for review by invited guests or casual visitors. Application also enables companies to create linkages from their Web sites. Viewers independently advance through presentation and can enter onscreen responses to selected interactive slides; resulting responses are captured in database for further processing.

Cooper Bussmann    Chicago, IL 60706-4792
May 19, 2005 Coordination Moduleâ„¢ helps comply with 2005 NEC® Selective Coordination Requirements for Emergency, Legally Required Standby, and Essential Electrical Systems per Article 700.27, 701.18 and 517.26. It provides current-limiting operation to minimize effect of outage to smallest portion of system as possible. Published fuse selective coordination ratios can be used to select correct upstream fuse ratings. Users can locate open fuses with Class CC easyIDâ„¢ neon indicator.

JAI, Inc.    San Jose, CA 95134
May 19, 2005 Dual-tap AccuPiXEL TM-6740GE provides up to 200 frames/sec at full resolution, and partial scan and binning modes for up to 3,205 frames/sec. Featuring 1/3 in. VGA format, progressive scan camera is based on Kodak KAI-0340 CCD imager, which offers 640 x 480 resolution and 7.4 µm square pixels. Analog and gigabit Ethernet output is 8-bit or 10-bit software selectable. Asynchronous reset is provided with electronic shutter up to 1/64,000 sec or pulse-width exposure control.

Crossbow Technology Inc.    San Jose, CA 95134
May 19, 2005 TelosB Mote Platform, TPR2400, is an IEEE 802.15.4 compliant device for wireless mesh networking featuring TI MSP430 microcontroller. It provides integrated processor radio solution including USB interface, 2.4 GHz radio, onboard antenna, sensor interfaces, and optional preinstalled environmental sensor suite. IEEE 802.15.4 radio support allows for communications with other 802.15.4 radios.

MWH Soft    Broomfield, CO 80021
May 19, 2005 InfoSWMM Suite for power ArcGIS provides geocentric software solution for management and operation of stormwater and wastewater collection systems. It enables users to leverage mapping and GIS data to support modeling of runoff quantity and quality from subcatchments, allowing them to automatically build models of sewer systems. NAGCS-certified, urban drainage modeling product offers Real-Time Control schemes for models in integrated geoengineering environment.
