CDM    Turnersville, NJ 08012
May 19, 2005 Qualified per MIL-C-22992, MS90556, and MS90557, Class L cylindrical connectors are manufactured of aluminum and feature copper alloy, silver over nickel contacts. They incorporate 5-key polarizing system, double stub coupling threads, and left-hand accessory treads. QPL'd unit has arc quenching design and programmed coupling sequence. Products, offered in shell sizes from 28–52, have current ratings from 40–200 A and contact sizes from 6–4/0.

Rogers Corporation    Rogers, CT 06263 0188
May 19, 2005 Available in .039 in. thickness, PORON® 4790-92 Microcellular Extra Soft - Slow Rebound Foam is resistant to extreme temperatures, shock, and compression set. It is suited for filling gaps, providing seals, and protecting components from environmental hazards, as well as managing shock and vibration energy.

FRABA Inc.    Hamilton, NJ 08609-2020
May 19, 2005 Offered with measuring range of ±5°, 15°, or 30°, AnguSens inclinometers are manufactured in IP66 metal housing and incorporate customizable filters along with microcontroller. Sensors feature 3-point support on casing for safe hold and come equipped with RS232 or CANbus interface combined with analog output for current, voltage, or PWM. Internally, incline is measured 100 times/sec, filtered, and output at 10 readings/sec.

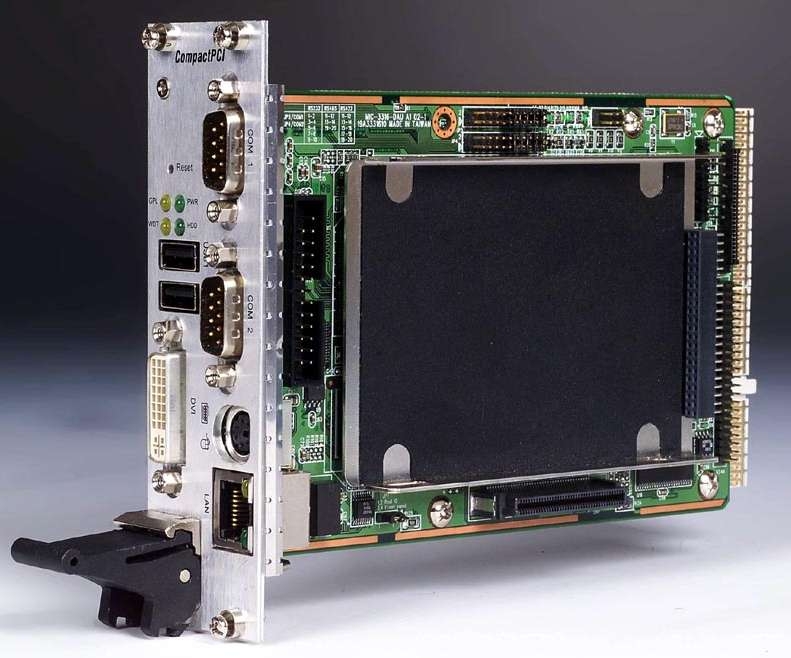

Advantech Automation Corp.    Cincinnati, OH 45240
May 18, 2005 Powered by ULV Celeron® 650 MHz CPU, MIC-3316 employs fanless design with on-board 512 Kb battery-backup RAM, Timer IRQ, RS-485 with auto flow control, hot-swappable CompactFlash® socket, and rear I/O. Standard CompactPCI® card has 3U form factor and provides up to 384 Mb SDRAM, 2 RS 232/422/485 ports, 2 USB ports, 2 CompactFlash® sockets, one 10/100 Mbps Ethernet port, DVI-I connector, 2.5 in. hard drive bay, and watchdog timer.

Stackpole Electronics Inc.    Raleigh, NC 27604
May 18, 2005 Featuring resistance values from 0.002–0.200 Ω in tolerances to ±1%, 1225-sized Model CSR3 has TCR of ±200 ppm/°C and demonstrates inductance of less than 0.2 nH. Resistor is rated for operation from -55 to +150°C and is manufactured with bottom side, 4-pad termination to allow for Kelvin connection. It is fully compatible with automated assembly equipment, and wave or reflow soldering methods.

Honeywell Sensing and Control    Golden Valley, MN 55422
May 18, 2005 Series EHM Equipment Health Monitoring Systems are available in 10 models to monitor temperature loss, fluid flow, temperature rise, mechanical noise, fluid leak, mechanical wear, audible noise, vibration, tilt, and mechanical insertion. Units sound alarm when operating values drift from pre-defined settings. By alerting user of possible problems early, detectors may help prevent essential equipment from shutting down.

Fairchild Semiconductor    San Jose, CA 95134
May 18, 2005 With maximum gate-to-source voltage rated at ±30 V, SuperFET(TM) MOSFETs withstand high-speed voltage and current switching transients. Units are suited for transient-prone applications such as High Intensity Discharge lighting ballasts and power supplies for Plasma Display Panel televisions. Minimization of conduction losses that SuperFETs offer is important to lighting manufacturers trying to conserve energy to meet PFC requirements.

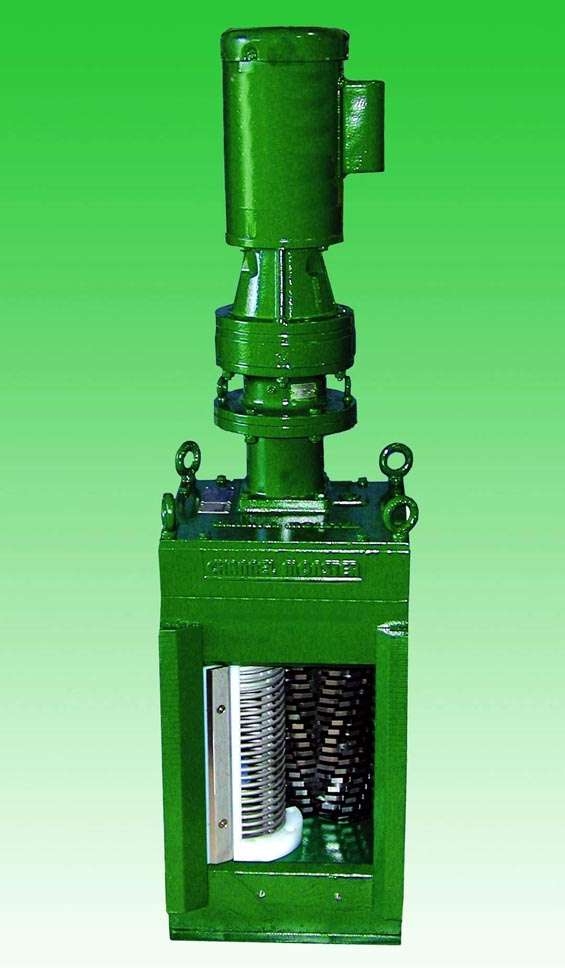

JWC Environmental    Costa Mesa, CA 92626
May 18, 2005 Channel Monster® CMD1205-AD employs 5 in. diameter drum to direct solids into cutting chamber, allowing installation in channels as narrow as 14 in. Drums are available with either ¼ in. coil spacing or ¼ in. perforations. Grinder operates on 3 hp motor with 29:1 reducer and is available with optional 5 hp motor for difficult grinding installations. Applications include wet wells, industrial waste channels, prison sewage systems, and influent channels.

Phoenix Contact    Harrisburg, PA 17111 0100
May 18, 2005 Multipoint-to-point Model RAD-ISM-900-BD-BUS brings multiple channels of I/O from up to 8 remote locations back to one master station. Bi-directional feature enables use of device in monitoring and control applications and eliminates cable and conduit for analog and digital signals in harsh industrial environments. Typical in-plant range is 600–1,000 ft with no line of sight. Transceivers and I/O modules are featured in 22.5 mm DIN-rail mount housing.

Scandex, LLC.    Newton, MA 02459-1601
May 18, 2005 Equestrian-style Saddle Stool facilitates proper posture and is suited for personnel who reach and move around frequently at work. When sitting with legs apart and leaning at 45° angle, it creates natural S-shape alignment of spine and maintains lumbar curve, with soft normal curves in back and neck. Workers seated on Saddle Stool experience alertness, circulation to lower extremities, and minimized risk of muscular skeletal disorders.

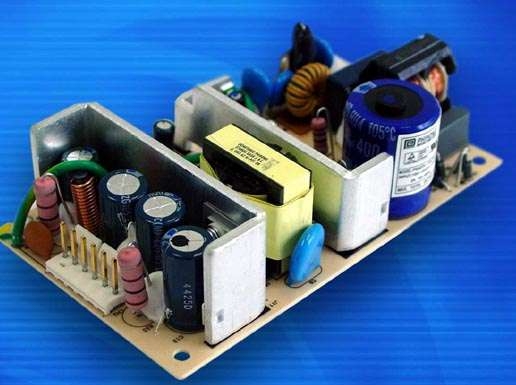

Phihong USA    Fremont, CA 94539
May 18, 2005 Single output Series PSA075 is packaged in 1U high, 3 x 5 in. open frame with outputs of 5, 12, and 24 V. Unit provides zero minimum load, over voltage protection, and short circuit protection. It is suited for tape/disk drive systems, POS terminals, Internet servers, peripherals, routers, and networking.

Vishay Siliconix    Santa Clara, CA 95054
May 18, 2005 Manufactured in SOT-23 and SC-70 packages, Si7439DP and Si7431DP are -150 and -200 V MOSFETs, respectively, built on p-channel TrenchFET technology. Products are intended for primary-side active clamp circuits in dc/dc converters for telecom, datacom, and industrial products. Also offered as 2 PowerPAK SO-8 devices for same application, Si7439DP offers on-resistance of 0.09 mΩ and Si7431DP is rated for 0.174 mΩ.

Linear Technology Corp.    Milpitas, CA 95035
May 18, 2005 Manufactured in 16-lead, 3 x 3 x 0.8 mm QFN package, LT1993 fully differential amplifier series is available with fixed gain options of 2 (6 dB), 4 (12 dB), and 10 (20 dB) over 700-900 MHz bandwidth. Products enable designers to directly drive ADCs while minimizing support circuitry. Along with adjustable output common mode voltage, amps feature built-in, user-adjustable filter and harmonic distortion of -70 dBc.

Stafford Mfg. Corp.    Wilmington, MA 01887
May 18, 2005 Accu-Flange can be machined by user for applications as pulley, cam, or component mounting device, enabling designers to develop custom solution from standard product line. Featuring integral clamp that incorporates double-split design and relief groove, product retains perpendicularity and will not mar shafts. Adjustable unit, available in 6 bore sizes from ½â€“1½ in. ID, can be supplied in steel, stainless steel, and aluminum, with or without keyway.

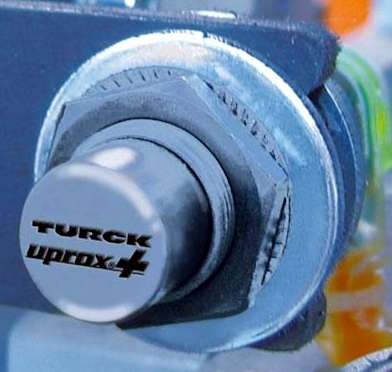

TURCK, Inc.    Plymouth, MN 55441
May 18, 2005 Able to detect materials such as iron steel, stainless steel, copper, aluminum, and brass, Uprox+ sensors utilize multicoil system and feature integrated predamping protection function. All sensors adhere to EN50082-2 standard and exceed EN61000-4-6 provisions. Protected against conducted interference from frequency converters and other sources of EMI, products are suited for automotive, machine engineering, and transport and handling applications.

Mitsubishi EDM/MC Machinery Systems, Inc.    Wood Dale, IL 60191
May 18, 2005 Featuring Windows-based control system for programming, job setup, and parts cutting, VZ2 multi-axis, 3D laser welding/cutting system transfers laser energy directly to welded area. Its CO₂ laser-welding head has reflective parabolic mirror system that enables non-contact welding with no magnetic field effects. Thick-plate cutting head, with capacitance height sensor, cuts up to .75 in. mild steel. Heads can be exchanged within 15 min.

MarketingPilot LLC    Evanston, IL 60201
May 18, 2005 MarketingPilot v7 features set of tools to help manage budgets and expenses. Budgets can be created for campaigns, jobs, products, locations, channels, media outlets, markets, events, departments, and vendors, and multiple budgets can be maintained for project or period. Drill-down feature gives users view into budget and related expenses at detailed level by week, month, quarter, season, or year.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
May 18, 2005 IBM eServer® BladeCenterâ„¢ blade servers support 32-/64-bit LS20 AMD Opteron processors running at speeds of 2.0, 2.4, or 2.6 GHz (Single Core) as well as 2.0 GHz (Dual Core), all with 1 MB L2 cache per core. Processors support 64-bit OS from Linuxâ„¢ Red Hat, SUSE LINUX, and Microsoftâ„¢ and can run in legacy mode. Optionally available Ethernet, FC, and Infiniband switches and adapters; redundant KVM management; and power modules support multiple configurations.

Dosch Design US Shipping Ctr.    Altoona, PA 16602
May 18, 2005 HDRfinish V1 enables HDRI viewing, file type conversion, and professional editing. It supports creation of HDR-images by turning multiple 24-bit pictures from controlled exposure-variation series into one High Dynamic Range image. Users can change exposure and Gamma values of HDR images; rotate, mirror and crop images; adjust image size with integrated Interpolation and Anti-Aliasing feature; and load, save, and print standard HDI formats as well as LDR formats.

ASI Instruments, Inc.    Houston, TX 77024 1802
May 18, 2005 ShieldPoint(TM) RF Capacitance Switches provide point level detection in applications ranging from sticky slurries to low dielectric bulk solids. Single-point ShieldPoint 300 features 3-element shielded probes and 10 A DPDT relay, while multi-point ShieldPoint 400 offers variety of probe options, Teflon® coated or bare rods and cables, along with 2 SPDT 10 A relays. Both are housed in aluminum enclosure with LED indicators for operation and calibration.
