Astrodyne Corp.    Mansfield, MA 02048
Jun 28, 2005 Featuring fully enclosed cage construction, Series SD200 accepts 2:1 input ranges of 24, 48, or 100 Vdc. Twelve models provide single regulated outputs from 5-48 Vdc. Cooled by free air convection, converters include integral power-good LED indicator and output adjustment potentiometer. Ambient operating temperature range is -20 to +60°C with derate. Available in DIN rail mount, all models contain over-voltage, overload, over-temperature, and short circuit protection.

Boker's Inc.    Minneapolis, MN 55406

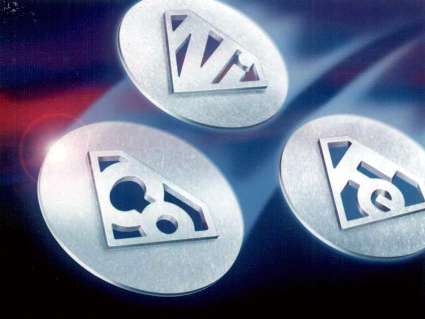

Jun 28, 2005 Available in over 2,000 materials, including wrought cobalt, iron, and nickel-base superalloys, Washers, Spacers, and Stampings can be produced in short, medium, or large run orders. Combination of outside diameters from 0.080–5.140 in. with variety of inside diameters, thicknesses, and materials enables millions of possibilities. Full range of metric sizes and large diameter washers also available.

Thermadyne Industries, Inc.    St. Louis, MO 63017

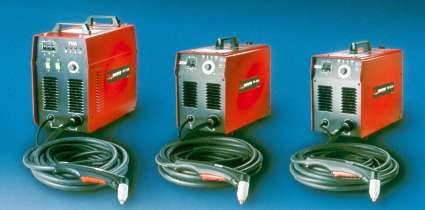

Jun 28, 2005 Suited for applications ranging from light gauge sheet metal to ¾ in. plate, A-Series includes Model FP-20A with 20 A operation at 115 Vac and 25 A at 230 Vac, Model FP-35A with 15-35 A operation at 230 V, and Model FP-70A operating from 25-75 A at 230 V. Units are equipped with 1 Torch® featuring SureLok® head, ergonomic handle, and flexible lead. Applications range from automotive repair to HVAC installation to metal fabrication and metal art.

Global Lighting Technologies Inc.    Brecksville, OH 44141
Jun 28, 2005 Ranging from 0.25-4.7 in. diagonal, Custom LED Backlights use 1 white LED to backlight color and monochrome LCD modules. MicroLens(TM) pixel-based light extraction technology enables units to offer brightness of 2,400 cd/m² at 20 mA for 1.5 in. diagonal with power consumption of 20 mA at 3.5 V. Applications include color micro displays used in electronic viewfinders, color LCDs in cell phones and MP3 players, and monochrome LCDs in test and measurement displays.

Sensors Unlimited, Inc. (SUI)    Princeton, NJ 08540
Jun 28, 2005 Occupying less than 26 cm³, Model SU320US-1.7RT InGaAs NIR Snapshot MicroCameraâ„¢ captures 320 x 256 pixel images in shortwave IR waveband, from 900–1,700 nm. InGaAs imager is stabilized at room temperature and needs no field non-uniformity corrections. Applications include covert surveillance, machine vision, fiber optic components inspection, and free space communications. CameraLink® compatible, 12-bit digital data interface also allows use in unmanned aerial or ground vehicles.

Dortronics Systems, Inc.    Sag Harbor, NY 11963
Jun 28, 2005 High-Security Key Switch Model 5241-K65-HS is keyed per order and may only be duplicated with authorized customer approval. Unit is available in 1- or 2-gang plate models for flush wall or surface box mounting, and narrow plate model for hollow metal or aluminum door frames. Key operation is 1-position, key removable, with SPDT K65 contact output. Options include pushbutton with SPDT P-15 or DPDT P-25 contacts, and LED option with choice of bicolor and pushbutton features.

Igus, Inc.    East Providence, RI 02914 0349

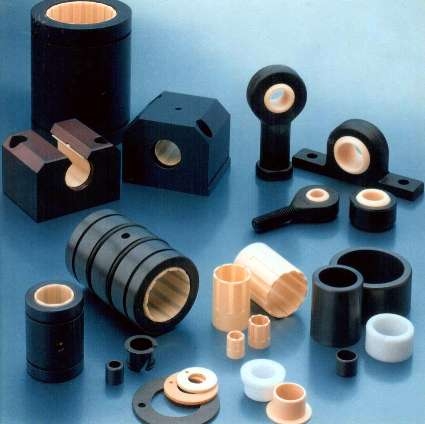

Jun 28, 2005 Available in more than 6,000 metric and inch sizes and styles, Iglide® Plastic Bearings are self-lubricating, UV-resistant, maintenance-free, and will not corrode. Units are press fit directly into housing, eliminating need for special tools and lubricants. Applications include agricultural and lawn equipment, semi-conductor production equipment, textile machinery, machine tools, packaging and material handling machinery, and automotive equipment.

Mikron Infrared, Inc.    Hancock, MI 49930

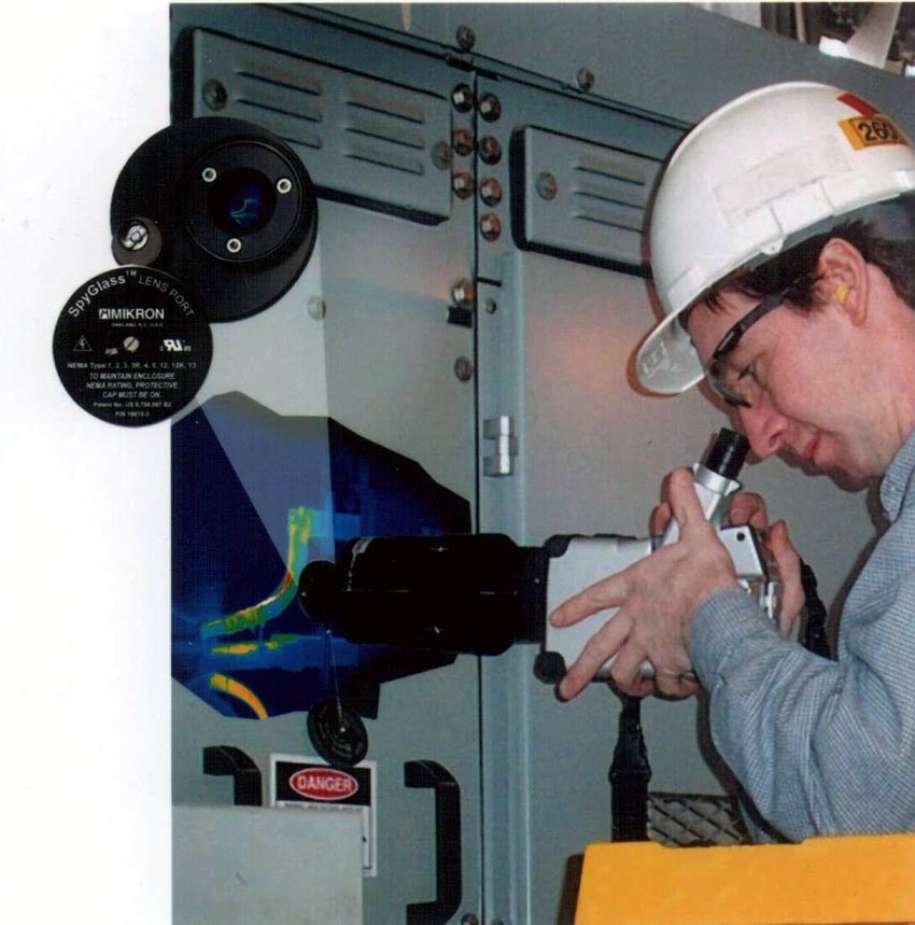

Jun 28, 2005 Coupled with SpyGlassâ„¢ fisheye lens, UL-approved Viewport allows inspector to scan panel by looking through 0.62 in. opening. Design, offered in 3 styles, facilitates frequent inspections and enables thermographer to work without aid from electrician or safety barricading. Unaffected by moisture, dirt, UV, or corrosive environments, product has open design that needs no IR-transparent window or metal screen that could skew readings by IR camera.

Trion Industries, Inc.    Wilkes Barre, PA 18702 6997

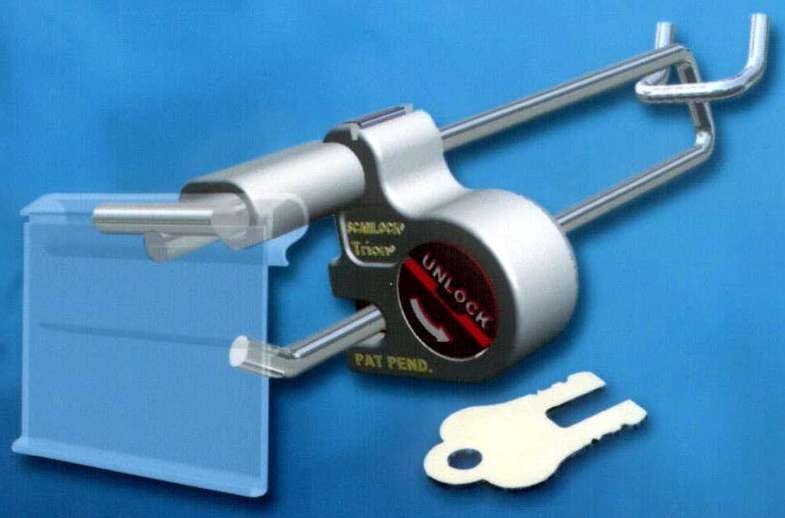

Jun 28, 2005 To defend against theft at fixture level, ScanLockâ„¢ provides key-operated, swing-aside access to items on scan hooks. Unit can be placed far forward to prevent removal of any product or it can be set to display 1 or 2 items unlocked while balance of stock remains secured. Product relocks without key in tumbler, and key cannot be copied by common locksmithing. Unit retrofits to existing hooks and can be integrated into existing planograms and store sets.

Creform Corp.    Greer, SC 29652-0830
Jun 28, 2005 Maneuverable, flexible, portable clean-up station stores and transports cleaning supplies, brooms, dust pans, and hand brushes in addition to trash containers and bags. Frame is constructed using adaptive material handling system of plastic-coated pipe sections, metal or plastic joints, and hardware accessories. Casters can be sized and assembled by end users, while frame and storage hangers can be modified to accommodate unique requirements.

Sensors Unlimited, Inc. (SUI)    Princeton, NJ 08540

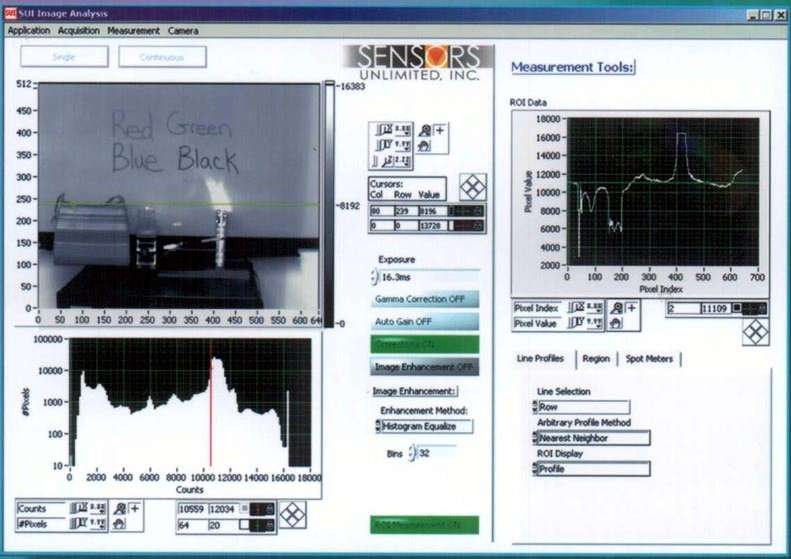

Jun 28, 2005 Near-infrared (NIR) Windowed Snapshot MiniCamera SU320MSW-1.7RT is offered with software that allows control of high-speed windowing functions. Standalone, executable software options include control of 4 preset regions of interest in center of frame. Enabling capture of continuous streaming video at speeds to 10,000 fps, PC-based image acquisition, analysis, storage, and retrieval software can apply one point non-uniformity correction to captured images.

Polytec, Inc.    Tustin, CA 92780

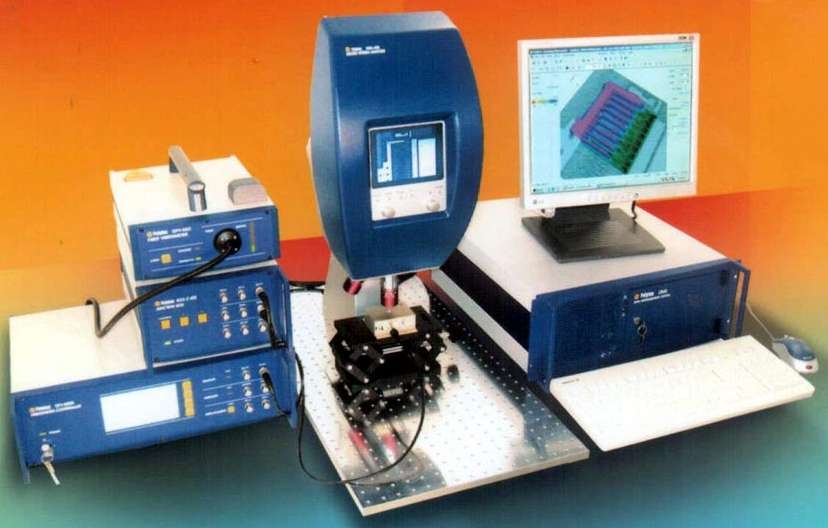

Jun 28, 2005 Micro System Analyzer MSA-400 measures and displays microstructure motions for 3D dynamic characterization of microelectromechanical systems (MEMS) and micro-optoelectromechanical microstructures (MOEMS). Integrated probe head microscope characterizes broadband out-of-plane vibrations with Laser Doppler Vibrometry as well as in-plane displacements with stroboscopic video microscopy. Unit also detects out-of-plane and in-plane resonances using laser-Doppler techniques.

Allegro MicroSystems Inc.    Worcester, MA 01615

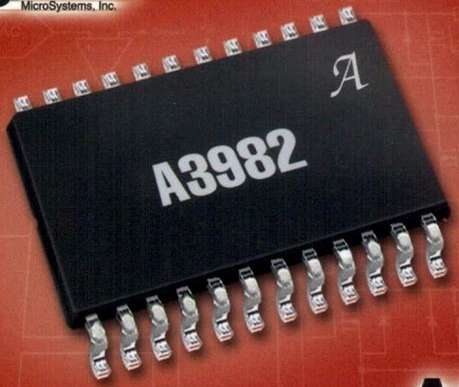

Jun 28, 2005 Offering DMOS outputs rated at 35 V and ±1.5 A, A3982 bipolar stepper motor driver is controlled with 2-wire STEP and DIRECTION interface for operation in full- or half-step modes. Device comes in 24-pin SOIC package with 15.4 x 7.5 mm footprint and internal synchronous rectification control circuitry. Along with fixed off-time output current regulator, which automatically selects slow- or mixed-decay modes, unit offers internal circuit protection.

Mack Corp.    Flagstaff, AZ 86004
Jun 28, 2005 Grippers, offered in 2- and 3-finger variations, simulate motion of human hands in parts handling applications. Mounted to any motion device or used as hands on robots, products operate on plant air and feature double acting drive motion for gripping parts externally or internally. Inlet pressure may be reduced to handle fragile parts. Fingers can be fabricated to conform to special shapes, and finger sets can be changed to handle variety of products.

United Grinding Technologies, Inc.    Miamisburg, OH 45342
Jun 28, 2005 With center height of 175 mm, Studer S31 universal cylindrical grinder offers between-centers grinding length of 650 mm or 1,000 mm, wheel size of 500 x 63 x 203 mm, and chuck capacity between centers of 130 kg. Dual wheelhead arrangement presents 2 external grinding wheels for rough and finish grinding in same setup, while alternate configuration is left/right with internal grinding for universal applications which allows OD, face and ID grinding in one setup.

Schurter, Inc.    Petaluma, CA 94975-0158

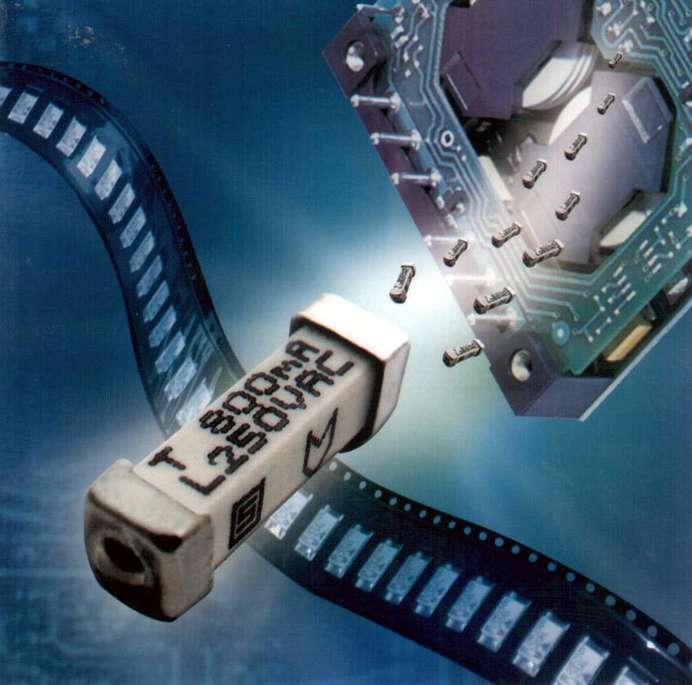

Jun 28, 2005 UMT 250 SMD fuse offers breaking capacity of 200 A at 250 or 277 Vac, or 100 A at 125 Vdc over current range of 315 mA to 4 A. Measuring 10 x 3 x 3 mm, unit replaces traditional axial or radial lead through-hole fuses, and is solder immersion compatible according to IEC 60068-2-58. Clear marking of rated currents make it suitable for pick and place operations in manufacture of power supplies, battery chargers, ac/dc converters, health care devices, and consumer electronics.

Nortech Engineering Inc.    Hopedale, MA 01747

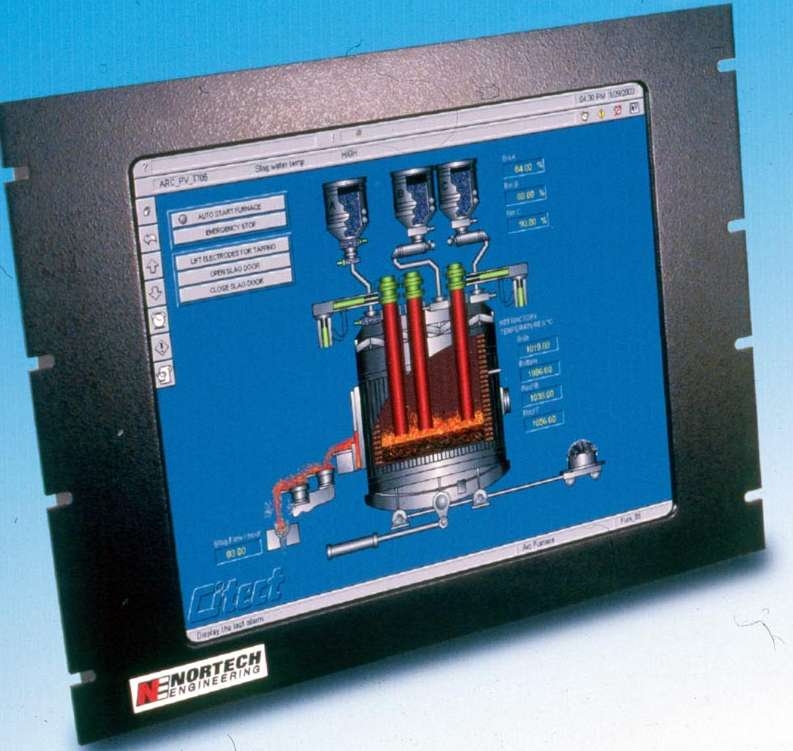

Jun 28, 2005 Designed to fit standard 19 in. EIA rack, RACK MOUNT EXPRESS units are available in 15, 17, and 19 in. models. All feature chemically strengthened protective glass and encompassing rear cover to protect electrical components. Displays can also be fitted with optional touch screens.

Dataforth Corp.    Tucson, AZ 85706

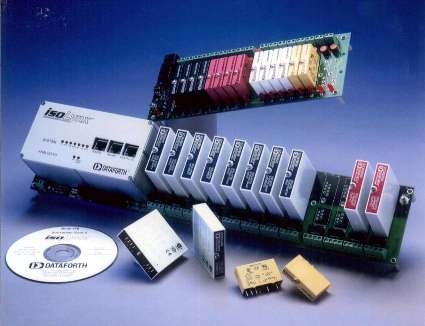

Jun 28, 2005 Implementing Modbus RTU and TCP protocols, isoLynx® SLX200 combines 12-channel controller base system and optional 8- or 16-channel expansion backplanes. It enables communication with variety of 3rd party software drivers and HMI/SCADA packages. Modular system provides 1,500 Vrms analog I/O isolation and is capable of interfacing with more than 650 SCM5B analog I/O modules. It communicates on RS-232/485 non-isolated serial links up to 115.2 kbps and 10 Mb/s Ethernet.

Fisnar Inc.    Wayne, NJ 07470

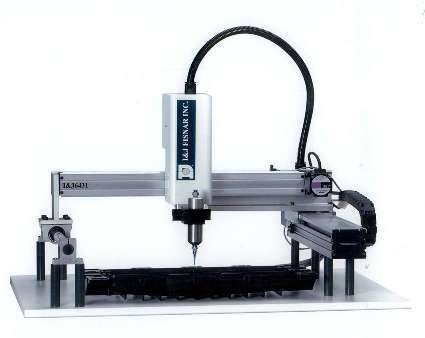

Jun 28, 2005 With working areas up to 32 x 24 in., Gantry-Cartesian Robots use stepping-servo motors that provide control of 3 axes. They fully interpolate all axes and provide continuous path or point-to-point dispensing. Programming is by teach pendant using step-by-step instructions. Robots are suitable for conveyor operations and work cells requiring XYZ movement above work, such as form-in-place gaskets, seals, bonding, encapsulation, and potting.

Argox    Ventura, CA 93003

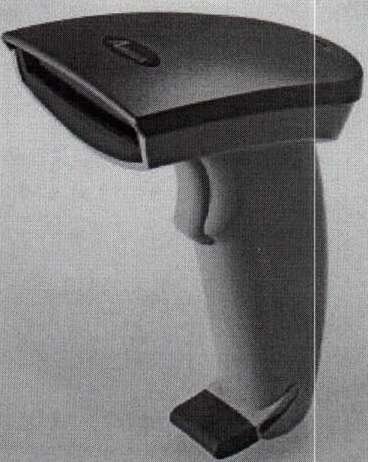

Jun 28, 2005 Offered in 5 models, AS-Series Scanners have scanning depths of 3–24 in. and are capable of keyboard wedge, serial, and USB connectivity. In addition to scan and decode capabilities for all standard linear barcode symbologies, 2 models are capable of scanning PDF417 and 2D symbologies. AS-Series is suited for applications such as retail, manufacturing, medical, hospitality, gaming, and transportation.
