French Technology Press Office, Inc.    Chicago, IL 60601

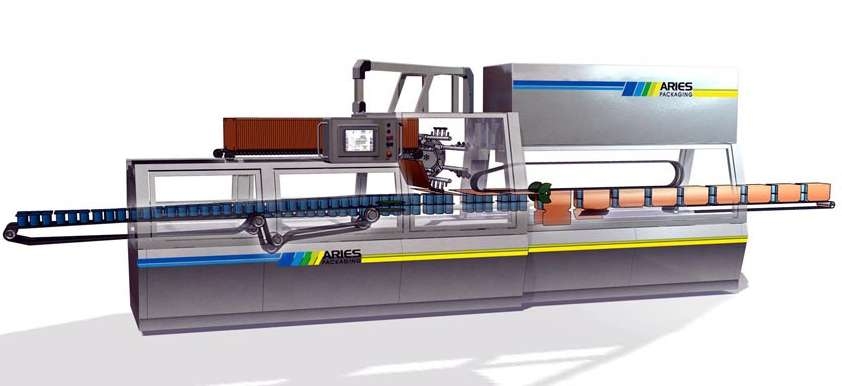

Jun 02, 2005 Packaging Line includes Ariform 603 sleevewrapper, which features minimal moving parts and independent left and right adjustments. Operating at 40 trays/min, Aritray robotized tray packer uses dynamic collation forming and progressive deceleration of movements for product protection. Products are transferred into trays by 4-axis FANUC M-420iA robot.

United Grinding Technologies, Inc.    Miamisburg, OH 45342
Jun 02, 2005 Suited for cellular or lean manufacturing, Profimat MC traveling column machine provides multi-axis grinding and is available with integrated automatic tool changer that can switch wheels in 8 sec. Four production profile models feature grinding range/table clamping area of 700 x 400 mm to 1,000 x 600 mm. Rated at 60 kW, variable-speed main spindle achieves speeds to 8,000 rpm. Maximum cutting speed of 170 m/sec is suitable for CD or IPD as well as CBN applications.

Freescale Semiconductor    AUSTIN, TX 78735-8598

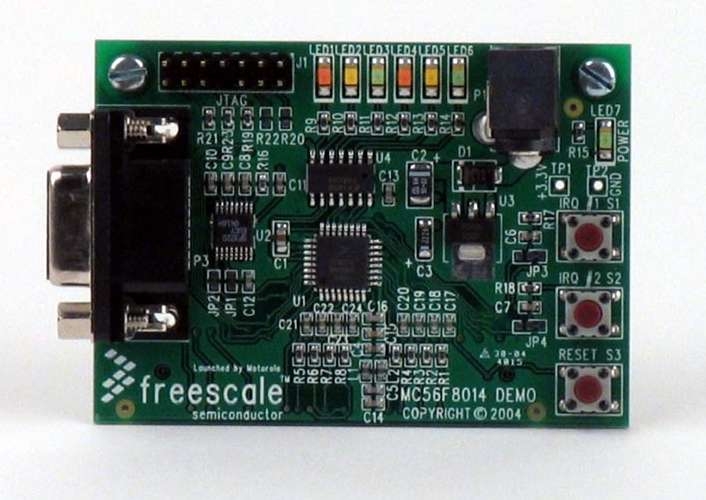

Jun 02, 2005 Series 56F8000 is based on 56800/E core with 32 MIPS and single-cycle multiply accumulate execution. Units feature 96 MHz pulse width modulation with programmable fault capability, 12-bit ADC with 1.125 µsec conversion rate, 16 KB program flash memory, 4 KB program/data RAM, and up to 26 GPIO. In addition to motor controls, 16-bit DSCs are suited for digital power conversion applications including dc/dc and ac/dc power supplies and uninterruptible power supplies.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143

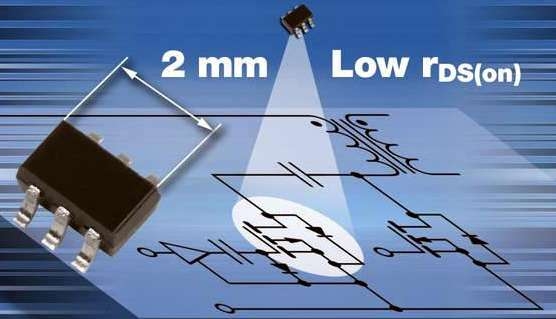

Jun 02, 2005 Available in SOT-23 and SC-70 packages, 150 and 200 V p-channel power MOSFETs are intended for primary-side active clamp circuits in dc-to-dc converters for telecom, datacom, and industrial products. On-resistance values range from 1.2–2.35 ohms. Suited for same applications, PowerPAK SO-8 devices include 150 V Model Si7439DP with on-resistance of 0.09 milliohms, and 200 V Model Si7431DP rated for 0.174 milliohms.

Bede    Durham DH1 1TW  United Kingdom

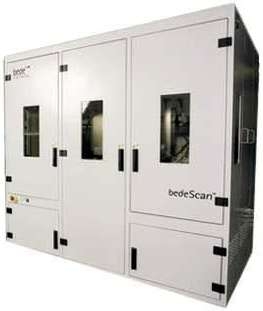

Jun 02, 2005 Digital X-ray inspection tool, BedeScanâ„¢, is used for identification and quantification of structural defects in semiconductor wafer substrates and epilayers up to 300 mm in diameter. Defect mapping tool uses non-destructive X-ray diffraction to identify anomalies in incoming and processed wafers and delivers quantitative data that enables in-line statistical control of manufacturing processes. Imaging of wafers is possible in reflection and transmission modes.

RIDGID    Elyria, OH 44035
Jun 02, 2005 Featuring jaws manufactured from heat-treated, hardened alloy steel, RIDGID® bolt cutters can cut metals up to 42 RC hardness. Slim cutting head permits cutting close to surfaces and incorporates one-step internal cam mechanism to maintain precise blade alignment. Handle design and handle grips lend to controlled cutting action. Offered in sizes from 14-42 in., product is suited for cutting rod, wire mesh, concrete form ties and rebar, and bolts.

Malvern Instruments Inc.    Westborough, MA 01581
Jun 02, 2005 Insitec At-line Powder Sizer enables powder processors to make automated measurements close to process line. Unit is based on Insitec Voyager, which is a self-contained, plug-and-play device that can be moved around plant for use on different process lines or to sample at various points in same line. Operated manually or automatically, pneumatic dry dispersion unit provides sample presentation and can be interfaced with existing sampling systems at user's site.

Lin Engineering    Santa Clara, CA 95054

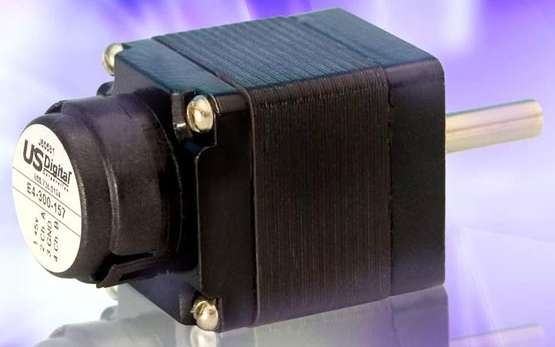

Jun 02, 2005 Provided with miniature E4 encoder from US Digital, 211 series 1.8º, NEMA 11, bipolar step motors measure 1.1 in.² and are available in 1.24, 1.75, and 1.99 in. lengths. Product, depending on length, can produce max holding torques of 9.2–16.6 oz-in. Integrated encoder provides digital quadrature encoder feedback of motor position as well as stall detection. Capable of tracking 100–300 cycles/rev and 400–1,200 ppr, encoder adds 0.9 in. of length to motor.

Para Light Corp.    Walnut, CA 91789
Jun 02, 2005 Available in 5 colors and as many viewing angles, LLWB-0001 measures 39.37 x 1.18 in., weighs 59.97 oz, and is made up of 36 LEDs with total flux of 180 lumens. Colors include red (620 nm), orange (590 nm), true green (525 nm), pure green (505 nm), and blue (470 nm), while available viewing angles are 10°, 20°, 30°, 60°, and 100°. With input of 15 or 24 Vac, product is suited for architectural, decorative, and cabinet lighting.

Tripp Lite    Chicago, IL 60609
Jun 02, 2005 SmartPro® line-interactive and SmartOnlineâ„¢ true online units are 5,000 Va UPS systems for multi-layer switch and router installations. Occupying 3 rack spaces, SmartPro simultaneously powers 208 and 120 V power supplies at full power. Integrated 8-outlet switched PDU turns off less critical loads during power outages. SmartOnline models include 5U unit that powers 208 V devices and 7U version with step-down transformer and twelve 120 V receptacles to power 208 and 120 V devices.

TeamF1, Inc.    Fremont, CA 94538
Jun 02, 2005 ASAP Air Secure Access Point Software adds secure wireless access-point functionality to embedded devices. It concurrently supports different generations of 802.11 security technology, from WEP through WPA, up to WPA2/802.11i, in Personal or Enterprise modes. Standards-compliant, customizable software includes Krypto-Lite FIPS-certified common crypto framework, along with suite of encryption and integrity components to secure and manage access point traffic.

ALDA Pharmaceuticals Corp.    New Westminster   Canada
Jun 02, 2005 T36® DC is a safe infection control product that simultaneously cleans and disinfects in janitorial and sanitation applications. Able to kill bacteria responsible for nosocomial (hospital–acquired) infections, product is also suited for use in schools, cruise ships, airlines, and child-care facilities.

Ticona Engineering Polymers    Florence, KY 41042
Jun 02, 2005 Suited for printer f-theta lenses, telephone camera lenses, and light guide plates, Topas® TKX-0001 COC has heat deflection temperature of 127°C and glass transition temperature of 140°C. In addition to optics, it can be used in thin-walled injection molding applications. With heat deflection temperature of 95°C and glass transition temperature of 110°C, Topas 5010L-01 COC is suited for large light guide plates and large diffusion plates.

Geotest - Marvin Test Systems, Inc.    Irvine, CA 92614-5846
Jun 02, 2005 ATEasy 5.0 includes Test Executive, which offers user and group based privileges, UI customization, and touch panel user interface support. It also includes seamless integration with test sequencer and fault analysis modules using modular plug-in architecture. Development environment supports .NET assemblies, COM/ActiveX, DLL, and C/C++ header file importing, LabView VI calling/browsing support, function panel driver importing, and IVI instrument drivers support.

SSI, Incorporated    Chalfont, PA 18914
Jun 02, 2005 Equipped with on-board computer, Smart Printheadâ„¢ series enables users to gather information and monitor performance in terms of usage and operating conditions. Printhead use data is uploaded to PC through USB port for warranty administration, which is based on linear inch usage. Offered in Purple, Blue, or Gold performance levels, printheads are offered with choice of 1-, 2-, or 3-million linear inch warranty.

Connect, Inc.    Naperville, IL 60540
Jun 02, 2005 Connect OpenAir SOX Proxy enables companies to satisfy IT security issues inherent in Sarbanes-Oxley Act compliance, including secure record keeping and reporting. It works with SSH2 protocol, which uses public key cryptography to transfer data securely over insecure networks. Product supports up to 300 terminals and provides sub-second response time while maintaining session stability. Client features of Twin Client are also available.

Modelithics, Inc.    Tampa, FL 33612
Jun 02, 2005 Available for Agilent Technologies’ Advanced Design System, Non-Linear Transistor Library includes models with built-in substrate scalability and measurement validations including 2-tone intermodulation distortion, S-parameters, static and pulsed-IV, load- and source-pull, 1/f noise, noise parameters, and power compression. Models cover LDMOS FETs for high-power microwave amplifier designs up to 100 W or more, down to low-noise pHEMTs and BJTs for LNA and oscillator design.

Retsch, Inc.    Newtown, PA 18940
Jun 02, 2005 Laboratory Rapid Dryer, Model TG 100, produces constant flow of warm air that keeps particles to be dried agitated and separate, resulting in rapid, gentle, and uniform drying process without localized overheating or agglomerations. Dryer includes timer as well as controls for temperature and airflow. It can be adapted for different drying containers from 0.3-6 L as well as various exhaust air filtering systems.

Gaumer Process Heaters    Houston, TX 77040
Jun 02, 2005 Available for company's line of heaters, INFI-SEAL Technology transforms electric heating element's hygroscopic Magnesium Oxide (MgO) into hydrophobic barrier. Heating element eliminates moisture-related start-up problems, prevents ground fault shutdown, and decreases chance of electric shock.

Meller Optics, Inc.    Providence, RI 02940
Jun 02, 2005 Measuring 75-150 µm thick, Crystal Quartz Waveplates are polished to precise finish and ±0.3 µm thickness tolerance. They can be supplied with V coat or broadband A/R coatings of less than or equal to 0.25% R per surface. Products feature less than or equal to 1.0 arc sec parallelism, 85% clear aperture, and 10-5 scratch-dig surface quality per MIL-PRF-13830. Applications include polarization control in lasers, fiber-optics, and telecommunications.
