Brennan Industries, Inc.    Cleveland, OH 44139
Jun 10, 2005 Instrumentation-grade Compression Tube Fittings consist of nut, back ferrule, front ferrule, and body that when installed become 5-piece connection providing solid, leak-free joint. Two ferrules are tightly swaged around tube and lack of initial strain on tubing ensures no tubing wall damage. Leaks are prevented because there is axial movement along tube instead of rotary motion creating joint. Fittings require 1¼ turns for installation.

Omega Engineering, Inc.    Stamford, CT 06907
Jun 10, 2005 Packaged in stainless steel housing, solid state Series PX209 incorporates 4-active-arm-bridge sensor using micro-machined diffused silicon diaphragm, thin film media, and dielectric isolation barriers. ASIC provides temperature compensation from -4 to +176°F. Outputs include 0-5 Vdc, 0-10 Vdc, or 4-20 mA, which interface with most industrial controls. Able to withstand high shock and vibration, transducers feature 100,000 hour typical MTBF.

FileOn    Norwalk, CT 06854
Jun 10, 2005 FileOn Integration Server (FIS) and FileOn TransFORM Server (FTS), combined with FileOn eLibrary Enterprise Suite, enable users to access information on paper and in databases via organized information repository using web services. FIS middleware integration product can be configured to support variety of adaptors for enterprise messaging services. With FTS, information can be stored, accessed, and searched from database or printed onto pre-printed paper forms.

Lincoln Electric Co. Inc., The    Cleveland, OH 44117
Jun 10, 2005 Suited for MIG and metal- or flux-cored wire welding, LF-74 delivers positive arc starting and feeding with stainless steel and aluminum. Its 4-roll MaxTrac™ cast aluminum wire drive system delivers consistent feeding force. Accommodating 0.023–1/16 in. MIG wire diameters and .030–5/64 in. flux-cored wire diameters, unit offers feed speeds of 50–800 ipm. Split wire guides provide full support of wire throughout drive path, eliminating wire tangling.

Lincoln Electric Co. Inc., The    Cleveland, OH 44117
Jun 10, 2005 Suited for submerged arc welding, Lincolnweld® 888 highly basic flux is classified to AWS H4 requirements for diffusible hydrogen levels under 4 mL/100 g of weld metal. It exhibits weld metal toughness and features packaging properties that positively impact moisture resistance. Product is suited for pressure vessel, shipbuilding, and structural fabrication as well as narrow gap applications requiring deep-groove slag removal.

Lincoln Electric Co. Inc., The    Cleveland, OH 44117
Jun 10, 2005 Offered in 6 types, UltraCore gas-shielded, flux-cored wires deliver smooth and stable arc performance. ProTech foil bag packaging minimizes moisture and increases resistance to cracking and gas tracking. General-purpose UltraCore 71A75 Dual is used with straight CO2 or mixed gases, UltraCore 712A80 (E71T-12) offers impact resistance, and UltraCore 71A85 (E71T-1) works with high argon mixed gases. Other types include UltraCore 712C (E71T-12), UltraCore 71C, and UltraCore 712A80-H.

Evalue Technology Inc.    Taipei   Taiwan
Jun 10, 2005 With operating temperature of 0 to +45°C, EES-3611 features on-board, passively cooled 1 GHz VIA Eden ESP10K processor collocating with CLE266 VT8623 chipset that supports MPEG-2 decoding, AGP 8X graphics, and dual view display. Chipset also integrates S3 Graphics UniChrome IGP core 2D/3D graphics engine. Measuring 220 x 65 x 147 mm, PC provides up to 4 USB 2.0 connectors, 2 serial ports, dual SATA interfaces, and one 10/100Mbps Ethernet port.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Jun 10, 2005 Communications Server for Linuxâ„¢ v6.2.1 can provide all-in-one communications services between workstations, host systems, and other workstations. It supports Linux 2.6 Kernel Enterprise distributions from SUSE and Red Hat; Linux on POWERâ„¢, OpenPowerâ„¢ and POWER5â„¢ platforms; and AIX Remote API client. Software also offers Primary LU support and accepts remote API client updates. Features include full-function system network architecture gateway, TN3270E server, and Telnet Redirector.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Jun 10, 2005 WebSphere® Everyplaceâ„¢ Mobile Portal Enable v5.1 allows users to extend portals to mobile devices and includes device repository with knowledge of 1,000+ device types. Intelligent content adaptation product addresses important elements of mobile portal strategy. Features include Mobile Web Clipping, Javaâ„¢ Specifications Request (JSR) 168 support for XDIME portlets, Mobile Portal Toolkit development environment, and virtual portal support.

Analog Devices, Inc.    Norwood, MA 02062-9106
Jun 10, 2005 Operating at voltages from 1.8–5.5 V, AD8553 Features offset voltage of 25 µV max, offset voltage drift of 0.1 µV/°C max, and voltage noise of 0.7 µV p-p. Parasitic resistance in series with Vref pin does not degrade performance, allowing unit to attain CMRR performance of 120 dB min @ G=100 without using buffer amp to drive Vref pin. In shutdown mode, total supply current is reduced to less than 4 µA. Product is specified over –40 to +85°C.

CoCreate Software Inc.    Fort Collins, CO 80525
Jun 10, 2005 OneSpace Designer 2005 v13.20 includes XVL Converter module and mySAPâ„¢ Product Lifecycle Management (mySAP PLM) solution. Available within OneSpace Designer Modeling, XVL converter lets users export 3D CAD designs to XVL 3D graphics format. Software also supports OneSpace Designer Drafting for mySAP PLM integration, offering support for mixed 2D and 3D OneSpace Designer environments. It provides complete mapping of lightweight CAD model, drawing files, and associated data.

STMicroelectronics    Lexington, MA 02421
Jun 10, 2005 Architecture of ST72681 is based on ST7 8-bit microcontroller coupled with 16-bit, one-cycle-per-instruction I/O processor and Reed-Solomon error-correction processor for MLC NAND Flash devices. Embedded Reed-Solomon 4-byte-on-512-byte block encoder/decoder engine aids in hardware error correction. Both processors run at 30 MHz for read and write performance of 12 Mb/s and 10 Mb/s respectively. Product consumes 290 µA in suspend mode and 50 mA operating supply current.

Immersion Corp.    San Jose, CA 95131
Jun 10, 2005 TouchSense® technology for touchscreens supplies tactile cues, allowing users to perceive that buttons depress and release. Haptic effects can vary in frequency, waveform, magnitude, and duration, enabling on-screen buttons, switches, and other controls to supply distinct sensations, facilitating discrimination by users. Tactile sensations can synchronize with sound and on-screen graphical images for improved user experience.

Ember Corp.    Boston, MA 02210
Jun 10, 2005 JumpStartâ„¢ Development Kit enables OEMs and systems integrators to accelerate proof-of-concept prototypes for embedded wireless networking applications. It includes hardware and software, and works with multiple third-party microcontrollers. Hardware package consists of 6 development boards, serial cable, antennae, and batteries. Software package includes EmberZNetâ„¢ networking stack, which incorporates API with libraries for mesh, star, and hybrid-network topologies.

Samsung Electronics Co., Ltd.    Seoul 100-742  Korea (south)
Jun 10, 2005 Suited for consumer and mobile PC applications, Solid State Disk provides storage for notebook PCs, sub-notebook PCs, and tablet PCs. Free of moving parts and having minimal noise and heat emission, SSD endures extreme temperatures and humidity. Unit reads data at 57 Mbps and writes at 32 Mbps. Disk comes in 2.5 in. version carrying 16 NAND Flash devices of 4 or 8 Gbit density for 8 and 16 Gb of storage respectively. A 1.8 in. version is also offered.

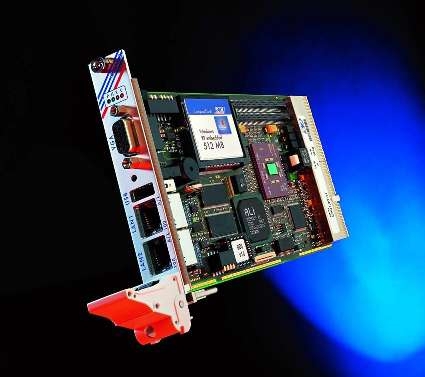

SMA Technologie AG    Niestetal 34266  Germany
Jun 09, 2005 CompactMAX CPU7.2 system provides embedded Linux installed on CompactFlash and completely configured for all periphery cards. Basic version, with drivers for CCAN4 and CSER8, requires 24 Mbyte storage space of CompactFlash as well as 19 Mbyte RAM while in operation. Embedded Linux supports Firewire and USB ports in hot plug-and-play mode. Full secure shell support provides reliability during remote computer use as well as during data transfer.

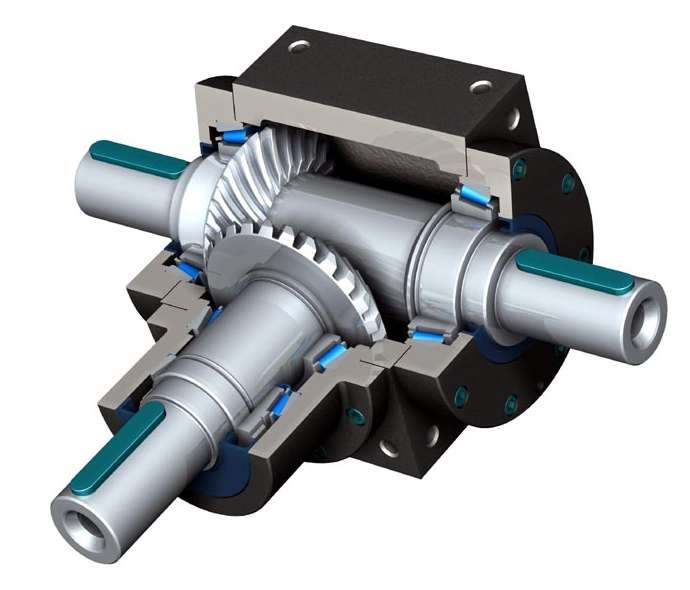

Power Jacks Limited    Fraserburgh, Aberdeenshire AB43 8TE  United Kingdom
Jun 09, 2005 Lubricated for life, PowerGear Gearboxes are available in 8 sizes, with 6 standard ratios from 1:1–5:1 and efficiencies to 98%. Units feature taper roller bearings, Gleason cut gears, and spheroidal graphite iron housing and flanges. They provide fretting-free torque transfer using friction-locked fit between shaft and gear. Units come with solid or hollow shafts in 2-way, 3-way, and 4-way shaft arrangements, and can be mounted from all sides.

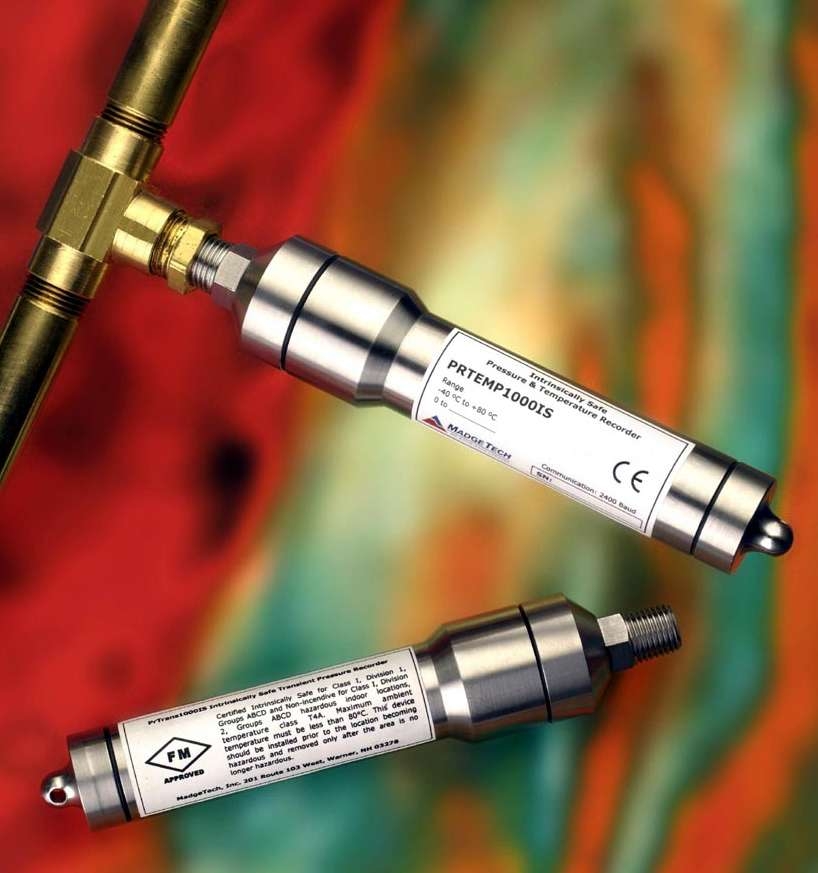

MadgeTech    Warner, NH 03278
Jun 09, 2005 Model PRTEMP1000IS records pressure and temperature independently at user-programmable reading intervals from 1 every 2 sec to 1 every 12 hr. Featuring stainless steel pressure strain gauge and internal temperature sensor, unit stores up to 16,383 readings in non-volatile memory and is FM Certified as intrinsically safe. Recorder is designed for -40 to +80°C temperatures and is offered in 30, 100, 300, and 500 psia/g as well as 1,000 and 5,000 psia pressure ranges.

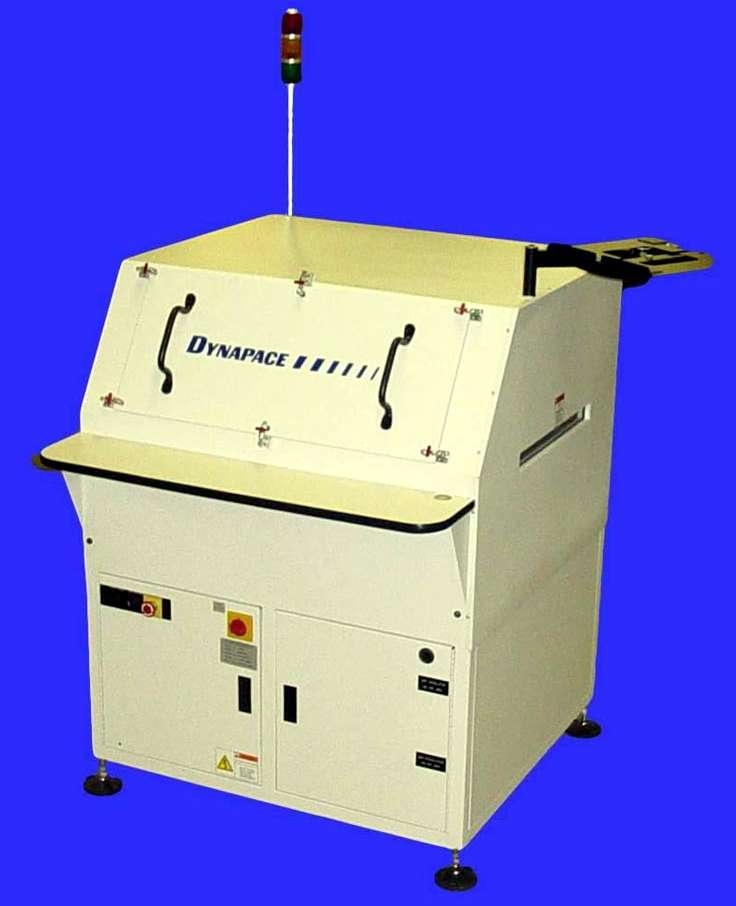

Dynapace Corp.    Arlington Heights, IL 60004
Jun 09, 2005 Suited for inline test and programming of RF producing or sensitive product, 1-Meter test enclosure provides RF shielded environment in moving PCB assembly line. It incorporates edge carry conveyor, RF-tight doors, clamp to hold product securely, and lifting mechanism to bring test fixture in contact with bottom of PCB. EMI/RFI shielding effectiveness is greater than 60 db up to 6 GHz. Product up to 18 x 20 in. with above board clearance of 1 in. can be accommodated.

Brown Machine LLC    Beaverton, MI 48612-0434
Jun 09, 2005 Ovation Rotary Series® is comprised of models R-46, R-58, and R-610, which feature respective max mold sizes of 48 x 72, 60 x 96, and 72 x 120 in. Rotary cut sheet line of thermoformers features Allen-Bradley processor and Panelmate touch screen with unlimited forming routines. Along with internal modem, products offer programmable positioning of platens and programmable oven zones with ceramic elements and perimeter shielding.
