Viklele Associates    Pune 411 038   India
Jun 07, 2005 VLMenuPlus v5.0 adds MS Office 2003 and Office XP styled appearance to application menus. Codeless menu enhancer facilitates application use in .NET, Visual C++, and Delphi development environments.

Acromag, Inc.    Wixom, MI 48393 7037

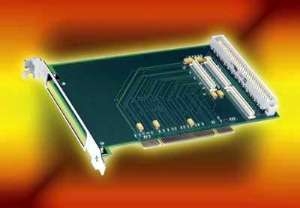

Jun 07, 2005 Model APC-PMC enables use of PMC mezzanine I/O modules in standard PCI computer system. It acts as adapter to route PCI bus signals to and from PMC module through PCI card slot edge connector. Modules with front or rear connections for I/O cable access may be used. Both 5 and 3.3 V signaling are accommodated. Typical uses include data acquisition, process control, test and measurement, motion control, and network data communication.

NP Photonics, Inc.    Tucson, AZ 85747

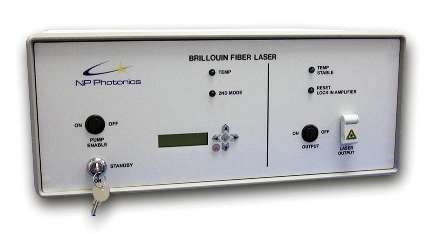

Jun 07, 2005 Stand-alone Scorpion™ Brillouin Fiber Laser operates over eye-safe wavelengths of C-band from 1,530–1,565 nm. All-fiber design makes unit able to withstand environmental disturbances, while integrated electronic controls ensure low frequency and intensity noise. Applications include sensing, RF-photonics, metrology, communications, and general research and development.

Exxon Mobil Corporation    Fairfax, VA 22037
Jun 07, 2005 GOLD (Grease One-Way Logistics and Distribution) System helps industrial companies and trucking fleets handle, transport, and dispose of grease. Placed on top of maneuverable transport pallet and stacking frame, multi-layered Fluid-Bag Flexi container holds up to 1,800 lb of grease and prevents ingress of contaminants. Protective container gradually collapses as grease is discharged through automated dispensing unit and may be disposed of after use.

Linear Technology Corp.    Milpitas, CA 95035
Jun 07, 2005 Utilizing dual, 180º output of phase controllers, LTC3828 step-down synchronous switching controller features integrated tracking for sequencing multiple voltage rails and PolyPhase® operation. It converts 4.5-28 V input voltage to 2 regulated output voltages, adjustable from 0.8 V up to 99% of input voltage. Operating at 3, 4, or 6 phases, IC has constant 550 kHz frequency current mode architecture and can also be locked to 260-550 kHz clock to reduce EMI.

NetBurner, Inc.    San Diego, CA 92121
Jun 07, 2005 Based on Freescale Semiconductor's ColdFireâ„¢ MCF5270 processor, MOD5270 delivers 150 MHz, 32-bit performance in addition to complete tool chain and suite of networking applications. Project wizard lets users create blank network-enabled project, while deployment tools enable over-the-network debugging, field upgrades, and module diagnostics. Along with integrated development environment, product comes with TCP/IP stack, RTOS, Web server, and C/C++ compiler.

Addnew Technologies Limited    Nanshan   China
Jun 07, 2005 Producing total 250 W rms output, AN-5180D comes Dolby Digital 5.1- and DTS-ready and can connect to any audio source. It features 10 in. driver for reinforced subwoofer speaker, while satellites' drivers provide optimum surround sound dispersion and sonic imaging.

ACCES I/O Products, Inc.    San Diego, CA 92121 1506
Jun 07, 2005 Model USB-DIO-32 lets users add portable, digital I/O and counter capabilities to any PC or embedded system with USB port. Compatible with USB 1.1 and 2.0 ports, device offers plug-and-play functionality and features 32 lines of TTL-compatible digital I/O on four 8-bit ports with 3 optional 82C54 counters/timers. Windows-based, custom function driver optimizes data throughput, and steel enclosure with anti-skid bottom protects unit from damage.

Bal Seal Engineering Co., Inc.    Foothill Ranch, CA 92610 2610

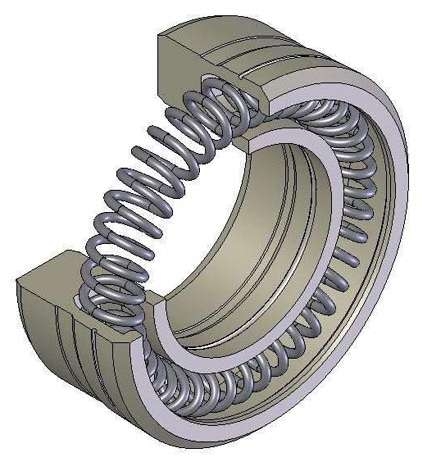

Jun 07, 2005 BAL™ Seal series U–13X, U–14X, and KS13X ensure down–hole data logging tools remain isolated from harsh, abrasive drilling environments. Sealing technologies U–13X and U–14X withstand 25,000 psi down–hole pressure and 150 psi differential sealing pressure in oil drilling operations, while KS13X suits press–in metal locking ring retention systems. Constructed of filled PTFE seal material, each system incorporates canted–coil spring energizers that provide near–constant force.

ERICO    Solon, OH 44139-2631
Jun 07, 2005 Consisting of 1.5 mm wire rope with crimped-on hook, CADDY® SPEED LINK LD holds working loads up to 44 lb with 5:1 safety factor. Stainless steel locking device ensures stability and allows for additional vertical adjustment after wire insertion. System installs without drilling or tools and allows objects to be hung at an angle. Available in 6.6, 16.4, and 32.8 ft lengths, CADDY® SPEED LINK LD is suited for hanging lighting fixtures, alarm sensors, signage, and pipes.

ERICO    Solon, OH 44139-2631
Jun 07, 2005 Available in sizes 10-57 mm, LENTON® Splices are designed for worldwide grades of rebar and meet ACI-318, BS 8110, and DIN 1045 full-tension splice requirements. Taper-threaded range consists of standard and transition couplers, as well as positional couplers to join bars of any shape, size, and diameter. Weldable and bolt couplers are also available for joining structural steel to reinforced concrete. Couplers can be coated to maximize corrosion protection.

ERICO    Solon, OH 44139-2631
Jun 07, 2005 Remote Transducer Protector, Model RTP 3034 uses hybrid, 3-stage clamping circuit to protect 2-wire transducers from transient currents with minimal added loop resistance. Featuring max surge rating of 20 kA, 8/20 µs, unit provides both common- and differential-mode transient protection. It supports line currents up to 145 mA for protection of 24 Vdc powered transducers. A ¾ in. stainless steel nipple housing makes protector suited for hostile environments.

Selerity Technologies, Inc. (STI)    Salt Lake City, UT 84104
Jun 07, 2005 Aquachrom Interface is comprised of small metal beads sintered inside stainless steel tubing that is placed directly into FID. Restrictor delivers water in form of fine mist so that flame maintains stability. Suited for temperature programmed liquid chromatography (TPLC), interface can be attached directly onto outlet of column, or flow can be split for conventional columns. Aquachrom is capable of isothermal and temperature programming using 1.0, 2.1, or 4.6 mm columns.

FCI Electronics    Etters, PA 17319 9769

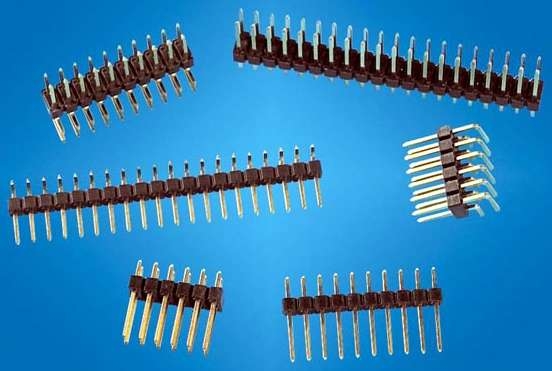

Jun 07, 2005 BergStik® headers with simplex-plated contacts meet environmental requirements for RoHS-compatible components. They feature 0.025 in. square post contacts on 0.100 in. pitch. Simplex plated posts are offered with gold or GXT (gold flash over palladium-nickel) contact finish, and through-hole part options include single- or double-row headers in straight or right-angle orientation. Headers can also be ordered with insulators molded using thermoplastic.

Waytek Inc.    Chanhassen, MN 55317
Jun 07, 2005 Rated to 275°F, corrugated polypropylene loom features full length slit that slides over assembly and closes for permanent installation. Convoluted surface provides protection from abrasion and pinching. Available in black with blue stripe, loom comes in various sizes and styles to accommodate almost any bundle of wires or hoses.

AMETEK Power Instruments    West Chicago, IL 60185
Jun 07, 2005 Panel-mount Model TNC-TM 166 provides continual monitoring of temperature in critical environments and equipment. Heavy-duty front plate protects unit from mechanical shock. Powered from low-voltage ac or dc, thermometer can be mounted directly on equipment or on remote panel up to 250 ft away. Temperature sensing range is -25 to 100°F, and when temperature rises above set point, audible alarm and flashing display alert personnel and relay contacts close.

AMETEK Power Instruments    Rochester, NY 14605

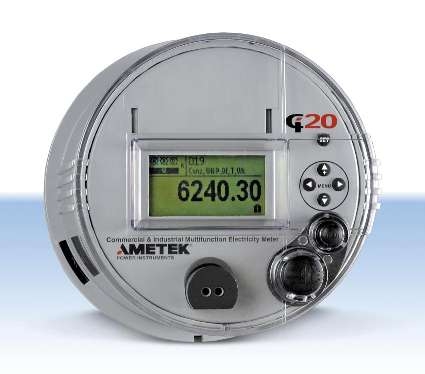

Jun 07, 2005 Suited for commercial and industrial users, multi-function CI-20 revenue meter includes bi-directional Whr, VARhr, and VAhr measurements, as well as 8 configurable TOU rates. It features dual serial outputs or single serial output with modem or Ethernet ports. LCD graphic display indicates metered values, health status, alarms, and general operation. Secure, menu-driven display eliminates need for encrypted warning codes and combinations of buttons to access features.

Atco Precision Tool, Inc.    Troy, MI 48084
Jun 07, 2005 Sine Punch-Mate No. 1 comes with locking hinge, designed to automatically draw down on gage blocks, eliminating need for locking straps or bars that cause accuracy distortions. Made from hardened tool steel, unit features preload ball and race bearing design, concentricity within .0001 in, and squareness and parallelism within .0002 in. Twenty-four 15° indexing divisions with 10 sec accuracy are included as well as 2.1000 in. side bar for angles between index divisions.

Dresser-Rand Co., Turbo Products Div.    Olean, NY 14760
Jun 07, 2005 Single-stage Series 400RT is available in sizes from .75–450 kW with pressures to 700 psig and temperatures to 825°F. Dual exhaust outlets are symmetrically located and can be used individually or jointly. Idealube lubrication system automatically provides flood, splash, and mist lubrication when required. Monolithic wheel design is standardized and includes stainless steel milled style blading, metallurgically combined with alloy steel wheels.

EAO Switch Corp.    Milford, CT 06460

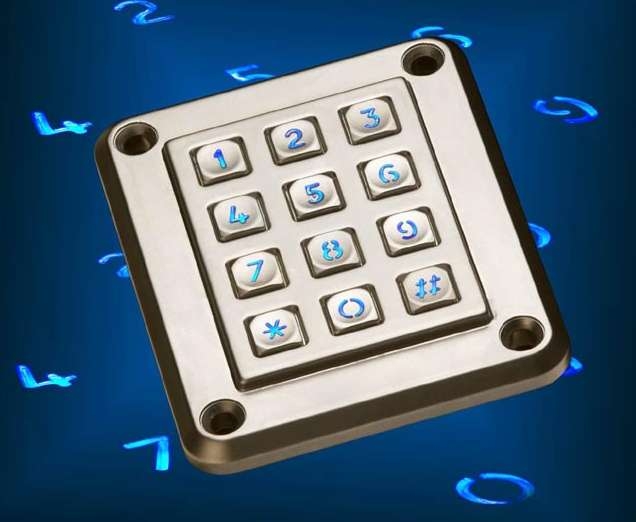

Jun 07, 2005 S Series Keypads are available with bright blue illumination option, generated by LEDs. Blind pin locator found on key 5 and optional raised characters are also offered. Available with 12 or 16 keys, and in choice of standard, telephone, or hexi-decimal II configurations, keypads feature front plate and anti-pull-off keys for vandal resistance. Units are tested to 4 million operations and are protected to IP67.
