BEX, Inc.    Livonia, MI 48150 5031
Jun 17, 2005 Made of chemical-resistant ABS resin, interchangeable Air Wiskâ„¢ Nozzles are rated for applications up to 150°F and operate between 80–120 psig. Units provide solid air flow with no interruptions or breaks, making them suitable for industrial product drying, cooling, cleaning, blowing off debris, and providing air curtains to keep processes separate.

Steck Mfg. Co., Inc.    Dayton, OH 45408 1952
Jun 17, 2005 Bulldog Curved Clamp grabs and holds onto curved pinchweld where other clamps will not attach. Unit pulls pinchweld to accurately seal weatherstrip to hatch. Individually adjustable teeth assure secure attachment, while elongated hole accepts almost any hook.

Plastic Safety Systems, Inc.    Cleveland, OH 44104 2505
Jun 17, 2005 Made of UV-stabilized prime polyethylene resin, Light and Flag Mount accommodates up to 2 warning flags and 1 warning light. Hardware holes are molded through for strength and to facilitate installation. Mount is compatible with PSS extruded uprights and 1¾ x 1¾ in. metal or plastic uprights, as well as 2 or 3 lb U-channel uprights.

Papailias, J. G., Co., Inc.    Northvale, NJ 07647
Jun 17, 2005 Provided with flanged ends per ANSI B16.5 and B16.24, Series FIF is rated at 150 psig and may be configured with flapper, drip tube, or rotary flow indicators. Units are available in ½â€“20 in. sizes with bronze, carbon steel, or 316 steel body; carbon steel or ductile iron lens retainer; carbon steel fasteners; neoprene or Teflon® gaskets; and borosilicate glass lenses. Options include DIN flange connections and double window assemblies.

Televac/ETI    Huntingdon Valley, PA 19006
Jun 17, 2005 Incorporating dual sensor technology and controller, self-contained Model CC-10 allows measurement from atmospheric pressure to UHV on single vacuum port. Rough vacuum from atmospheric pressure to 10^-2 Torr is measured with crystal sensor, while pressure from 10^-2 to 1x 10^-9 Torr is measured with double-inverted magnetron cold cathode sensor. Unit includes 0–10 Vdc analog output, RS485 digital communications, and 3 adjustable setpoints.

Dataforth Corp.    Tucson, AZ 85706
Jun 17, 2005 Measuring 1.11 x 1.65 x 0.4 in., SensorLexâ„¢ 8B40/41 analog signal conditioners and 8B39 current output modules feature 1,500 Vrms transformer isolation and provide Instrument Class® analog output. Products let users incorporate modular I/O on per-channel basis for any embedded monitoring or measurement and control system, interfacing with variety of analog signals as well as PC/104, cPCI, VMEbus, PXI, or proprietary DAQ system board. Modules accept millivolt and voltage level signals.

Ophir Optronics, Inc.    Danvers, MA 01923
Jun 17, 2005 Compatible with handheld displays, PD10-pJ and PD10 Photodiode Energy Heads measure up to 10,000 Hz on low energy, high rep rate lasers. Former has pulse energy measurements of 10 pJ to 200 nJ and energy scales of 200 nJ to 200 pJ, while latter has pulse energy measurements of 1 nJ to 20 µJ and energy scales of 20 µJ to 20 nJ. Both feature spectral response from 0.19–1.1 µm, calibration accuracy of ±5%, and built-in calibration in 1 nm increments.

Cooper Hand Tools    Raleigh, NC 27612
Jun 17, 2005 Nicholson® Pro Series 4-In-1 High Tension Hacksaw features blades and frame that can be configured for general use, making flush cuts, working in tight spaces, and making variety of inside cuts as jab saw. Standard configuration is 90° hacksaw with high tension technology, which lets user tension blade up to 30,000 psi. Along with reciprocal saw blade that can be positioned to 45° angle, unit features cushioned rubber grips and magnetic blade storage.

Dymax Corp.    Torrington, CT 06790
Jun 17, 2005 Multi-Cure® 605 Series, suited for glass and glass-to-metal assembly, produces invisible bonds and exhibits resistance to moisture and thermal cycling. Capable of forming acceptable bonds on irregular surfaces, adhesives can fill irregularities in bonded joints and cure through thickness of ¼ in. within seconds when exposed to 365 nm UV light. Multi-Cure® feature enables material to be cured with heat or DYMAX activators in areas that light cannot reach.

Eagle MHC    Clayton, DE 19938
Jun 17, 2005 Designed to optimize product visibility, dolly trucks consist of 4 wire shelves and 4 chrome posts mounted on aluminum truck dolly with protective wraparound bumper. Products feature open-wire shelf construction that promotes air circulation to reduce dust and contamination build-up. QuadTruss® shelf design provides retaining ledge for storage stability. Measuring 69 in. high, trucks come with 4 poly casters of swivel or swivel/brake style.

Edmund Optics    Barrington, NJ 08007
Jun 17, 2005 Achieving greater than 90% transmission at design laser wavelength, Laser-Line Bandpass Filters offer blocking of more than 5.0 OD at ±1% of laser wavelength. Units enable maximum transmission of stimulated emission while eliminating noisy spontaneous emission. Applications include laser-based fluorescence instrumentation, Raman spectroscopy, and analytical and medical laser systems.

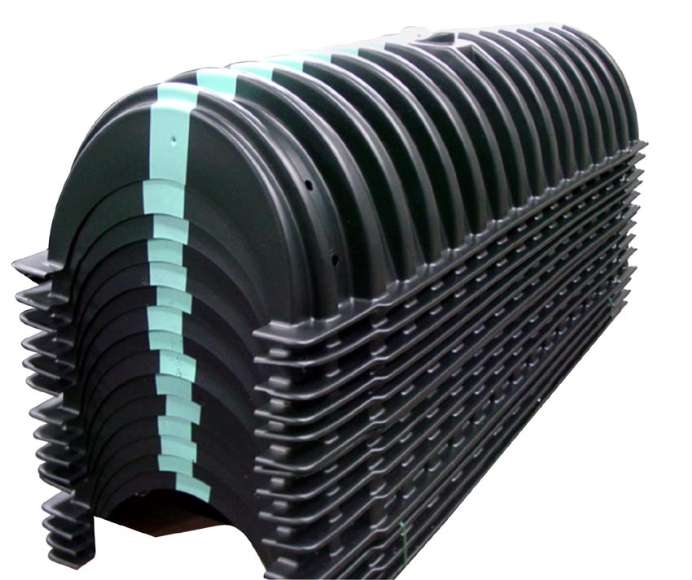

Cultec, Inc.    Brookfield, CT 06804 1830
Jun 17, 2005 Recharger® 150 detention/retention chamber measures 8.5 ft long, 33 in. wide, and has storage capacity of 160 gal. It includes built-in endwall on each chamber and overlapping rib connection for easy installation and strong connection between chambers. Constructed of high-density polyethylene, chamber is resistant to chemicals contained in parking lot runoff.

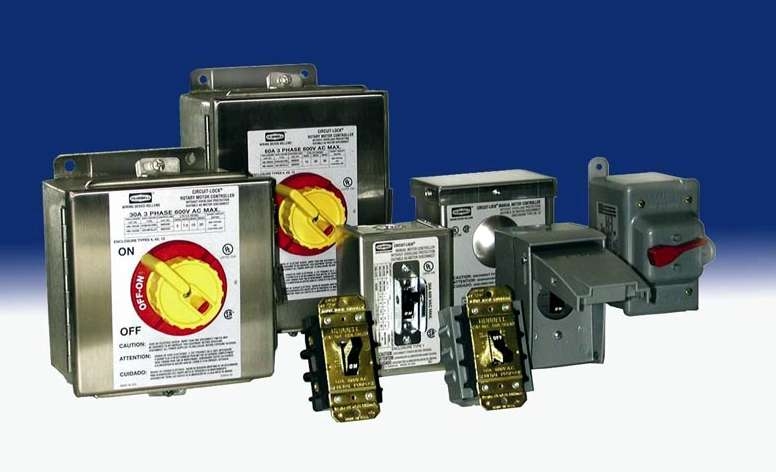

Hubbell Inc. (Delaware) / Wiring Device-Kellems Division    Milford, CT 06460
Jun 17, 2005 Circuit-Lock® motor controllers are UL 508 listed to comply with both controller and disconnect requirements of NEC. Positioned between load center and motor, switch allows user to safely terminate circuit power at motor for servicing without shutting down entire line. Disconnects are rated to withstand 10,000 A high fault short circuits. Units are available as component switch or pre-assembled into NEMA-rated enclosure.

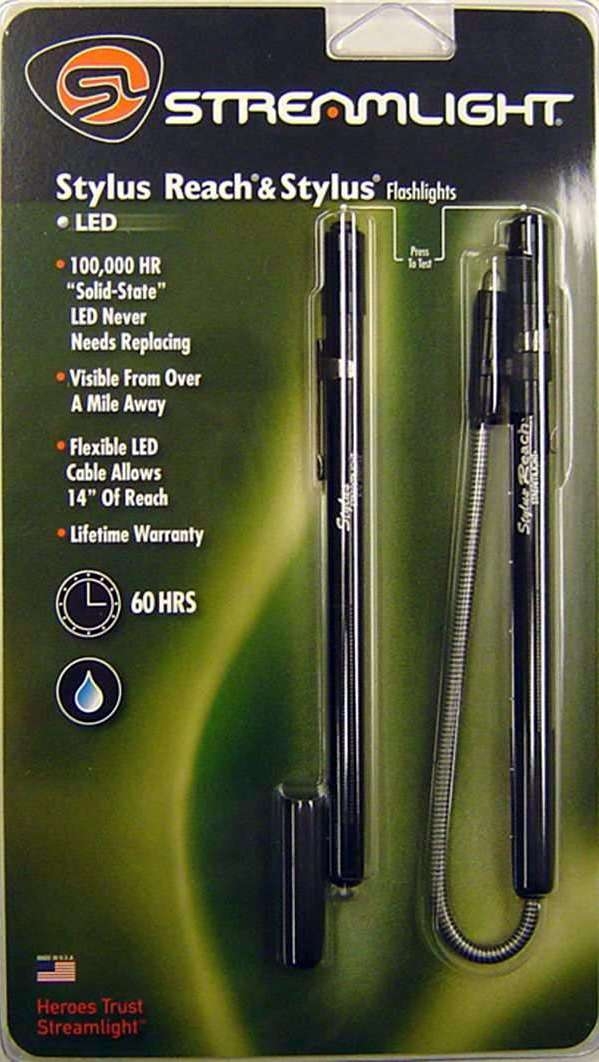

Streamlight, Inc.    Eagleville, PA 19403
Jun 17, 2005 Streamlight Stylus® Combo Pack is comprised of Stylus pen light and Stylus Reach® LED flashlight. Weighing 1.1 oz, Stylus features high-intensity, white LED that lasts 100,000 hr. Stylus Reach, weighing 1.7 oz, includes flexible 14 in. cable extension with high-intensity, white LED tip that can be positioned to bend around mechanical parts. Both products offer momentary and constant on switching and feature knurled, non-slip grip.

KGK International Corp.    Buffalo Grove, IL 60089
Jun 17, 2005 With dual-axis capability, V35R is suited for complex configurations in hard materials. Spindle is powered by 30 hp motor with speeds from 25-2,500 rpm, and unit utilizes Fanuc 18i-T control. Able to handle parts up to 551 lb, machine features 9.25 in. X-axis travel and 16.93 in. Z-axis travel, both with rapid traverse of 787 ipm. Max cutting diameter is 13.78 in., max cutting length is 16.93 in., and max swing is 19.69 in.

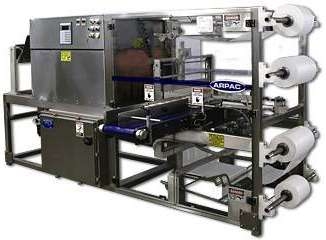

ARPAC    Schiller Park, IL 60176
Jun 17, 2005 Offered with variety of standard and customized infeeds, 708HB intermittent motion, right-angle stainless-steel shrink bundler features multi-row collation capabilities that enable it to shrink wrap products in various multi-pack configurations. Model 708HB-16 utilizes motorized pulley drive system with brushless dc motors and operates at speeds to 30 bundles/min. System is designed for pharmaceutical, health, and beauty industries.

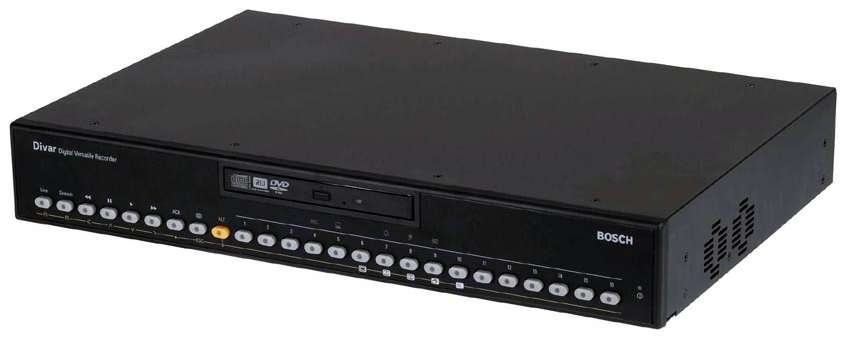

Bosch Security Systems    Fairport, NY 14450 9199
Jun 17, 2005 Divar Digital Versatile Recorder consists of integrated digital video recorder with built-in multiplexer and switcher controlling up to 16 cameras. With Bilinx® Bi-directional Communication Technology and remote accessibility, unit lets user configure camera and watch live or past events from anywhere on network or Internet. In-window PTZ function enables pan-tilt-zoom control on video screen, while Instant Playback permits immediate viewing of events in live mode.

Kernco Instruments Co., Inc.    El Paso, TX 79927 7338
Jun 17, 2005 Combination Model 461825 contains stroboscope to analyze rotating objects and freeze motion, and tachometer to measure revolutions/min. Photo tachometer provides range of 5–99,999 rpm, while stroboscope indicates 100–100,000 fpm/rpm. Microprocessor-based unit includes quartz crystal oscillator and operates with four 1.5 V AA batteries for portability. Five-digit LCD display features characters that reverse direction depending on measurement mode.

Eriez Magnetics    Erie, PA 16506
Jun 17, 2005 Trunnion Magnet Separator removes up to 98% of grinding media steel balls and ferrous chips from milled ore in SAG/ball mill operations. Positioned at downstream end of mill, arc of permanent magnets surrounding almost half of blind trunnion extension attracts and holds steel balls to inner surface of trunnion. Steel balls are carried to top of trunnion, where magnetic arc terminates, thereby releasing balls that then fall into hopper and chute.

Prem Magnetics Inc.    McHenry, IL 60050
Jun 17, 2005 Offering extended operation up to 90 kHz, Models 8255 and 8256 are intended for applications having yoke current requirements of 6.0 and 9.0 A, respectively. Units are fingertip adjustable via attached rotating magnet to compensate for standard manufacturing material and other component tolerances. With 0.800 in. footprint and height of 1.30 in., both coils meet UL 94 V-2 requirements and are designed for vertical mounting on PCB board.
