Gresham Power    Salisbury   United Kingdom

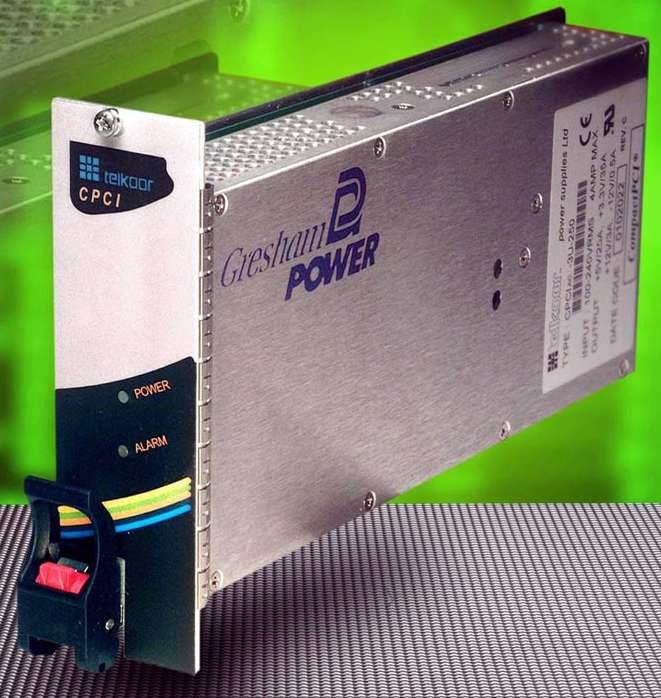

Jun 16, 2005 Compliant to PICMG 2.11 Power Interface Specification and fitted with Positronic 47 pin connector, cPCI power supplies are hot-swap and parallel redundant enabled. Power density allows up to 40 A to be drawn from +3.3 Vdc output and 30 A from +5 Vdc output @ 55°C. Available with 48 Vdc input or universal ac (90–264 Vac) input up to 440 Hz with active PFC, products feature OR-ing diodes, independent parallel converter topology, and 2 main outputs with remote sense.

Cablofil Inc.    Mascoutah, IL 62258

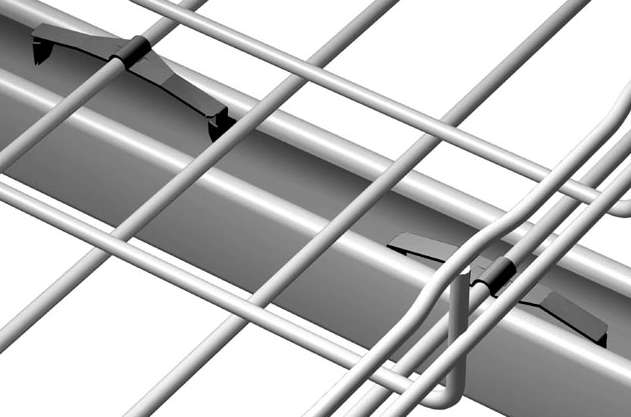

Jun 16, 2005 Offered in Dacromet, black, and other painted finishes, FS 41 Fastrut Connector snaps in place to secure all Cablofil wire cable trays to strut without use of bolts, nuts, or tools. It works with any depth Cablofil wire cable tray in widths from 2–24.

Nitto Denko Corporation    Osaka 567-8680  Japan
Jun 16, 2005 Transparent in near-IR range, photo-conductive material is flexible so that optical circuits can be created by patterning using UV exposure. Light-transmitting part (core) pattern surface is flat with rectangular cross-section, and wrapping around core (clad) can be embedded, allowing construction of 100 µm film on substrate. Optical characteristics lead to 0.1 dB/cm loss over 0.7–1.0 µm range. Material may also be used in field optical interconnection.

Vactor Manufacturing, Inc.    Streator, IL 61364
Jun 16, 2005 Piranha Hose Products' Armor Belt Beaconâ„¢ hose consists of seamless thermoplastic inner tube and synthetic reinforcement protected by polymer belt. Flexible product also contains integrated sensor wire to locate hose underground. With service temperature from -40 to +122°F, crush-resistant hose is offered in lengths of 400, 500, or 600 ft in orange and blue colors with max pressure ratings of 2,500 and 3,000 lb, respectively.

Caddock Electronics, Inc.    Riverside, CA 92507

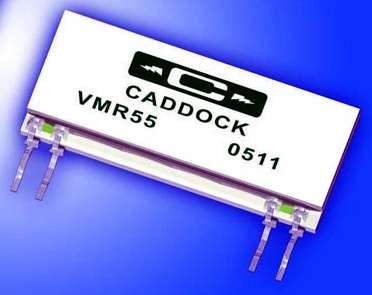

Jun 16, 2005 Designed for use in voltage measurement circuits, Type VMR Transient Tolerant Voltage Monitoring Resistors maintain stability when exposed to overloads, impulses, and extreme environmental conditions. They are manufactured with Tetrinox® resistance film system and feature ceramic sandwich construction. Able to handle transient voltage to 15 kV peak, products have non-inductive designs with operating voltage ratings from 250–2,000 Vac rms.

Delavan Ag Pumps, Inc.    Minneapolis, MN 55403

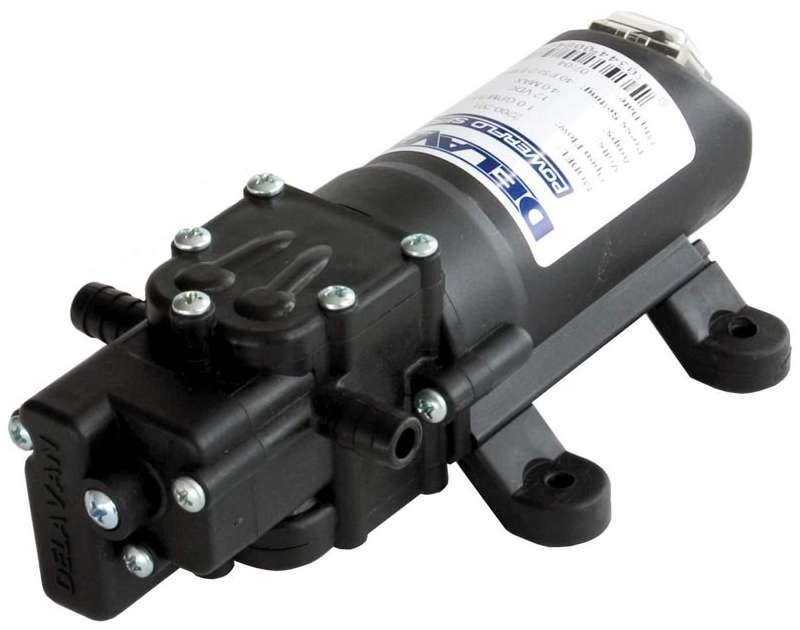

Jun 16, 2005 PowerFLOâ„¢ 2200 Series 12 V DC motor-driven diaphragm pumps are self-priming and can run dry without incurring internal damage. Constructed with polypropylene housing, positive displacement pumps feature viton valves, santoprene diaphragm, and stainless steel and zinc plated fasteners. Products pump liquids at rates to 1 gpm with temperatures to 110°F and max pressure to 40 psi. Agricultural applications include spraying equipment and fluid transfer.

Contemporary Control Systems, Inc.    Downers Grove, IL 60515

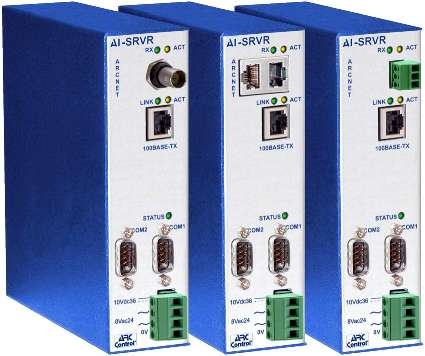

Jun 16, 2005 Enabling users to access ARCNET network from Ethernet network, Model AI-SRVR functions as ARCNET server by executing communication requests from Ethernet client. Device will receive ARCNET packets and send data to Ethernet clients or reverse process for transmitted packets. Configuration is accomplished through EIA-232 serial port, and once configured, resident web server can be accessed to determine operation status of AI-SVRV.

Torrey Pines Scientific, Inc.    Carlsbad, CA 92010

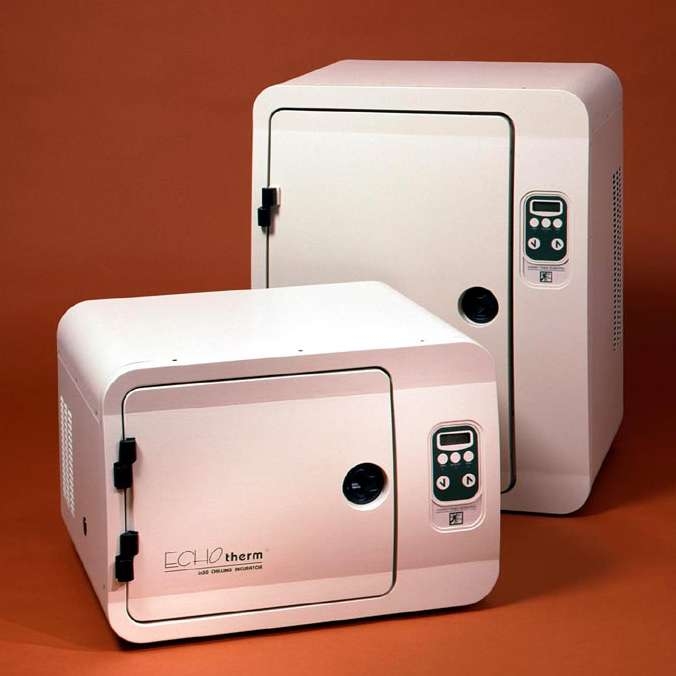

Jun 16, 2005 Peltier-based Models 1N35 and 1N45 are chilling/heating incubators with no compressor or CFCs and temperature range from 4.0-70.0°C with control to 0.1°C. They have interior capacity of 27.5 and 55 l, respectively. Fully programmable controls are capable of storing 3 routines in memory. Each routine is capable of 10 steps and each program step is temperature, time, and ramp function. Units include RS232 interface and 99-day timer readable to 1 sec.

Metabo Corp.    West Chester, PA 19380 4243

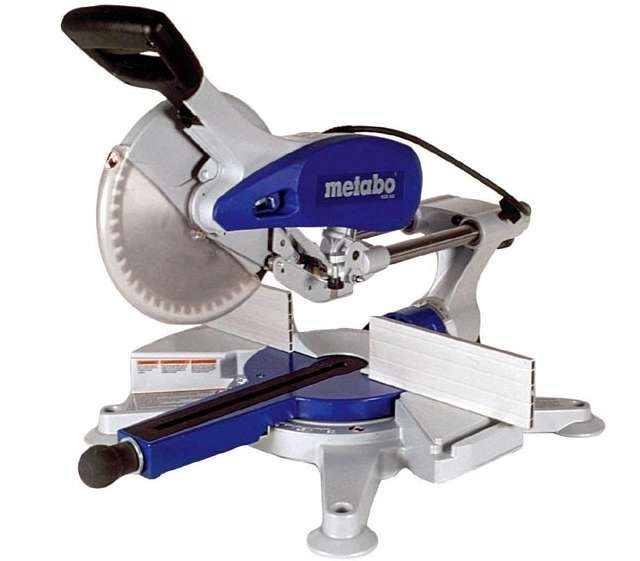

Jun 16, 2005 Weighing 42 lb, 10 in. sliding compound miter saw, Model KGS 303, features dual bevel head that tilts up to 48°, allowing users to place finished side of material face up. Unit operates on 15 A, 2,000 W motor with no-load speed of 5,020 rpm. Turntable position can be adjusted between 50° on left and 60° on right with bevel stops at 0, 22.5, and 45°, and miter stops at 0, 15, 22.5, 30, and 45° on both sides. Cutting depth is 3¾ in. at 90° and 2 5/8 in. at 45°.

Seco-Larm    Irvine, CA 92606-5012
Jun 16, 2005 Varifocal CCTV camera Model EV-1233CVW is protected against attack by weatherproof metal enclosure and high-impact smoked plastic dome. It features Sony 1/3 in. Super HAD CCD chip with 470 TV lines of resolution and 0.4 lux minimum illumination with signal-to-noise ratio greater than 48 dB. Camera also incorporates DSP, built-in 4–9 mm varifocal-type dc-drive auto iris lens, auto electronic shutter, auto gain control, back light compensation, and auto white balance.

National Instruments Corp.    Austin, TX 78759-3504

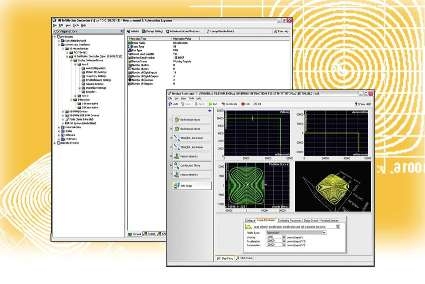

Jun 16, 2005 SoftMotion Controller allows engineers to use LabVIEW graphical development environment to create distributed motion applications. IEEE 1394-based ServoWire SM drives from ORMEC, and CANopen-based Accelnet and Xenus drives from Copley can be programmed with NI-Motion API in LabVIEW. Programmable automation controllers can be used to incorporate vibration monitoring, web connectivity, and high-speed analog I/O into distributed motion applications.

Milacron Inc.    Cincinnati, OH 45206

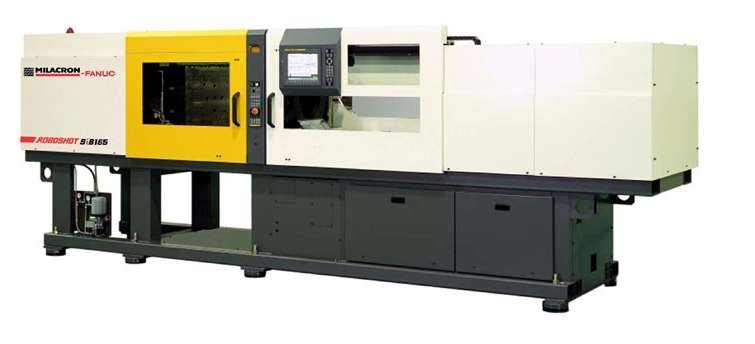

Jun 16, 2005 Rated at 165 and 275 tons, all-electric Roboshot SiB Machines offer 17-385 tons clamp force. When equipped with 18 mm screw, Roboshot 165 can inject as little as 0.63 oz at over 35,550 psi with max velocity of 13 ips and rate of 5.1 in.³/sec. Equipped with 32 mm A barrel/screw combination, Roboshot 275 delivers shot size of 114 g with 39,816 psi pressure at max speed of 13 ips and rate of 16.2 in³/sec. Windows CE-based control provides operator interface and custom menu.

Milacron Inc.    Cincinnati, OH 45206

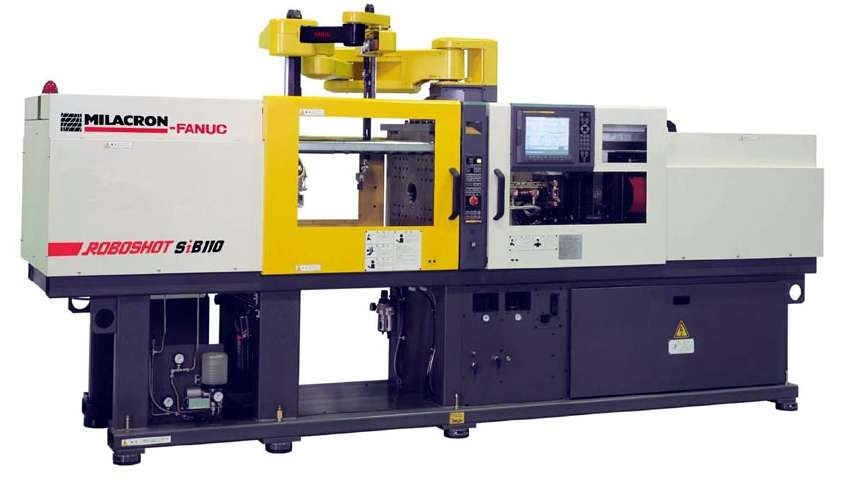

Jun 16, 2005 Five-axis SR Mate 100iB is available as integrated option on Roboshot SiB 55- and 110-ton machines. Part removal stroke of 0.5 sec/27.5 in. matches with Roboshot's clamp cycle of 1.6 sec and injection acceleration of 0-300 mm/sec in 27 ms. Robot offers payload capacity of 11 lb with extracting stroke of 20.4 in. for parts and 14.6 in. for runners, and lifting stroke of 27.5 in. for parts and runners. Anti-collision protection helps eliminate end-of-arm or mold damage.

Arkeia Corporation    Carlsbad, CA 92008
Jun 16, 2005 Arkeia Server Backup, Network Backup, and Disaster Recovery software, as well as Hot-Backup plug-ins, support Red Hat® Enterprise Linux 4 environments for x86 platforms. Enterprise network backup software solutions are capable of protecting Linux environments of virtually all configurations, with architecture coverage for x86, Itanium-2, AMD Opteron, PowerPC, SPARC, Alpha, and appliances such as Sun Cobalt and SGI Altix servers.

Ticona Engineering Polymers    Florence, KY 41042
Jun 16, 2005 Made with Fortron® PPS, monocomponent Staple Fibers are available in cut lengths of 0.25-6 in. with deniers from 2-3, tenacity of 4.0 g/denier, elongation of 50%, and less than 2% shrinkage at 170°C. Crimp levels range from uncrimped to 12 crimps/in. Fortron® linear PPS has continuous use temperature to 200°C and is inherently flame retardant. It withstands acids and bases from pH of 2-12 and is stable when exposed to oxidizing bleaches and organic solvents.

Xtralis Inc.    Norwell, MA 02061
Jun 16, 2005 Providing early warning smoke detection for business-critical areas, VESDA LaserFOCUS VLF-500 is equipped with smoke level dial display that lets user obtain real-time smoke level information from safe distance. Instant Fault Finder(TM) facilitates identification of system issues, and Swift Start(TM) provides out-of-the-box installation routines. Other features include series of pre-engineered pipe network designs and Sonic Flow(TM) air flow monitoring capability.

Dressta North America    Buffalo Grove, IL 60089

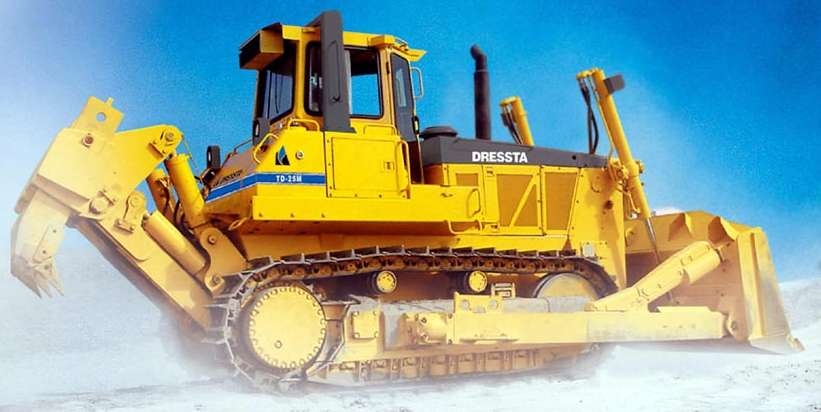

Jun 16, 2005 Featuring multi-unit cooling package with 2-speed hydraulic fan, TD-25M is powered by 320 net hp Cummins QSX-15 Tier II engine that produces 1,215 lb-ft of torque, with resulting drawbar pull at 2 mph of 44,000 lb. Ergonomic crawler dozer includes sloped hood for forward visibility and cab air recirculation system with optional MSHA filter. Single left-hand joystick controls all machine motion functions, and hydraulic system diagnostic ports aid in maintenance.

REO-USA, Inc.    Indianapolis, IN 46226
Jun 16, 2005 Built into IP54 aluminum enclosure, REOVIB Analog Thyristor System (ATS) 100 phase-angle controller is suited for bowl, hopper, or linear vibratory feeders with 16 A current rating. Unit is internally switchable for input voltages of 110 or 230 V, 50/60 Hz with 110 or 230 V, 50/60 Hz output power. For start/stop mode, enable is provided for external contact or 24 Vdc signal. Output voltage set point is adjusted via potentiometer, control voltage, or control current.

Justice Laboratory Software    Denville, NJ 07834
Jun 16, 2005 With Chrom Perfect Panteraâ„¢ software, users of Perfect Spiritâ„¢ Chromatography Data System can turn any serial controlled GC or LC into Internet-ready device. Software works as intermediary, transforming device's original RS-232 signal into Ethernet signal that is sent across network. Chromatograph can be configured to allow access by multiple hosts or to allow access to devices based on hosts' IP address.

Silicon Navigator    Cupertino, CA 95014
Jun 16, 2005 Library Smartâ„¢ enables design optimization using multiple libraries on same die with simultaneous analysis of multiple process, temperature, and voltage corners. Technology centralizes, organizes, and manages library data to optimize ASIC design flows. It enables EDA tool developers to create tools that bridge disconnect between semiconductor IP and EDA tools. Software automatically analyzes Design Kits and provides results for template customization.
