Ross, Charles, & Son Co.    Hauppauge, NY 11788 0615
Jun 30, 2005 MegaShear provides users with inline mixing, dispersing, emulsifying, homogenizing, and particle size reduction device. Design consists of high tip-speed rotor (11,000+ fpm) with several stages of semi-cylindrical grooves machined on vertical faces of rotor, running within confines of fixed stator with similar grooves on its vertical faces. Available in flow rates from 1–500 gpm, unit produces sub-micron dispersions and emulsions and disintegrates solids in one pass.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Jun 30, 2005 Agilent N6031A simultaneously delivers 1.25 GS/s and 10 bits of vertical resolution for communication systems such as ultrawideband (UWB), MIMO radios, and advanced DSL. Specifically for UWB, it facilitates creation of realistic OFDM UWB signals compliant with MBOA proposal. Agilent N6030A and N6031A incorporate sequencer capability as well as built-in baseband corrections feature. Both provide up to 1 GHz of I/Q bandwidth and up to 75 dBc of spurious-free dynamic range.

Linear Technology Corp.    Milpitas, CA 95035
Jun 30, 2005 Housed in 5.3 mm wide, 36-lead SSOP, LTC3731H incorporates 3-phase current mode controller with onboard MOSFET drivers. It provides single-IC solution for high-output distributed power in systems requiring dc/dc conversion from 4.5-32 V input source to 0.6-6 V output in buck mode. Expandable from 3- to 12-phase operation for 60-240 A power supply designs, step-down synchronous controller offers ±5% output current matching, Stage Shedding(TM) technique, and ±2% VREF accuracy.

Banner Engineering Corp.    Minneapolis, MN 55441
Jun 30, 2005 Performing up to 1,200 inspections/min, P4 EDGE 1.3 uses 1,280 x 1,024 pixel imager to capture minute details of multiple features at ranges from a few inches to several feet. Self-contained system is available with in-line and right-angle lens positions, and mounting brackets facilitate attachment to machines or conveyors. Operating on 10-30 Vdc, sensor is available with various lighting and C-mount lensing options to meet application needs.

Linear Technology Corp.    Milpitas, CA 95035
Jun 30, 2005 Housed in 32-pin, 5 x 5 mm QFN package with integrated bypass capacitors, 14-bit LTC2255 Analog-to-Digital Converter provides 125 Msps sampling rate and ac performance of 72.1 dB SNR/85 dB SFDR at 70 MHz input. Operating from 3 V supply, it is available in commercial and industrial temperature grades. ADC is suited for battery powered, high performance, test and instrumentation equipment such as satellite receivers, wireless base stations, and portable electronics.

BCM Advanced Research    Irvine, CA 92618

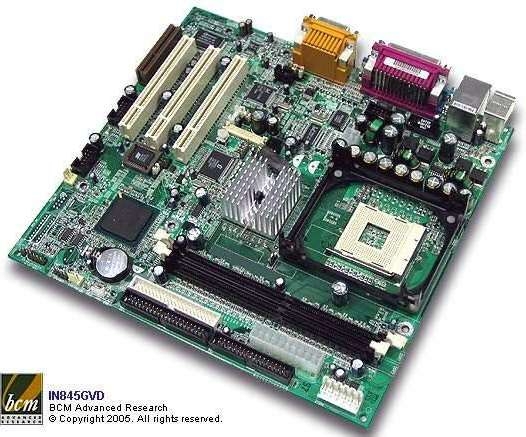

Jun 30, 2005 Equipped with on-board VGA and LVDS connector for dual display support, IN845GVD is compatible with Pentium® 4 and Celeron® D processors with 400 or 533 MHz FSB. Scaleable product allows up to 2 Gb 200/266 DIMMs on 2 sockets and supports Intel® 845GV and ICH4 chipsets. Along with 10 Base-T/100 Base-TX Ethernet controller, board features dual-channel UDMA/100 IDE interfaces, USB 2.0 ports, serial/parallel ports, floppy interface, and AC’97 audio.

Imperx Inc.    Boca Raton, FL 33487

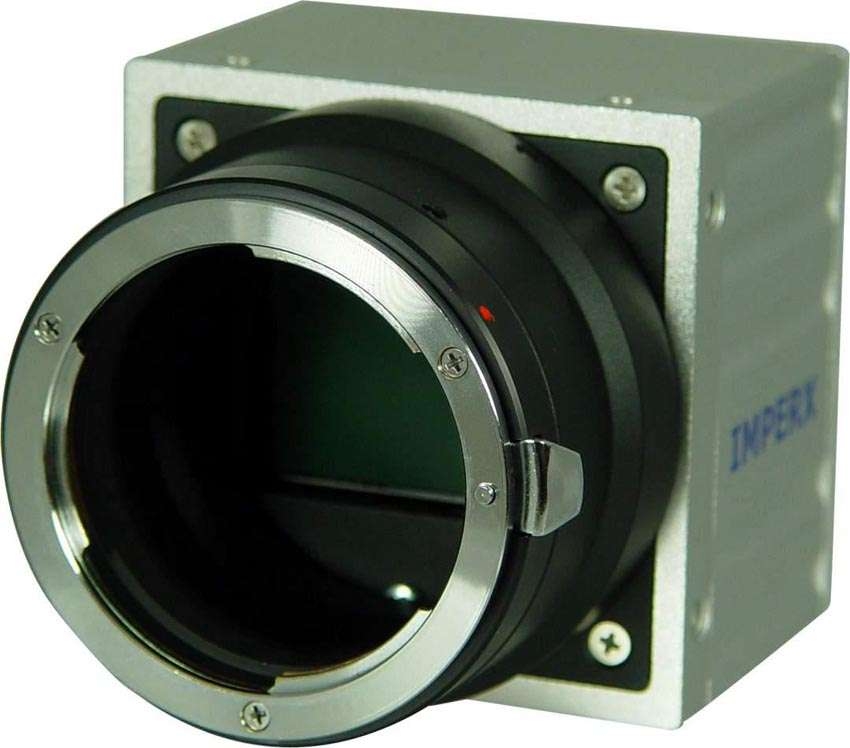

Jun 30, 2005 Suited for bandwidth-constrained monitoring applications, Lynx IPX-11M5-L incorporates Lynx 32-bit RISC processor and draws 6 W from 10–15 Vdc supply. On-board intelligence enables camera to zoom from 200 lines @ 30 fps to 2,672 lines @ 5 fps. Operating over -5 to +50ºC temperature range, unit features horizontal windowing, automated iris, 10 sec integration time, and upgradeable camera software and firmware. Programmable features range from frame rate to external trigger.

Universal Air Filter Co.    Sauget, IL 62206

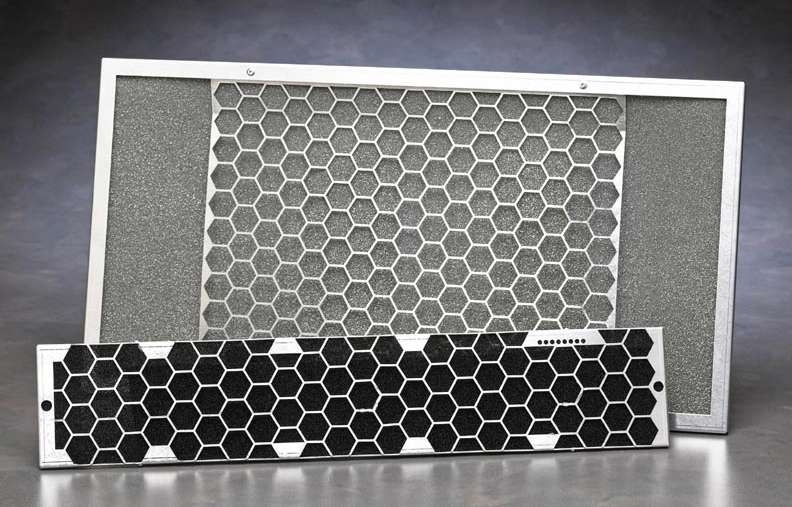

Jun 30, 2005 Hex-pattern Perf Panels consist of integrated assembly that creates sturdy, decorative, or functional support frame and captive filter media with combined thickness as small as ¼ in. With up to 85% open area to maximize airflow, cleanable, reusable, filters are available in black, gray, or green UL 94 HF-1 rated Quadrafoam filter media. They may also be configured to include EMI shielding honeycomb, conductive gaskets, tabs, handles, holes, flanges, and spring clips.

Scapa North America    Windsor, CT 06095
Jun 30, 2005 Designed to bond silicone substrates and other difficult-to-bond materials, Scapa 706 features specially treated polyester release film with operating temperature range of -55 to +400°F. Conformable clear polyimide film, double coated with silicone pressure sensitive adhesive, can serve as splicing tape and is suitable for high- or low-temperature gasket sealing as well as general industrial bonding and sealing applications.

Rokonet Industries USA Inc.    Miami, FL 33122
Jun 30, 2005 With selective event recognition capability, WatchOUT series uses 2 PIR and 2 MW channels to differentiate between false alarms and real intrusion events. Sway-Recognition Technology measures travel distance of approaching and receding targets, and Digital Correlation Technology compares 2 independent PIR channel signals ensuring that only targets returning similar signal in both channels qualify as potential threats.

Grace Engineered Products, Inc.    Davenport, IA 52807

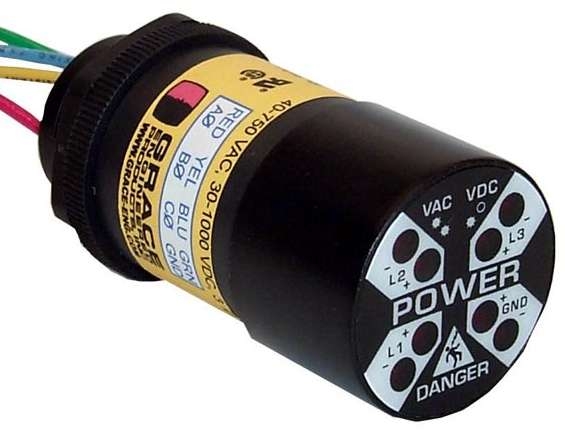

Jun 30, 2005 To create electrically safe work condition for electricians performing maintenance on de-energized systems, VoltageVision(TM) provides external indication of voltage inside electrical system enclosures. Product mounts to panel exterior and is hardwired into load side of main disconnect. Powered from same voltage it indicates, R-3W has redundant design that exceeds surge requirements for Category III certified voltmeter and operates from 40-750 Vac and 30-1,000 Vdc.

Honeywell Sensotec Test & Measure    Columbus, OH 43228
Jun 30, 2005 Available in tension and compression models, load cells cover capacities from 50 g to 10,000 lb and come in sizes as small as 0.13 in. high x ½ in. dia. Units may be incorporated into existing machines and are suited for space-restricted areas. Featuring all-welded construction, products are available with accuracies to 0.1% and have operating temperature range of -65 to +250°F. Standard output is mV/V.

Advanced Embedded Systems, Inc.    Marana, AZ 85653

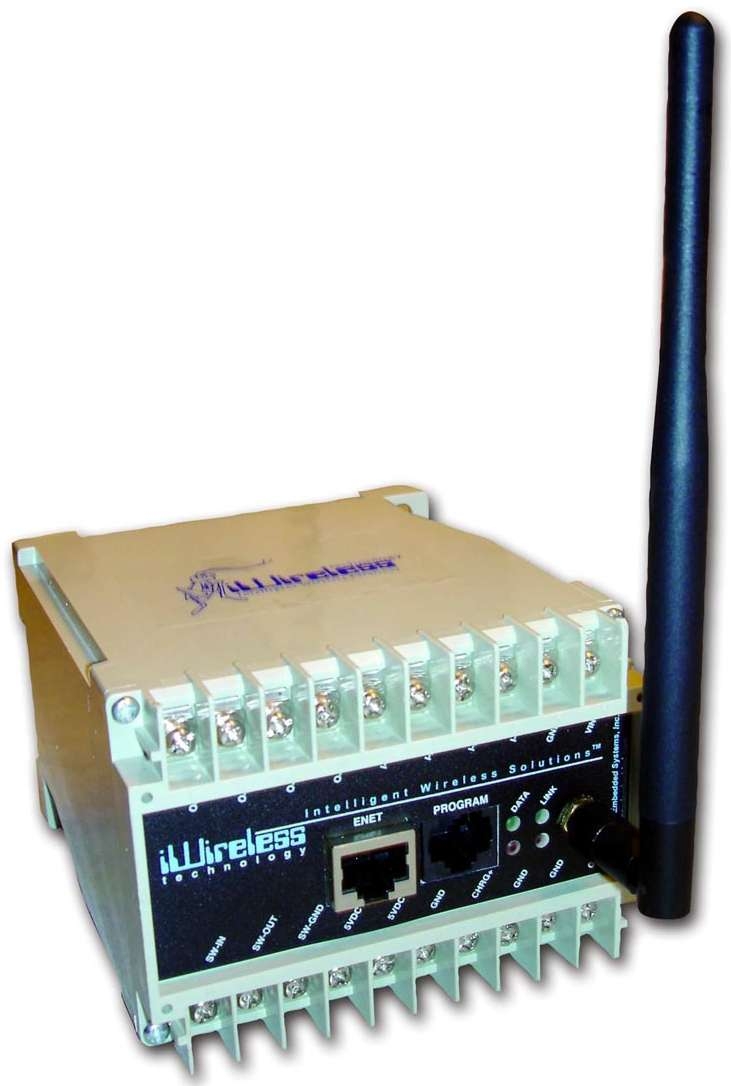

Jun 30, 2005 Model RT12-4411 Wireless analog bridge(TM)/Wire Replication Transceiver converts and replicates wired sensor system into seamless wireless connection between any 4-20 mA, 0-5 Vdc, or 0-10 Vdc signal or sensor and data logger, controller, or SCADA equipment. Bi-directional, full duplex, 12-bit analog I/O enables complete control and monitoring. Features include real-time clock, event logger, communications alarms, and input voltage monitor.

Delavan Ag Pumps, Inc.    Minneapolis, MN 55403

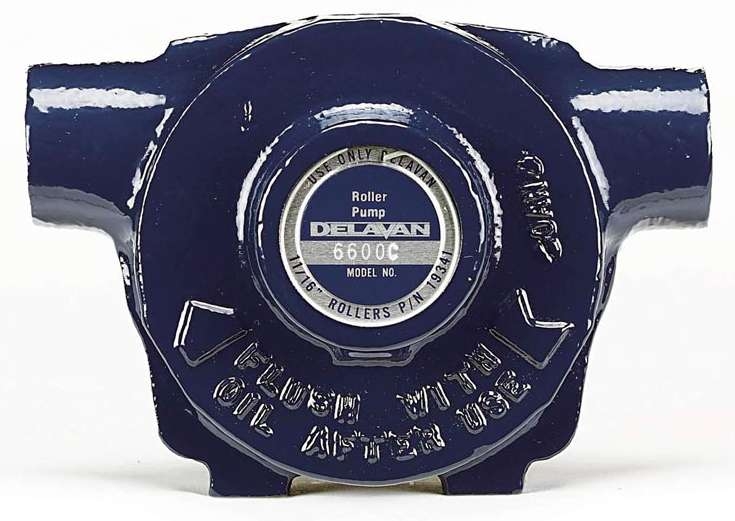

Jun 30, 2005 Featuring 6 rollers for smooth performance and rotors made of corrosion-resistant alloy, Series 6600/6601 Roller Pumps offer output to 19.6 gpm at 1,000 rpm. They are constructed with 5/8 in. 416 stainless steel shaft and available with cast iron, Ni-Resist, or Diamondâ„¢ alloy bodies. Pump shaft rotation is counter-clockwise, with clockwise available. Able to withstand temperatures to 140°F, pumps are designed to tolerate corrosive effects of agricultural fluids.

NKK Switches    Scottsdale, AZ 85260-3420
Jun 30, 2005 DS series combination tilt/sensor switch is through-hole, PCB mounted device that ensures reliability with use of photo interrupter contacts rather than traditional contacts. Switch measures 9 mm in height, length, and width, making it suited for high-density mounting. It is triggered when tilted beyond 30° in any direction and sealed construction protects switch from environmental elements.

UV Process Supply, Inc.    Chicago, IL 60614-4805
Jun 30, 2005 Paper-thin, pressure-sensitive UV FastCheckâ„¢ Strips change color when specific levels of UV dose are received. With 5 separate color changing zones, products provide visual inspection of UV light dosage to determine power of UV light source at specific location. Strips measure UV doses from 0–1,500 mJ/cm² and can be used in all narrow web environments. Included chart lets users compare exposed strip against reference strips to determine dosage.

Melles Griot Laser Group    Carlsbad, CA 92009
Jun 30, 2005 Series 56 ADX, 56 BDX, and 56 CDX are cylindrical with diameters of 9.5, 12.7, and 14.7 mm, respectively. All 3 series are available with output wavelengths ranging from 634–830 nm. Beam options include round, elliptical, or line output. In addition to standard cw operation, options are available that allow modulation with bandwidth up to 100 kHz. Modules are suited for patient-alignment, machine vision, and flowcytometry applications.

Anyuser Global    Seoul 135-280  Korea (north)
Jun 30, 2005 Consisting of USB memory stick and earphone, ImPhone supports videoconference, chat, and short messaging services between users. Software is automatically activated and displays phone diagram on PC screen to assist making call. Memory stick can also be used as USB flash memory, and has IP phone and audio hardware built in. ImPhone measures 81 x 20 x 9 mm and works with Windows 2000/XP PCs.

JAI, Inc.    San Jose, CA 95134
Jun 30, 2005 Utilizing Sony ICX-424AL progressive scan 1/3 in. imager with VGA resolution, machine vision Model CV-A436 features 17 mm diameter head that is connected to controller via detachable, robotics-grade 2 m cable. Double-speed technology allows frame rate of 60 fps for full VGA resolution, without sacrificing S/N ratio of greater than 53 dB. Binning and partial scan readout modes allow frame rates up to 268 fps. All camera functions are set via RS-232C serial interface.

SMC Networks    Irvine, CA 92618
Jun 30, 2005 Based on the Atheros® Super G® chipset, EZ Connectâ„¢ 108G wireless 802.11b/g networking products include router, cardbus adapter, USB adapter, and PCI adapter. Router (SMCWBR14T-G) offers four 10/100 ports for wired connections and one for cable or DSL connection. Along with 802.1x authentication, all adapters provide support for 64/128-bit WEP encryption and WPA. SMCWEBT-G EZ Connect g Wireless Ethernet Bridge can also serve as wireless access point or repeater.
