Schurter, Inc.    Petaluma, CA 94975-0158
Jun 28, 2005 UMT 250 SMD fuse offers breaking capacity of 200 A at 250 or 277 Vac, or 100 A at 125 Vdc over current range of 315 mA to 4 A. Measuring 10 x 3 x 3 mm, unit replaces traditional axial or radial lead through-hole fuses, and is solder immersion compatible according to IEC 60068-2-58. Clear marking of rated currents make it suitable for pick and place operations in manufacture of power supplies, battery chargers, ac/dc converters, health care devices, and consumer electronics.

Nortech Engineering Inc.    Hopedale, MA 01747
Jun 28, 2005 Designed to fit standard 19 in. EIA rack, RACK MOUNT EXPRESS units are available in 15, 17, and 19 in. models. All feature chemically strengthened protective glass and encompassing rear cover to protect electrical components. Displays can also be fitted with optional touch screens.

Dataforth Corp.    Tucson, AZ 85706
Jun 28, 2005 Implementing Modbus RTU and TCP protocols, isoLynx® SLX200 combines 12-channel controller base system and optional 8- or 16-channel expansion backplanes. It enables communication with variety of 3rd party software drivers and HMI/SCADA packages. Modular system provides 1,500 Vrms analog I/O isolation and is capable of interfacing with more than 650 SCM5B analog I/O modules. It communicates on RS-232/485 non-isolated serial links up to 115.2 kbps and 10 Mb/s Ethernet.

Fisnar Inc.    Wayne, NJ 07470
Jun 28, 2005 With working areas up to 32 x 24 in., Gantry-Cartesian Robots use stepping-servo motors that provide control of 3 axes. They fully interpolate all axes and provide continuous path or point-to-point dispensing. Programming is by teach pendant using step-by-step instructions. Robots are suitable for conveyor operations and work cells requiring XYZ movement above work, such as form-in-place gaskets, seals, bonding, encapsulation, and potting.

Argox    Ventura, CA 93003
Jun 28, 2005 Offered in 5 models, AS-Series Scanners have scanning depths of 3–24 in. and are capable of keyboard wedge, serial, and USB connectivity. In addition to scan and decode capabilities for all standard linear barcode symbologies, 2 models are capable of scanning PDF417 and 2D symbologies. AS-Series is suited for applications such as retail, manufacturing, medical, hospitality, gaming, and transportation.

Mikron Infrared, Inc.    Hancock, MI 49930

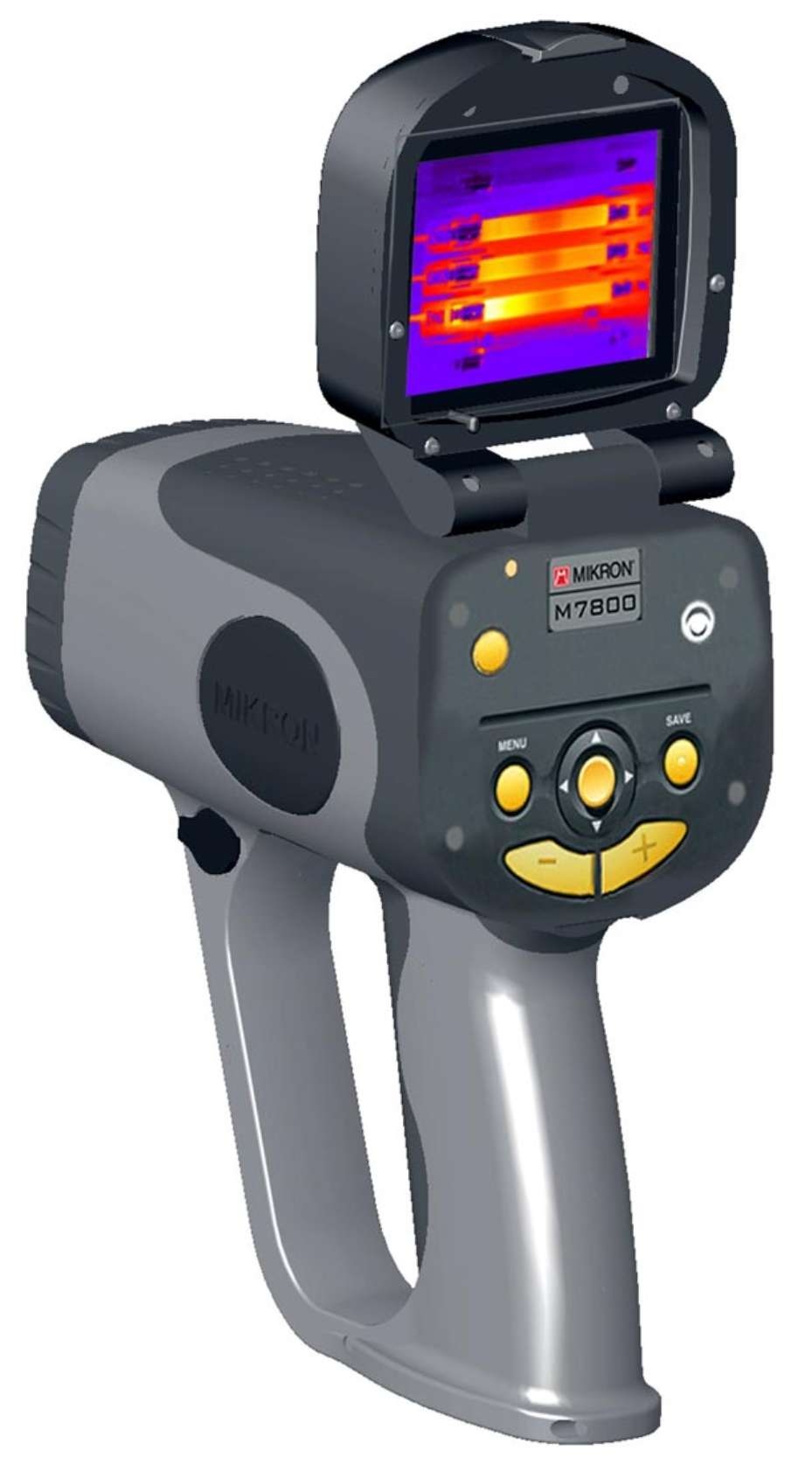

Jun 28, 2005 Designed for one-handed, point-and-shoot operation, Models M7800 and M7815 fully radiometric cameras measure infrared radiation in the 8–14 micron spectral band. They feature 320 x 240 detector with 76,800 temperature-measuring pixels, on-board storage of 1,300 images, and 3.5 in. articulating LCD. Temperature measuring range is -20 to 500°C with accuracy of ±2°C. M7800 includes laser target designator and visual camera for simultaneous visual/IR imaging.

Phihong USA    Fremont, CA 94539

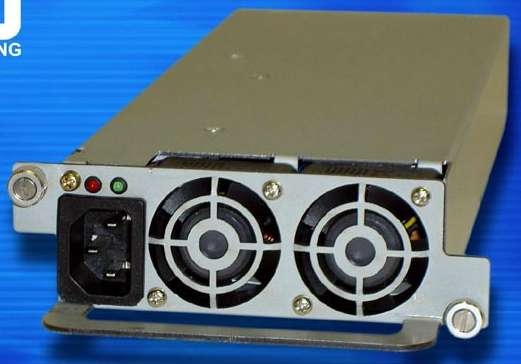

Jun 28, 2005 Rated 500 W, PSM500-210 is hotplug n+1 configurable for scaleable and redundant applications. It is protected against overload, over-temperature, and over-voltage conditions and features integral cooling, current sharing, and diagnostic capabilities. Available with 48 or 12 V main outputs and 12 V standby output, unit operates from 85-265 Vac input voltage range with active PFC. It provides 1,500 Vac output isolation as well as SELV output.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Jun 28, 2005 Manufactured with open system design, IBM Anyplace Kiosk offers flexible configuration in space-saving form factor. It comes with choice of 12 in., 800 x 600 LCD or 15 in., 1024 x 768 active matrix LCD touchscreen interface. Powered by 1.3 GHz Intelâ„¢ Celeron® M Processor 320 with 400 MHz FSB and 512 KB cache, product provides 256 MB of memory, expandable to 2 GB, and supports full-motion video. Presence sensor allows activation of kiosk when users approach up to 5 ft away.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Jun 28, 2005 Mobile Terminal enables remote IBM Self-Checkout assistance from virtually any location in store. It combines functionality of handheld PDA, wireless LAN RF technology, and software to improve performance of self-checkout. Able to indicate lane activity, terminal provides clear messaging for shopper assistant and helps cashier to recognize and resolve issues remotely. Unit also adds to security by monitoring lanes closely.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Jun 28, 2005 Powered by 2.0 GHz Intelâ„¢ Celeron® processor with 400 MHz FSB, SurePOSâ„¢ 300 models offer 256 MB DDR memory, expandable to 2 GB, and 64 MB max shared video memory. It incorporates one half-size PCI slot along with 24 V USB, two 12 V USB, and 2 PC USB ports. Communications include 2 or 4 powered RS-232 ports and 10/100 Ethernet. Model 330 thin-client solution has no storage media, while Model 33H thick-client solution features 40 GB, 7200 rpm SATA HDD.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Jun 28, 2005 SurePOSâ„¢ 780 features 64-bit enabled, 3 GHz Intelâ„¢ Pentiumâ„¢ 4 531 processor with 800 MHz FSB, 512 MB DDR II base memory, and 80 GB 7,200 rpm Serial ATA HDD. With 1.5 GHz, 64-bit enabled Intel Celeron® 326 processor and 533 MHz FSB, SurePOS 740 is available with 256 or 512 MB DDR II base memory. SurePOS 720 is equipped with 2.0 GHz Intel Celeron processor with 400 MHz FSB and 128 MB DDR base memory. All systems include 64 MB maximum shared video memory.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Jun 28, 2005 Think Express models of ThinkPad T43 Notebook Computers are available with 1.7, 1.8, or 2.0 GHz Intel Pentium M processor, each with 2 MB L2 cache and 533 MHz FSB. They include 512 MB memory, 14.1 or 15.0 TFT display, and 40, 60, or 80 GB HDD. Additional features include V.90 modem and 1 Gigabit Ethernet communications, ThinkPad HDD Shock Absorberâ„¢, Rescue and Recoveryâ„¢, and UltraNav dual-pointing system. Select models are available with Bluetooth wireless technology.

EMX Industries, Inc.    Cleveland, OH 44128

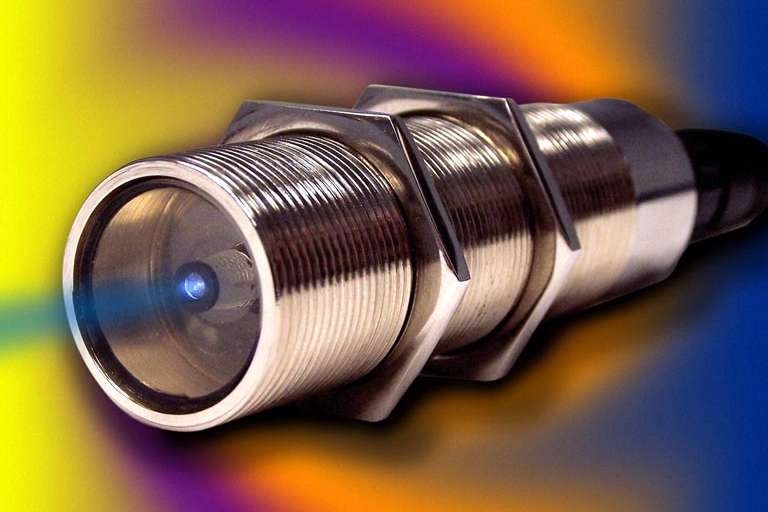

Jun 28, 2005 Housed in M30 threaded enclosure, ColorMax-10 features detection range of 30-100 mm and 5 kHz sample speed. High-intensity white LED projects modulated light on target, and sensor analyzes reflected light for constituent RGB values and intensities. Unit has 15 hexadecimal color channels that are stored in non-volatile memory and compared against reading of target color. Operators and PLCs can analyze RGB data to spot trends and diagnose causes of color variation.

Hilti Inc.    Tulsa, OK 74121

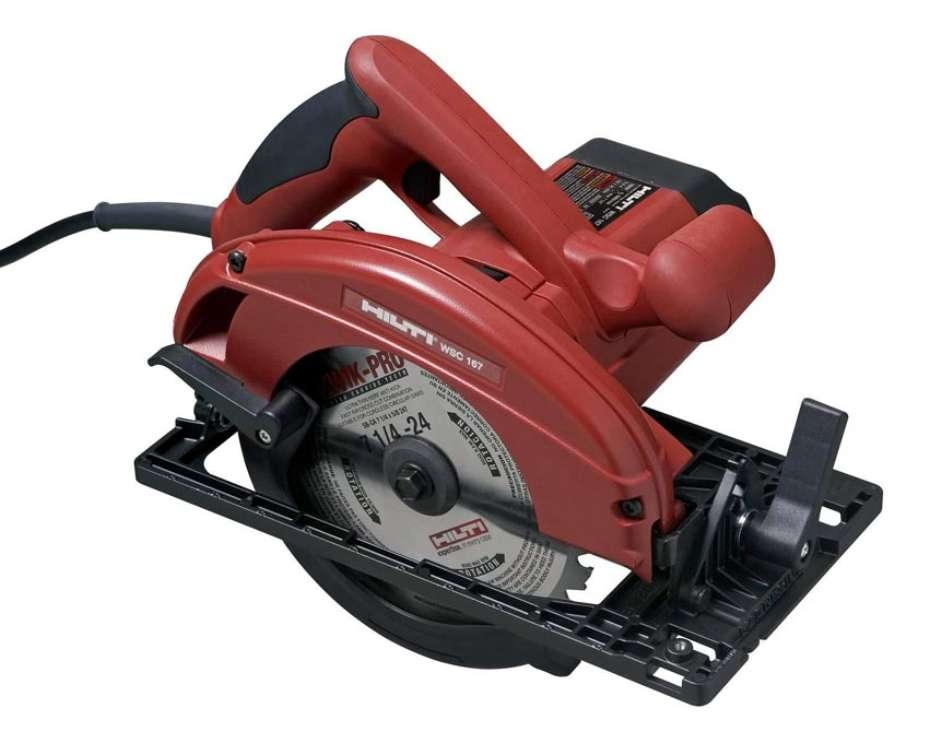

Jun 28, 2005 Along with 15 A motor, WSC 167 Circular Saw features cast magnesium construction, heavy-duty ball and needle bearing, and rear dust exhaust. Saw makes bevel cuts of up to 50°with positive stop at 45°, and electric blade brake stops tool when cut is finished. Included 15 ft cord allows for jobsite mobility, and optional parallel guide for repeated cuts is available. Also offered is WSC 267-E Circular Saw, which provides power of worm drive in compact design.

Aaeon Electronics, Inc.    Hazlet, NJ 07730-2496
Jun 28, 2005 Designed for fanless operation, PFM-620S supports onboard Intel® ULV Celeron® 400 or 650 MHz processors. Product allows use of PC/104-bus devices, as well as PCI-104 and PC/104+ add-on devices, and is suited for 5 V single voltage input requirement applications. Graphics chip section allow resolutions to 1,280 x 1,024 pixels for CRT operation and 1,024 x 768 pixels for LCD output; TTL LCD interface has 18–36 bit width for TFT or DSTN panels.

RTP Co.    Winona, MN 55987
Jun 28, 2005 Helping to reduce weight, increase part consolidation, and improve chemical resistance, 2200 Series PEEKâ„¢ (Polyetheretherketone) Long Fiber Compounds are suited for metal replacement applications in compressor and pump markets. Longer fibers in 30% glass-filled compounds mechanically interlock, reducing warpage and shrinkage while absorbing stress. Products also exhibit dimensional stability at elevated temperatures.

Lock Inspection Systems, Inc.    Fitchburg, MA 01420 6094
Jun 28, 2005 To guarantee product safety, MET 30+ metal detectors employ DataChek data management system, which monitors and reports status of individual lines, machines, and products. Operators can collect and store information to provide central record of all validation and production data. Also included, BatchChek provides record management system that supports electronic signatures and implements all security access controls, user identification, and audit trails.

Integrated Engineering    Amsterdam 1105 BJ  Netherlands
Jun 28, 2005 ISO 14443 level 4 A and B kits are offered with full DESFire development suite, which provides OEMs with solution to implement DESFire card technology into their solutions. Suite is available together with API/SDK and sample software routines. Other development areas for ISO 14443 level 4 A&B kits facilitate integration for e-passport and MasterCard or Visa applications.

SATO America, Inc.    Charlotte, NC 28273
Jun 28, 2005 Available as direct thermal or thermal transfer, XL400e and XL410e perform printing, cutting, and stacking operations for textile tag and ticketing industries. Movable sensor allows for flexible choice of media, and intelligent printhead regulates printing temperature. Employing 32-bit RISC processor, printers are Windows®-compatible and support linear and 2D symbologies. They have print speed of 8 ips at 203 dpi and have serial RS232C interface.

Metrobility Optical Systems    Merrimack, NH 03054
Jun 28, 2005 Multi-port Ethernet Services Provisioning Platform delivers EFM/OAM-managed services over VLANs and MPLS in metro Ethernet network. Addressing demands of business for VoIP and high-speed data and video, it aggregates multiple services at customer edge for scalable and expandable MPLS infrastructure. Services can be provisioned and monitored using IP/SNMP and IEEE802.3ah OAM concurrently, while providing multi-layer interworking between IEEE 802.1D/Q/ad and MPLS networking domains.
