Liekki Oy    Lohja FIN-08500  Finland

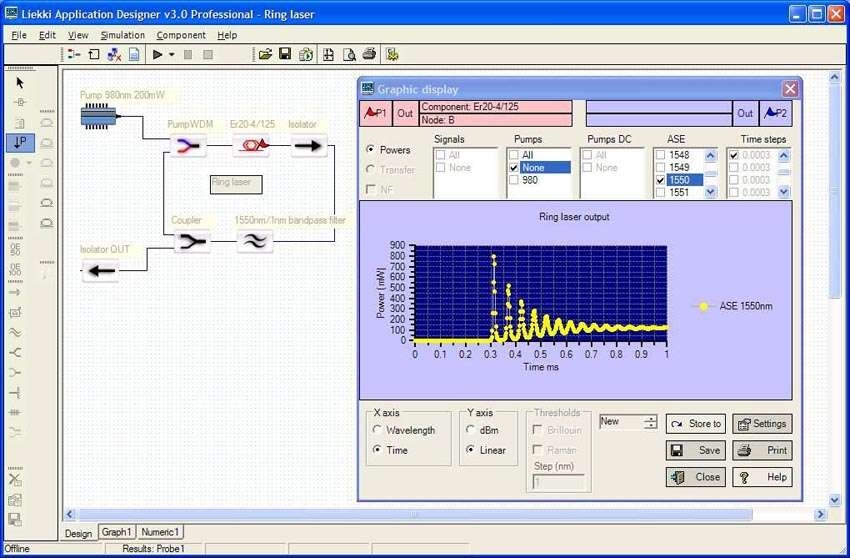

Jun 30, 2005 Liekki Application Designer v3.0 simulates and analyzes continuous wave and pulsed applications, including time domain effects, using erbium or ytterbium doped fibers as gain medium. Featuring transient analysis capability, time dependent signal sources, and optical modulators, software can calculate non-linear effects threshold and effect of refractive index variation with optical power density. It also enables visualization of SBS and SRS thresholds.

Titan Tool Supply, Inc.    Buffalo, NY 14207 0569
Jun 30, 2005 V Series videoscope system, available in lengths from 5–49 ft, consists of video borescope and Titan VIH Pro video imaging hub. Available in 0.24 and 0.31 in. dia 2- and 4-way articulating and non-articulating models, borescope is designed for one-handed operation. Along with LCD monitor, products incorporate CCD, solid-state camera and metal-halide lamp. Compact Flash digital image storage card and USB port facilitate recording, transfer, and storage of images and audio.

Unidex    Warsaw, NY 14569
Jun 30, 2005 Suited for sanitary or corrosive working environments, AHW Series adjusts working height with 4 ips lifting speed to accommodate work positioning and ergonomic requirements. Air/oil hydraulic lift system ensures workbench functions smoothly, regardless of uneven weight distribution. Model AHW2718 has 18 in. lift stroke from 27-45 in. high, while AHW9536 has 36 in. lift stroke from 9.5-45.5 in. Load capacity is 500 lb, and work surface measures 30 x 60 in.

Mikropul    Charlotte, NC 28216

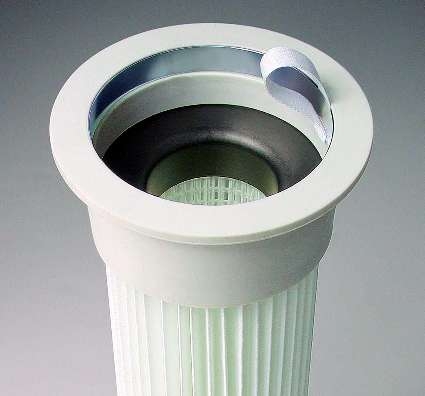

Jun 30, 2005 Snap-in Mikro-Pleat V Series, with full diameter venturi, provides optimized pulsing and minimal pressure drop. Venturi facilitates pulse capture from worn or mis-aligned nozzles and maximizes induced air. Four different attachment styles of pleated bags are available.

Mikropul    Charlotte, NC 28216

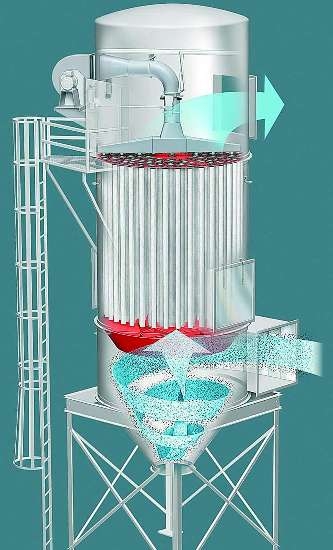

Jun 30, 2005 Reverse Air Filter, Model RAF-IS is designed with all motors and switches outside filter housing so there is no chance of spark caused by electrical component or wiring. Featuring ledgeless design, cylindrical filter includes deluge nozzles, bag grounding, and explosion venting in compliance with NFPA codes. Low involute inlet creates cyclonic effect, which continuously sweeps hopper walls, preventing accumulation of high moisture coal dust.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Jun 30, 2005 SafetyNode G2 style module is IP67-rated for field-mounted applications with Yellow Flat Cable, while KE1 style is IP20-rated for enclosure applications on DIN rail. Each SafetyNode features 2 safe inputs and 2 standard outputs, and is compatible with Actuator Sensor Interface/Safety at Work networking applications. Suited for existing or new installations, modules can be used in light stacks that indicate stop signal has been requested by safety input.

Sealant Equipment & Engineering, Inc.    Plymouth, MI 48170-0965

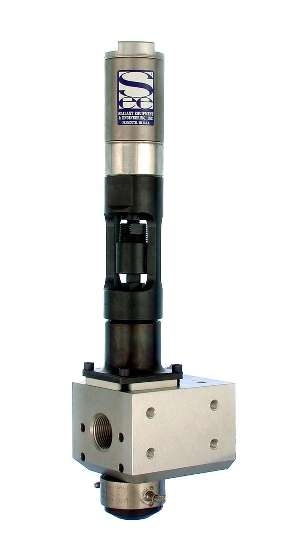

Jun 30, 2005 Heated Tip-Seal® Material Dispense Valve, Model 2200-806 delivers low to high viscosity heated materials. Large ¾ in. diameter orifice dispenses large volumes at slow velocity for proper fill rates, while zero-cavity nozzle design eliminates dripping after shut-off. Material chamber features 120 V heaters and sensor to control temperatures up to 350°F. Nozzle has separate heater and sensor to prevent cold material starts due to loss of temperature.

Grace Construction Products, A Unit Of W.R. Grace & Co.    Cambridge, MA 02140-1692

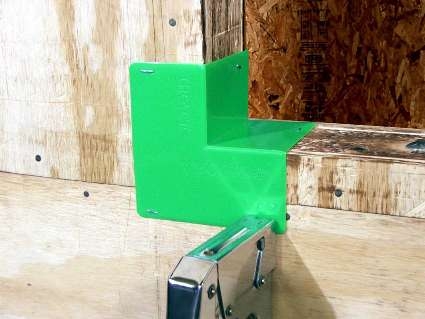

Jun 30, 2005 Suitable for any window design, VYCORnerâ„¢ prefabricated plastic corner prevents leaks at critical penetration areas by creating waterproof joint without need for intricate detailing. VYCORner is used in conjunction with Vycor® Plus self-adhered flashing membrane for waterproofing protection.

ADLINK Technology Inc.    Irvine, CA 92618
Jun 30, 2005 PCI IEEE 488 Controller Card, Model PCI-3488 provides interface between GPIB instruments and PCI-equipped systems that is compliant with IEEE488.1 and IEEE488.2 standards. Interface supports 3.3 and 5 V PCI environments, making card suited for most desktop computers and industrial PCs. Featuring 1 Kb on-board FIFO and high-speed bus accelerated by on-board CPLD, Model PCI-3488 provides 1.5 Mb/s maximum data transfer rate.

SBS Technologies Inc.    Albuquerque, NM 87110
Jun 30, 2005 Telumâ„¢ AdvancedMCâ„¢ Modules provide telecom equipment manufacturers with range of options for creating carrier grade network applications featuring Intel® Pentium® M processors. Model PCIE-AMC-7S Chassis allows PCI-Express-based workstations or servers to control backplane populated with hot swappable AdvancedMC modules plugged directly into backplane. Standalone 2U 19 in. chassis, Model AMC-7S can be controlled by Processor AdvancedMC plugged into backplane.

Men Micro Inc.    Lago Vista, TX 78645-4160

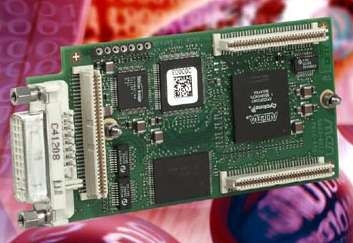

Jun 30, 2005 Models P18 PCoMIP and P518 offer graphics functionality in on-board Altera Cyclone FPGA. Both feature 16 Mb of frame buffer connected to FPGA via 133 MHz, 16- or 32-bit data bus. Analog and DVI digital video outputs are provided as well as LVDS interface for TFT displays. On-board FPGAs act as 32-bit PCI targets for either 33 or 66 MHz PCI buses. Video compression, bit-blitter, rendering, pattern recognition, or 2D/3D graphics algorithms can be accommodated.

Optek Technology, Inc.    Carrollton, TX 75006-6905
Jun 30, 2005 Infrared optoelectronic sensors in OPB350 Series use IR LED/phototransistor pair to determine difference in refractive properties between full and empty tubing as it passes through housing. Able to accommodate clear tubing with ODs of 0.125, 0.187, and 0.25 in., products have plastic housing that features connection mechanism to PCB. Sensor creates output signal that can describe multiple output states: fluid present, no fluid present, or no tube present.

Global Display Solutions    Bingley West Yorks BD16 1PE  United Kingdom
Jun 30, 2005 Suitable for indoor and outdoor use, Optically-Enhanced TFT Display is scalable from 6–46 in. and can be applied to standard LCD panels or GDS Mitra panels. Material with cross-polymer bonding capability is used to fill air gap between glass and LCD. There is no condensation or stress on display, and parallax is minimized. Applications include flight and rail information displays, public information kiosks, retail exhibitions, trade shows, and conference rooms.

BRECOflex Co., L.L.C.    Eatontown, NJ 07724
Jun 30, 2005 Available with or without carcass reinforcement, Hytrel® Flat Belts are flexible at temperatures as low as -40°F. Themoelastic polyester elastomer is abrasion- and tear- resistant with long-term fatigue resistance. It also offers resistance to microbes, weather, mineral oils, grease, water, alcohols, and glycols. Applications include drives, conveyors, vacuums, food processing, credit card transfer, and ATM bill ejectors.

Springer co-ax Inc.    Penndel, PA 19047

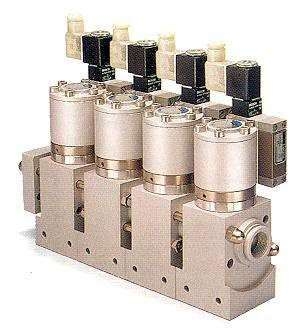

Jun 30, 2005 Suited for fluid and gas piping systems, co-ax® Modular Manifolds allow combination of multiple valves into single flow control system. Valves of different sizes, flow rates, and functions can be combined to enable distribution of process fluid or gas to multiple points, with each valve module connected to common inlet manifold. Separation plates make it possible to use same manifold to control return of fluid, or to control multiple fluids or gases simultaneously.

Ross, Charles, & Son Co.    Hauppauge, NY 11788 0615

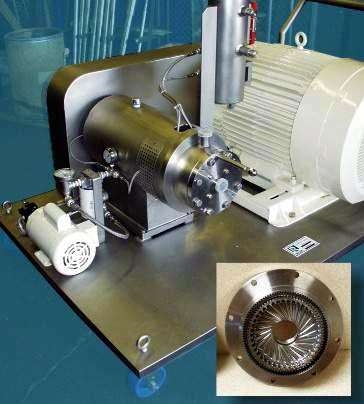

Jun 30, 2005 MegaShear provides users with inline mixing, dispersing, emulsifying, homogenizing, and particle size reduction device. Design consists of high tip-speed rotor (11,000+ fpm) with several stages of semi-cylindrical grooves machined on vertical faces of rotor, running within confines of fixed stator with similar grooves on its vertical faces. Available in flow rates from 1–500 gpm, unit produces sub-micron dispersions and emulsions and disintegrates solids in one pass.

Agilent Technologies, Inc.    Santa Clara, CA 95051

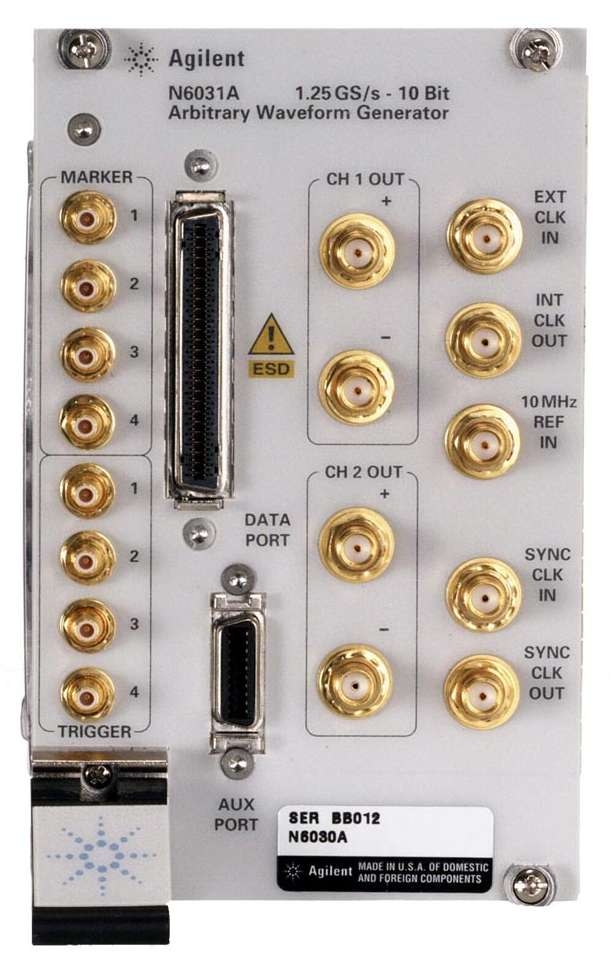

Jun 30, 2005 Agilent N6031A simultaneously delivers 1.25 GS/s and 10 bits of vertical resolution for communication systems such as ultrawideband (UWB), MIMO radios, and advanced DSL. Specifically for UWB, it facilitates creation of realistic OFDM UWB signals compliant with MBOA proposal. Agilent N6030A and N6031A incorporate sequencer capability as well as built-in baseband corrections feature. Both provide up to 1 GHz of I/Q bandwidth and up to 75 dBc of spurious-free dynamic range.

Linear Technology Corp.    Milpitas, CA 95035
Jun 30, 2005 Housed in 5.3 mm wide, 36-lead SSOP, LTC3731H incorporates 3-phase current mode controller with onboard MOSFET drivers. It provides single-IC solution for high-output distributed power in systems requiring dc/dc conversion from 4.5-32 V input source to 0.6-6 V output in buck mode. Expandable from 3- to 12-phase operation for 60-240 A power supply designs, step-down synchronous controller offers ±5% output current matching, Stage Shedding(TM) technique, and ±2% VREF accuracy.

Banner Engineering Corp.    Minneapolis, MN 55441
Jun 30, 2005 Performing up to 1,200 inspections/min, P4 EDGE 1.3 uses 1,280 x 1,024 pixel imager to capture minute details of multiple features at ranges from a few inches to several feet. Self-contained system is available with in-line and right-angle lens positions, and mounting brackets facilitate attachment to machines or conveyors. Operating on 10-30 Vdc, sensor is available with various lighting and C-mount lensing options to meet application needs.

Linear Technology Corp.    Milpitas, CA 95035
Jun 30, 2005 Housed in 32-pin, 5 x 5 mm QFN package with integrated bypass capacitors, 14-bit LTC2255 Analog-to-Digital Converter provides 125 Msps sampling rate and ac performance of 72.1 dB SNR/85 dB SFDR at 70 MHz input. Operating from 3 V supply, it is available in commercial and industrial temperature grades. ADC is suited for battery powered, high performance, test and instrumentation equipment such as satellite receivers, wireless base stations, and portable electronics.
