Brookfield Engineering Laboratories, Inc.    Middleboro, MA 02346
Jul 12, 2005 Suited for DV-I+ and DV-II+ viscometers as well as DV-III Ultra Rheometers, covers provide protection in dusty, dirty work environments or in operations where sample testing materials might accidentally be spilled on instrument and cause damage. Made of clear, see-through material, covers slip over instruments and allow use of keypad while in place.

Liston Scientific Corp.    Irvine, CA 92612
Jul 12, 2005 Suited for boiler tuning, combustion analysis, or safety testing, Series EU measures CO, CO₂, O₂, SO₂, NO, NO₂, and HC plus calculated efficiency, draft, and lamda. Each analyzer includes on-board sample conditioner, attached heated or unheated probe, and integral configurable printer. Internal data storage capability is standard and remote data collection via RS-232, chip card, or Bluetooth remote is available.

Optek Technology, Inc.    Carrollton, TX 75006-6905
Jul 12, 2005 Autopad(TM) provides absolute position as well as 360° angle and linear displacement sensing for automotive and vehicle applications. Sensor consists of moveable puck, which interacts with fixed pad containing series of transmit and receive coils that generate specific magnetic field. Virtually immune to temperature, vibration, and other environmental factors, sensor achieves linearity of less than 1% with 0.1% resolution at 10 bits and input/output rate of 1 kHz.

Heartech Precision Inc.    Elk Grove Village, IL 60007-5617
Jul 12, 2005 Featuring adaptable sealing system, Model JNC140-EDM can be used in submersible applications with EDM dielectric fluids. Auto Air Purging system removes any possible condensation accumulation inside indexer housing. Indexer has stainless steel faceplate with 140 mm dia and center height of 110 mm. Table center through-hole dia is 28 mm and max work dia is 140 mm. Maximum workload is 136 lb when mounted vertically and 275 lb when mounted horizontally.

Valenite, Inc.    Madison Heights, MI 48071 9636
Jul 12, 2005 ValMILLâ„¢ V590 Square Shoulder End and Face Mills include 7, 10, 13, and 16 mm cutting length insert sizes. They are capable of machining true 90° surfaces, eliminating need for secondary machining operations. Shape of cutters enables ramping and minimizes witness lines where overlap occurs in deep pocket milling applications. Total of 29 tools and 15 inserts are available, with 5 grades, 4 insert top geometries, and corner radii from 0.015–0.250 in.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416
Jul 12, 2005 Designed for ¼ in. belts, Series A 6D16 MXL .080 pitch timing belt pulleys are made of gold iridite aluminum alloy and are available in 12 to 72 grooves. Bore sizes range from .125 to .250 in. and ODs range from .286 to 1.813 in. They are available in double- or no-flange types and feature Fairloc® integral hub fastener that enables frequent position adjustment while adding positive metal-to-metal fastening strength along entire hub surface.

Oriental Motor U.S.A. Corp.    Torrance, CA 90502
Jul 12, 2005 Series AXU Brushless DC Speed Control Systems combine BLDC motor with control unit that provides speed control in 10, 25, 40, and 90 W output power levels. Available in single-phase 100-115 Vac, single-phase 200-230 Vac, and 3-phase 200-230 Vac power inputs, units offer speed regulation of ±1% max with voltage, ±1% max with temperature, and -2% max with load. Control provides rotation direction, run/stop, dynamic braking, set speed, and acceleration/deceleration functions.

Richco, Inc.    Chicago, IL 60680
Jul 12, 2005 Designed for use with 250 and 900 micron fiber, Optical Fiber Flexible Guide (OFFG/OFFGSP) System enables fiber to snake around and over components on PCB without risk of snagging or kinking. Lugs along top of guide secure fiber into guide, and support posts mount guide onto or above PCB. Support posts are offered in flat and raised styles and are available in 3 stand-off heights. System is molded in flame retardant, UL94 VO Nylon 6/6.

Richco, Inc.    Chicago, IL 60680
Jul 12, 2005 Manufactured in black Nylon 6/6 material, RBF Series Barbed Fasteners feature ribs that deflect when pushed into hole, then spring back for a secure, non-removable lock. Fastener push mounts into panel or board and is quickly installed by hand. Barbed fasteners are also available by special order in natural color or flame retardant material and in other combinations of head, barbed end, and body length.

One Stop Systems    Escondido, CA 92029
Jul 12, 2005 Max Expressâ„¢ PCIe Host Interface Board utilizes x4 PCI-SIG cable to link board to expansion system, supporting speeds to 20 Gigabits/s. Board supports downstream link in non-transparent mode to second host system, allowing host-to-host communications with up to two 20 Gbps links for total bandwidth of 40 Gbps. Max Express PCIe Cable Bus Expansion System extends PCIe bus of host system to additional PCIe, PCI, PCI-X, PXI, or CPCI expansion chassis.

Danaher Motion    Wood Dale, IL 60191-1073
Jul 12, 2005 Available with unipolar or bipolar construction and sintered bronze sleeve bearings, Portescap 42S048 Can Stack Step Motors feature 7.5° step angle and provide up to 7.2 oz-in. of holding torque. Windings can be optimized to satisfy specific application requirements. Motors are suited for medical equipment such as analyzers, pumps, and scanners, as well as factory automation applications.

Mersen    Newburyport, MA 01950
Jul 12, 2005 Surge-Trap® TVSS features thermally protected metal oxide varistor that does not require use of additional overcurrent protection. Suitable for system voltages from 120-480 V and MCOV rated 150-550 V, unit offers 100 kA Interrupting Rating and 40 kA 8/20 µs surge capacity or rating per mode. Surge-Trap mounts on DIN rail, safeguarding critical electrical system components and sensitive integrated electronics from deleterious effects of transient overvoltages.

LMS    Leuven 3001  Belgium
Jul 12, 2005 LMS Virtual.Lab Rev 5 enables users to simulate and optimize real-life behavior of mechanical designs. It offers applications for structural analysis, vehicle riding and handling, interior acoustics simulation, road noise, and durability analysis. Auto-Recursive Solver helps solve complex simulation models with long series of linked components and high number of contact points. Correlation module validates virtual models with test results or validated models of similar designs.

Control Technology Corp.    Hopkinton, MA 01748
Jul 12, 2005 Equipped with internal ac power supply, iPanel(TM) 15 in. models 3115 and 3215 as well as 17 in. models 3117 and 3217 offer processing speeds to 2.4 GHz to handle system transactions and video. They feature 32-bit color, with up to 4 billion colors available, and Ethernet speeds to 1 Gbps for data exchange with remote computers and corporate resources. Included CT HMI(TM) software lets users create web HMI displays accessible over Internet or Intranet.

Igus, Inc.    East Providence, RI 02914 0349
Jul 12, 2005 Tie-wrap plates and cable tie wraps work together to fix position of cables at specific points along carrier, providing strain relief for Energy Chain® cable management systems. Plates can be bolted onto KMA bracket, fixed onto mounting bracket with snap-in connection, clipped on without bolts, or clipped onto the opening of the crossbars. Tie wraps, used to attach cable to plate, can provide breaking force of 830 N when 2 ties are used instead of 1.

Igus, Inc.    East Providence, RI 02914 0349
Jul 12, 2005 Used to guide and protect moving cables and hoses attached to automated machinery, System E4 cable carriers are available with crossbar that attaches along inner or outer radius and accommodates conduits up to 11.8 in. dia. Crossbar connects to side links directly or can be used in combination with 2 standard snap-open crossbars to provide management of additional cables and hoses.

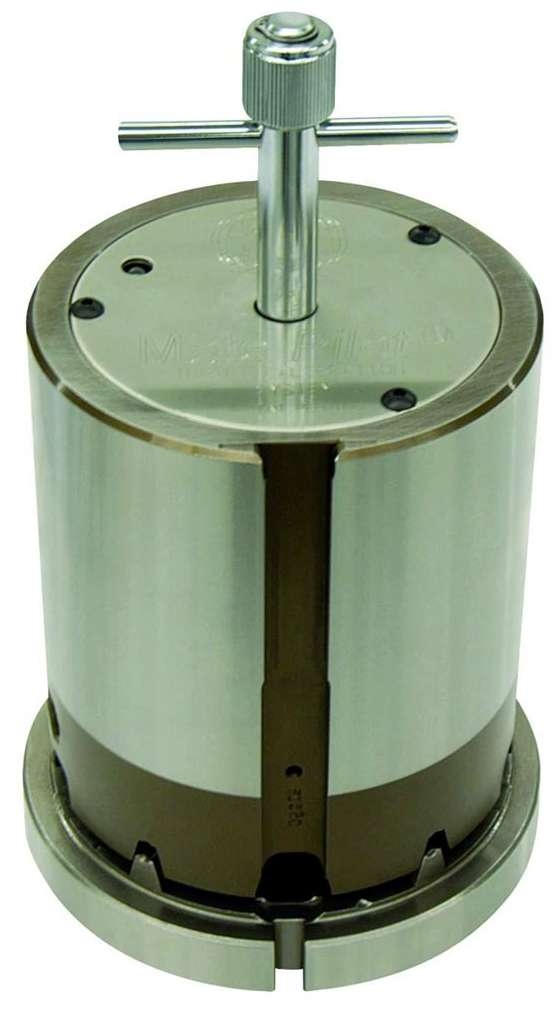

Mate Precision Tooling    Anoka, MN 55303
Jul 12, 2005 Designed to verify and restore angular alignment of turret press punching stations, Pilot(TM) Tool Calibration System consists of matched set of upper and lower interlocking components loaded into machine's turret upper and lower chambers. It operates in Verification and Alignment modes and features tri-color indicator lights to warn when system is not aligned, aligned angularly and concentrically within 0.012 in., or aligned angularly and concentrically within 0.0003 in.

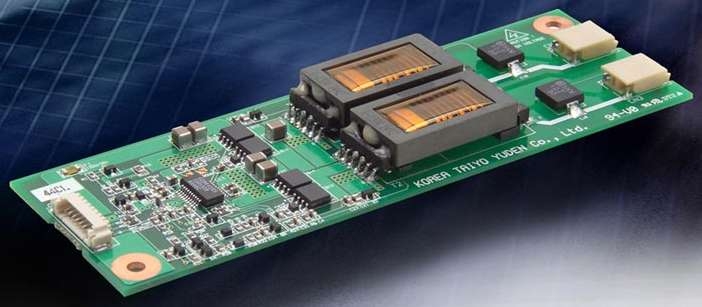

Taiyo Yuden (USA) Inc. / Power Systems Group    San Marcos, CA 92069
Jul 12, 2005 Compact, single-board KLS-150A drives dual cold-cathode fluorescent lamps (CCFL) in LCD back-lighting applications for medical and industrial equipment. Designed for 32–140°F operating environments, convection-cooled product provides brightness and on/off control features. Input range is 10.8–13.2 V, and PWM brightness control frequency is 204 Hz typ. Measuring 4.72 x 1.57 x 0.39 in., unit has power output at max luminance of 6.5 W per lamp.

Pigeon Point Systems    Scotts Valley, CA 95067 6989
Jul 12, 2005 IPM Sentry(TM) Shelf Manager R2.0 provides full support for IPM Sentry ShMM-500 and ShMM-300 shelf managers, as well as support for remote upgrades to all ShMM-500 resident firmware. Extended memory configuration for ShMM-500 provides 128 MB of RAM and 64 MB of Flash, offering headroom for future extensions. Using IPM Sentry components, developers of AdvancedTCA, AdvancedMC(TM), and CompactPCI® products can incorporate compliant and interoperable management solutions.

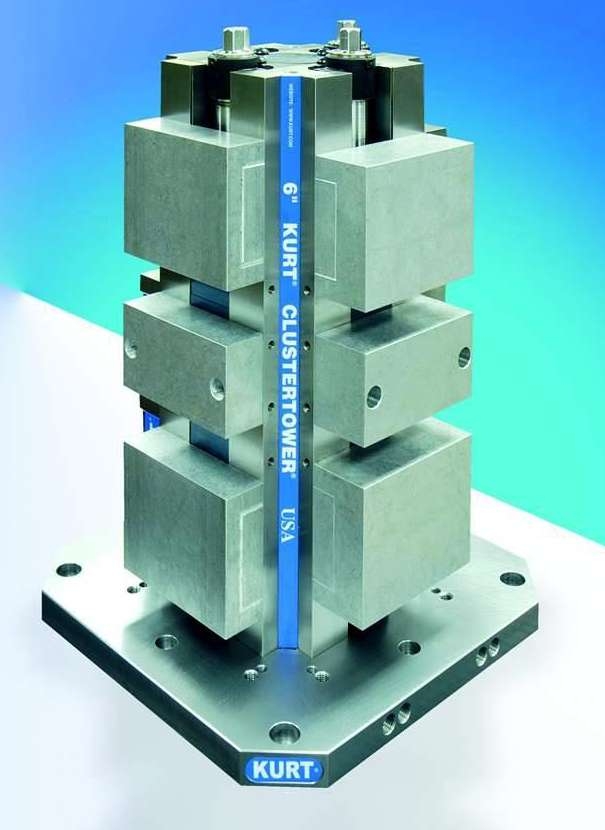

Kurt Manufacturing    Minneapolis, MN 55421
Jul 12, 2005 Suited for mid-size and larger machining centers, HDL ClusterTowersâ„¢ feature 8 stations, each with 6 in. width, 4 in. openings, and clamping force to 6,316 lb at 70 lb of torque. Quick-change jaws lift off vise module with half-turn of hex key, and reset and self-align with no special tools. Self-adjusting holding block enables clamping of same or dissimilar sized parts, while adjustable pre-load feature minimizes handle turns for opening and closing clamping stations.
