American Bright Optoelectronics Corp.    Chino, CA 91710
Jul 07, 2005 Measuring 10.00 x 13.00 mm including heat sink, MagnaBrite 1-Watt LED module handles forward currents to 350 mA. Series offers 20.00 mm dia base that is pre-wired for direct interface and is available in white, red, green, blue, and yellow. It offers operating temperature of -30 to +120°C and viewing intensity of 30 lm. With 7 mm dia bezel and flush lens, module is suited for small lamps, torches, and general illumination applications.

GE Inspection Technologies, GmbH    Huerth 50354  Germany
Jul 07, 2005 Vector 22 provides in-line and off-line operation in applications from manual inspection to integration in systems with robotic manipulation of product and probes. Suitable for rack- or bench-mounting, mains-operated unit can operate in dual-frequency mode through single input as well as drive 2 probes at 2 separate frequencies and in 2 different modes. Users can save up to 50 traces and 50 settings, and 6 analog outputs enable information download to data logger or PC.

Optek Technology, Inc.    Carrollton, TX 75006-6905
Jul 07, 2005 Offered as solid-state solution for outdoor/indoor signage, OVF Series LEDs are available in white, blue, green, amber, red/orange, and red colors in 7.6 mm², 4-pin, through-hole package. Super-Flux LEDs have clear lenses with viewing angles from 40-120°. Also available, OVFS Series comes in same colors and offers typ luminous flux from 850-5,000 millilumens (mlm). With addition of yellow color, OVFT Series LEDs exhibit typ luminous flux from 360-3,360 mlm.

Colder Products Co.    St. Paul, MN 55114
Jul 07, 2005 Die-cast, quick disconnect ZLC coupling comes in nickel-plated zinc that suits high-volume production applications in marine, instrumentation, cooling, food and beverage, and hand tool industries. It is resistant to gasoline, ink, air, and water and has operating temperature of -10 to 150°F. ZLC is offered in panel mount or in-line configurations and terminations including hose barbs and pipe threads.

Nippon Pulse America, Inc.    Radford, VA 24141
Jul 07, 2005 Available with outside dimensions of 25 and 35 mm, LINEARSTEP® motor employs special type of thread spec and neodymium magnet rotor. Typical applications include X/Y table laboratory systems, medical pump devices, semiconductor wafer handling machines, optical camera systems, and antenna communication devices.

Bosch Rexroth Corp., Linear Motion & Assembly Technologies Div.    Charlotte, NC 28273

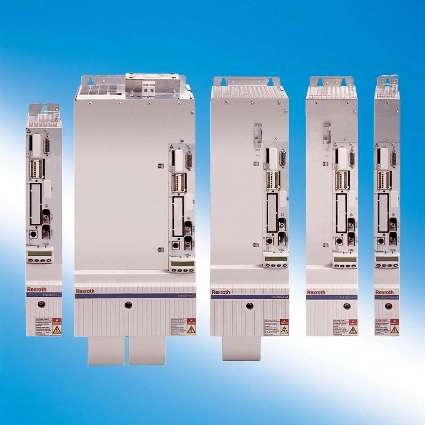

Jul 07, 2005 Offering early warning system in packaging machines, IndraDrive not only monitors itself, but can also independently detect any weak points within entire system, before fault occurs. If weak point is detected, warning is transferred to master control and can be displayed to user in 5 different languages. Since drive is freely programmable, user can customize predefined maintenance functions to plant-specific and/or machine-specific requirements.

Bosch Rexroth Corp., Linear Motion & Assembly Technologies Div.    Charlotte, NC 28273

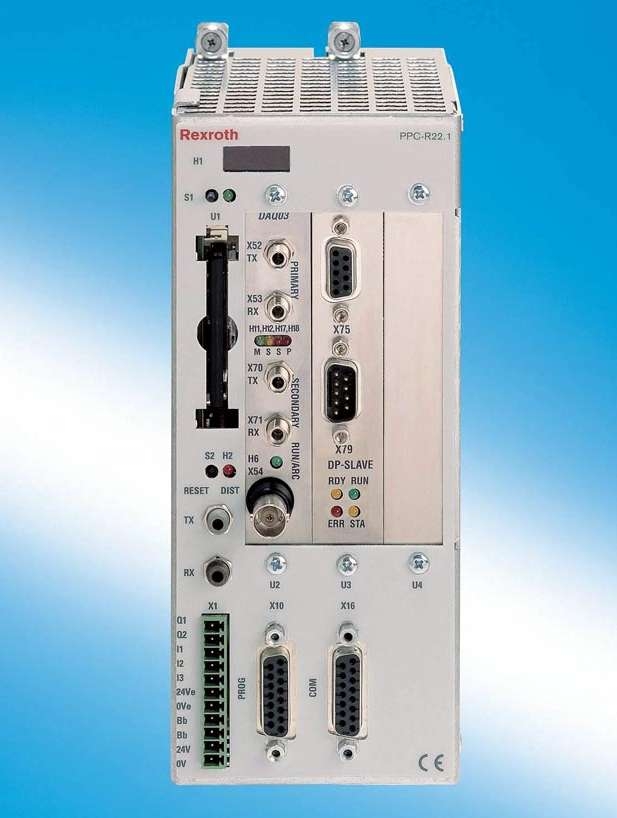

Jul 07, 2005 Available in rack-based or PC-based design, VisualMotion 10 handles single-axis positioning, multi-axis Electronic Line Shafting, synchronization, and robotic coordinated path movements. Windows-based integrated motion and logic software runs on standard PC to program Rexroth PPC motion and logic controller. VisualMotion 10 can connect up to 32 PPC controllers together by means of cross-communications, to provide synchronized motion control for up to 1,280 axes.

Bosch Rexroth Corp., Linear Motion & Assembly Technologies Div.    Charlotte, NC 28273

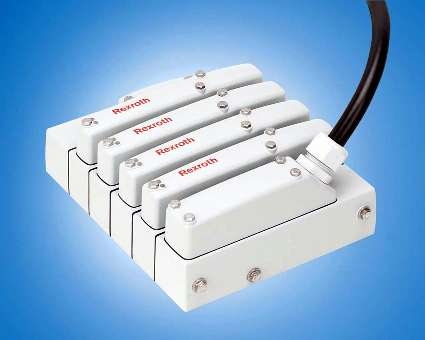

Jul 07, 2005 Featuring hygienic design, Clean Line Series CL03 Pneumatic Valve System consists of individual subbases in inch or ISO-G ports. Because each subbase has its own integrated circuit card, system can be expanded up to 16 valves in single valve increments. With flow up to 0.85 Cv, system features IP69K protection class rating for high-pressure wash-down up to 1,450 psi. Gaps between valve protection covers allow cleaning and avoid dirt pockets.

Vicon Industries Inc.    Hauppauge, NY 11788
Jul 07, 2005 Series VDR-204 is suited for CCTV users who require stand-alone, 4-channel DVR with remote PC access via network/Internet. Units accept up to 4 composite video inputs with 4-channel loop through to be recorded on local hard drive. They can display and record multiplexed image of 4 inputs on same screen at 30 fps. Resolution is 720 x 480 for full image and 360 x 240 in Quad view. Model VDR-204-12CD has 120 GB hard drive, while Model VDR-204-30CD provides 300 GB.

MicroE Systems    Bedford, MA 01730
Jul 07, 2005 Utilizing SPI serial data interface, Mercury(TM) 3500Si achieves speeds of 7.2 m/sec while operating at 5 nm resolution. Encoder position values are digitized and sent directly into controller's DSP. LED indicators enable instrument-free sensor alignment, and users can complete alignment procedures in less than 30 sec. System resolution can be programmed in binary steps from x4 to x4,096 or 5 microns to 5 nm, linear and 6,600-67.1 million counts per/rev, rotary.

ELTA    Blagnac Cedex 31702  France
Jul 07, 2005 Argos High Accuracy Locator, Model HAL-2 pinpoints to accuracy of 1,000–1,300 ft, while Very High Accuracy Locator Model VHAL-2 is fitted with integrated GPS device for pinpointing to within a few feet. Products are virtually compatible and can be integrated into any data collecting system. They can pinpoint any mobile device fitted with transmitter, including devices at sea, on the ground, or in the air.

Qosmedix Div., Qosina Corp.    Edgewood, NY 11717 8329

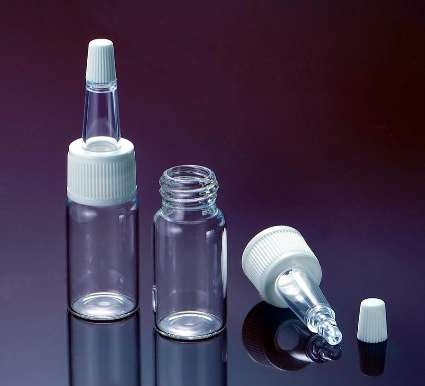

Jul 07, 2005 Combination of 10 ml glass bottle and dropper tip with cap allows one-handed droplet disbursement of oils and fluids. Clear polypropylene tip is soft and can be squeezed to dispense product without opening bottle, preventing spillage and preserving hygiene. Bottle/dropper tip combination is crystal clear for clarity of contents.

Beta Dyne Inc.    Bridgewater, MA 02324
Jul 07, 2005 Series AD35 consists of four 35 W models that accept input voltages of 12, 24, 48, and 110 Vin and provide adjustable output that can be configured as positive, negative, or dual. Employing dual 500 mV dropout linear regulators, converters produce output noise of less than 10 mV. They feature up to 88% efficiency, 2:1 input voltage range, single and dual outputs, short circuit and thermal protection, 750 µA off state current, and 6-sided shielding.

Carl Zeiss Microimaging, Inc.    Thornwood, NY 10594-1939

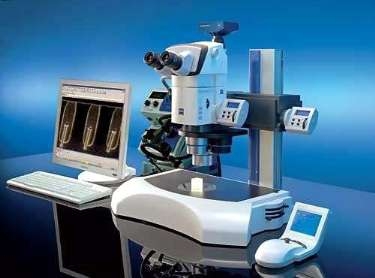

Jul 07, 2005 SteREO Discovery.V12 focuses in steps up to 350 nm over range of 340 nm. It includes 250 x 410 mm scratchproof stage plate, LED illumination, Ergo-phototube, specimen protection, and 3-position nosepiece. AxioVision 4.3 software turns unit into imaging system with integrated microscope control, image recording, processing, analysis, management, and archiving. Designed as computer mouse, SyCoP Control combines major control functions, such as zoom, focus, contrast, and illumination.

Dazor Mfg. Corp.    St. Louis, MO 63146
Jul 07, 2005 Multi-directional HIGHLIGHTER uses mouse to control direction of lights, as well as intensity and number of LEDs illuminated. Unit works on all makes of microscopes, allowing inspection and quality control workers to view surface defects. Left mouse click activates automatic continuous rotation of 1-39 LEDs so operator can compare and contrast image under different lighting. Right click alters light intensity to meet optical instrument and individual requirements.

Bryant Electric    Milford, CT 06460 2465
Jul 07, 2005 When test button is pushed, LED GFR® cycles through complete functional test and will return flashing red LED light if ground fault protection is compromised. It will also provide convenience power at face of receptacle to help prevent unsafe practices while device is out of service. If device is improperly wired, mis-wire protection blocks power at face or downstream loads. Unit meets UL943 surge testing, preventing inoperative power condition that locks out end user.

SMC Corporation Of America    Indianapolis, IN 46226

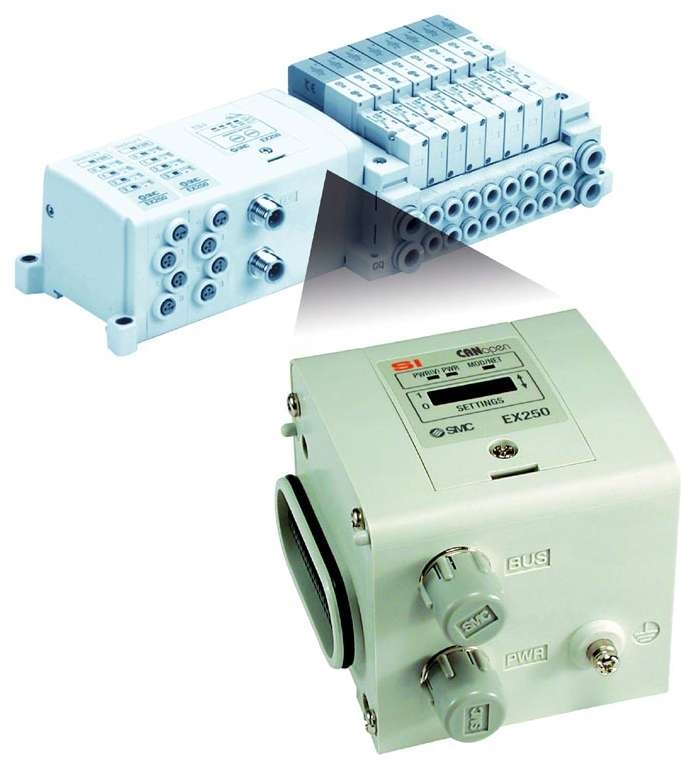

Jul 07, 2005 Series SV and VQC are offered with ControlNet- and CANopen-compatible EX250 network adapters. Reducing wiring between serial interface units and valves installed in confined spaces, network adapter series EX250 integrates with manifolds and discrete I/O modules. Comprised of serial network adapter and user-defined number of solenoid valves mounted on manifold, unit drives 32 (24 for VQC) solenoid valve outputs and 32 sensor inputs.

DL Technology, LLC    Haverhill, MA 01832
Jul 07, 2005 DispenseLink II® system is compatible with Micro Valveâ„¢ for micro-volume dispensing or HY-FLOâ„¢ valve for large-volume dispensing applications. PLC controls provide single-dispense programming for RPM, index, and acceleration, while programmable encoder controls rotation of auger and provides 57,000 counts per 360° revolution, allowing valve to repeatably dispense down to 0.005 in. System includes mounting hardware, 5 m cables, and digital pressure gauge.

Flexicon Corporation    Bethlehem, PA 18020 8006

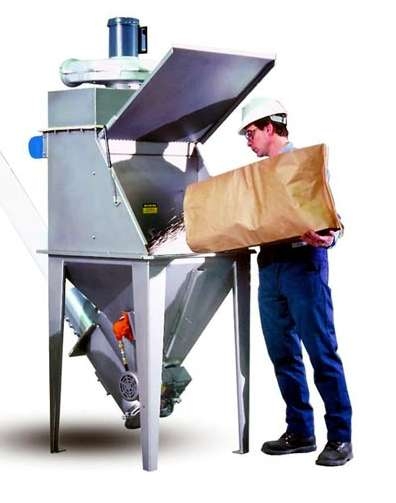

Jul 07, 2005 Mounted on frames with boom and casters for in-plant mobility, carbon steel Manual Dumping Station collects dust created during dumping of powder and bulk solid materials from bags, boxes, and drums. Vacuum fan draws airborne dust onto 2 cartridge filters while timer activated solenoid valves release short blasts of compressed plant air inside filters so dust build-up on outer filter surface falls into hopper for reverse-pulse filter cleaning.

Metabo Corp.    West Chester, PA 19380 4243

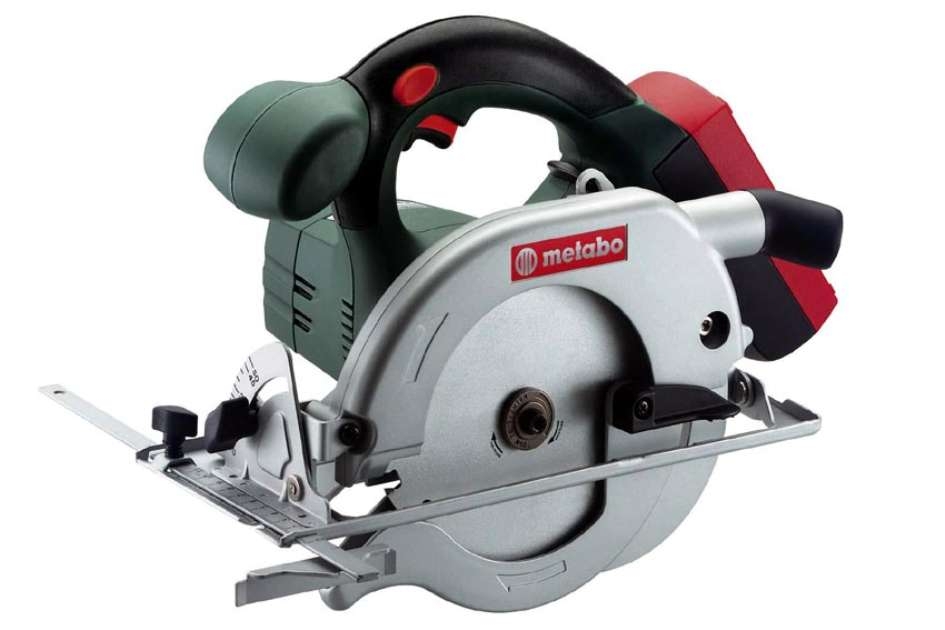

Jul 07, 2005 With no-load speed of 2,500 rpm, KSAP 18 Cordless 6½ in. Circular Saw has a max cutting depth of 2.1 in. at 90° and 1.625 in. at 45°. Bevel plate provides bevel cuts up to 47°. Movable and fixed blade guards, as well as shoe, are made from die cast aluminum, and fan has safety lock switch and integrated dust extraction port for hookup to vacuum. Air-cooled battery system conduction-cools battery and charger, keeping battery at optimum charging temperature.
