Geotest - Marvin Test Systems, Inc.    Irvine, CA 92614-5846
Jul 14, 2005 ATEasy® v5.0 offers Fault Library plug-in module that provides troubleshooting tool for electronic circuits. Fault Library also enables test engineers to create fault dictionaries and provide end user with intuitive diagnostics tool. Also included, Fault Editor lets program developers define Fault Conditions to be analyzed during runtime. When activated during runtime, operator can be prompted to replace assemblies or components based on actual failures.

Zizasoft, LLC    Parker, CO 80138
Jul 14, 2005 ZsDuplicateHunter v2.20 Standard Edition includes instructional dialogs that guide user through process of finding and removing files, while introductory dialog explains how to select folders to search for duplicates. Users can preview files before deleting them with Open in Viewer command. Professional Edition contains 3 methods of deleting duplicate files and 3 methods of grouping files including Group by Path, Group by Extension, and Group by Timestamp.

Invensys Systems, Inc. / SimSci-Esscor    Lake Forest, CA 92630
Jul 14, 2005 Integrated within SIM4ME common modeling environment, ROMeo v4.0 enables users to employ focused strategy of data re-use across full range of simulation applications. Users can open PRO/II process model from within ROMeo application, taking existing off-line models on-line for performance monitoring and optimization. Modular sub-flowsheet capability simplifies collaboration, allowing ROMeo users to build models in modular and hierarchical manner.

Wonderware    Lake Forest, CA 92630
Jul 14, 2005 With single, scalable environment, Web-based SuiteVoyager v2.5 provides dynamic analysis and reporting of key performance and production indicators to help users make proactive decisions. It supports trend analysis, event and alarm notification, downtime analysis, drill down and root cause analysis, traceability, product genealogy, and batch reporting. Users can directly interface with 3rd-party historians and data sources through SQL, ADO, or OBDC data connectors.

Applied Power Systems, Inc.    Hicksville, NY 11801
Jul 14, 2005 SixPac™ includes 3 dual isolated SCR modules that can be configured as 3-phase ac controller or regulated dc converter. Measuring 18 x 10 x 11 in., modules are mounted on heatsink and are equipped with input fuses, Hall effect current sensor, output bus, cooling fan, and capacitor filter bank. Units feature input voltages of 10–700 Vac and output currents from 50–1,000 Adc or 100–600 Aac rms per phase. All include AP-1950 SCR gate drive board and R-C snubber board.

Hitachi Power Tools    Norcross, GA 30093
Jul 14, 2005 Designed to withstand jobsite use, 5.5 hp EC2510E incorporates cast iron pump and oversized oil level sight glass. Base plate integrated control panel protects gauge, regulators, and plumbing while centralizing all controls to facilitate in-field use. Product cycles from 116-145 psi and also features pneumatic throttle control, over-sized flywheel and head scoop, braided stainless steel exhaust, shielded cross over tube, and ball valve tank drains.

Alias Research, Inc.    Toronto, ON M5A1J7  Canada
Jul 14, 2005 DirectConnect for Pro/ENGINEER, built on PTC GRANITE® Interoperability Kernel, allows users to visualize and share high-quality data by importing 3D models created by Alias ImageStudio. Design information transfers between Alias and Pro/ENGINEER with no information loss. ImageStudio provides professional quality 3D rendering with library of materials and rendering environments.

APEM Components    Haverhill, MA 01835

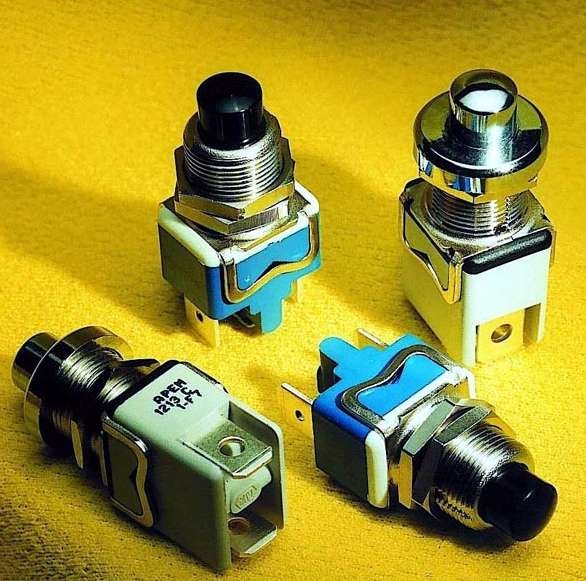

Jul 14, 2005 With butt action contacts, 1200 Series momentary pushbutton switches operate from -20 to +55°C and handle resistive loads for 10,000 cycles. NO and NC models handle 8 A at 125 Vac and 4 A at 250 Vac or 24 Vdc, and have total travel of .177 and .137 in., respectively. Bushing mounted in .480 in. hole, switches feature .315 in. dia black, white, green or red dome-topped actuator and are suited for industrial, transportation, agriculture, and security applications.

Thomas Products Division    Sheboygan, WI 53081

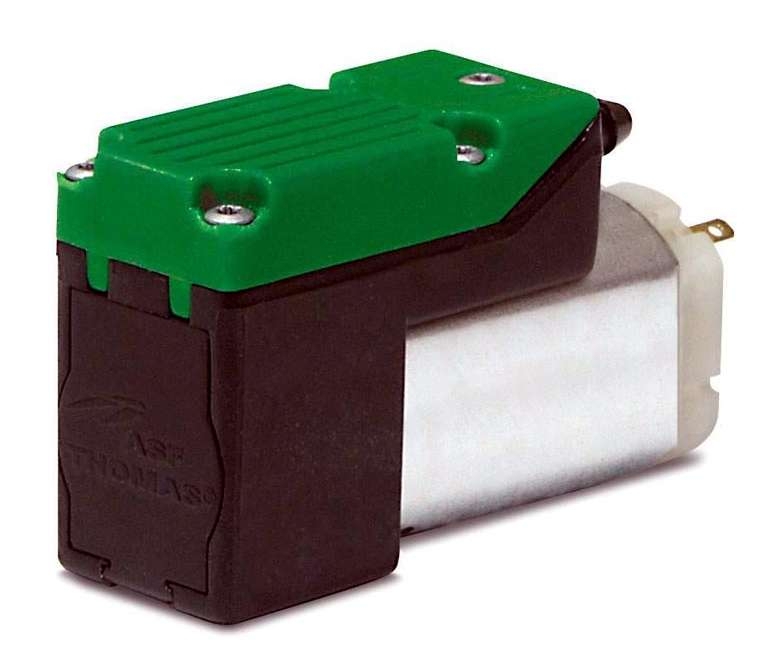

Jul 14, 2005 Measuring 2.1 x 0.7 x 1.2 in., oil-less Model 4002 is rated for maximum flow of 0.07 cfm and maximum vacuum of 17.8 in. Hg. Unit is powered by 7 Vdc motor and incorporates EPDM diaphragm and valves. Applications include gas detectors, air sampling, particle counters, and eye-surgery equipment.

AR Worldwide    Souderton, PA 18964

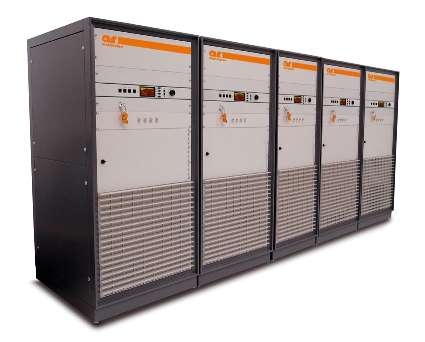

Jul 13, 2005 Covering 80–1,000 Mhz frequency range, 1,000 W Model 1000W1000C can have power added in 1,000 W increments up to 4,000 W by adding amplifier module and control unit. Model 4000W1000, with 4,000 W of power, includes gain control and internal RF detector that provides output for self-testing or operational modes. It employs push-pull circuitry in all high-power stages to minimize distortion, and digital control panel provides both local and remote control.

Frommelt Products Corp.    Milwaukee, WI 53224 9520
Jul 13, 2005 Designed with soft bottom edge and gravity down operation, Guardian Conveyor Door minimizes wall space for conveyor passage or separation of processing to warehouse space. Unit opens at speeds of 36 ips and comes complete with track guides and barrier bars for stability. Safety interlocking features are built into guides of conveyor door to allow conveyor integration if needed.

Dielectric Polymers, Inc., Div. Of Adhesive Applications, Inc.    Holyoke, MA 01040
Jul 13, 2005 INTEGRAL Adhesive Films are dry, non-tacky films that can be activated through lamination including hot roll, belt, flame, calender, and sheet processes. Films offer UV and chemical resistance, dimensional stability, and barrier properties, as well as scratch and puncture resistance. They are available in low, intermediate, and high temperature activation for food, automotive, medical, and sound dampening applications.

French Technology Press Office, Inc.    Chicago, IL 60601
Jul 13, 2005 Domino LEDs change color, draw motifs, scroll written texts, and display information. Suited for illuminating letters, Domino Cob has 3-6 COB diodes welded onto electronic board. Domino Logo features garland of 5 mm diodes encapsulated at back and fastened onto metal plate. Domino Clip is made up of programmable modules comprising eight 5 mm diodes. Suited for pharmacy shop crosses, Domino Kit features 10 LED modules, power supply box, and remote control. Domino PLV lights up plexiglass by edge.

NIRECO America Corporation    Port Jervis, NY 12771
Jul 13, 2005 Steel Cord Sensor utilizes magnetic fields to detect, within +0.2 mm, position of steel cord within rubber substrate during calendaring segment of manufacturing process. Offered with Steel Cord Sensor Models SCS10, SCS100, and SCR100, automatic system precisely cuts gum edge adjacent to steel cord. It eliminates defects such as exposed or missing cords, while NIRECO trim system allows manufacturer to recycle rubber and eliminate raw material waste.

Vi-Cas Mfg. Co., Inc.    Cincinnati, OH 45236
Jul 13, 2005 With ½â€“12 in. widths and lengths to 12 in., oblong vacuum cups and bellows handle pick-and-place applications of cylindrical objects like pens, bread, candy bars, capsules, tubes, and other hard to handle items. Handling of uneven surfaces is achieved with cushioning effect of bellows design. Cups and bellows are available in anti-static and food-grade materials.

Evalue Technology Inc.    Taipei   Taiwan
Jul 13, 2005 Featuring 128 Mb SDRAM, 3.5 in. Model ECM-3612 incorporates passively cooled VIA ESP10K 1 GHz/667 MHz processor, which consumes 7 W of power, eliminating need for CPU fan. VGA function with 32 Mb of shared memory is built-in to VIA VT8606 TwisterT chipset and can simultaneously display on CRT monitors and 18-bit dual channel LVDS LCD panels. AC'97 Codec sound chip provides stereo, full duplex multimedia environment, while Realtek RTL8101L chipset offers 10/100 Base TX fast Ethernet.

Thermo Electron Corp.    Waltham, MA 02454
Jul 13, 2005 Intended for enterprise applications, Atlasâ„¢ v8.0 provides single solution that not only integrates data streams from multiple vendors, but also tightly integrates with Laboratory Information Management Systems that typically store summary results for each analysis. Integration between LIMS and CDS enables users to access critical data when faced with decision where QA/QC source data is needed immediately.

Waytek Inc.    Chanhassen, MN 55317
Jul 13, 2005 Featuring water resistant cover with rubber seal, ATO Fuse Blocks accommodate 4, 6, 8, or 10 .250 male blade ATO fuses. Having same footprint as mini fuse blocks to fit in small spaces, ATO Blocks offer 15 A per circuit @ 12 V and nickel-plated copper alloy contact.

Electro Optical Components    Santa Rosa, CA 95403
Jul 13, 2005 With DC-coupled input and rise and fall time of 5 ns, logarithmic wideband voltage amplifier, Model HLVA-100, is suited for measurement of fast and high dynamic pulses. It includes adjustable input range, trimpots, and integrated sample and hold circuit for automated baseline correction of amplifier. Switchable at amplifier or remotely, Model HLVA-100 is laid out in EMI-shielded aluminum package with 50 ohm terminated BNC connectors on input and output.

Classic Recreation Systems, Inc.    Dewey, AZ 86327
Jul 13, 2005 Colorado curved-roof shelters come in 10 standard sizes from 8–50 ft wide and in any length. Also offered in custom sizes, structures have roofing panels that may be custom-curved to any desired radii via Curveline process. Frames and roofing are prefabricated to facilitate final assembly at project site using hidden bolt connections. Products withstand 100 mph winds and 30 psf snow or live loads, but can be engineered to withstand greater loads if required.
