Cognex Corp.    Natick, MA 01760 2059
Jul 18, 2005 Featuring image formation technology and OCR, 2D matrix, and barcode recognition algorithms, In-Sight® 1721 delivers reliable reading performance on SEMI-standard scribes. It can read wafer marks that have been affected by CMP, edge beads, copper metallization, and blue or green nitride coating. GUI facilitates set up, and automatic tuning minimizes operator intervention. Built-in network and serial communications provide connectivity to other process tools and fab network.

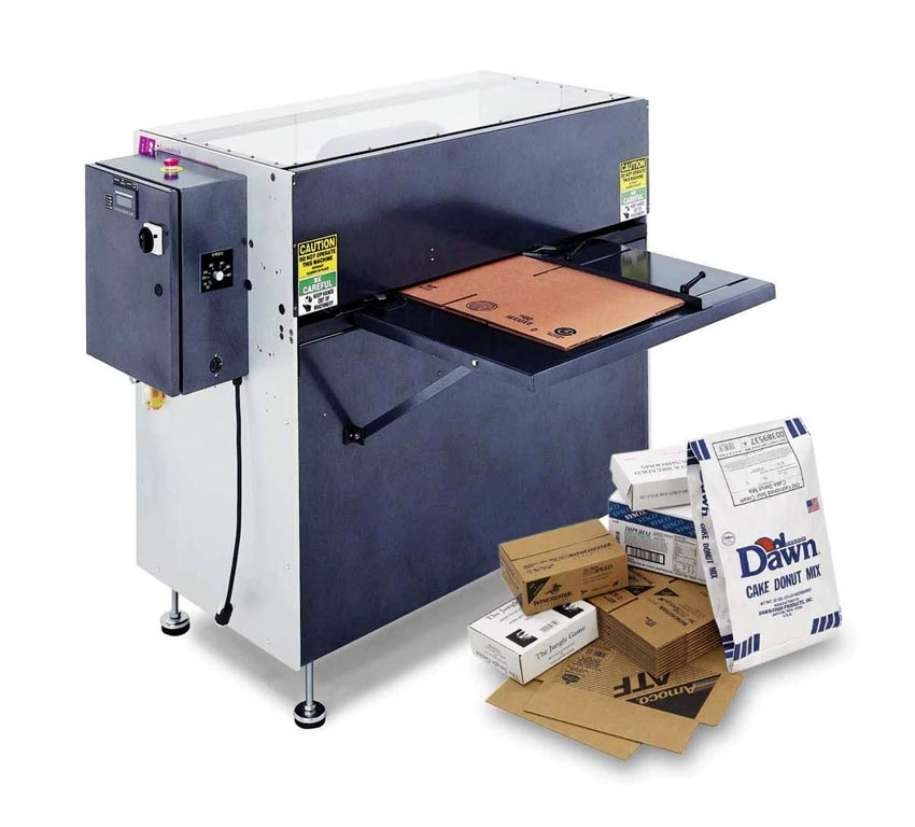

Iconotech    Clinton, CT 06413
Jul 18, 2005 With stand-alone hand-feed design, Customizer digital bag and case printer uses computer-generated printing stencil to place text, logos, and bar codes onto boxes and bags. Unit features inking system that maintains 3/16 in. print registration of 11 x 32 in. print field, while optional movable print cylinder and lift allow print placement anywhere on first 10 ft. of case. Control panel provides speed control, batch counter, automatic stop, idle, and print start.

Texas Memory Systems Inc.    Houston, TX 77042
Jul 18, 2005 Featuring 4-gigabit Fibre Channel interfaces, RamSan-400 is used to accelerate I/O-intensive databases. High-availability architecture includes redundant and hot swappable power supplies, redundant batteries, 4-disk RAID with hot swappable backup HDDs, and Texas Memory Systems' Active Backup™ feature. Offering capacities from 32–128 gigabytes of RAM, 3U product can sustain 3 Gbps of random data transfers or 500,000 random I/Os per second.

Sterling Instrument    New Hyde Park, NY 11042-5416
Jul 18, 2005 Produced to ISO Class 7 specs with 303 stainless steel hubs, S1VZ05M, S1VZ08M, and S1VZ10M Series are, respectively, precision 0.5, 0.8, and 1 Module acetal spur gears. Incorporated Fairloc® integral hub fastener eliminates marred shafts. Offered in 5 mm face widths, 20° pressure angle metric gears fit 5 or 8 mm dia shafts. Products are available in sizes from 15–95 mm dia with 15–186 teeth. Gears with 10 mm bores are stocked without Fairloc hubs.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416
Jul 18, 2005 Made of pre-lubricated, non-magnetic black acetal, A 6M 7M12 series ultra miniature inch and metric 3.117 mm pitch molded chain drives operate from -40 to +121°C and do not require master link. Each unit-link measures 2.08 mm high x 4.12 mm wide. Length of 321 links snapped together equals 1 m, and 5 m length of chain weighs 0.031 kg. Offered in 14 sizes from 8-48 teeth, A 6M 7M12 sprockets are available with 3 bore sizes for press fitting to 3, 4, and 6 mm shafts.

Sterling Instrument    New Hyde Park, NY 11042-5416
Jul 18, 2005 Flexi-Hingeâ„¢ devices in S99FXS and S99FXD Series utilize crossed springs made to exacting tolerances of 400 series stainless steel, capsuled in cylindrical housing, to provide angular travel up to ±30°. Without requiring lubrication, frictionless products can function at limited angular travels indefinitely and are self-centering when unloaded. Zero backlash units come in ODs from .1250–1.000 in. and lengths from .200–1.600 in.

Sterling Instrument    New Hyde Park, NY 11042-5416
Jul 18, 2005 S1E62Z-Series 20° pressure angle inch gears are offered in 303 stainless steel or 2024-T4 anodized aluminum, while metric gears in S1E05ZM, S1E08ZM, and S1E10ZM Series are supplied in 303 stainless steel. Metric gears in Modules 0.5, 0.8, and 1 are ISO Class 7 and come in 5, 8, and 10 mm face widths. They have 60–120 teeth and ODs from 50–150 mm. Inch gears, stocked in 6 pitches from 24–96 have 20–300 teeth and ODs from 1.998–3.998 in.

Sterling Instrument    New Hyde Park, NY 11042-5416
Jul 18, 2005 Available in 64 Inch and 64 Metric, Neo-Flex Couplings feature shaft-to-shaft insulation, 73 durometer molded Neoprene center, and 303 stainless steel hubs. Conventional pin type hubs use set screw for fastening, while Fairloc® integral hub fastener eliminates marred shafts and permits frequent phase adjustment, timing, and position adjustment. Offered with ribbed or smooth center sections, couplings fit 3–6 mm metric shafts or .1200, 1/8, 3/16, and ¼ in. shafts.

Sterling Instrument    New Hyde Park, NY 11042-5416
Jul 18, 2005 Manufactured of 303 stainless steel or 2024 anodized aluminum, S10T05M Series is comprised of 300 precision Module 0.5 spur gears. They are available with 3 and 5 mm face widths and designed to fit shafts that measure 3, 5, or 8 mm in diameter. Stocked in diameter sizes from 11–100 mm, these 20° pressure angle metric gears are offered with 20–198 teeth.

Sterling Instrument    New Hyde Park, NY 11042-5416
Jul 18, 2005 Suited for light application use, S99HDPM Series is formed by stacking petal-shaped, laminated Aluminum-Silicon alloy plates housed in Stainless Steel case with polyurea-thickened grease containing antioxidant and anticorrosion additives. When shaft rotates, fluid between shaft guide and shaft generates pressure because of squeeze effect. Series include 7 bearings with IDs from 1–6 mm and max speed range from 6000–20,000 rpm.

Paxar Corp.    White Plains, NY 10604
Jul 18, 2005 Suited for sewn-in care labels, 4760DWT thermal transfer fabric tape is resistant to dye pick-up and remains legible after going through black residual dyes. It is made of coated polyester tape that can be printed on both sides and handles print as small as 3-point fonts. With print quality that supports bar code tracking labels, 4700THS thermal transfer tape features heat seal that stands up to repeated, abrasive washing. Both tapes stay soft against skin.

Decision Technology, Inc.    Princeton, NJ 08540
Jul 18, 2005 DecisionCentric® business intelligence software enables users to integrate, analyze, and publish enterprise data from disparate data sources. Suited for midsize organizations, this Enterprise Information Integration engine provides users with query and reporting tool that supports relational data as well as non-relational, legacy data. Software can concurrently access any combination of enterprise data sources in one request.

Henkel Loctite Corporation    Rocky Hill, CT 06067
Jul 18, 2005 Hysol® QMI600 semiconductor packaging material provides CTE and modulus to match existing mold compound properties, enabling wirebonds in same size die stack packages to survive thermal cycling. Silica-filled, non-conductive die attach paste exhibits stability at elevated temperatures as well as hydrophobic properties and produces void-free bond lines. Enhanced with pliable polymeric spacers, material transforms into controlled collapse spacer paste.

Advantech Automation Corp.    Cincinnati, OH 45240
Jul 18, 2005 Able to be integrated with ATX motherboard, IPC-7143 computing platform features I/O interfaces designed for bottom access, which facilitates overall cable organization and maintenance. Power supply is mounted on bracket with hinge design, enabling users to replace power supply module and CPU/memory on motherboard. When mounted on wall, there is no need for rear maintenance area. Unit also supports slim-type CD-ROM and 2 IDE disk drive bays for storage devices.

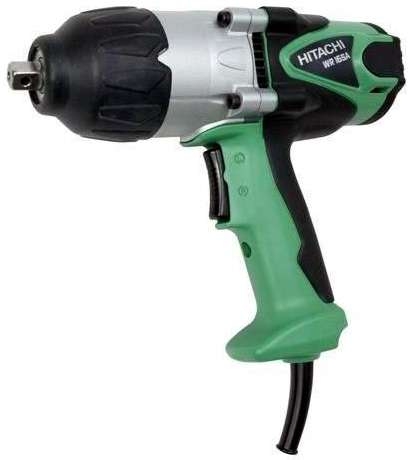

Hitachi Power Tools    Norcross, GA 30093
Jul 18, 2005 Covered in soft elastomer compound that absorbs vibration and provides slip-resistant grip, ½ in. WR16SA is constructed with aluminum housing intertwined with injection molded inner nylon core. Armature bearing is seated in aluminum to withstand heat and stress resulting from extreme use. Weighing 6.17 lb, this 10.15 in. long tool uses 4.2 A, 480 W motor to produce up to 3,190 lb-in. torque and generate up to 1,900 rpm for impact rate of 2,100 ipm.

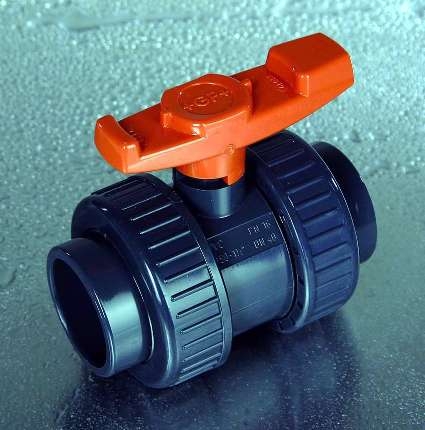

Georg Fischer Piping Systems    Tustin, CA 92780
Jul 18, 2005 Pressure rated to 225 psi at 68°F, Type 375 True Union Ball Valve is available in NSF 61 certified PVC as well as CPVC and PPn. Grooved handle and notched union nut facilitate gripping during installation and use. Floating ball design provides leak-proof closure, while safeblock ball seat and blow-out proof stem with double stem seals provide operator protection. PVC and CPVC valves range from 3/8-6 in., while PPn valve is available from 20-90 mm and ½-2 in.

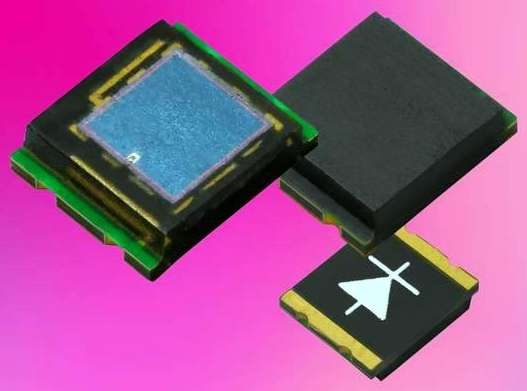

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jul 17, 2005 Manufactured in 4.24 x 5.0 x 1.12 mm package, lead-free TEMD5xxx Family promotes response time and sensitivity through optional daylight filtering and choice of 2 radiant-sensitive areas measuring 7.5 and 5.7 mm². Models TEMD5010 and TEMD5020 provide visible-light sensitivity from 400–1,100 nm. With integrated daylight filters and peak sensitivity of 850 nm, TEMD5110 and TEMD5120 are suited for detecting IR light. All 4 devices feature 65° viewing angle.

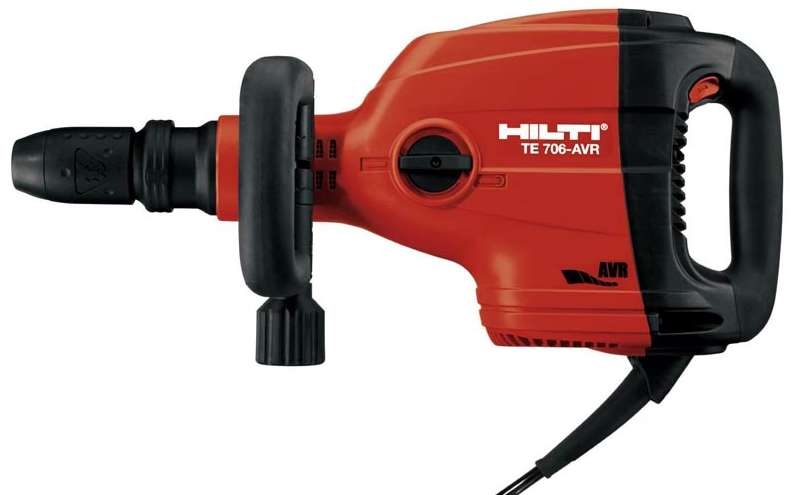

Hilti Inc.    Tulsa, OK 74121
Jul 17, 2005 Designed for wall or floor applications, TE 706-AVR Breaker incorporates brushless SR-motor, active vibration reduction system, and 3-level hammering power regulation. Control electronics provide continuous motor power, even during voltage fluctuations, and air flows over areas of motor, electronics, and hammering mechanism to keep tool and casing cool. Self-sharpening polygon chisels are offered in pointed, flat, and wide-flat versions.

Dielectric Polymers, Inc., Div. Of Adhesive Applications, Inc.    Holyoke, MA 01040
Jul 15, 2005 Constructed with blue silicone adhesive on polyester film backing, NT-9511-2SW and NT-9512-2SW tapes provide splices that do not need to be removed from web, eliminating label loss. Backing has specialized release coating to allow adhesive to release at splice area maintaining registration through splice and providing for removal of matrix.

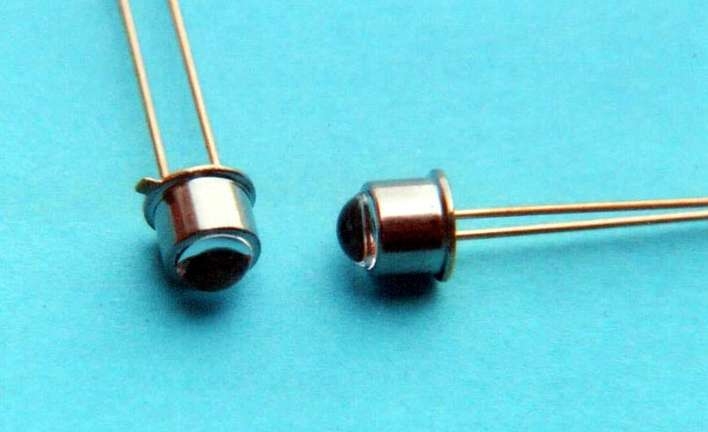

Clairex Technologies, Inc.    Plano, TX 75074
Jul 15, 2005 Featuring beam angle of less than ±1° at half power points, 850 nm Model CLE333 has typical rise and fall time of 4.0 ns. Lens provides sharply focused beam pattern capable of projecting 3 in. diameter spot on surface 10 ft away. Typical irradiance is 0.45 mW/cm² at I_F=50 mA and typical V_F is 1.6 V at I_F=50 mA. Emitter chip is mounted in TO-46 hermetic package with cathode common to case.
