NKK Switches    Scottsdale, AZ 85260-3420

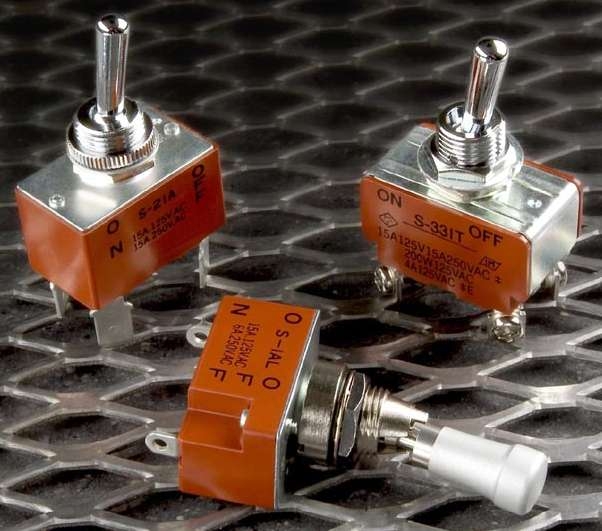

Jul 19, 2005 With capacities from 3-25 A, electromechanical S series are available in configurations with 1-4 poles in 2 or 3 positions. Bat style toggles range from 12.0-18.0 mm in length and are brass with chrome plating. Panel sealed locking lever versions are rated to IP67 and prevent accidental actuation. Panel-mounted with 12.0 mm threaded bushings, products conform to standard panel cut outs and offer solder lug, screw lug, and quick connect terminal options.

Phihong USA    Fremont, CA 94539

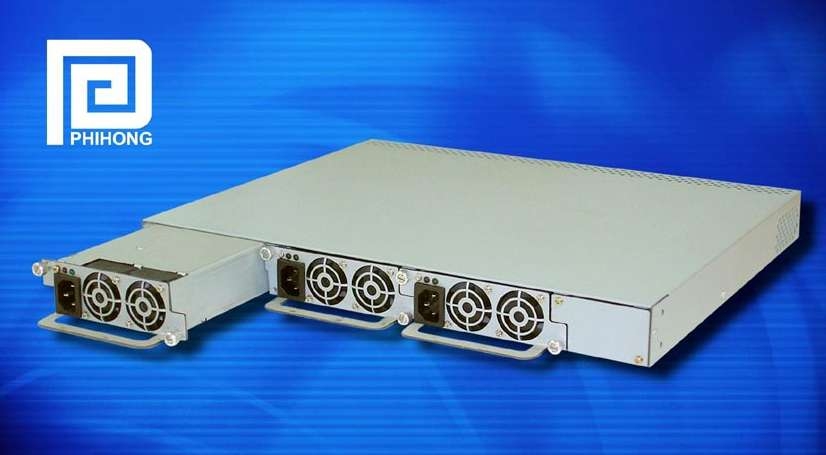

Jul 19, 2005 With quick disconnect for 3 individual loads, 1,500 W, 1U Model PSM1554 accepts three PSM500 500 W power supplies. Unit is available with 48 V main and up to 30 A, and 12 V standby up to 4.5 A. Operating from input voltage of 90-264 Vac with active power factor correction, rack is hotplug and n+1 configurable for scalable and redundant applications. Each output is individually protected against overloads that cause overheating of wiring from excessive current.

Sensor Synergy    Buffalo Grove, IL 60089

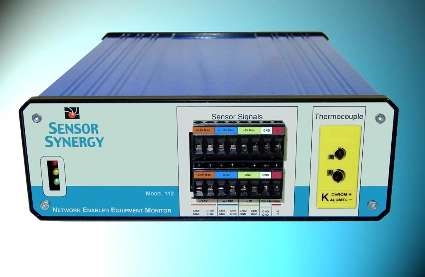

Jul 19, 2005 Sensor-to-Network NEEM Model 112 combines hardware features of data acquisition system, data logger, and network server with integrated, browser-based data viewer interface. Unit generates live Web views of data from up to 10 common analog sensors. Through smart-interface technology, NEEM 112 provides electronic data sheets and web-log information to supplement remote user's interpretation of raw sensor data. Thresholds can be set to send alarm email or on-screen alert.

Emerson Electric Co.    St. Louis, MO 63136 8506
Jul 19, 2005 With power density up to 108 W/in³, Astec AIF-300Vin Series can deliver up to 600 W of output power from input range of 250-420 Vdc. Series includes 6 models with single-output DC voltages of 1.8, 3.3, 5, 12, 15, 24, and 48 V. Operating at baseplate temperature range from -40 to 100°C, converters reach up to 90% efficiency at 5 V output. They provide monitoring, protection, and adjustment capabilities, as well as communication bus that stores end-user information.

TT electronics IRC Wirewound and Film Technologies Division    Boone, NC 28607

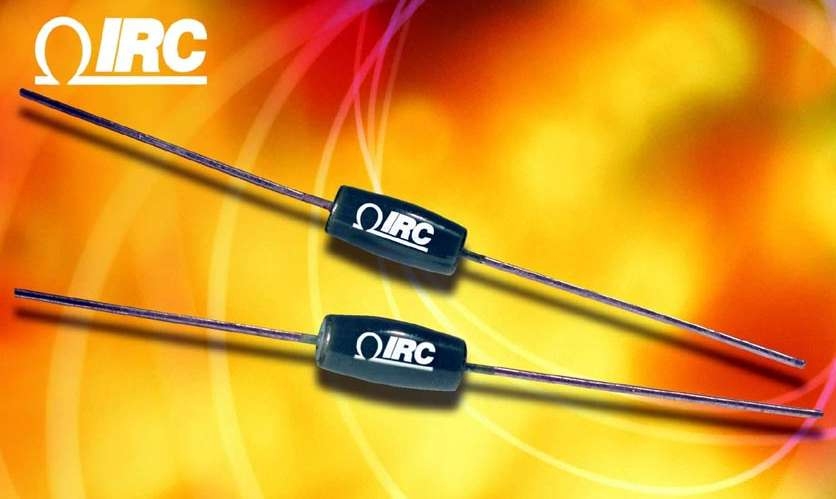

Jul 19, 2005 Wirewound Series W20 features lead-free, vitreous enamel coating, which seals resistor element in glasslike material, making it impervious to harsh environments. Rated for 3, 5, 7, 10, and 14 W with limiting voltages between 100–750 V, units offer resistance of 0.1 Ω to 100 kΩ with standard tolerances down to +1%. Operating from -55 to +200°C with typical TCRs from +75 to +200 ppm/°C, resistors are suited for current inrush and surge protection circuits.

Danfoss VLT Drives    Loves Park, IL 61111

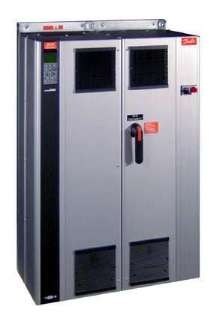

Jul 19, 2005 Available for VLT Series Drives from 125-350 hp at 460 V and 90-250 kW at 380 V, wall-mounted enclosures provide machine and process control. They offer fused/disconnect panel and bypass panel configurations, fire mode and run permissive mode, 2 and 3 contactor bypass, and common start/stop functionality. Additional features include under voltage relay, dual motor selection, control switches, indicator lights, NEMA 1 and 12 configurations, dv/dt filter, and 3% reactor.

ITW Rocol North America    Glenview, IL 60025
Jul 19, 2005 Accu-Lube® 9045 attaches to 3-pump Accu-Lube® applicator system and applies smooth coat of lubricant directly to cutting edge and on both sides of saw blade. Nozzle mixes lubricant and air right at nozzle, so there is no lag time and no dry cutting. Mounting block facilitates installation, blade changes, and alignment.

K-Tek    Prairieville, LA 70769
Jul 19, 2005 Suited for corrosive, flammable, and toxic environments, Magnetic Bargraph Model KM26 features 316 stainless steel housing and true hermetic seal that prevents moisture ingress or build-up. Bargraph magnetically couples to float through wall of float chamber, avoiding direct contact with process fluid. Unit withstands extreme temperatures such as boiler and heater applications as high as 1,000°F and cryogenic applications as low as -320°F.

Archibus Inc.    Boston, MA 02108
Jul 19, 2005 Featuring support for Google? Earth and Maps, ARCHIBUS/FM? CAFM/TIFM (Total Infrastructure and Facilities Management) solution integrates GIS (Geographic Information Systems) with database of infrastructure and facilities management information. Users can drill down onto fixed maps to locate particular asset and perform real estate portfolio management or large-scale campus space planning. Self-service application enables efficient management of strategic assets.

Thermo Electron - Informatics    Philadelphia, PA 19102

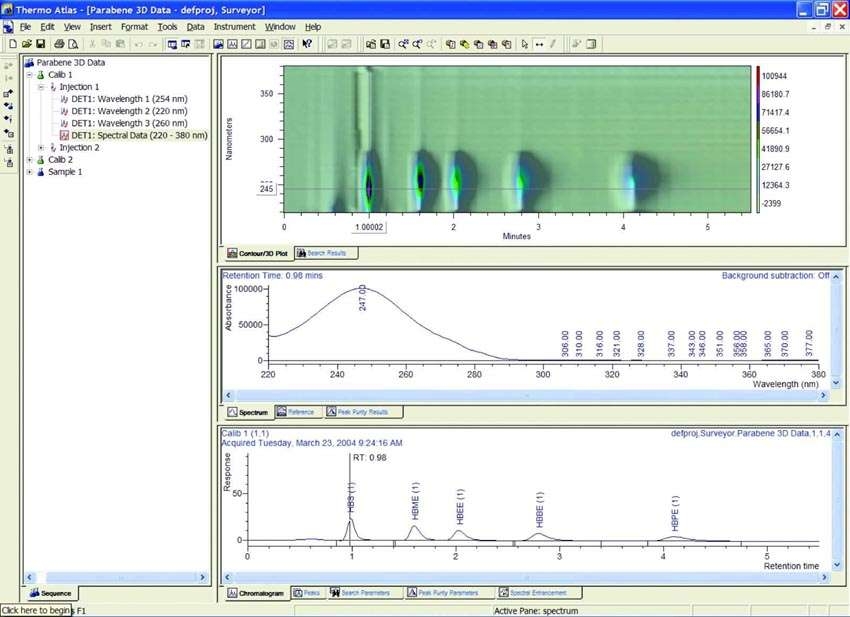

Jul 19, 2005 Built for enterprise applications, Atlasâ„¢ chromatography data system (CDS) v8.0 integrates data streams from multiple instruments and integrates with laboratory information management systems (LIMS) that store summary results for each analysis. Built to ensure secure communication between instrument and Atlas software, product lets users access critical data when faced with decision where QA/QC source data is needed immediately.

Toshiba Medical Systems Corporation    Otawara-shi, Tochigi-ken   Japan
Jul 19, 2005 Equipped with 256-row detectors, 4-dimensional X-ray computed tomography (CT) scanner provides accurate images of organs. It can measure locations of moving organs, such as lungs or liver, in real-time by increasing detector revolving speed. Able to image entire heart or brain, product is suited for use in such applications as diagnosis of heart diseases and heavy particle radiotherapy for lung cancer.

AGM Container Controls, Inc.    Tucson, AZ 85717 0020
Jul 19, 2005 Transformer Breathers eliminate oil thickening and deteriorating when air space above it expands and contracts with climatic variations. Units are filled with self-indicating, environmentally friendly Envirogel adsorbent that changes color when it reaches saturation level. Exhausted cartridge can be changed in minutes and contents can be recharged many times. Held in place by 4 fasteners, breather’s design eliminates need for baffle plates for even distribution of air flow.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143

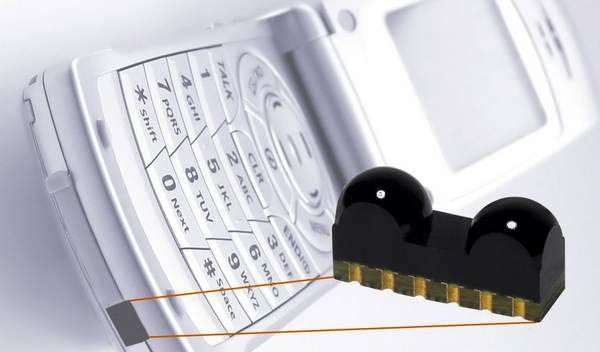

Jul 19, 2005 Measuring 6.0 x 3.0 x 1.9 mm, TFBS6711 and TFBS6712 FIR (fast infrared) IrDA transceivers work over typ distance of 50 cm. They enable mobile phones and PDAs to function as universal remote controls and can transfer 329 kbyte, 1280 x 960 pixel image in 1.5 sec. Capable of transmitting remote control signals over 6.5 m distance, lead (Pb)-free products feature 2.4–3.6 V operating voltage, 0.01 A shutdown current, and 1.7 mA idle supply current.

SpectraPure, Inc.    Tempe, AZ 85281-2941
Jul 19, 2005 With 40 gal tank and variable pressure delivery pump, SP-1000C delivers 1,000 gal/day of pH balanced drinking water. Self-cleaning backwash carbon filter holds 40 lb of carbon and removes chlorine, sediment, bad tastes, and odor. Air vent filter and safety overflow prevent airborne contamination, and single RO membrane can be replaced without removing housing. Unit requires 26 x 22 in. of space, 4 water connections, and 110 Vac for installation.

Bosch Rexroth Corp., Corporate Headquarters    Hoffman Estates, IL 60192-3707

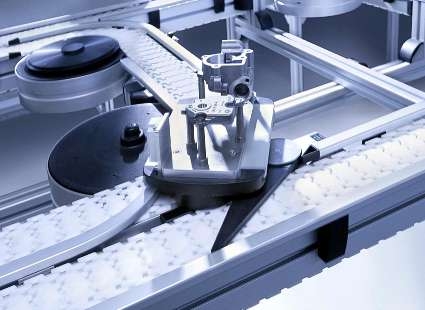

Jul 19, 2005 VarioFlow™ Workpiece Pallet System handles products up to 8 kg in weight and requires only one drive in many applications. To provide best possible surface for product transport, workpiece pallets are available in custom lengths of 80–500 mm. Featuring Adaptive Modularity™, system is available in widths from 65–320 mm in aluminum and stainless steel. It is suited for linking machine tools and manual workstations, as well as supplying parts to assembly process stations.

Synergistics, Inc.    Natick, MA 01760

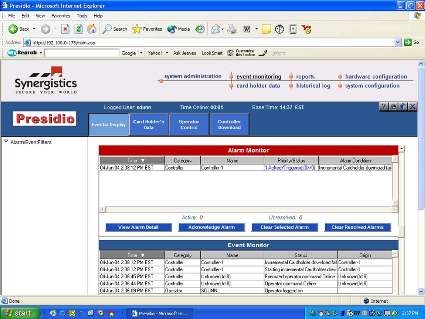

Jul 19, 2005 Requiring no locally installed software, Web-based Presidio, when used in conjunction with IP camera software, allows user to control access events while viewing live footage. IP camera system is attached to network, enabling user to search all cameras and monitor multiple buildings. Through 128SSL encryption, alarms and events can be securely monitored in real-time via Internet/Intranet with alarm event information routed to cell phones, pagers and email.

Arlink Inc.    Burlington, ON L7R 3Y2  Canada

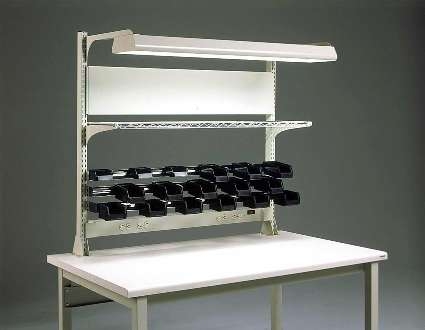

Jul 19, 2005 Available as stationary or mobile workbench, modular Series 7000 can be tailored to suit requirements of both user and application. It can be configured with legs and/or cabinet pedestals, and is capable of supporting 1,000 lb, evenly distributed. Drawers provide organized storage for parts, tools, components, and accessories. Work surface options include plastic laminate, static dissipative laminate, butcher block, stainless steel, and satin coat steel.

Hitachi Power Tools    Norcross, GA 30093
Jul 19, 2005 Featuring 5.9 A motor with 620 W input power, 7/8 in. Model DH22PB cuts concrete, mortar, and tile. It offers drilling only or hammer drilling modes, lock-on speed button for continuous operation, and electronic variable speed control of 0-1,150 (0-640 reverse) rpm and 0-4,400 ipm impact rate. DH22PB weighs 5.1 lb, is 13.81 in. long, and features mode selector dial, lock-on speed button, and 360° side handle with depth gauge.

MGE UPS Systems    Costa Mesa, CA 92626
Jul 19, 2005 MGE IT Services are available for EX RT on-line, double-conversion, single-phase Uninterruptible Power Supplies rated at 5, 7, and 11 kVA. Installation and Start-up Service provides site survey, inspection of equipment, fitting of UPS into rack or tower, connecting UPS power module to existing wiring, configuring and connecting extra battery modules, start-up, and user familiarity training. Start-up Only Service includes inspection, wiring, start-up, and familiarity training only.

Equinix, Inc.    Foster City, CA 94404-4803
Jul 19, 2005 Providing 10 Gigabit Ethernet capabilities, Equinix Exchange service enables networks, content companies, and content delivery networks by increasing network data exchange capacity. Service, available in Washington D.C., Silicon Valley, Chicago, and New York, includes 10 Gigabit Ethernet switching capabilities and facilitates ISP and content peering through central switching fabric. It is enabled by Force10 Networks’ TeraScale E-Series switch/routers.
