Datasound Laboratories Ltd.    Hertfordshire SG6 1LP  United Kingdom
Aug 19, 2005 Based on VIA EDEN-N CPU, 800 MHz Industrial Thin Client, eBox-III is housed in rugged enclosure for protection against shock and vibration. One version supports laptop style hard disk drive for commercial applications, while other type supports IDE Flash Disk-on-Module storage from 16 Mb to 2 Gb. Integrated VIA UniChrome 2D/3D Graphics chipset provides MPEG2 Acceleration for video playback with CRT/LCD resolutions up to 1,280 x 1,024.

Linear Technology Corp.    Milpitas, CA 95035

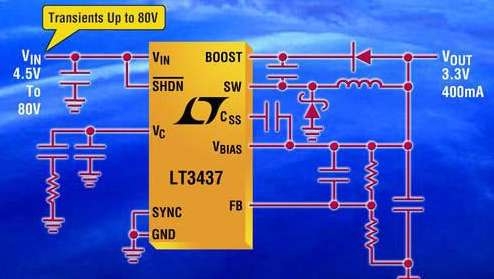

Aug 19, 2005 Step-down switching regulator Model LT3437 operates within VIN range of 3.3-60 V, making it suited for load dump or cold-crank conditions found in automotive applications. Rated at 500 mA, internal switch can deliver up to 400 mA of continuous output current at voltages as low as 1.25 V. Housed in 3 x 3 mm DFN package, unit features 200 kHz switching frequency, Burst Mode operation, external synchronization from 240-700 kHz, and soft-start capability.

Walls & Forms Inc.    Dallas, TX 75374
Aug 19, 2005 Available at component level and in prefab format, EuroSign(TM) EuroStand includes 2 DisplayFrames or SekureFrames mounted on white painted face backer boards and matte white polystyrene back board. Solid wood backer allows use of shelves, hanging arms, and similar merchandising methods. Also available in A-Stand configuration as well as with thermoformed bases, product comes in standard size of 60 x 30 x 18 in. and accommodates up to 24 x 36 in. graphics.

Endicott Research Group, Inc.    Endicott, NY 13761
Aug 19, 2005 Used for powering CCFL-backlit LCDs, E200II and SE/SE2 Series DC-AC inverters feature fully vacuum-encapsulated design that ensures CCF lamp ignition, even in harsh environments. Products, operating at efficiencies from 80-85%, incorporate customized magnetics that are self-shielding to minimize EMI and RFI. Series E200II can power one or 2 CCFLs with up to 8 W of output power, while SE/SE2 Series provides up to 5 W of output power.

Edmund Optics    Barrington, NJ 08007
Aug 19, 2005 Made of fused silica and reflective chrome, Fluorescent USAF 1951 Resolution Targets calibrate optics of systems that use UV illumination. Positive target has chrome pattern over clear background, with fluorescent material on front surface, while negative target has clear pattern with chrome background and fluorescent material on back surface. Peak absorption and emission wavelengths are 365 nm and 550 nm, respectively.

ON Semiconductor, LLC    Phoenix, AZ 85008

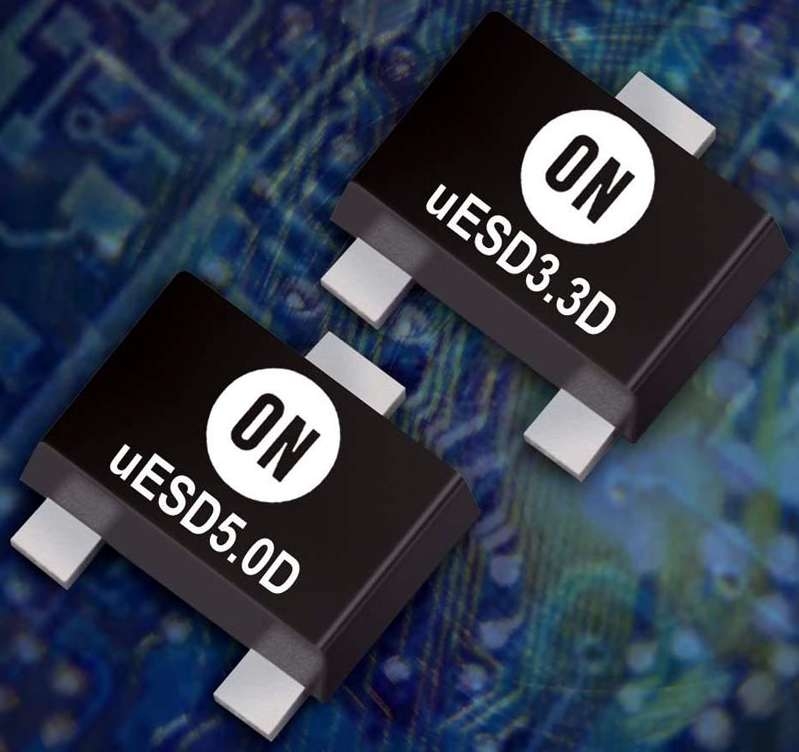

Aug 19, 2005 Offered in plastic, 3-leaded, 1.2 x 1.2 x 0.5 mm SOT-723 package, µESD dual series diodes provide 2 lines of protection for portable and battery powered applications. Models µESD3.3D and µESD5.0D clamp 30 kV ESD transients in less than 1 nsec and clamp ESD pulses to less than 7 V. ESD protection diodes feature leakage of 0.05 µA in off state and capacitance of 35 pF, which makes them suitable for protecting data lines with data rates to 10 Mbps.

ON Semiconductor, LLC    Phoenix, AZ 85008

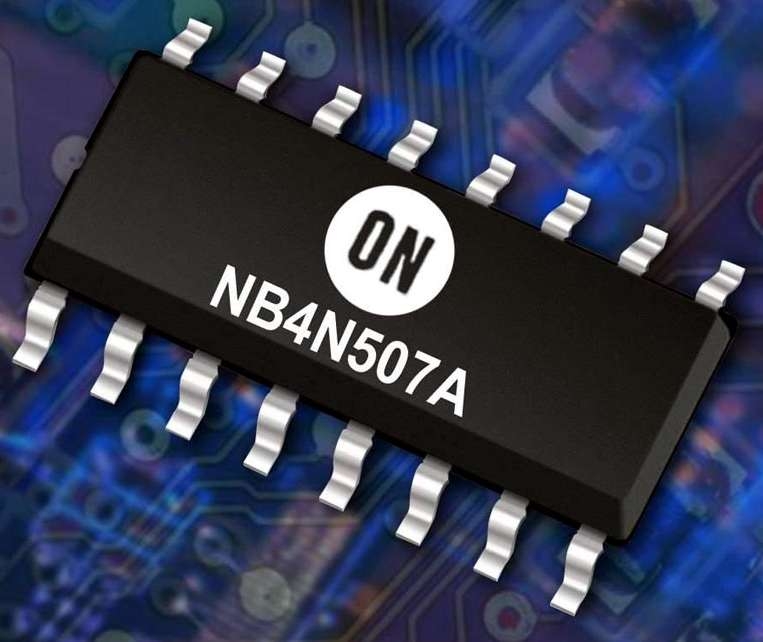

Aug 19, 2005 Available in 16-pin SOIC package, NB4N507A fully integrated Phase Lock Loop (PLL) IC provides configurable precision timing solution for consumer and networking applications. It utilizes fully differential bipolar design methodology and offers inherent noise immunity as well as full industrial temperature operation. With accuracy of 100 ppm, silicon IC generates clock signal from 50–200 MHz and has max root mean square period jitter of less than 10 psec.

Camden Electronics Ltd    St.Albans Hertfords AL3 6PQ  United Kingdom
Aug 19, 2005 DIN rail mounting enclosures are available with extended height module, molded from Lexan polycarbonate, that enables 2 additional PCBs to be mounted horizontally. Curved covers, available in solid gray, clear, red transparent, and smoky grey transparent, allow hinged lid to be locked in opened position so adjustments can be made to circuits within enclosure. Without extension module, enclosures support up to 3 PCBs horizontally or 4 vertically.

Protek Devices    Tempe, AZ 85282
Aug 19, 2005 Housed in 16-pin DFN package, 8-line, low-pass filter array, Model EM8D-100L features integrated TVS diodes, and is designed to suppress unwanted EMI/RFI signals and provide ESD protection for high-speed data interfaces. With desired cutoff frequency of 150 MHz, unit provides EMI/RFI attenuation better than 25dB in 800 MHz to 3GHz bandwidth, blocking RF noises from GSM, DCS, or Bluetooth. In standby mode, integrated TVS filter has low leakage current less than 100 µA.

SEAL Systems, Inc.    Maryville, TN 37804
Aug 19, 2005 Document output management system, PLOSSYS® netdome v4.1.2, comes with OCON operating and administration application. It features output preview and thumbnail preview modes as well as multiserver support, which allows PLOSSYS netdome server to be selected for all views. There can be more than one view at a time for different servers. Software also offers capability to pool output devices, perform mass modification of jobs, and redirect output devices

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Aug 19, 2005 Engineered for operation in hazardous environments, IP65-rated PT100 temperature module includes 4 inputs for PT100 RTDs. Unit is field-mountable with connection to outputs established through PG cable glands and cage tension spring terminals. Users may pre-address module by plugging it onto adapter of hand-held programming device. Various bases are available for connection to AS-Interface flat cable, or to round cable.

ERICO    Solon, OH 44139-2631
Aug 19, 2005 Bronze-alloy ERITECH® EK16 and EK17 have bronze screws and consolidate rebar, ground rod, water pipe, and direct-burial water pipe clamps in one tool. Along with mechanical splicing ability, product can be pre-set on rebar or water pipe and has lay-in feature that secures wire by tightened setscrew. Models EK16 and EK17 install wire in parallel and perpendicular positions, respectively. Able to works with wire from No. 10-2, clamp can also mechanically connect two No. 8 solid wires.

AXIOMTEK    Taipei   Taiwan
Aug 19, 2005 Utilizing Microsoft® Windows Storage Server 2003, 1U FASTORA NAS-104AW features Intel® Pentium® 4 processors up to 3.4 GHz or Intel® Celeron® processors up to 2.8 GHz. It includes up to 4 GB RAM, 4 hot-swappable drive trays accommodating 3.5 in. SATA drives, and dual gigabit Ethernet connectivity for trunking and fail-over management. Server supports TCP/IP, CIFS, NFS, HTTP, FTP, and AppleTalk protocols. ExBoot software provides backup and instant recovery.

Crystek Crystals Corp.    Fort Myers, FL 33913
Aug 19, 2005 Requiring external frequency reference and supply voltages for internal phase lock loop and VCO, Model CPLL66 is programmed using standard 3-line interface. Typical phase noise at 4 GHz is -90 dBc/Hz at 10 kHz offset with 0 dBm minimum output power. Housed in 0.6 x 0.6 x 0.15 in. SMD package, Model CPLL66 is suited for digital radio equipment, fixed wireless access, satellite communications systems, base stations, portable radios, and test instruments.

Acrosser Technology    Cypress, CA 90630
Aug 19, 2005 Supporting Intel Pentium II/Celeron up to 1.4 GHz as well as VIA C3, half-size Model AR-B1642 is equipped with 32-bit PCI interface and can be integrated with various PCI devices into PCI backplane system. For graphics-intensive applications, board features integrated AGP 8X graphics core, 128-bit 2D/3D graphics engine, MPEG1/2 decoder, and LVDS output. It supports USB 2.0, 10/100 Mbps LAN, AC 97 audio, COM ports, parallel port, and E-IDE.

J. W. Winco, Inc.    New Berlin, WI 53151
Aug 19, 2005 Metric Aluminum Two-Way and Base Plate Connector Clamps are available in black powder coated finish or natural color with matte shot-blast finish. Clamping bores are machined and designed for metric tubing types GN 990, DIN 2391, DIN 2395, and DIN 2462. Clamp fastener assembly choices include socket cap screws, hex cap screws, or adjustable levers. Applications include vertical or horizontal tube mountings for machine guards, gates or railings.

Supertex Inc.    Sunnyvale, CA 94619
Aug 19, 2005 Designed to drive 2 electroluminescent (EL) lamps with combined area of up to 3.5 sq. in., HV841 and HV839 high voltage driver ICs deliver low-noise backlighting solutions for dual LCD and keypad applications. Model HV841 accepts 2.0–5.8 V and produces nominal regulated output of 100 V, while HV839 provides nominal regulated output of 90 V. Both are available in 10-pin, lead-free, RoHS compliant MLP and MSOP packages for lithium-ion and alkaline battery applications.

Uson L.P.    Houston, TX 77041
Aug 19, 2005 Qualipak-L 783 flexible, repeatable leak test system enables normal packaging to be returned to line and contents of leaking packages to be reclaimed. Able to find leaks as small as 25 microns, system consists of Model 1100 test instrument, vacuum source, and aluminum chamber. Infills, used for volume reduction, allow for testing of varying container sizes. As audit tester, chamber accommodates up to 30 x 24 x 8 in. gusseted bag. Test cycles last under one min typ.

Rockwell Automation    Milwaukee, WI 53204
Aug 19, 2005 Offering scalable functionality, Enpac 2500 provides condition monitoring and analysis for rotating equipment to help identify and correct problems before they impact production and safety. It uses Spike Energy and ESP technology for early bearing wear detection and includes internal laser tachometer to take speed and phase measurements. Along with icon-driven menu system and 1/4 VGA color display, product delivers 2-plane balancing and 2-channel functionality.

Guyson Corporation of U.S.A.    Saratoga Springs, NY 12866
Aug 19, 2005 Featuring 52 x 32 in. cabinet, Model RSSA-6 is suited for automated surface treatment in work cell. Rotary spindle may be fitted with up to 24 in. dia turntable or with quick-change fixture designed to hold each type of component. Workpiece rotation and speed are adjustable during exposure to blast media, and timed airwash blow-off cycle follows impact treatment. Up to 4 suction-blast guns or 2 pressure-blast nozzles are mounted on telescoping brackets in blast chamber.
