Rockwell Automation    Milwaukee, WI 53204

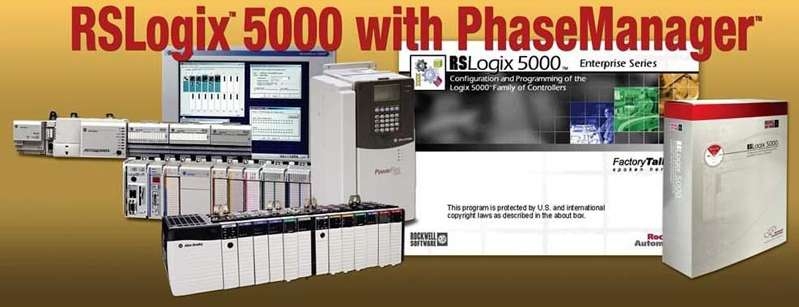

Jul 25, 2005 To improve plant-wide control capabilities for batch applications, RSLogix 5000 incorporates PhaseManager, which embeds ISA S88-compliant code into Logix family controllers. Phase Manager executes phases, based on industry standard S88 and PackML data and control structures, that can be sequenced with Rockwell Software RSBizWare Batch or in Logix controller using SFC routines and viewed with built-in Phase Monitor.

C-MAC Microtechnology    Durham, NC 27709-2548

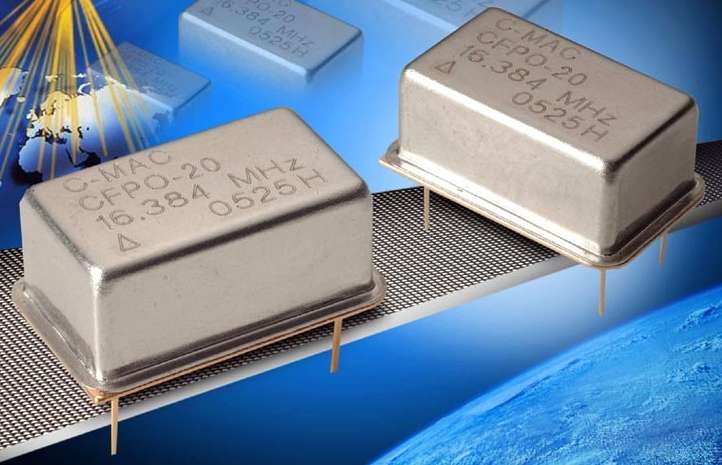

Jul 25, 2005 With output frequencies from 5–20 MHz, CFPO-20 series temperature-compensated oven-controlled crystal oscillators (TC-OCXOs) offer stabilities within ±0.025 ppm over –20 to +70°C and consume under 400 mW of power. Miniature oven keeps XO at constant temperature and compensates for residual temperature-related frequency errors using Pluto compensation technology. Products are manufactured in 20.7 x 13 mm DIL package and operate from 3.3 or 5.0 V supply.

Salvagnini America, Inc.    Hamilton, OH 45015
Jul 25, 2005 Without human intervention, 2005 Lightning Hi-Dynamic Laser System loads blanks, cuts intricate shapes, unloads finished products, destroys skeletons, and files reports. It is available as stand-alone machine, scalable building block, or complete laser cell with ASRS and robot. Utilizing limited divergence, Rofin SLAB series CO₂ lasers, product features gaussian power density distribution of k>0.9 plexiglas burn and airplane-type head positioner.

Aitech Defense Systems, Inc.    Chatsworth, CA 91311

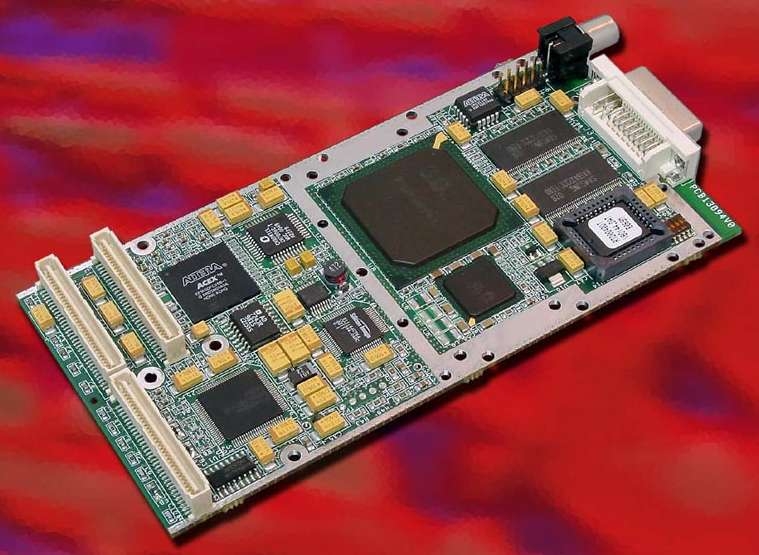

Jul 25, 2005 Providing 2D and 3D graphics processing capabilities, M585 includes encoding and decoding capabilities to accommodate multiple channels of video input. COTS mezzanine card, based on 3Dlabs Permedia3 graphics processor and supported by 32 MB SDRAM frame buffer, accepts video signals from up to 9 NTSC/PAL composite video inputs or up to 3 S-video digital inputs. Unit also includes 24-bit stream video side port and analog RGB, non-interlaced RGBHV, and RGsB output interfaces.

Baker Co., The    Sanford, ME 04073
Jul 25, 2005 Featuring contained, positive-pressure work area, SterilSHIELD® Model SS500 is designed for aseptic compounding of non-hazardous drugs. It creates HEPA-filtered unidirectional airflow of better than ISO Class 5 air cleanliness conditions within chamber. Measuring 5 ft wide, unit has 2-glove positions and ergonomic design with slanted viewscreen, top hinge, and oval gloveports. With touchpad membrane control, microprocessor controller enables operation without relays or switches.

Ross, Charles, & Son Co.    Hauppauge, NY 11788 0615
Jul 25, 2005 Inline SLIM facilitates powder induction into liquid stream. Rotor/stator generator features Progressive Spiral Porting, which produces high flow, high shear, and high level of vacuum within rotor/stator generator. Design enables system to operate without pump, resulting in immediate lump-free dispersion, and elimination of dusting in plant for safer working environment.

IAI America, Inc.    Torrance, CA 90505

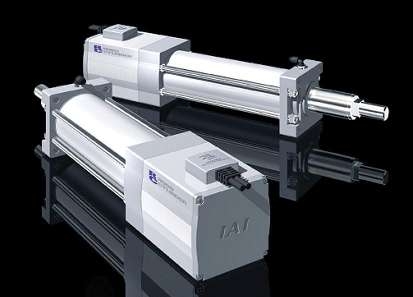

Jul 25, 2005 Incorporating ballscrew, linear guide, and stepper motor, Series RCP2-RFA/RFW Thrust Type Robo Cylinders provide push force levels of 1,500, 3,000, or 6,000 N. Six different strokes may be selected within 50-300 mm range. Max horizontal load capacity is 300 kg, and max vertical load capacity is 150 kg with 2.5 lead. Suited for motorized presses and press-fitting systems, units perform up to 64-point positioning with repeatability held to ±0.02 mm.

Emerson Process Management, Rosemount Div.    Chanhassen, MN 55317
Jul 25, 2005 Based on SuperModule® platform, Rosemount® 3051S Ultra for Flow supports scalable performance and up to 14:1 flow turndown with better than 0.5% of reading accuracy. Hermetic, all-welded SST housing meets operating requirements for harsh environments, and Coplanarâ„¢ process isolators allow sensor to float freely, eliminating effects of installation-induced errors.

Tyco Electronics/Raychem.    Menlo Park, CA 94025-1164
Jul 25, 2005 Suited for communications infrastructure applications, PolySwitch® TSM600-400 interrupts ac power faults to comply with standards such as UL 60950 3rd edition and TIA-968-A. Surface-mount, RoHS-compliant device incorporates 2 matched, low-resistance PPTC components. Each of these 2 resettable overcurrent protection components has typ resistance of 1.2 ohm, and unit has rated hold current of 400 mA at room temperature. Operating temp range is -40° to +85°C.

Toyoda Machinery USA Inc.    Arlington Heights, IL 60004

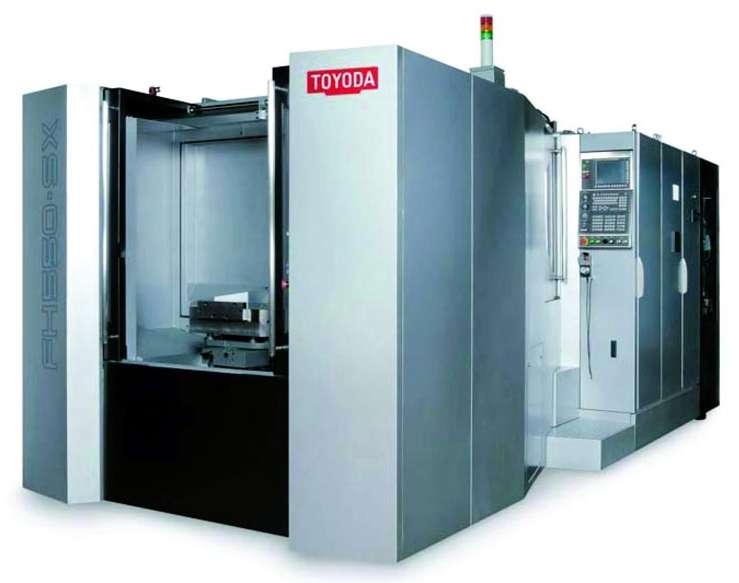

Jul 25, 2005 Able to machine steel without compromising rigidity, FH-SX incorporates spindle with double driving force on Y axis, with ballscrew and motor on each side. Column supports spindle's cutting power and maintains accuracy in hard, ferrous materials, and included software has automatic compensation to protect against thermal growth in ballscrew. Offered in 550 or 630 mm pallet sizes, machine has table load capacity of 2,860 lb and 40 hp, 15,000 rpm spindle option.

Edmund Optics    Barrington, NJ 08007
Jul 25, 2005 Blazed Holographic Diffraction Gratings are aluminum coated with ion-beam etching to create standard sawtooth design. Since technique eliminates need for diamond-tipped tooling, periodic structure errors that cause stray light are no longer present. Gratings are suitable for all varieties of spectrometers, spectrophotometers, and monochromators.

Southco    Concordville, PA 19331 0116
Jul 25, 2005 Featuring flush-mount design, Southco Point latch is available in curved and angular styles with chrome- and brass-plated finishes. Base latch mechanism is push-to-close design with retractable pull knob. By touching its surface, solid metal knob pops up to provide contoured grip for opening latch. Door can thereafter be slammed shut without harming latch. Consistent positioning is facilitated by one-piece polycarbonate body that aligns square to panel.

Hoyt Electrical Instrument Works, Inc.    Penacook, NH 03303 8798
Jul 25, 2005 Taking data only when trigger level is exceeded, Spectral Vibration Recorder logs acceleration data for spectral analysis. It records and time tags 3-axis vibrations and peaks and logs temperature once every sample period. Using FFT from 0-63.5 Hz, unit measures and computes real-time spectral data. It features settable trigger levels and built-in accelerometers. Basic data window is 2 sec, but XYZ magnitude data can be averaged over periods up to 2 hr.

Emerson Electric Co.    St. Louis, MO 63136 8506

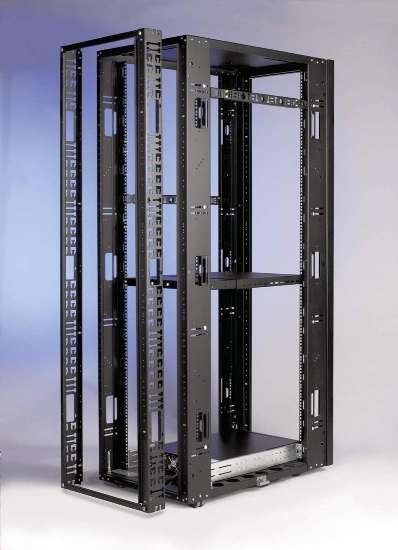

Jul 25, 2005 Liebert Foundation EX allows IT and network managers to adapt equipment racks to manage growing cabling requirements and accommodate more equipment. Multi-function Expansion and Cable Management Channels add space and cable management capabilities. Offered in various depths, channels can be added to front and rear of rack and include cutouts to accommodate broad equipment mounting. Power and cooling are integrated and distributed as heat and power densities grow.

Cherry Electrical Products    Pleasant Prairie, WI 53158

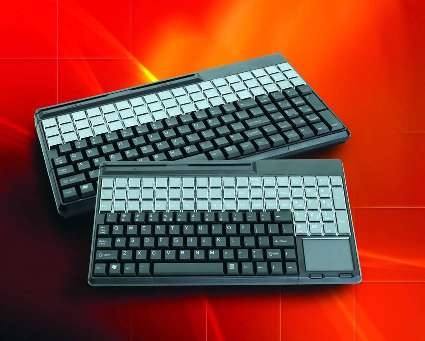

Jul 25, 2005 Featuring magnetic card reader for POS and commercial applications, SPOS Keyboards are fully programmable and provide full QWERTY key layout in 14 in. form factor. Standard Model G86-61410 provides 135-position key layout with 60 relegendable keys, while touchpad Model G86-61411 has 123-position key layout with 54 relegendable keys. Models G81-7000/G81-8000 have been verified to operate with Microsoft's Windows embedded for Point of Service software platform.

New Age Enclosures    San Luis Obispo, CA 93401

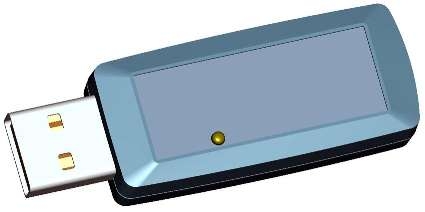

Jul 25, 2005 Built around Juno-USB module and measuring 1.8 x 0.80 x .425 in., Class I Model 180804 is suited for WirelessUSBâ„¢, flash drives, and Wi-Fi applications. Enclosure is available in unlimited colors with endless CNC modifications. Recessed area on cover accommodates artwork and accepts both overlays and printing, while internal features enable PC board mounting. Options include slip fit protective cap and binding button.

SKF Motion Technologies    Lansdale, PA 19446

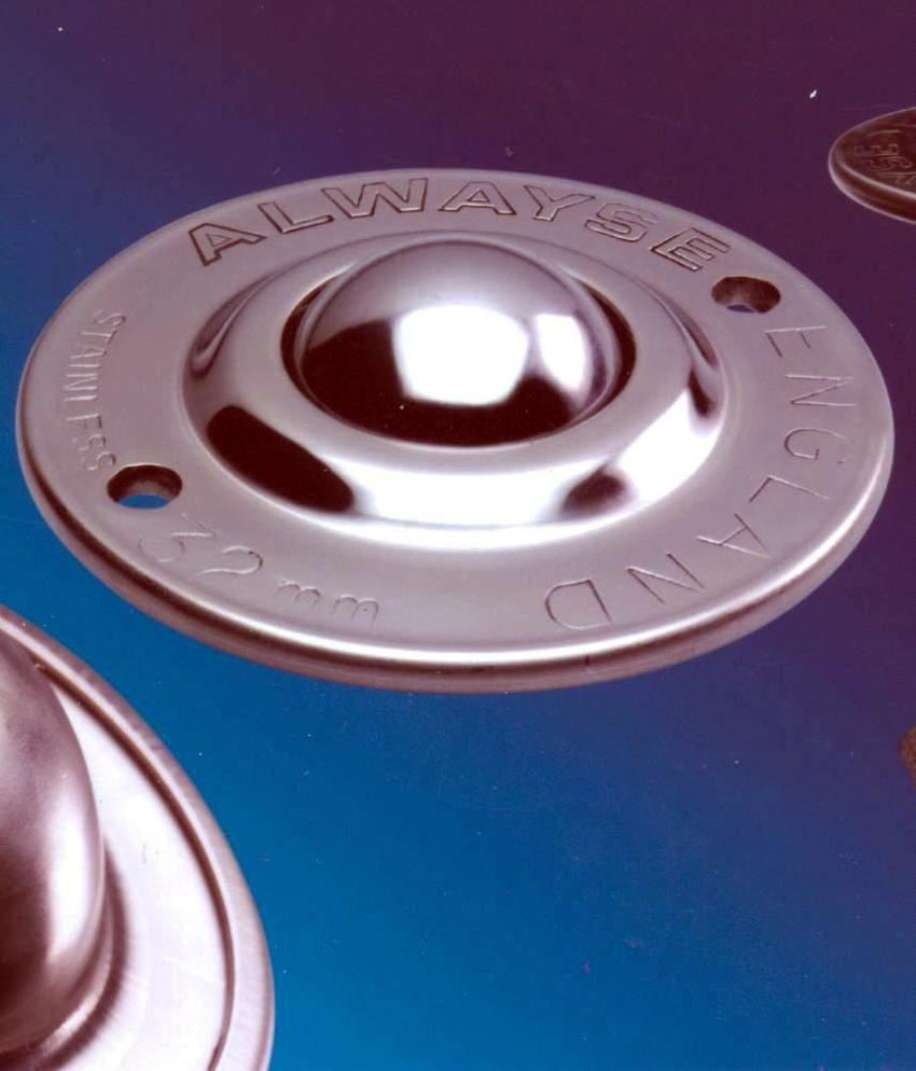

Jul 25, 2005 Stainless steel Type 3274 Ball Transfers enable loads up to 125 kg to be moved smoothly in any direction. Multi-hole drainage system in base of shell combats contamination by allowing dirt and debris to escape. Offered in 32 mm ball sizes, units are available with 2 or 3 attachment holes for secure mounting to floors or other surfaces, where cargo can be rolled and moved into position. Ball transfers are assembled without seals or oil to minimize maintenance and friction.

Sartorius Corp.    Edgewood, NY 11717 8315
Jul 25, 2005 Utilizing strain gauge technology, IF Series offers weighing capacities from 150–3,000 kg with resolutions of 30,000 d. Platforms range in size from 23.6 x 23.6 to 78.7 x 59.1 in. with 1.4 in. profile, making them suited for pit installations. Powder coated platforms meet IP65 requirements, while AISI 304-bead blasted stainless steel platforms are rated to IP68. Pharmaline flat bed scales offer stainless steel pneumatic lift option suited for pharmaceutical clean rooms.

Kimberly-Clark Professional    Roswell, GA 30076
Jul 25, 2005 Combining comfort and dexterity, Kleenguardâ„¢ Purple Nitrileâ„¢ Foam Coated Gloves feature breathable, seamless nylon knit backing and nitrile foam coating on palm and fingers. Gloves offer highest rating for abrasion resistance under EN 3881 and are available in sizes 7, 8, 9, 10, and 11. Applications include auto parts assembly, metalworking, warehousing, and any other use where tactile sensitivity is required.

Syware, Inc.    Cambridge, MA 02142
Jul 25, 2005 Eliminating need for tethered sync, mEnable v2.0 lets mobile users wirelessly sync information without having to dock Pocket PCs in cradles. Field workers can run database applications on handhelds and connect to ODBC-enabled databases in real-time or offline, at any time or place. Product allows any application written in C++, Visual Basic, or Visual CE to wirelessly read from or write to any ODBC-enabled data source, such as SQLServer, Oracle, Microsoft Access, and Sybase.
