McCrometer, Inc.    Hemet, CA 92545

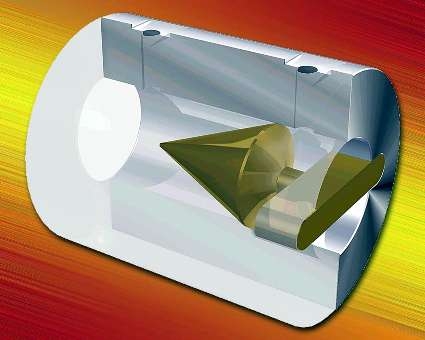

Jul 26, 2005 Intended for liquid or gas service in line sizes from 0.5-6 in., Wafer-Cone® Flowmeter utilizes differential pressure sensing with built-in flow conditioning to achieve accuracy of +0.5% and repeatability of +0.1%. Sensor's design features centrally located cone inside tube that interacts with fluid flow and reshapes velocity profile. Applications include chemical injection or filtering in process lines, as well as lines for natural gas, cooling systems, and HVAC.

Pico Technology Ltd    St Neots Cambridge PE19 1QB  United Kingdom

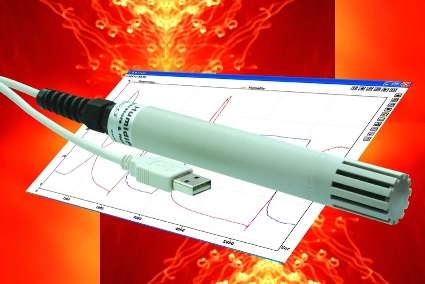

Jul 26, 2005 Combining environmental probe, ADC, and data logger, HumidiProbe® plugs into USB port for instant measurement of temperature and humidity. Up to 4 units can be connected to single PC, allowing user to monitor multiple locations at once. HumidiProbe measures temperatures from 0–70°C with ±0.5% accuracy, 0.01°C resolution, and response time of 5–30 sec. Relative humidity is measured from 0–100% with ±2% accuracy, 0.03% resolution, and 4 sec response time.

Kinetic Systems, Inc.    Boston, MA 02131
Jul 26, 2005 Constructed of stainless steel or aluminum, Nonmagnetic Optical Tables are suited for applications where magnetic field could receive interference from ferrous tabletop. Featuring epoxy-bonded honeycomb core, tabletops include SPILLPRUF™ design, whereby entire rows of mounting holes are sealed to protect core from accidental spills. Standard sizes range up to 6 x 20 ft with thicknesses from 8–36 in. All offer broadband damping and are Class 100 cleanroom compatible.

Bosch Power Tools & Accessories    Mt. Prospect, IL 60056

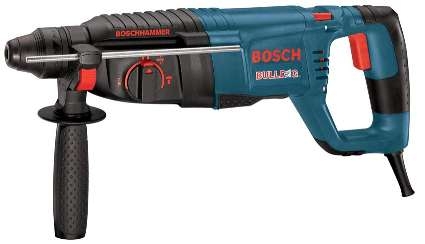

Jul 26, 2005 Offered in D-handle and Pistol-Grip versions, 1 in. SDS-plus® Bulldog Xtreme(TM) Models 11255VSR and 11253VSR operate from 0-1,300 rpm using 7.2 A motor. Drilling range in concrete is 3/16-5/8 in. with solid bit capacity of 1 in. and thin wall core capacity of 2 5/8 in. Piston, striker, and impact bolt and guide tube are dialed in with tight tolerances to remain concentric. Rotating brush plate provides equal power in forward and reverse for removing bound bits.

Tra-Con, Inc.    Bedford, MA 01730
Jul 26, 2005 High-viscosity TRA-BOND 216R01 exhibits lap shears of 3,600 psi with room temperature cure and 4,500 psi with 65°C heat cure. Product is tested and certified to requirements of UL94 V-O and is RoHS compliant.

AMISTCO Separation Products Inc.    Alvin, TX 77511

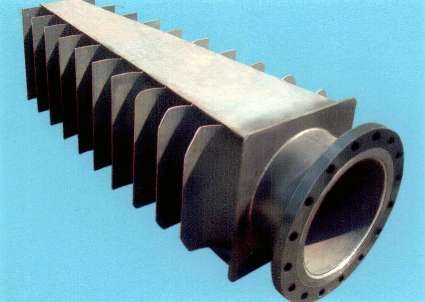

Jul 26, 2005 Uniflo Inlet Diffusers evenly distribute gas flow over downstream separator and remove bulk liquids and solids from gas stream. By maximizing liquid distribution, channeling problems and re-entrainment of liquid droplets in mist eliminator are avoided. Use of diffusers also prevents gas from jetting into liquid level creating further entrainment problems. Available in range of alloys, diffusers can be designed for vertical or horizontal separators.

Trion Industries, Inc.    Wilkes Barre, PA 18702 6997

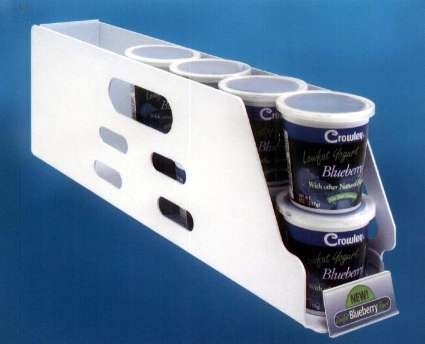

Jul 26, 2005 Manual-feed AMTâ„¢ Adjustable Merchandising Trays organize products such as yogurt, ice cream, instant soup cups, and baby food bottles. Small size model adjusts from 2 11/16–3 5/16 in. wide in 1/8 in. increments for 4–6 oz yogurt cups and similar products. Large size model adjusts from 4–4 5/8 in. in 1/8 in. increments for 7+ oz, 1 pint, and 1½ pint containers. Handles allow lift out as single unit for restocking from rear or for cleaning shelves.

Hospital Specialty Company    Highland Heights, OH 44143
Jul 26, 2005 SaniWorks(TM) Foodservice Towels and Textiles are suited for restaurants, healthcare facilities, hospitality businesses, and schools. Non-woven wipers are color-coded to help prevent cross-contamination. Optional anti-microbial treatment inhibits growth of bacteria in towel. SaniWorks products are packaged in corrugated dispenser cases, boxes, or poly bags, depending on item.

NovaTech, Inc.    Smithfield, RI 02917-1205
Jul 26, 2005 Microwelding Systems enable user to see exactly where weld puddle is applied for repairing molds and dies and lets operator produce welds with less than 0.0005 in. of sink in heat affected zone. Featuring microscope and lighting for magnification needed to maintain arc necessary in low-amperage miniature TIG welding, systems include power supply, hot plates, micro-blasters, and all tools for pre- and post-welding.

Mid-West Instrument    Sterling Heights, MI 48314
Jul 26, 2005 Featuring complete high to low side isolation, diaphragm type Model 522 is offered with body materials of aluminum or 316/316L stainless steel and 316 SS, ceramic, and acetal moving parts. It comes with one or 2 field-adjustable, 40–100% FS, hermetically sealed reed switches in SPST (3 A) configuration. Max static pressure is 1,000 psig, max differential over-range pressure is 200 psid, and DP ranges include 0–5 and 0–50 psid with ±5% FS accuracy.

Creform Corp.    Greer, SC 29652-0830

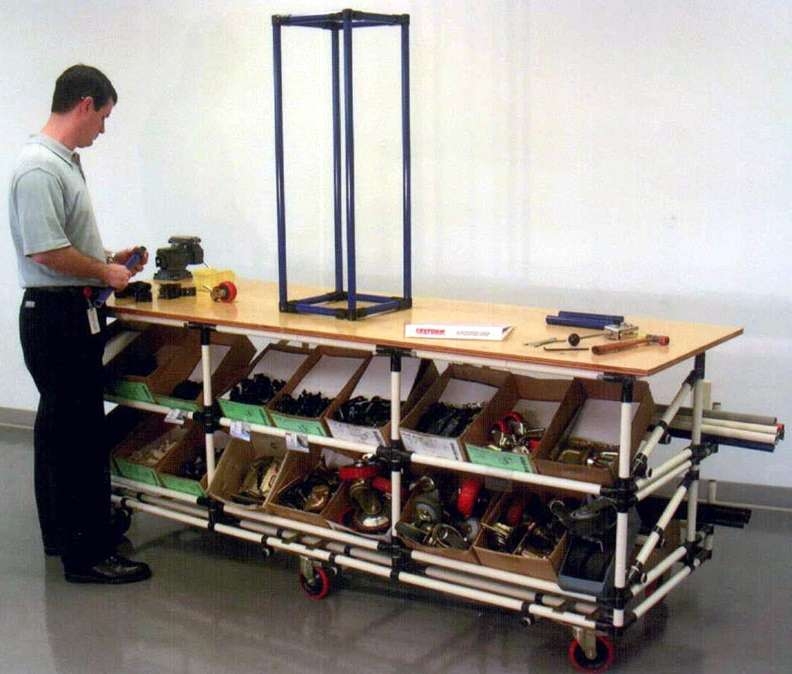

Jul 26, 2005 Constructed from Creform® System of pipes and joints, portable Kaizen Work Shop adapts to needs of various industries. Carts are available in 2 designs: 4 x 8 ft workbench-type top surface with storage for 8 ft long pipe sections and bins for holding joints and hardware accessories, or narrower configuration for maneuverability and table-like top. Carts can be manually pushed or pulled via powered tugger vehicles by integral hitch.

Energy Kinetics, Inc.    Naperville, IL 60563
Jul 26, 2005 DC Hour Meter, Model EK-200-10SS-NT allows user to monitor hours of operation to nearest hour, with no tenths, eliminating potential for errors caused by misreading tenths as whole hours. Standard unit reads to 99,999 hours and has non-reset security. Operating from 8–32 Vdc, meter includes all steel SAE bezel bracket mount, stainless steel bezel, and spade terminals.

Dwyer Instruments, Inc.    Michigan City, IN 46361

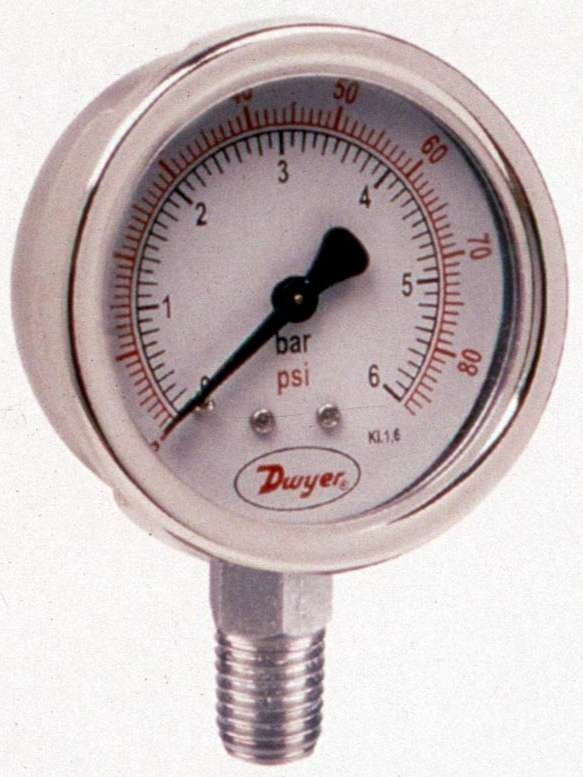

Jul 26, 2005 Used to overcome pressure spikes, vibration, and pulsation in mechanical applications, Series 64000 features 2½ in. dia stainless steel housing, glycerin fill, and 316 stainless steel wetted parts. Unit is available in several ranges up to 300 psi and operates in temperatures to 150°F. Suited for applications such as pumps, compressors, hydraulic presses, machinery, and motors, chemically compatible design delivers ±1.6% FS ASME/ANSI Grade 1A accuracy.

Dwyer Instruments, Inc.    Michigan City, IN 46361

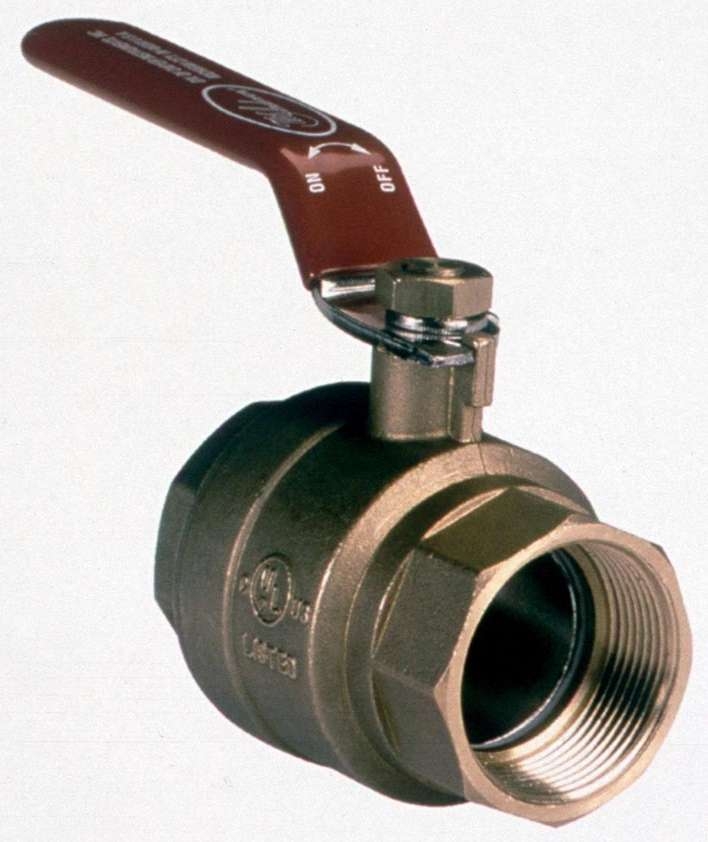

Jul 26, 2005 Available from ¼-3 in. NPT, Series BV2MB 2-piece ball valve is constructed of brass with Teflon® seats for wear resistance. Blow-out-proof stem provides safety in event of overpressure, while full port design ensures max Cv with minimal pressure drop and bubble-tight shutoff to 600 psi. Product is suited for water shut-off in commercial and general industrial applications.

Dallas Industries, Inc.    Troy, MI 48083 2770
Jul 26, 2005 Space-Saverâ„¢ Electronic Servo Press Feed System incorporates piloting design into integral pull-thru straightener. Suited for lines that may be used to straighten or feed materials of 0.035 in. thickness or greater, Toggle Link Motion Straightener configuration ensures all upper rolls of mechanism are raised to equal height. This releases tension between upper and lower rollers of straightener during feed operation's pilot pin orientation of material.

Guden, H. A., Co., Inc.    Ronkonkoma, NY 11779

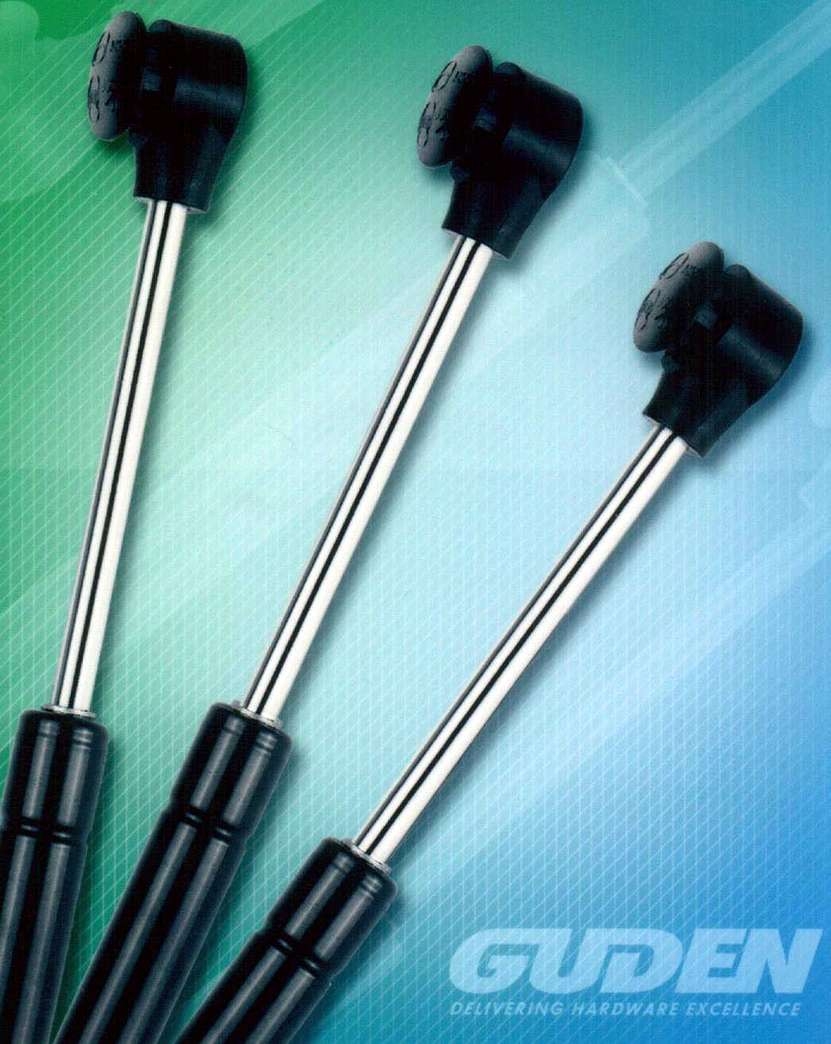

Jul 26, 2005 Compression and extension dampers are force-absorbing devices used where load or door must be lowered or swung in controlled motion at constant speed. Products are offered in rod/tube diameter sizes from .24 x .59 in. to .315 x .87 in., with stroke lengths from 2–7 in., extended lengths from 7.9–19.7 in., and max load capacities from 50–100 lb. Custom dampers are available in lengths to 26 in. with stroke to 10 in, and all dampers may be double-damped.

Troyke Manufacturing Co.    Cincinnati, OH 45262
Jul 26, 2005 With 36:1 gear ratio, 3C collet indexer features ½ in. collet capacity and tapered spindle nose, while 5C collet indexer features 60:1 gear ratio, 1/16 in. collet capacity, and 2 3/16 in. -10 threaded spindle nose. Featuring A2-5 spindle nose, 16C collet indexer offers 60:1 gear ratio, single- or dual-axis machining of parts up to 1 5/8 in. dia, and internal pneumatic clamping. Indexers all feature pneumatic collet closers, 1-4 spindles, and 0-50 rpm speed range.

Renishaw, Inc.    Hoffman Estates, IL 60192
Jul 26, 2005 Made of Invar for thermal expansion of 1.3 µm/m/K, RELM linear scale intelligent encoder offers non-contact performance with accuracy to ±1 µm/m, resolution to 20 nm, and speeds above 10 m/s. System is comprised of SR readhead, Si interface, 20 µm RELM spar in defined lengths, and features such as SiGNUM(TM) intelligent signal processing and IN-TRAC(TM) auto-phase optical reference mark. SiGNUM(TM) software enables set-up and real-time system diagnostics via PC USB port.

Static Solutions, Inc.    Marlboro, MA 01752

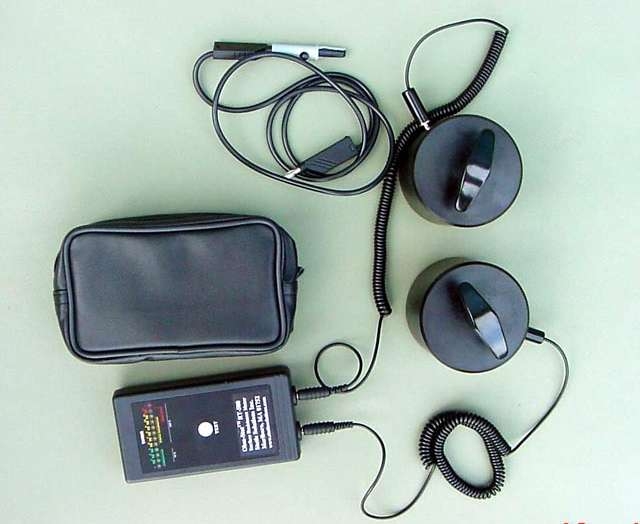

Jul 26, 2005 Ohm-Statâ„¢ RT-500 features built-in parallel electrodes on bottom of case to measure resistance to ground and surface resistivity. External banana jacks accept two 5 lb, 2.5 in. electrodes, which measure RTT, RTG, and volume resistance. RTT probes test small, difficult-to-reach surfaces, chairs, and smocks. With press of button, unit automatically measures 10 V or 100 constant V, depending on resistance of material. Colored LEDs test between 1E 3 and 1E12 ohms.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Jul 26, 2005 PCI Express PHY offers both 8-bit and 16-bit interface, which is based on PHY Interface for PCI Express Architecture v1.0 from Intel. Chip is designed to interface with ASICS as well as FPGAs in PC add-in cards, communications, test equipment, servers, and other embedded system applications.
