SMI Corp    Nanuet, NY 10954
Aug 02, 2005 Supplied on 51 CD-ROMs, SQL 2005 and SQL 2000 Double Header helps users learn techniques for using and programming Microsoft SQL Server 2005 and 2000 in all capacities for administering databases and designing and developing applications. Each CD-ROM is broken down into 6–16 units, typically 8–15 min long. CD-ROM and Flash-downloadable files contain full-motion screen image video with audio narration. Books for reference and programming aids are also included.

Likno Software    Athens 11526  Greece
Aug 02, 2005 Likno Web Button Maker v1.3 enables users to create and customize 2D and 3D buttons for websites and projects. With regards to design, users can manipulate effects, backgrounds, and text options by altering dimension, size, shadow, lighting, texture, and shape. Software also provides pre-defined button shapes and styles ranging from plastic to metallic. Along with optional CSS rollover effect in export 3-state button, product has preview function to facilitate design.

DataArt, Inc.    New York, NY 10016
Aug 02, 2005 NETChart component for Microsoft® ASP.NET allows for full control of chart's graphic representation, customization of items, automatic and manual data-binding, and drill-down mode. Seamless integration into MS Visual Studio .NET IDE ensures compliance with standardized visual management tools, and open documented API enables design and implementation of custom chart types. Software is delivered with MSDN-style help system, with code snippets and sample projects.

SiRES LABS    Cyberjaya 63000  Malaysia
Aug 02, 2005 Optimized for speeds from 1–3.125 Gbps, SRL3101NST optical PMD (transceiver) chip integrates transimpedance amp (TIA), limiting amp, VCSEL driver, digital diagnostics, and LVDS interface. It is designed for use with VCSELs and PIN/APDs in VSR applications. Along with integrated temperature sensor and internal closed loop feedback, features include single +3.3 V operation, peak-to-peak jitter of 20 ps, and modulation and bias currents up to 10 mA each.

Ergodyne Corp.    St. Paul, MN 55108
Aug 02, 2005 Squids® Glove Grabbersâ„¢ hold gloves of every style and thickness for virtually any application. Model 3400 attaches to pant belt loop, while Model 3405 clips onto standard belt or tool belt. Both non-conductive, lightweight units are detachable and available in black, blue, high-visibility orange, and high-visibility lime.

Makita U.S.A., Inc.    La Mirada, CA 90638

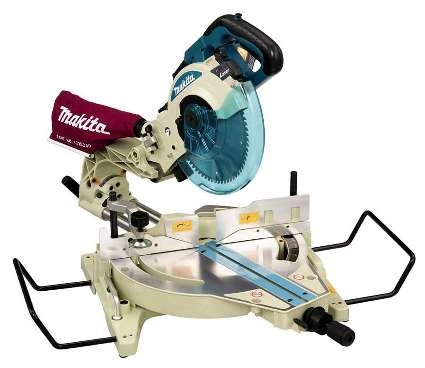

Aug 01, 2005 Models LS1013L and LS1214L are 10 and 12 in., dual slide miter saws with dynamically balanced, direct drive, 13 and 15 hp motors, respectively. They feature micro fine adjustments, soft start, and independent switch that allows laser to be seen with or without blade rotating. Designed with single piece aluminum base, saws include dual rails with dual steel linear ball bearings for accurate cuts that never need adjusting. Both provide bevel cutting up to 45° left and right.

GE Intelligent Platforms    Charlottesville, VA 22911
Aug 01, 2005 Series 90(TM)-30 is available with Ethernet Network Interface Unit (ENIU) that lets users connect I/O over Ethernet to master controller through one point of connect. With communications module, users can connect programmer anywhere on I/O network and monitor, configure, and troubleshoot any ENIU or master controller. Module allows up to 2,048 discrete inputs and outputs, 1,264 analog inputs, and 632 analog outputs per drop. Redundancy is standard.

DeWAL Industries, Inc.    Saunderstown, RI 02874

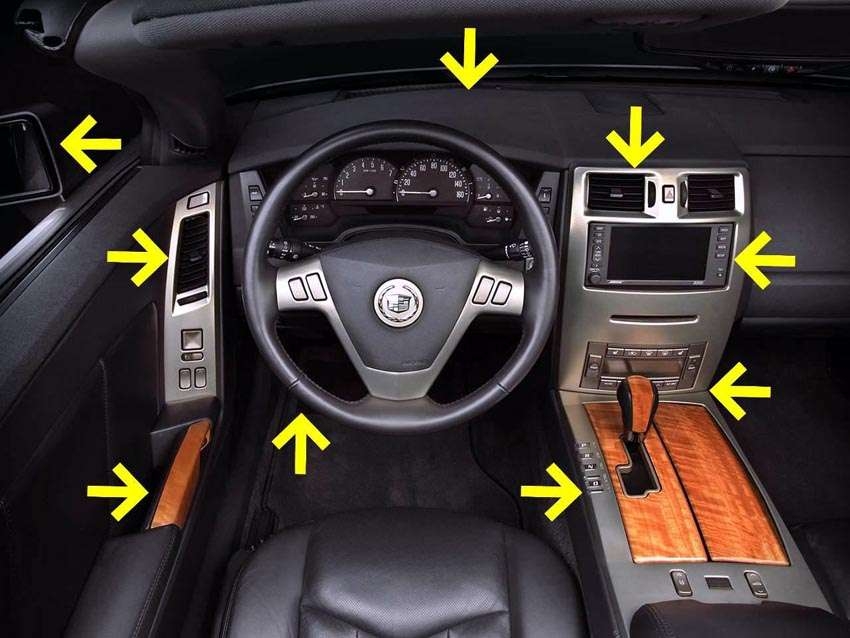

Aug 01, 2005 Made of UHMW-PE (ultra high molecular weight polyethylene), UHMW automotive squeak and rattle tape is offered with direct coat acrylic or elastomeric adhesive; 3M or Avery transfer adhesive are also available. It conforms to plastic and metal surfaces, even in unusual shapes, to reduce noise without wearing out. Tape comes in widths from 0.25–26.0 in. and thicknesses of 3, 5, 10, and 20 mils and is also available in black version.

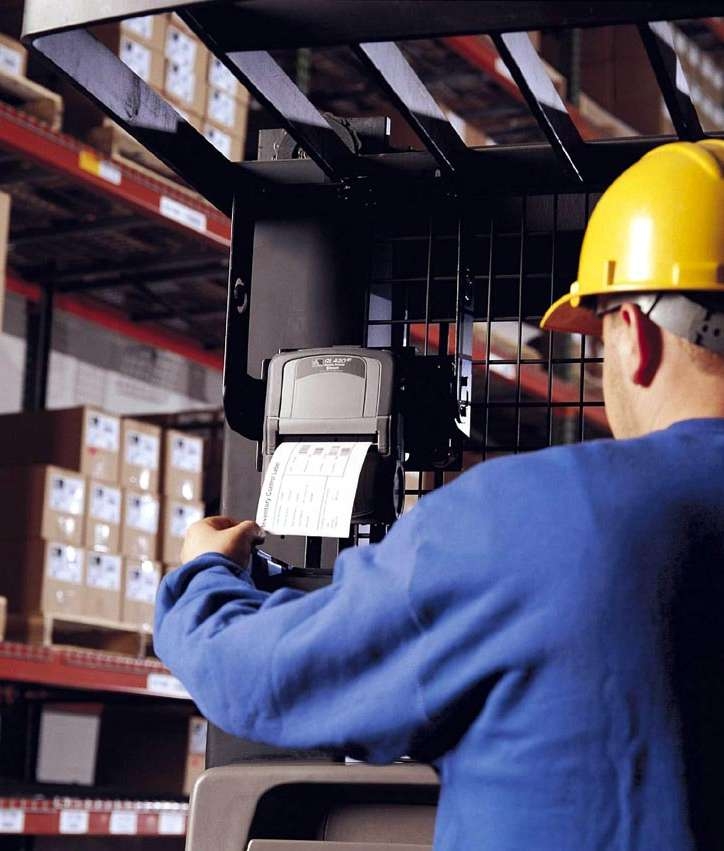

Paragon Data Systems Inc.    Cleveland, OH 44115
Aug 01, 2005 Used in conjunction with Zebra's QL 420 thermal mobile printer, Forklift Label Printing Solution provides on-demand printing for lift trucks. Drivers can print labels, as needed, in truck rather than having to drive to get them at stationary printer or handle pre-printed labels in tight spaces. Solution is suited for use in distribution, shipping and receiving, as well as picking operations that use barcodes.

Letica Corp.    Rochester, MI 48063
Aug 01, 2005 Featuring gasketless, tamper-evident tear tab lid, 1DC dual-closure Smart Seal® container is available in 1 gal, rigid plastic package with ergonomic handle. Tapered configuration allows nesting of empty containers for efficient shipping, and container can be opened and closed without tools. Containers, lids, and handles are available in 12 standard colors, as well as custom colors, and options include up to 9-color offset printing.

Wire Belt Company Of America    Londonderry, NH 03053-7449
Aug 01, 2005 Flat-Flex® is designed to gap product and turn its direction of travel through 90°. Depending on specified stroke of shuttle, it can transfer product from narrow belt to wider belt or vice versa. Conveyor components include stainless steel belting, casters for portability, and variable-speed electric motor drive; other drive options are available. Hygienic unit is suitable for food processing applications.

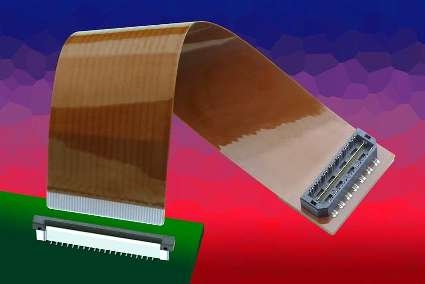

Samtec, Inc.    New Albany, IN 47151 1147
Aug 01, 2005 Featuring .0315 in. Q Series® socket or terminal on one end and standard 43-pin .0197 in. pitch ZIF flex termination on the other, Series ZFHF provides 14 signal pairs with grounded pins surrounding each pair. Typical performance is up to 6 Gbps per pair for 5 in. length and up to 90 Gbps for entire data link. Performance for 10 in. data link is up to 3 Gbps per pair.

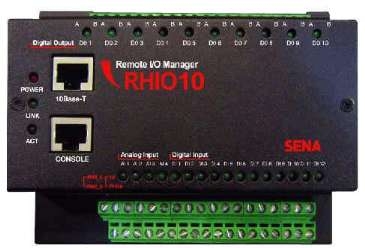

Sena Technologies, Inc.    Seoul 137-130  Korea (south)
Aug 01, 2005 Ethernet I/O device server, Model Rhio10 features 12 optically isolated digital inputs, 10 digital relay outputs up to 220 V level, and 4-channel analog inputs with 10-bit resolution for data acquisition. Digital inputs enable unit to sense on/off status of equipment, while digital outputs can operate in on-off fashion, or be programmed for specific delay times and on/off times. Server includes 10 base-T network interface and supports static and DHCP IP modes.

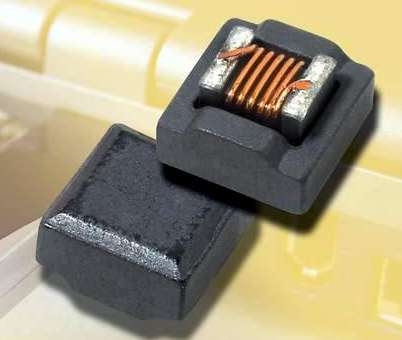

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jul 29, 2005 Model ISC-1008 surface-mount, wirewound, magnetically shielded inductor is rated for operating temperatures of -40 to +85°C. With dimensions of 0.142 x 0.142 x 0.098 in., unit has inductance values from 1.0–1,000 H at 100 kHz with standard tolerance of 20% over range. Rated current ranges from 1,000–30 mA. Device enables surface mounting in close proximity to components on assembly boards in notebooks, PCs, flash memory devices, and converters.

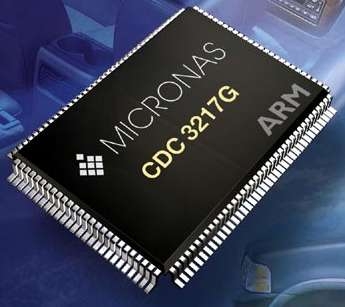

Micronas GmbH    Frieburg D-79108  Germany
Jul 29, 2005 Featuring 32-bit ARM7TDMI® RISC processor core, CDC 3217G and CDC 3257G withstand temperatures from -40 to +105°C and utilize LEAP (Low Emissions Automotive Processor) technology. Models CDC 3217G and CDC 3257G offer 1 MB and 256 KB Flash, 32 and 12 KB RAM, as well as 4 and 2 CAN Bus controllers, respectively. Device Lock Module prevents unauthorized Flash access, and CAN Bus controllers support all 32 message objects with 512 bytes of dedicated RAM.

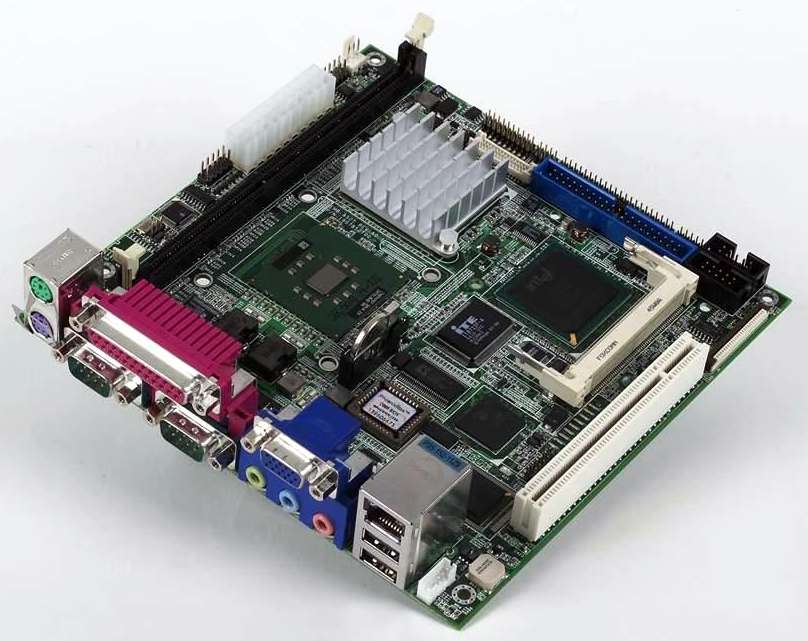

Aaeon Electronics, Inc.    Hazlet, NJ 07730-2496
Jul 29, 2005 Equipped with 5 COM ports and support for DVI, LAN, and CompactFlash socket, EMB-852T adopts Intel® 852GM + ICH4 + ICP ULV 600 MHz platform. Embedded VGA controller shares memory up to 64 Mb with DVMT, while built-in LCD support permits use of dual LVDS 18/24/36/48-bit panels. With one DIMM slot, up to 1 Gb DDR memory module can be configured. Realtek® ALC650 chip has 6-channel, full duplex AC97 2.2 compatible stereo audio CODEC. Mini PCI and PCMCIA slots offer expansion capability.

Devcon    Danvers, MA 01923
Jul 29, 2005 Cured in seconds when exposed to direct sunlight or UV lamp, Tru-Bond Series adhesives produce flexible bonds that withstand service temperatures from 65 to 225°F. Tru-Bond 18100 Glass, Metal, and Ceramic Bonding Series is offered in 3 viscosities from 205–75,000 cps, while Tru-Bond 18200 Plastic Bonder Series comes in 3 viscosities from 810–80,000 cps. Tru-Bond 18300 Protective Coating Series includes formulations with viscosities of 2,240 and 750 cps.

Fluid Components Intl.    San Marcos, CA 92069 5115
Jul 29, 2005 FlexMASSter high-purity Model ST98HP and ultra high-purity Model ST98UP feature 316L stainless steel, thermal mass flow sensing element with all-welded wetted surface and 10 or 15 Ra electro-polish finish. Meters offer flow range from 2.0–3,183 scfm in air with accuracy of ±1% of reading and ±0.5% FS. Housed in NEMA Type 4, Type 4X, or explosion-proof enclosure, transmitter can be integrally mounted to flow element or remotely mounted up to 500 ft.

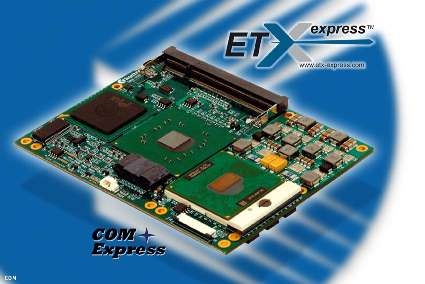

Kontron    Poway, CA 92064
Jul 29, 2005 Based on Intel® Pentium® M processor 760 and Mobile Intel 915GM Express chipset, ETXexpress-PM Modules deliver up to 2.13 GHz processor performance and support up to 2 GB DDR2 memory. For applications that require real-time video capabilities, modules have integrated graphics based on Intel Graphics Media Accelerator 900 architecture and also support PCI Express graphics. Communications are possible via 10/100Base-T Ethernet port.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Jul 29, 2005 Housed in 31 x 11 x 23 mm, IP67-rated package with ambient light immunity, ML7 Series operates in diffused, retro-reflective, and thru-beam sensing modes. It features side and end sensing, slotted mounting holes, and LEDs for visual status indication and diagnostics. Depending on operating mode, series offers sensing distances up to 8 in., 8 ft, or 11.5 ft. Products are suited for wash down environments and feature cross talk immunity.
