Elmo USA Corp.    Plainview, NY 11803
Aug 05, 2005 For indoor surveillance, PTC-401C IP Network PTZ camera combines digital video output from built-in web server and analog video output. It makes digitized video available over LAN, WAN, or public Ethernet connections and uses removable IR cut filter for low-light imaging. Along with audio functions for videoconferencing, unit employs ¼ in. IT 410,000 pixel CCD and provides up to 192x magnification with 12x optical zoom and 16x digital extender.

Mosaic Industries    Newark, CA 94560

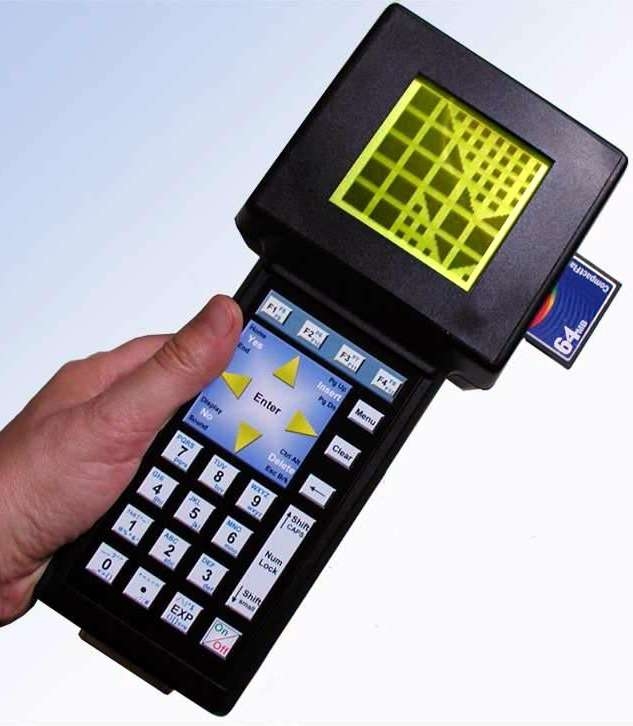

Aug 05, 2005 Mosaic Handheld integrates 3.4 in. graphics display, keypad with customizable overlay, expansion I/O bus, and power conditioning and battery charger circuitry. Up to 4 I/O expansion modules can be plugged inside instrument to customize platform for specific application. Processor Board hosts 16 MHz Motorola 68HC11F1 microprocessor, and on-board I/O includes 8 digital I/O lines, 8 analog inputs, synchronous SPI serial interface, and dual RS232/485 ports.

Nanion Technologies GmbH    München   Germany
Aug 05, 2005 Port-a-Patch© throughput-optimized patch-clamp automat uses technology based on micro-structured chip that facilitates electrophysiological experiments for ion channel screening. With compound consumption in microliter range, workstation performs measurements in automated manner and obtains whole dose response curves from single-cell experiments. Fluid exchange rate on chip allows for experiments on voltage-gated as well as ligand-gated ion channels.

Datakey Electronics Inc.    Savage, MN 55378

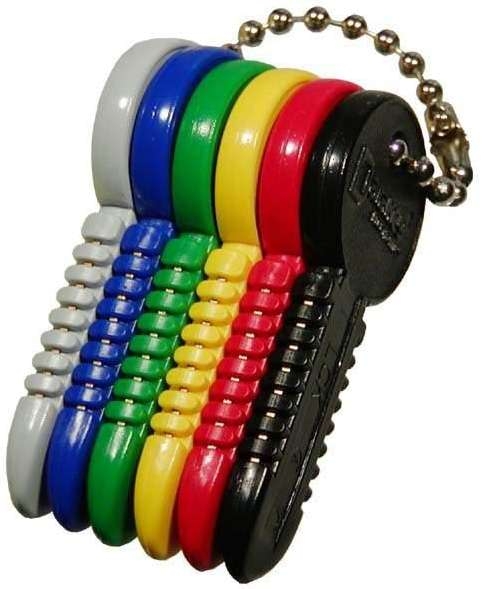

Aug 05, 2005 Compatible with company's Keyceptacles® and Receptacles, 32 Mbit (4 MByte) serial flash memory Key (SFK32Mbit) and SlimLine(TM) Extended Token (SFX32Mbit) feature solid molded construction with wear-resistant exterior. Memory is accessed by SPI-compatible bus with up to 25 MHz clock rate. Due to memory size and bus speed, products let designers of microprocessor-controlled systems move data in and out of systems without requiring network connection.

KernelPro Software    Vancouver   Canada

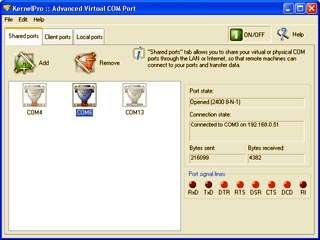

Aug 05, 2005 Advanced Virtual COM Port v2.3 enables users to create 2 virtual COM ports locally or on 2 remote computers and connect them with virtual null-modem cable. Created ports have same look and functionality as physical ones. User can also share physical COM ports on local network or Internet through TCP/IP connection. Supporting hot plug and play as well as 64-bit platforms, software can also provide access to physical COM ports over network.

AMUST Software    Saint-Petersburg   Russian Federation
Aug 05, 2005 Intended for home and small business users, AMUST Registry Cleaner v1.0 provides smart and safe technology for registry cleaning to remove errors and fix system problems. SmartScanT scans and repairs registry based on knowledge, while IntelliCompacT reduces registry size and defragments it by removing holes and empty spaces in registry tree. Undo lets system rollback any change made during repair if change negatively impacts system operation.

Bomar Interconnect Products    Ledgewood, NJ 07852

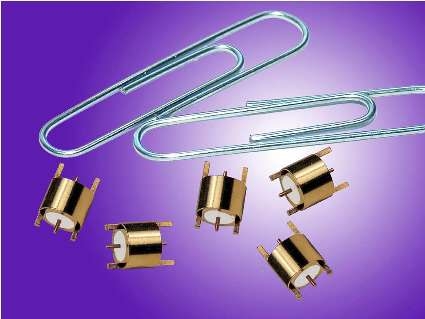

Aug 05, 2005 Eliminatorâ„¢ Series SMB right-angle interface allows direct connection to PCB without additional cables or connectors. Available in 50 and 75 Ω impedance, unit provides broadband performance with reflection from dc through 4 GHz. It is made from precision-machined brass with TFE insulators and gold-plated contacts. Connector features insulation resistance of 1,000 mΩ min, dielectric withstand voltage of 1,000 Vrms, and temperature range of -65 to +165°C.

Stanley-Proto Industrial Tools; A Division of The Stanley Works    Conyers, GA 30013
Aug 05, 2005 Measuring 2–3.5 in. long, Deep Thin Wall Impact Sockets are available in variety of metric sizes for 3/8 in. drives and are suited for hard-to-reach fasteners that require low impact force. Each features TorquePlus™ design in which socket’s curved points contact fastener away from corners, and spread force of turning over larger area of fastener. All include one through-hole and groove to accept retaining ring along with pin to secure socket to power tool anvil.

Datatronics    Romoland, CA 92585 8916

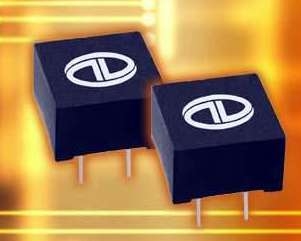

Aug 05, 2005 Compliant to RoHS standards, Sealed Line Matching Transformer, Model LM302-1L is compatible with modem circuitry that meets V.32, V.32 bis, and V.34 industry requirements. It provides isolation between sensitive electronics and offers dielectric strength to 6,500 Vdc. Circuit specifications include 600 Ω impedance, 1:1 turns ratio, and 1.5 db max insertion loss at 2 kHz. Through-hole unit comes in 0.706 in. square package with seated height of 0.422 in.

Hudson Color Concentrates    Leominster, MA 01453
Aug 05, 2005 EverLast(TM) Concentrates are formulated for use with resins reprocessed from industrial scrap and post-consumer sources. Ten standard colors range from wood tones to tropical-colored hues, and can be custom matched to processor's requirement. Suitable for consumer, architectural/construction, and industrial applications, typical end uses include building materials, playground structures, outdoor spas and patio furniture, shipping pallets, and hand tools.

Munson Machinery Co., Inc.    Utica, NY 13503

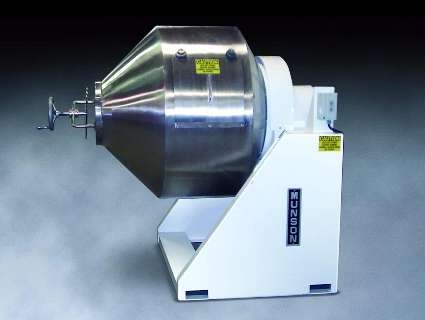

Aug 05, 2005 Miniature HD Series handles materials with bulk densities up to 80 lb/cu ft. Rotating drum features mixing flights that tumble, turn, and fold material gently while achieving total uniformity in 2–3 minutes, regardless of disparities in bulk densities, particle size, or flow characteristics. Models range in capacity from 0.25–15 cu ft or 2–1,200 lb. They evacuate 100% of batch with no manual intervention, and can be cleaned rapidly with no tools.

PennEngineering Motion Technologies, A PennEngineering Company    Harleysville, PA 19438 0003

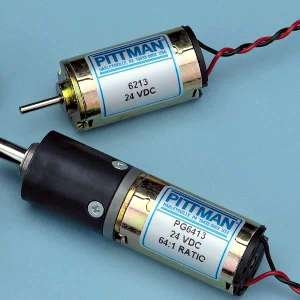

Aug 05, 2005 Available in lengths of 1.256, 1.556, and 1.901 in. Pittman® Series 6000â„¢ 22 mm brush-commutated motors utilize skewed 5-slot armature design and bonded neodymium iron boron magnets. They achieve max peak torques up to 10.2 oz-in. and speeds up to 8,550 rpm. Modular motor design enables customization with cables, shaft-mounted pulleys and gears, ball bearings, windings, optical encoders, and planetary gearheads to satisfy application requirements.

Master Bond, Inc.    Hackensack, NJ 07601
Aug 05, 2005 Resistant to thermal shock, EP45HT MED is formulated for use in assembly of reusable medical devices. This 2-component epoxy adhesive requires min heat cure of 250°F and withstands exposure to repeated cycles of radiation, steam (autoclaving), and chemical sterilants. Able to handle long-term exposure to temperatures from -80 to +500°F, cured system acts as electrical insulator and meets biocompatibility requirements of USP Class VI specifications.

SoftNoze USA, Inc.    Frankfort, NY 13340-5100

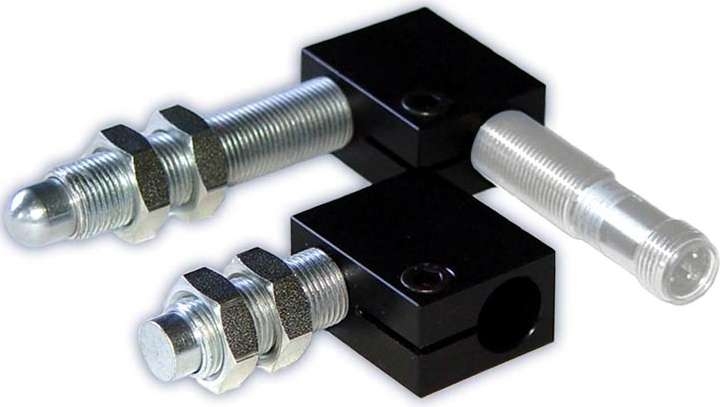

Aug 05, 2005 Right-angle Banking Screw Adapters (BSA) enable non-contact sensors to sense around corners and stop up to 4,600 lb loads. Suited for automation applications, BSA-A devices consist of heat-treat hardened, zinc-plated alloy steel components; threaded barrel; and spring-loaded piston. Sensors trigger on/off with displacement of threaded barrel’s piston. Various barrel lengths/diameters, spring rates, piston styles, and sensor diameters are available.

FCI Electronics    Etters, PA 17319 9769

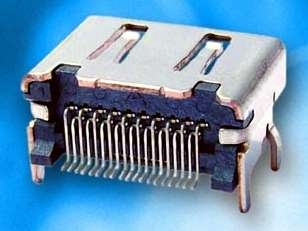

Aug 05, 2005 High-definition multimedia interface (HDMI) utilizes connector designed to carry up to 5 Gbps of uncompressed video and audio in one cable. It contains metal shields for EMI protection and provides minimal impedance mismatch. Rated for 10,000 mating cycles, RoHS compliant, 19-position, SMT terminated receptacle uses gold plating in contact area and comes with panel-mount flange option. Uses include digital televisions, DVD players, and set-top boxes.

Advantech Automation Corp.    Cincinnati, OH 45240

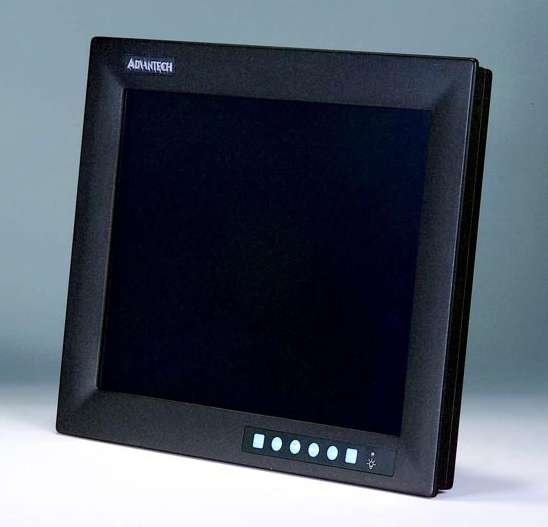

Aug 05, 2005 Industrial-grade, 15 in. LCD Series FPM-3150 features NEMA4/IP65 rating, anti-reflective screen with tempered glass, and hard anodized coating to protect panel from abrasion and acid corrosion. Plug-and-Play feature offered by USB speeds configuration of touch screen. In addition to TDK® inverters and 3M® touch screen sensors, monitors use extra brackets to fasten cords with connectors, ensuring cords are firmly attached, minimizing risk of operation termination.

EXAIR Corporation    Cincinnati, OH 45249-1621

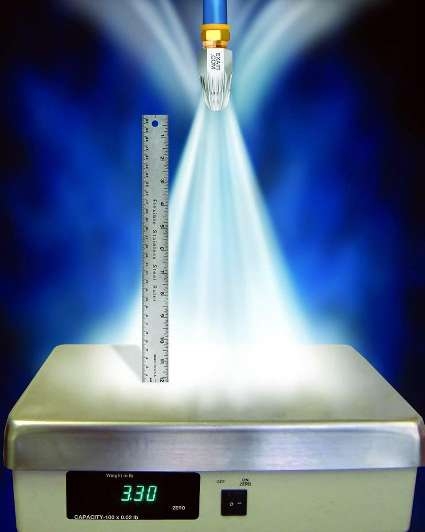

Aug 05, 2005 Featuring aerodynamic design that directs air to single point of convergence, ½ NPT Super Air Nozzle(TM) delivers 3.3 lb of blowing force when mounted 12 in. away from target. Compressed air is ejected through holes located in recessed grooves on nozzle surface, assuring safe operation since airflow cannot be blocked as required by OSHA standard 1910.242(b). Made of zinc aluminum alloy, nozzle consumes 60 scfm at 80 psig and is suited for industrial applications.

FocalSpot, Inc.    San Diego, CA 92131

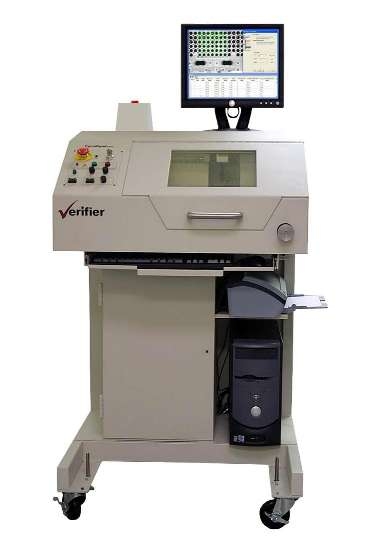

Aug 05, 2005 Verifier HR addresses broad range of failure analysis and manufacturing/rework quality assurance applications. It utilizes 90 kV, 5 micron X-ray source to penetrate shielded packages, and high-definition imaging train that provides more than 650X magnification for clear inspection of nearly microscopic interconnections. With 32 x 34 in. footprint, system can be rolled to wherever it is needed.

Emhart Teknologies    Shelton, CT 06484
Aug 05, 2005 Suited for automotive, electronic assembly, and transportation industries, High Retention rivets employ rib design that counters deformation and stress fracture pressures. They are available with steel and stainless steel bodies and mandrels as well as domed, large-flange, and 120° countersunk head configurations. Offered in 1/8, 5/32, 3/16, and ¼ in. dia sizes, rattle-resistant rivets exhibit shear strengths from 213–1,056 lb and tensile strengths from 269–1,174 lb.

Flooring Adventures LLC    Richmond, VA 23237

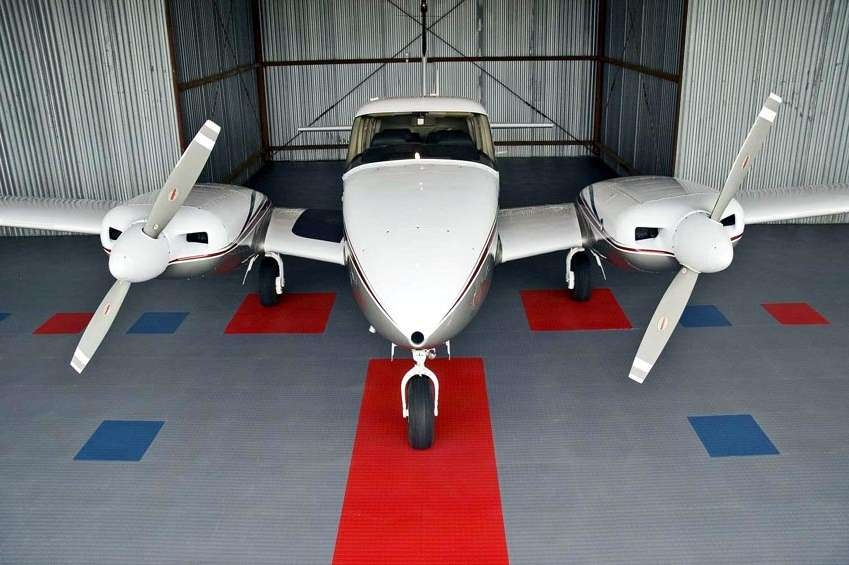

Aug 05, 2005 Tuff-Seal(TM) tiles utilize hidden interlock system to create secure, watertight, and seamless flooring that will not break, crack, deflect, loosen, or shift under heavy loads. Able to be removed and re-laid in other areas, product reduces noise, insulates subfloors, and reduces dust and humidity. PVC tiles, installed over existing or uneven floors, do not require adhesive or subfloor prep and are resistant to mildew, aviation fluids, abrasion, indentations, and fire.
