Heim Data Systems, Inc.    Belmar, NJ 07719
Aug 03, 2005 Suited for acquisition of sensitive data in secure establishments, Series GSR provides all-digital recording, flexible signal interfacing, and removable media. Rack-mounted, 256 Mbit/s units are capable of simultaneously acquiring multiple streams of data from ground, airborne, and satellite telemetry sources. Data retrieval may be via real-time reconstruction of original signal sources or by direct high-speed transfer of digital data to user's computing platform.

UV Process Supply, Inc.    Chicago, IL 60614-4805
Aug 03, 2005 CON-TROL-CURE® Labels are paper-thin, photochromatic, pressure-sensitive labels that change color upon receiving UV dose. Color change enables comparison to dose chart representing UV dose in millijoules. Once label has changed color, it will not continue to change unless exposed to more UV, and is not subject to increasing color changes at elevated temperatures. Labels are suited for web printing, sheet fed printing, exposure verification, and 3D curing.

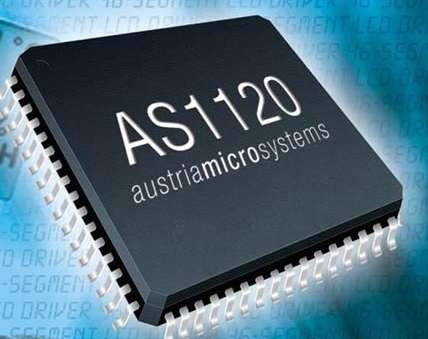

AustriaMicroSystems USA Inc,    Raleigh, NC 27615
Aug 03, 2005 RoHS-compliant Model AS1120 drives up to 46 segments of non-multiplexed LCD displays and can be cascaded to increase segments. Serial interface allows for integration into microprocessor-based solutions with minimal interface between display and data source. With input ranges from 3-5.5 V, driver achieves ultra-low current consumption of 5 µA. Applications include gas station displays, processor monitoring displays, instrumentation readouts, and thermometers.

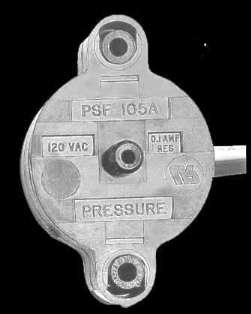

World Magnetics    Traverse City, MI 49686-3441
Aug 03, 2005 Adjustable Series PSF105 achieves set points as low as 0.03 in. H₂O and up to 1.0 in. H₂O with standard tolerance of ±10%. Switches are UL recognized and offer life span of over 20 million cycles. Available as pressure, vacuum, or differential pressure switches, units are suited for medical analyzers, liquid level controls, air flow detection, and filter restriction.

Elcis srl      Italy
Aug 03, 2005 Incremental encoders are equipped with internal coupling that compensates for axial and radial slack of motor shaft to which they are coupled. Available in 4–120 mm hollow shaft sizes, products offer resolutions from 1–900,000 ppr. Select models are designed for use in engine test rooms with up to 20,000 rpm and operating temperatures up to 100°C. Other models are suited for brushless motors, allowing zero search and clamping on motor shaft from rear.

Cummins Power Generation Americas    Minneapolis, MN 55432
Aug 03, 2005 Weather-protective and sound-attenuated enclosures are offered in 3 levels of protection: standard, Level I, and QuietSite® Level II. Along with all-steel construction and stainless steel hardware, products feature lockable access doors, protected exhaust system, and side-mounted generator controls. Enclosures for 600–1,000 kW product range also feature exterior emergency stop. Depending on model, sound attenuation ratings are 85–89, 78–85, and 70–78 dB(A).

McQuay International    Minneapolis, MN 55440
Aug 03, 2005 Able to be floor-mounted in closet or mechanical room, Destiny™ combines blower coil with modular, low-pressure air handler. Full double-wall, foam–injected panel construction facilitates cleaning for improved indoor air quality, while operating static pressure offers flexibility in unit ducting and placement. Suited for applications from 600–15,000 cfm, unit offers multiple coil, filter, and mixing box selections and also comes in horizontal configuration.

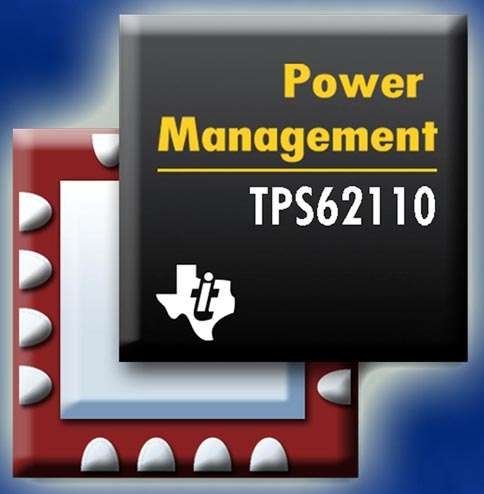

Texas Instruments Inc. / Tiris Division    Dallas, TX 75243
Aug 03, 2005 Supporting 3.1–17 V input range, TPS62110 leverages LBC7 analog process manufacturing technology and features integrated FETs in lead-free, 4 x 4 mm QFN package. This 1.5 A synchronous, step-down, DC/DC converter achieves 95% power efficiency and enters PFM mode at light load currents. It supports output voltages from 1.2–16 V, has 1 MHz switching frequency, and can be synchronized to 0.8–1.4 MHz external clock signal. In shut down mode, power consumption is under 2 µA.

Beijer Electronics, Inc.    Schaumburg, IL 60173
Aug 03, 2005 Featuring 24- or 40-key membrane/steel snap dome keypad, handheld QTERM-G55 can be equipped with one EIA-232, -422, or -485 serial port; Ethernet 10Base-T; or Power-over-Ethernet interface. Its 2-pole (4-wire) NC E-stop switch is placed above terminal display to facilitate access without hindering normal terminal operation. HMI terminal has 3.8 in., 320 x 240 pixel color LCD display and uses Qlarity(TM) object-based graphic terminal programming language.

AmTech    Danbury, CT 06813
Aug 03, 2005 Ultrasplice 2032 and 2050, with splicing capacities of 0.7–32 and 0.7–50 mm², respectively, offer anti-side splice feature and 4 levels of quality monitoring. Along with programmable adjustments of splice sequences and ranges, bench-top units incorporate fully retractable anvil that automatically sequences to produce required splice range. Electronic amplitude control is utilized for 1 µ adjustment, and splice force is controlled by electronic pressure regulator.

Cincinnati Sub-Zero Products, Inc.    Cincinnati, OH 45241
Aug 03, 2005 Equipped with CSZ EZT-550 touch screen controller, Z-Plus temperature/humidity test chambers offer data logging with data access, graphical trending, and remote PC viewer. Roll out shelves support product loads without tipping, and remote software enables desktop monitoring and control. Environmental chambers, available in single stage (-34°C), Tundra® (-45°C), and cascade (-73°C) temperature ranges to 190°C, offer optional humidity range from 10-98% RH.

STMicroelectronics    Lexington, MA 02421
Aug 03, 2005 Offered in 3 versions, op-amps utilize BiCMOS technology and current-feedback architecture. Model TSH310 requires 400 µA quiescent current and achieves 130 MHz bandwidth and 115 V/µsec slew rate. Input noise is 7.5 nv/√Hz typ. With noise as low as 1.3 nV/√Hz, TSH330 provides up to 1.1 GHz bandwidth, 1,800 V/µsec slew rate and 16 mA quiescent current. Model TSH350, with 410 MHz bandwidth, 940 V/µsec slew rate, and 4.1 mA quiescent current, holds input noise at 1.5 nV/√Hz.

ACCES I/O Products, Inc.    San Diego, CA 92121 1506
Aug 03, 2005 Delivering smooth, error-free data transmission, 104-II32-4RO provides connections to assortment of devices via 32 optically isolated digital inputs with change-of-state interrupt generation and 4 electromechanical relay outputs. Inputs may be driven by dc sources of 3–31 V or ac sources at frequencies of 40 Hz to 10 kHz. Along with switchable filters and schmitt trigger buffers, product features 10 µsec typ response time and 1.8 kΩ input impedance.

CAS Data Loggers    Chesterland, OH 44026
Aug 03, 2005 Battery-operated OQ610 accommodates K and T type thermocouple and has 6 input channels. Portable unit, set-up via 3-button operation or directly from PC, automatically detects when sensors are connected. Able to log up to 8 readings/sec, product can be configured to start and stop logging on time or temperature levels. SquirrelView software is included for configuring, downloading, displaying, and analyzing data.

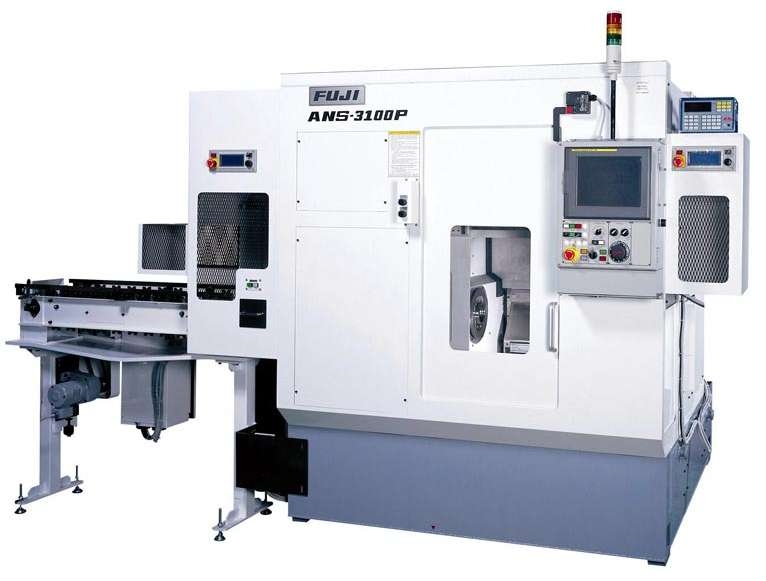

FUJI Machine America Corporation    Vernon Hills, IL 60061
Aug 03, 2005 Modular ANS-3100P offers built-in automation with 4-axis rack and pinion swing arm robot and SP1 Max Controller that provides simultaneous multi-axis movement to access front, back, left, and right of traverse axis. Equipped with Fanuc Control with 5-place decimal control, machine utilizes precision ball screws and vertical bed that aids in evacuation of chips. It operates at 3,500 rpm max, has 8-position turret, and hard turns with 20 hp spindle motor.

Molex Inc.    Lisle, IL 60532-1682
Aug 03, 2005 Rated at 32 V and 1.5 A max, EZ-Conn™ System includes insulation displacement cable plugs and modular PCB receptacle connectors in circuit sizes from 3–32. Field operators need only insert insulated wire and terminate using standard pliers. Vertical through-hole PCB version is available in modular units of 3 or 4 circuits in single, 4-row, and 8-row styles. SMT version is available in 4-circuits, allowing for right-angle mounting.

Trust Automation, Inc.    San Luis Obispo, CA 93401
Aug 03, 2005 Providing fiber-optic transmission of command signals and encoder feedback, TA821 Copper Reduction modules convert electrical encoder, hall sensor, and limit signals to optical signal and back into electrical signals. Products, mounted with motor and on linear stage, are available in 1-, 2-, and 4-axis units that operate on 5 Vdc and feature power-on status indicating LED. Modules measure 3.50 x 3.03 x 0.75 in. and are suited for motion control applications.

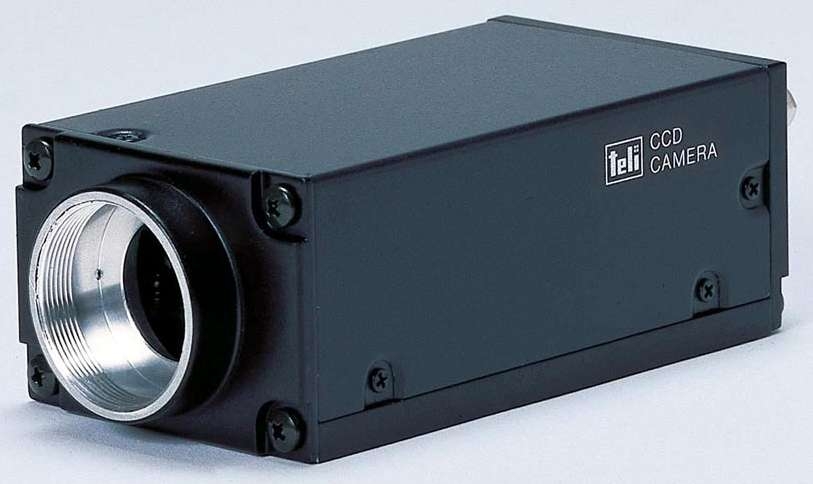

Toshiba Teli America, Inc.    Irvine, CA 92618
Aug 03, 2005 Suited for machine vision applications, CS3950DiF features C-Mount lens, Firewire (IEEE 1394) output, random trigger shutter function, and scalable mode function. This 1/3 in. progressive scan CCD monochrome camera measures 35 x 49 x 98 mm and captures 30 fps at XGA resolution of 1,024 x 768. Video, control signals, and electrical power are optimally handled by single cable to and from workstation, PC, or interface card at transfer rate of 400 Mbps.

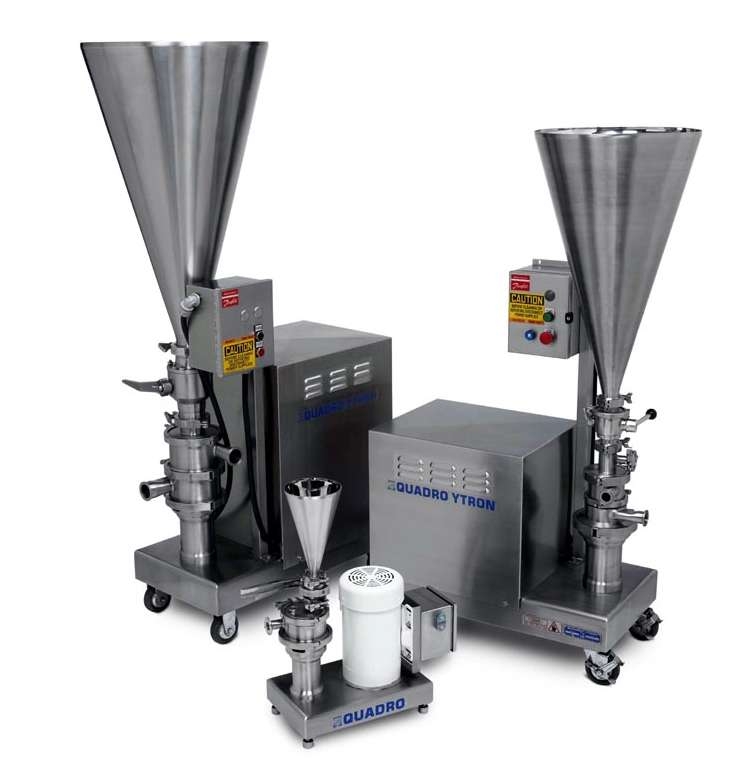

Quadro Engineering Corp.    Waterloo N2V1A1  Canada
Aug 03, 2005 Designed to incorporate and disperse gums into liquid stream in single pass, ZC Powder Disperser comes in 3 sanitary models with 3A, USDA approval and liquid throughputs from 3-120 gpm. Rotor-stator provides intense shearing of gums prior to hydration to produce homogenous dispersions that are free of lumps and fish eyes. Near-perfect vacuum permits concentrations up to 25% by weight to be generated with minimal air entrainment.

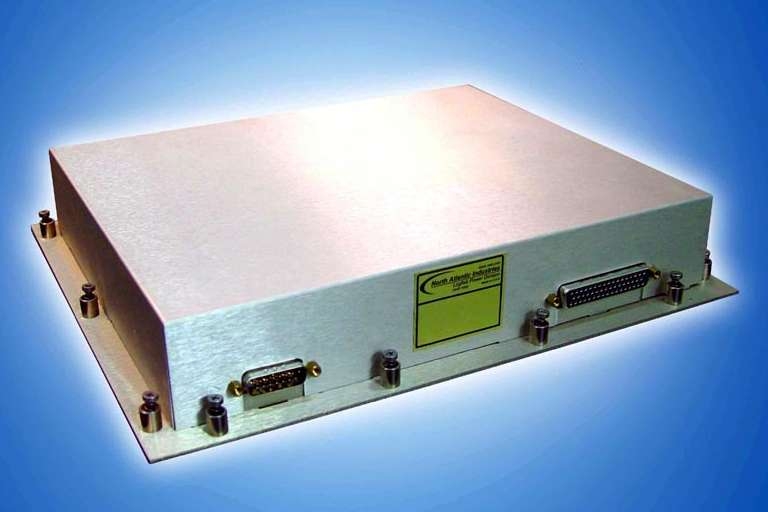

North Atlantic Industries, Inc.    Bohemia, NY 11716
Aug 03, 2005 Generating up to 500 W at full load over operating temperature of -55 to +85°C, Model 57S81 provides 5 outputs for VME system or 8 outputs for VXI system. It features baseplate conduction cooled design and is manufactured to NAVMAT component derating guidelines. Operating from 115/230 Vac single-phase or 270 Vdc, unit provides outputs of +5, +3.3, and ±12 Vdc with +5 Vdc standby for VME systems or +5, ±12, ±24, -5.2, and -2.0 Vdc with +5 Vdc standby for VXI systems.
