RATTUNDE CORPORATION    Grand Rapids, MI 49512

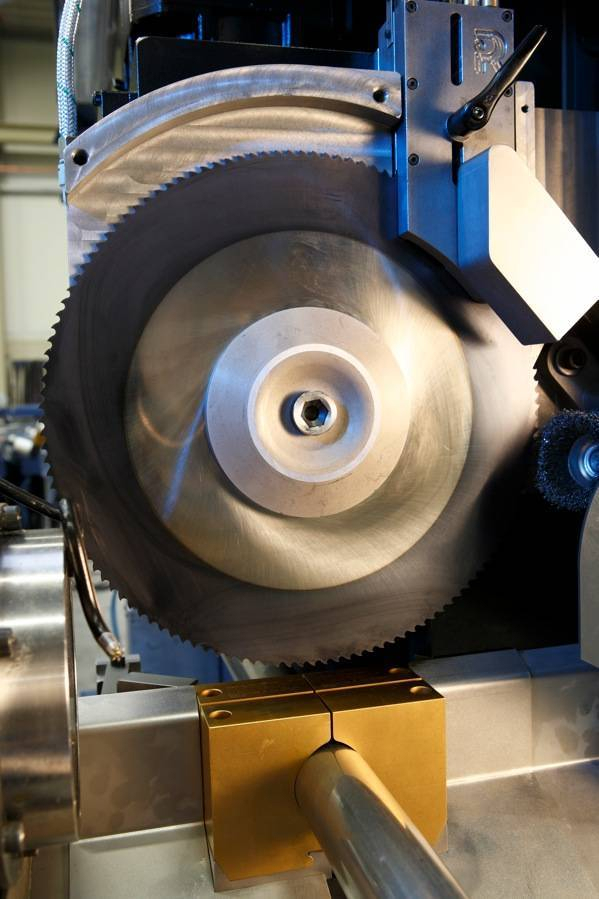

Jun 04, 2012 ACS+CFMcurve is integrated sawing and machining center. ACS cold saws using proprietary algorithm and servo motor controlled feed to continuously adjust critical sawing parameters during each cut. CFMcurve machining center simultaneously machines each workpiece end using 12 independent servo-controlled axes. Utilizing advanced CNC controls, linear ball screws, and servo motors, all mechanical motion is integrated into machine design for full process control.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Jun 04, 2012 Ranging from 32-99°F with ±1°F accuracy, Model PLVT1 directly controls furnace, small boiler, air conditioner, circulator fan, and heat pump in commercial or residential buildings. Unit has LCD that shows current temperature and operating mode. In case of power outage, thermostat can be operated off 2 AAA batteries. Unit can be set to automatically switch between heating and cooling to minimize need to switch modes for different seasons.

Cognex Corp.    Natick, MA 01760 2059
Jun 04, 2012 SensorView® 2 smart display enables production engineers to fully configure, test, and monitor Checker® 4G machine vision sensors without requiring PC at any stage. The 8.9 in. touchscreen facilitates usage and viewing on factory floor, and built-in Ethernet-based communication enables installation anywhere Checkers are connected to network. Touchscreen functionality helps production engineers set up vision sensors; screen size also enables efficient control.

Camfil Farr Air Pollution Control    Jonesboro, AR 72401
Jun 04, 2012 Integrated on top of Gold Series® cartridge dust collectors, ASHRAE-grade Safety Monitoring Filters prevent collected dust from re-entering workspace in event of leak in dust collector's primary filtering system. Each after-filter module incorporates 2 Riga-Flo® filters rated at 95% ASHRAE efficiency and capable of handling 2,650 cfm of air/filter. By preventing flames from recirculating into workspace, units also qualify as flame arresters as outlined in NFPA Performance-based provisions.

Saelig Co., Inc.    Pittsford, NY 14534
Jun 04, 2012 With electrode design that eliminates use of titanium dioxide electrodes in medical applications, PS25451 EPIC (Electric Potential Integrated Circuit) sensor measures electric field changes without physical or resistive contact. Solid-state sensor, supplied in 10 x 10 x 2 mm 3D package with exposed pins, detects changes in magnetic field even through clothing and can be tuned for detection at distance as required by adjusting gain and bandwidth of associated amplification circuitry.

Industrial Magnetics, Inc.    Boyne City, MI 49712
Jun 04, 2012 Engineered with Rare Earth magnets, Transporter® LP Tooling transfers metal blanks, stampings, and parts in automated station-to-station, press-to-press transfer, and robotic pick-and-place applications. Magnets directly replace vacuum cups with minor tooling adjustments and can be installed to existing air connections on tooling booms or robotic face plates. Seven different products in 3 in. diameter Transporter LP line are available with 3/8 BSPP fitting.

GAO RFID Inc.    Toronto   Canada
Jun 04, 2012 Used in pairs, Model C016PB01 plugs into Ethernet SFP port of D-Link switch or router to link port with network. Fiber optic 1000Base-LX transceiver transmits and receives signals on 1 fiber strand using 2 wavelengths. Intended for WDM Gigabit Ethernet links, fiber channel links, and SONET/SDH equipment interconnect applications, unit provides transmission distance up to 10 km over 9/125 micron single mode fiber with transmit range of -3 to -9 dBm and receive range of -1 to -21 dBm.

Larson Electronics, LLC    Kemp, TX 75143
Jun 04, 2012 Supplied in heavy-duty steel tube cage, Magnalight MGPD-SP-125-1D-45-3X50 lets operators tap 480 Vac 3-phase power source and convert it to 120/208 Vac for powering equipment, tools, and lighting. Product is fitted with 45 KVA transformer and provides protection through single 125 A main breaker, three 50 A double-pole GFI breakers, and fusible or non-fusible NEMA-3R disconnect. Integral skid pockets and centrally located lifting eyelet facilitate deployment.

Lusio Solid State Lighting    Overland Park, KS 66085
Jun 04, 2012 Offered in white, single-color, and RGB versions, LightWild Orbs are composed of up to 50 ft long strands that can support as many as 16 controllable, decorative LED pendants. System offer bubbled acrylic orbs (standard), canopies, suspension assemblies, power, and controls. Clear bubbled acrylic and clear acrylic shell provides random diffusion and shields LED source from direct view. Multiple accent lighting options are available for atriums, lobbies, and tall ceiling spaces.

Webscan, Inc.    Longmont, CO 80501
Jun 04, 2012 Delivering even illumination over 2 x 1 ½ in. (standard) or 2 ¾ x 2 1/16 in. (+Plus) field of view, TruCheck Optima can verify any number of linear (1D) and two dimensional (2D) barcodes in same scan. Fully integrated and portable TruMatrix(TM) imaging head connects to PC via USB port, and unit complies with ISO/IEC and GS1 standards for barcode verification. Along with software interface and solid-state LEDs, verifier offers automatic generation and storage of detailed reports.

Larson Electronics, LLC    Kemp, TX 75143

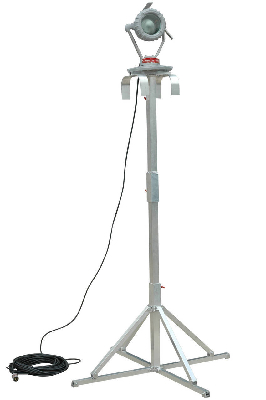

Jun 04, 2012 Featuring explosionproof design for use in hazardous locations, Model EPL-PM-1X30LED-TP1-100 is equipped with 30 W LED pedestal lamp that produces 2,000 lumens. Unit is constructed of aluminum with 4 outrigger legs supporting mast. Tower can be adjusted from 4.5-12 ft in height and lamp assembly adjusts vertically and horizontally for maximum coverage of work area. Operating with common 120 Vac current, tower is also available in 220-240 Vac and 12/24 Vdc configurations.

KORENIX Technologies    Taipei 231  Taiwan

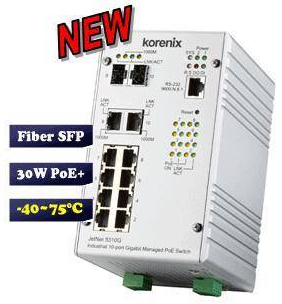

Jun 04, 2012 Offering 8 PoE+ ports and 2 Gigabit RJ45/SFP Combo uplink ports, JetNet 5310G extends megapixel video images over fiber in flexible, distance-critical surveillance networks. DIN-rail mount, managed 802.3at PoE switch delivers up to 30 W/port and incorporates network management and security protocols, auto-discovery and network management system, as well as MSTP and MSR network redundancy technologies. Operating from -40 to +75°C, switch withstands harsh conditions in outdoor installations.

TDK-Lambda Americas Inc.    San Diego, CA 92154

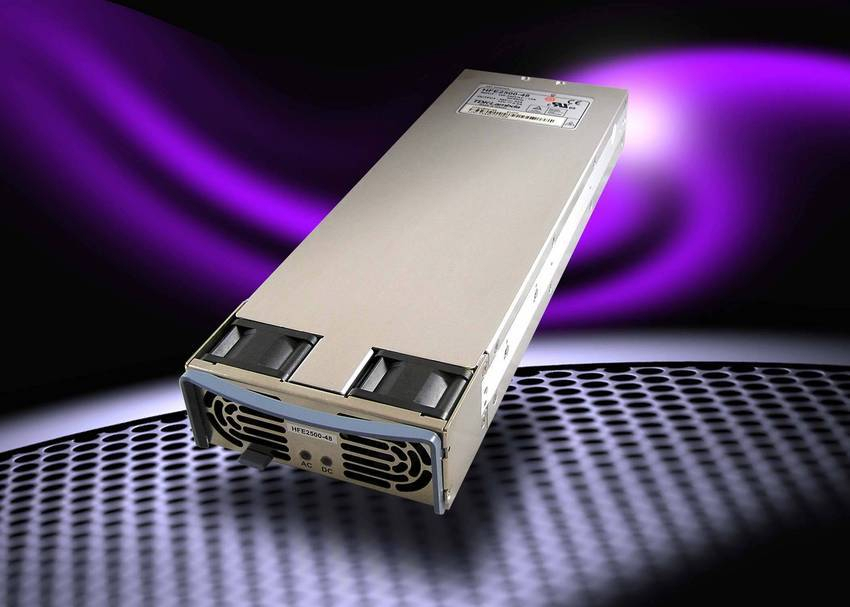

Jun 04, 2012 HFE2500-48 operates with nominal 230 Vac input and provides 48 Vdc, 2500 W output and delivers over 92% efficiency at 20% load, 94% efficiency at 50% load, and over 92% efficiency at 100% load. Certified to 80 PLUS® Platinum standard for redundant, server, and data center applications, power supply can operate off universal AC input of 85-265 Vac with active PFC and provides well regulated DC output of 12, 24, or 48 V. In addition, unit offers measured power factor of 0.97.

Teknor Apex Co.    Pawtucket, RI 02861
Jun 04, 2012 As alternative to engineering thermoplastics, Apex® RM 8911 provides strength and stiffness for large products, such as appliance panels, thin-wall parts, and complex structures, with elaborate flow paths. Chemical-resistant compound produces high-gloss finish and is UL-94 recognized for applications requiring V-0 or 5 VA flammability ratings. Nominal values include specific gravity of 1.35, 83 Shore D Hardness, tensile modulus of 349,000 psi, and tensile strength of 5,570 psi.

Paradigm    Houston, TX 77024
Jun 04, 2012 Offering advanced drilling engineering tools specifically designed to model latest drilling techniques and equipment, such as tractor tools, swivel tools, and divertor subs, Sysdrill® 2012 enables drilling engineers to accurately and safely design extended reach and deep water wells. Program additionally provides graphical schematic representation of bottom hole assemblies for incorporation into drilling programs, and survey management tools for quality control purposes.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Jun 04, 2012 Capable of sampling speeds up to 1 MSPS, 8-channel ADS8028 integrates internal 2.5 V reference, temperature sensor with +1°C accuracy, and internal multiplexer with sequencer. Downloadable TINA-TI(TM) SPICE model enables designers to simulate, model, and test full analog signal chain in software. Housed in 4 x 4 mm QFN package, 12-bit successive-approximation-register ADC features analog supply range of 2.7-5.25 V, digital supply range of 1.65-5.25 V, and external reference of 1-5 V.

Crestron Electronics, Inc.    Rockleigh, NJ 07647
Jun 04, 2012 Creston Fusion(TM) is modular building management solution available as Fusion RV(TM)(RoomView) and Fusion EM(TM) (Energy Management). Fusion RV enables facility and IT managers to monitor and manage room scheduling, AV presentation, and video conferencing from central station. Fusion EM manages and monitors sustainable energy sources in real-time and displays historical usage data for day, week, month, or year. It also provides environmental control, including lighting, shades, and climate.

ZMDI    Dresden 01109  Germany
Jun 04, 2012 Used for calibrating resistive sensor modules, ZSSC3026 combines high-accuracy amplification, 16-bit precision analog-to-digital conversion, and 18-bit DSP for linearization and calibration. Product comes in PQFN, bumped die, or bare die; operates from 1.8-3.6 V; and has fully corrected digital output signal. Consuming less than 1 mA nominally and less than 100 nA in stand-by, IC has noise-free, 16-bit output signal and delivers accuracy better than ±0.01% FSO over -40 to +110°C range.

ADP Co.    Roseland, NJ 07068
Jun 04, 2012 Leveraging learning management tools, learning content from Bersin and Associates, as well as enterprise competency framework, Talent Management lets organizations integrate talent acquisition, compensation, performance management, succession, and learning processes. End-to-end solution is positioned to provide pipeline of personnel for organizations to consider during hiring process as well as means to track them and assess their lifetime productivity for business.

S&P Capital IQ    New York, NY 10041
Jun 04, 2012 CRM Data Suite enables master account level roll-ups, accumulation of ongoing business intelligence, and access to customer data. It allows users to setup master account along with representation of affiliates and subsidiaries from around the world, enabling an enterprise view of customer relationships. Using entity management practices to minimize maintenance and eliminate duplication of records, it enables clients to seed and power both off-the-shelf and proprietary CRM systems.
