Bryant Electric    Milford, CT 06460 2465

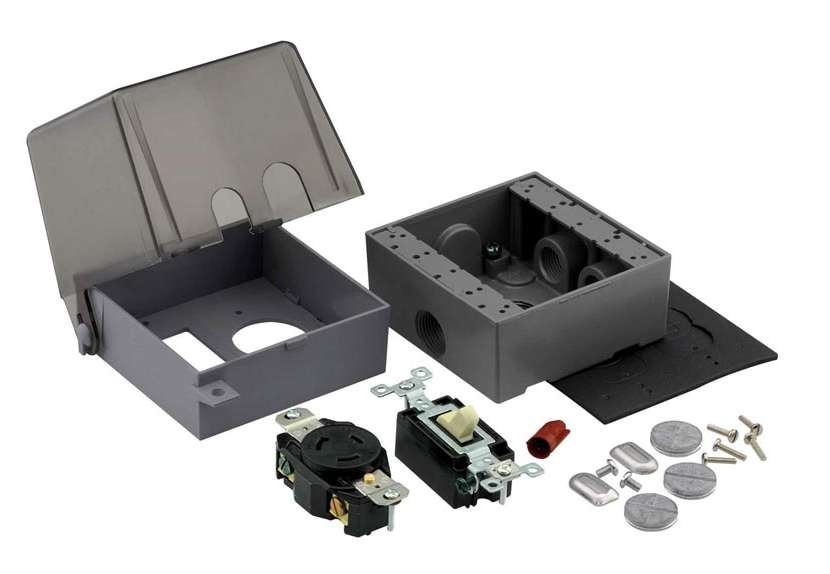

Sep 01, 2005 Featuring 2-gang design in weatherproof aluminum box, Pump Receptacle Kit provides power and on/off switching for outdoor water pumps for pools, spas, and fountains. It is offered with 20 A/120–277 Vac single-pole switch and 20 A/125 V NEMA L5-20 locking receptacle or 20 A/120–277 Vac double-pole switch and 250 V NEMA L6–20 locking receptacle. Mounting hardware, gasket, closure plugs, wire connector, and instructions are included.

Heaters Controls & Sensors    London N6E3T6  Canada
Sep 01, 2005 Suited for brewing, food and beverage, wastewater, and chemical industries, Levelsonic RADAREYE(TM) microwave (radar) level transmitters monitor level where measurements are difficult due to vapors, dust, or pressurized vessels. It features onboard pushbutton calibration, communication module, and multi-colored LED. Along with 3-wire supply, IP 67 rated unit provides 4-20 mA output linear with level measurement.

Enercorp Instruments Ltd.    Islington Ontario M9B 3S4, CD   Canada
Sep 01, 2005 Available in standard and refrigerant versions, Model PX61 determines pressures in liquids and gases and converts them into 4-20 mA signal. Compact transmitter has integral amplifier and converts mechanical deformation to electrical signal via DMS-bridge. Resistant to corrosion and vibration, 2-wire unit uses ceramic diaphragm sensing element and offers 0.5% accuracy. Versions are also available for use with ammonia or Freon.

Brevini USA, Inc.    Vernon Hills, IL 60061
Sep 01, 2005 Designed for medium- and high-power transmission markets, High Power Series features configurable, space-saving design that combines S series planetary gearboxes with PIV’s modular POSIRED 2 family of helical and bevel-helical gearboxes. Products come in 5 harmonically developed sizes that offer nominal torque from 37.000–370.000 Nm, transmission ratios from 100–670, and nominal power from 160–950 kW.

Chemline Plastics Ltd.    Thornhill, ON L3T6L2  Canada
Sep 01, 2005 Suited for butterfly valves up to 10 in., A Series reversible rotary actuators feature die cast aluminum housing with thermally bonded epoxy powder coating, which is rated NEMA 4X. Units include beacon position indicator and manual override. They can also be used with Type 21 ISOLATOR True Union ball valves and HC Series High Capacity ball valves. Operating voltage is 12, 24, 115, or 220 Vac, 12 or 24 Vdc.

Bradley Corp.    Menomonee Falls, WI 53051

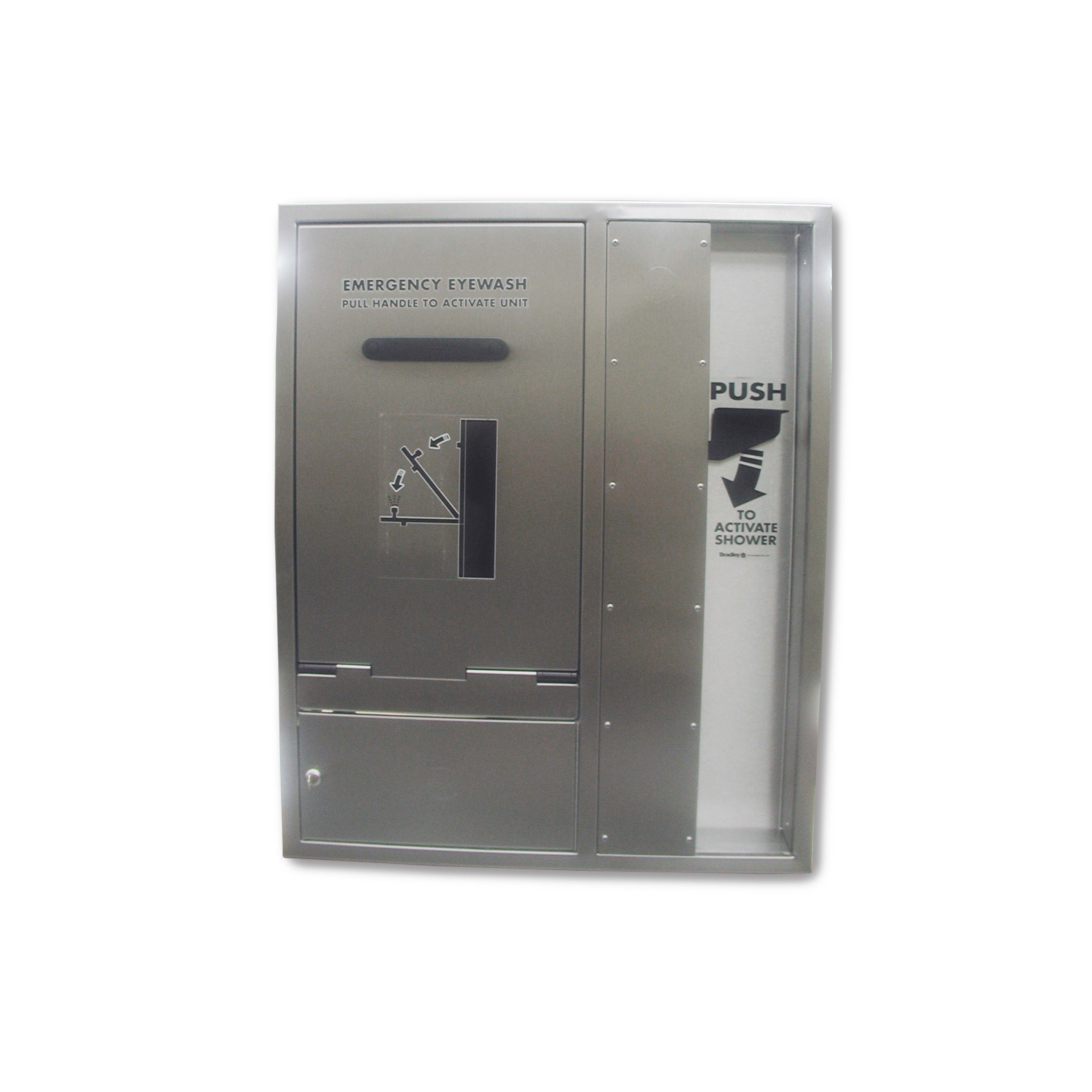

Sep 01, 2005 Complying with American National Standard Z358.1-2004, Drench Shower and Eyewash is flush-mounted into wall to accommodate people with physical disabilities. It offers fully recessed shower handle that activates valve when pushed downward. Shower exceeds minimum water flow of 20 gpm at 30 psi, while eyewash exceeds minimum flow of 0.4 gpm at 30 psi. Designed in one-piece cabinet, unit is suited for laboratories, hospitals, and schools.

UV Process Supply, Inc.    Chicago, IL 60614-4805
Sep 01, 2005 UV FastCheckâ„¢ Strips are used to determine levels of accumulated UV dose via visual inspection of 5 separate color changing zones. Made from same material, UV Intensity Labels operate on same color changing principle but display UV dose accumulation via 1 color changing zone. They measure UV doses from 0 mJ/cm² to greater than 5,000 mJ/cm². Strips measure 2 1/8 x ½ in., while labels measure 1 x ¾ in.

Supercritical Fluid Technologies, Inc.    Newark, DE 19711

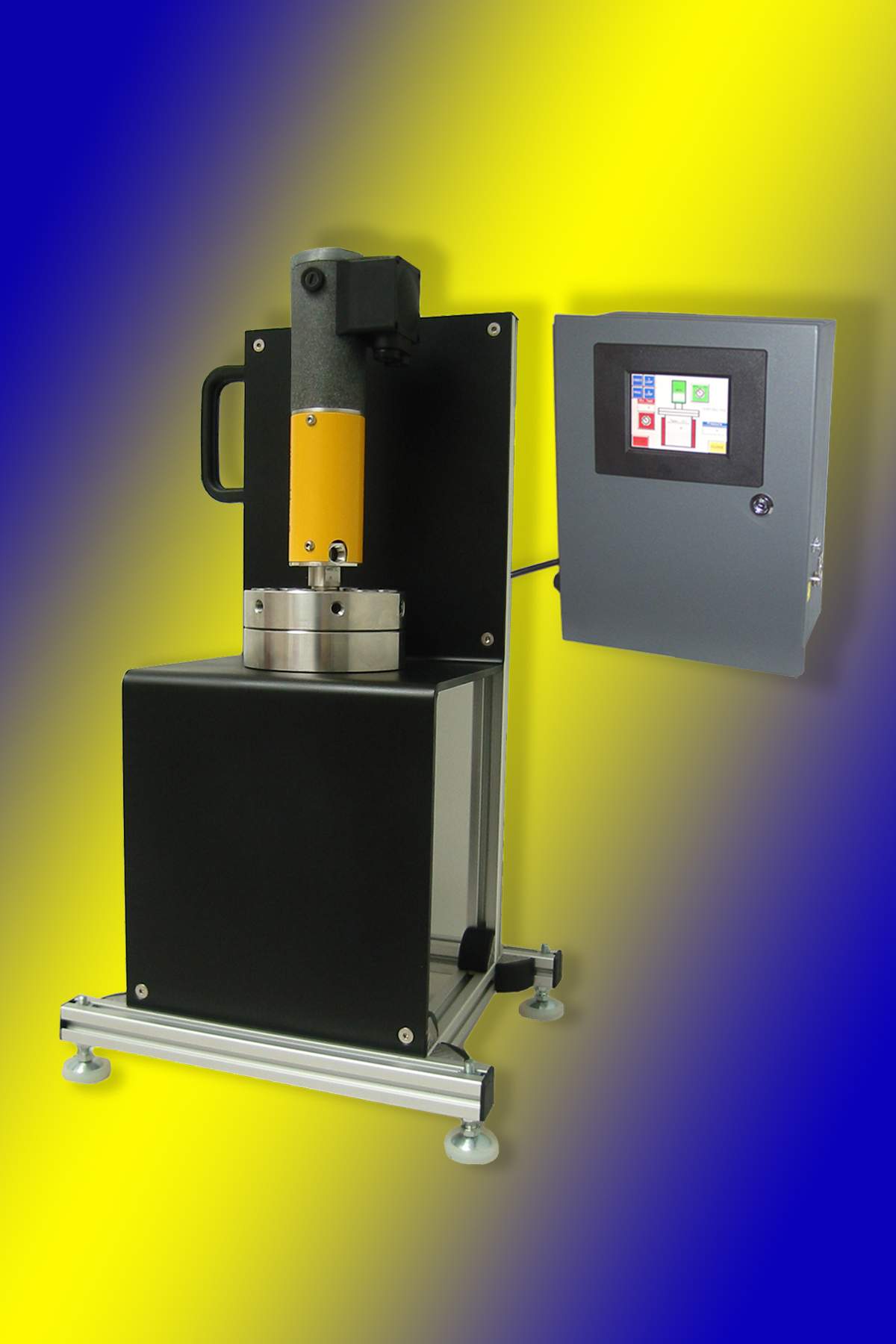

Sep 01, 2005 Suited for high-pressure chemistry, HPR Series stirred reactors feature modular design with magnetically coupled impeller. Laboratory benchtop models, offered in sizes from 50 ml to 8 L, fit into fume hood and may be operated up to 10,000 psi and 350°C. All high-pressure components are ASME-rated and protected by rupture disc for safe operation. Functions are controlled by integrated processor with full color touch screen.

Xsens Sports Technologies B.V.      Netherlands

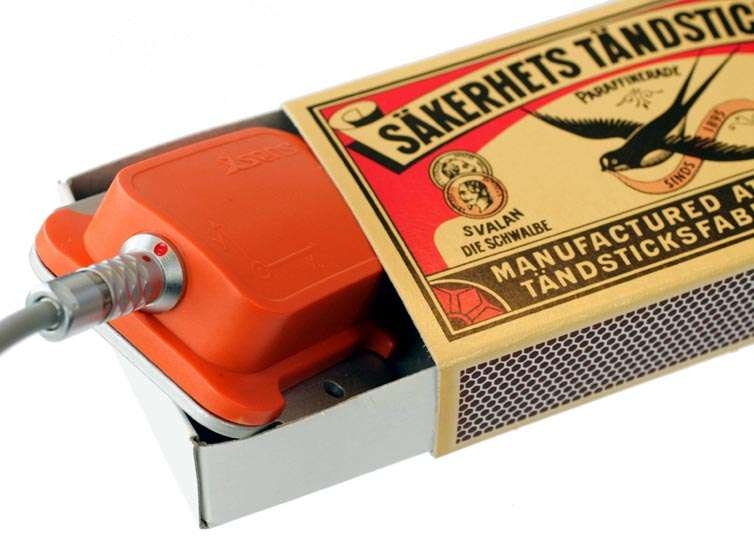

Sep 01, 2005 Equipped with solid-state inertial sensors and earth-magnetic field sensors, MTi Inertial Measurement Unit provides drift-free, gyro-enhanced Attitude and Heading output with 0.5° accuracy. Internal, low-power DSP also calculates 3D acceleration, 3D rate-of-turn and 3D magnetic field data. Interfaced to control systems, product offers RS232, RS422, and USB digital output options as well as analog voltage output of roll, pitch, and heading angles.

BEA Lasers    Elk Grove Village, IL 60007
Sep 01, 2005 Available in 635 and 650 nm versions, 150P Series features attached adapter that plugs directly into ac power supply and produces 6 Vdc for laser module. Additional features include Automatic Power Control with soft start protection, 3-element glass collimating lens with AR coating, and anodized aluminum housing. Offered with outputs of 3, 5, and 7 mW, modules operate over voltages from 4.5–9 Vdc within -10 to +40ºC temperature range.

ON Semiconductor, LLC    Phoenix, AZ 85008
Sep 01, 2005 In 16-pin SOIC package, NCP1603 combines PFC controller chip and PWM control chip to help meet requirements for PFC and standby power consumption in ac/dc power supplies. It operates in voltage-mode, features programmable switching frequency for Discontinuous Conduction Mode (DCM) operation, and can synchronize PWM and PFC operation for max noise immunity. Under light load conditions, product disables PFC function, saving 200 mW of power.

Atrix International, Inc.    Burnsville, MN 55337

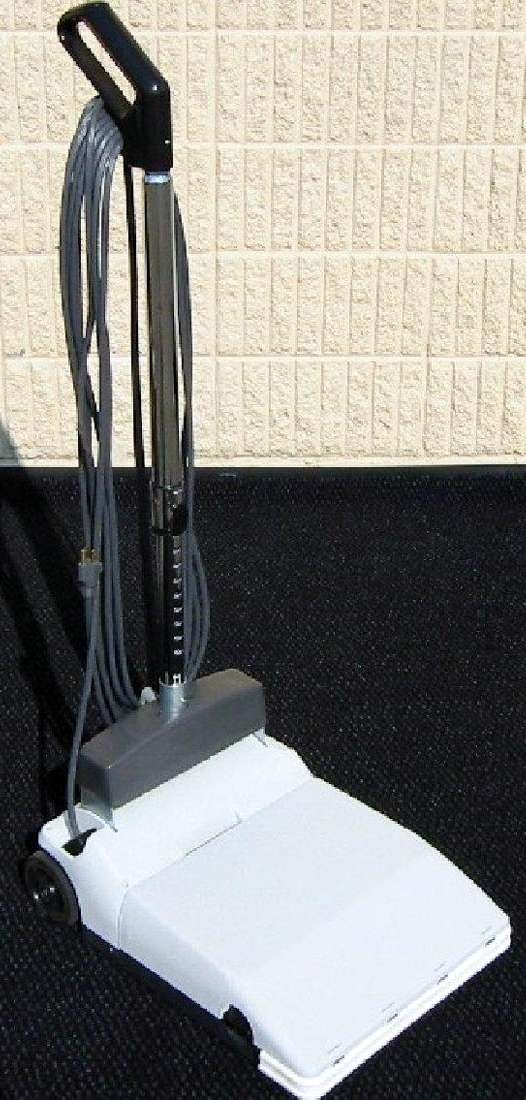

Sep 01, 2005 With no hoses that could clog, Mighty Mouth employs 2 motors that provide enough power to pick up large objects such as popcorn, pretzels, crackers, and pencils. It can be equipped with true HEPA Filter bag to capture mold, lead dust, and other harmful debris. Suited for commercial use, vacuum has front swivel wheels for maneuverability in hallways, entryways, meeting rooms, cafeterias, and schools.

Clean Air Products Clean Air Systems Div.    Minneapolis, MN 55445 1828
Sep 01, 2005 Featuring all metal construction, Series 130 Horizontal Flow Wall Modules resist abrasion, corrosion, stains, and chemicals. Modules may be used individually or in groups to form wall for cleanroom or tunnel. Airflow is factory-set at filter face velocity of 90 fpm. Available with intake at top or rear of unit, modules include protective grill for HEPA filter and quiet drive blower. They meet or exceed Federal Standard 209E and NEC electrical codes.

Perma Pure Inc.    Toms River, NJ 08754
Sep 01, 2005 In high particulate, dusty environments such as cement mills or coal-fired power plants, FB-Series removes large particles of dust and ash from gas samples, preventing clogging of finer porosity filters of analysis equipment. Stainless steel construction tolerates corrosive gas environments, and high velocity flow enables self-cleaning for maintenance-free operation. Range of flow ratings and filter elements are available to suit monitoring application.

Elfab Limited    Tyne & Wear NE29 8SD  United Kingdom
Sep 01, 2005 Designed to prevent environmental contamination in severe process conditions, Double-Disc Opti-Gard comprises primary and secondary rupture discs, as well as pressure gauge or switch to monitor space between discs. In event of chemical attack causing pinholing of primary disc, back-up prevents pollution of environment, while intermediate pressure sensor warns maintenance teams. Disc is corrosion-resistant Hastelloy C267 and features ±5% tolerance.

Harvard Apparatus, Inc.    Holliston, MA 01746 1371
Sep 01, 2005 Designed to fit in small places, Nanomite Micro Injector Pump has pump controller and remote pumping head. It holds syringes up to 6 mm dia, from 0.5 µl to 1.25 ml, and has linear force needed for gastight microsyringes. Pumping ranges from nanoliters/hr to microliters/min can be achieved. Syringe pump offers Fast Forward and Fast Reverse functions for filling microsyringes, while remote footswitch and two RS232 ports facilitate pump control.

BOE HYDIS    Gyeonggi-do 467-866  Korea (south)
Sep 01, 2005 Designed for notebook and tablet PCs, DRIM (Data Rendering Innovation Matrix) LCD panel utilizes pixel structure in which size of green pixels remains the same but that of red and blue pixels are doubled. Products achieve brightness levels of 240 cd/m² and feature 600:1 contrast ratio. Along with Sub Pixel Rendering technology, LCDs utilize Advanced-Fringe Field Switching technology, which supports 180° display angles. At 180 nits of luminance, unit consumes 3.78 W.

Moxa Inc.    Brea, CA 92823

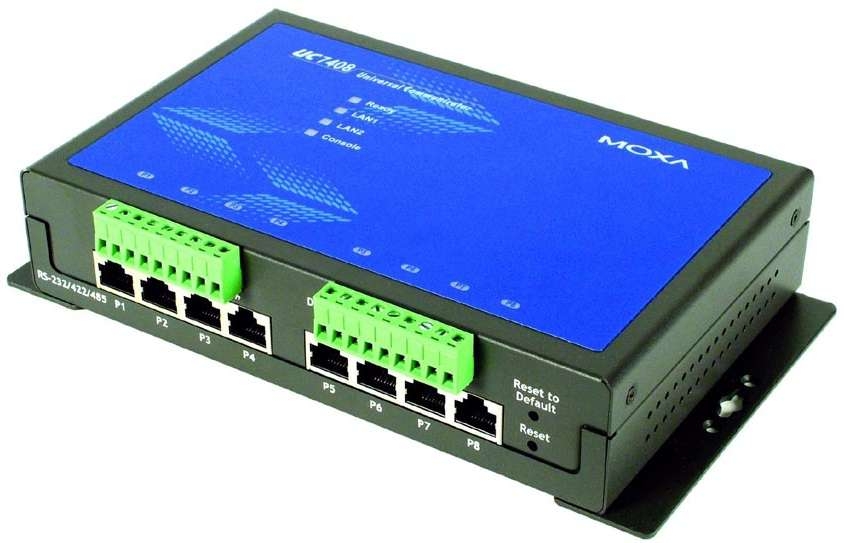

Sep 01, 2005 Powered by RISC-based, 266 MHz Intel Xscale IXP-422 processor that consumes less than 2 W, front-end UC-7408 has fanless design with 8 digital I/O channels, 8 RS-232/422/485 serial ports, dual 10/100 Mbps LAN ports, and CF expansion slot. Wireless-ready (PCMCIA) product can be used for on/off event handling and comes with pre-configured Linux OS with optimized onboard device drivers. Unit also features on-board 128 Mb RAM and 32 Mb Flash disk.

Crystal Software    Wantirna 3152  Australia
Sep 01, 2005 Providing 400 Mb/min throughput, TextPipe Pro v7.5 offers single point of maintenance for text processing tasks. Unicode text can be normalized, composed, and decomposed, and Mainframe AS/400 reports can be converted to comma-delimited format. TextPipe can restrict scope of change to line and column ranges, CSV fields, lines matching pattern, HTML/XML tags, and attributes. It may be automated, embedded, or scripted from programming language.

Bystronic, Inc.    Elgin, IL 60123
Sep 01, 2005 Byspeed 4020 features 5,200 W resonator with Adaptive Radius Control (ARC) technology, which provides automatic optimization of beam diameter for all sheet metal thicknesses and materials. Consistent power output ensures optimal piercing and cutting performance as well as cut quality.
