Georg Fischer Piping Systems    Tustin, CA 92780

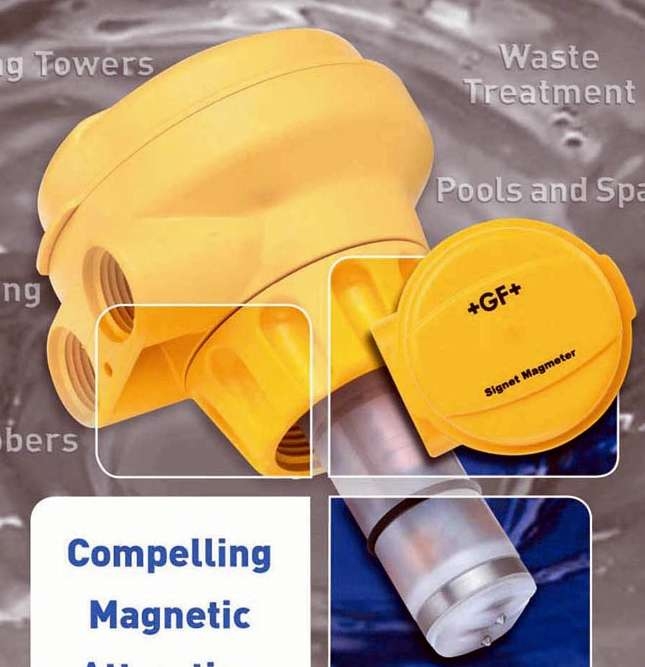

Aug 17, 2005 Suited for conductive fluid applications that contain particles, solids, and fibers, Signet 2551 Magmeter has no moving parts and can connect to other instrumentation via frequency or digital (S3L) signal output or 4-20 mA output option. Insertion style electro-magnetic flow sensor features stainless steel electrodes, PVDF or PP body, and 2-wire system design. Mounted into 0.5-0.8 in. pipes, unit has 0.15-33 fps flow range with repeatability of ±0.5% of reading.

Dylon Industries, Inc.    Cleveland, OH 44144 1045
Aug 17, 2005 Water-based, synthetic ferrous forging lubricant, Grade FW-3857, provides lubricious coating on dies that are normally in 170–500°F range. It dilutes with water, with ratios dependent upon severity of job. Lubricant does not produce fumes or gases associated with other synthetic or non-synthetic lubricants. Best results are obtained when Grade FW-3857 is sprayed by conventional methods.

Cyberlux Corporation    Durham, NC 27703
Aug 17, 2005 Utilizing solid-state lighting technology, multi-purpose EverOn is packaged in hand-held elliptical parabolic reflector design. It contains 6 bright white and 4 amber diodalâ„¢ lighting elements that never require replacement. Using 4 AA batteries, unit provides 60+ hr of light on medium setting and 30+ hr of light on highest setting. Light can be set to produce low, nightlight level; medium, room-filling light level; or high, spotlight level.

Nanostream, Inc.    Pasadena, CA 91107
Aug 17, 2005 Ratiometric assay module helps researchers process data and determine percent conversion and/or percent inhibition for compounds using separation-based assay data from Veloce® micro parallel liquid chromatography system. To streamline routine data manipulation and accelerate time-to-results, software module calculates percent conversion of any sample with 2 peaks in separation-based assay and features user-defined time windows.

Informative Graphics Corp.    Phoenix, AZ 85022
Aug 17, 2005 Brava!® Desktop v1.2 enables users to view standard formats as well as native formats from various programs in one Windows desktop application. Multi-format view, markup, and redaction software features ability to save to PDF, automated redaction, and Content Sealed Format (CSF) for secure content distribution. It also provides Visual Rightsâ„¢ persistent security controls, ability to view secure CSF files, and ability to compare 2 drawing or image revisions.

Invocon, Inc.    CONROE, TX 77385-8703

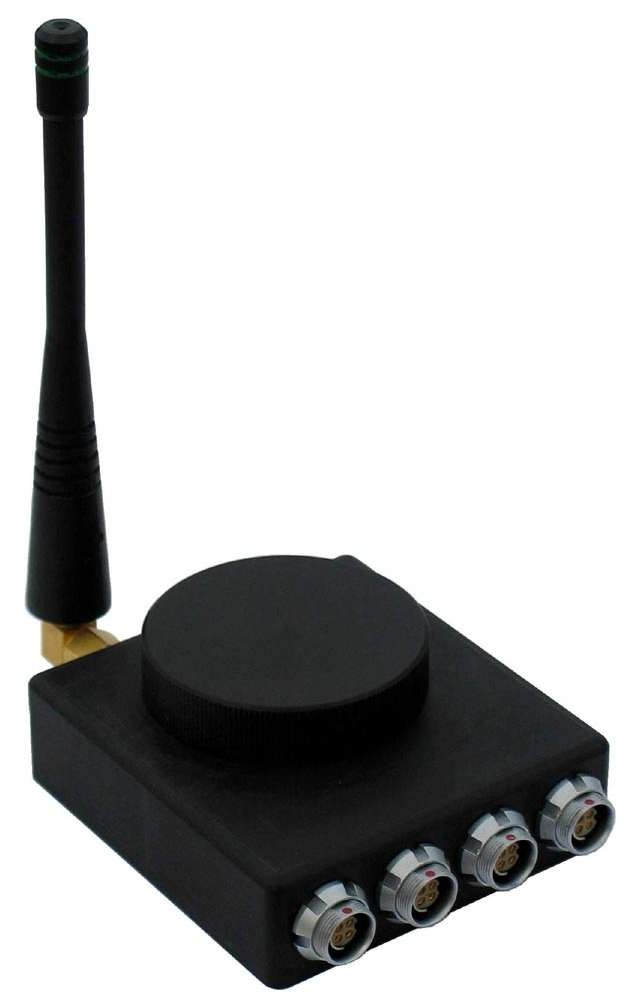

Aug 17, 2005 Suited for extended data acquisition and recording applications, MITE WIS can be configured for up to 4 channels of voltage or resistive sensors. Autonomous device transmits data to RF Receiver, which is connected to PC via RS-232 or USB connection. Offering 3 modes of data transfer, unit offers programmable sample rates from one sample/15 sec to 1 sample/hr. Each transmission is passed to PC where GUI decodes, time-stamps, saves, and plots incoming data.

ifm efector, Inc.    Exton, PA 19341
Aug 17, 2005 Featuring 57 mm housing depth, AS-i Smartlink Profibus DP Gateway can connect AS-i system with up to 434 I/O points as one node on higher level network. It supports all of AS-i 2.1 specifications, including extended addressing mode that allows up to 62 nodes to be connected to each master. Diagnosis and operation status is provided via LED display. Gateway also supports peripheral fault indication and connection of analog devices without use of function blocks.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Aug 16, 2005 Think Express models of ThinkPad® R50e notebook, powered by 1.4/1.5 GHz Intelâ„¢ Celeron® M processor 360/370, features 1 MB L2 cache and 400 MHz FSB. Equipped with 15 in. TFT display with 1024 x 768 resolution, computers offer integrated Intel Extreme Graphics 2 performance, CD-ROM or CD-RW/DVD-ROM, and 40 GB HDD. Integrated communications include 56 K V.90 modem and 10/100 Ethernet, and standard ports are 2 USB 2.0, external display, RJ-45, RJ-11, and parallel port.

L.J. Star, Inc.    Twinsburg, OH 44087
Aug 16, 2005 Lumiflexâ„¢ luminaires provide light output from 24, 120, or 230 V halogen filament lamps through fiber optic guides for illumination ports, combined sight/illumination ports, or for video surveillance. Suited for space-limited applications in hazardous locations, IP67 dust- and water-tight products come in standard lengths from 20 in. to 9.8 ft. They operate at ambient temperatures to 140°F and have min curvature radius for cable of 12 in.

A & D Weighing    Milpitas, CA 95035

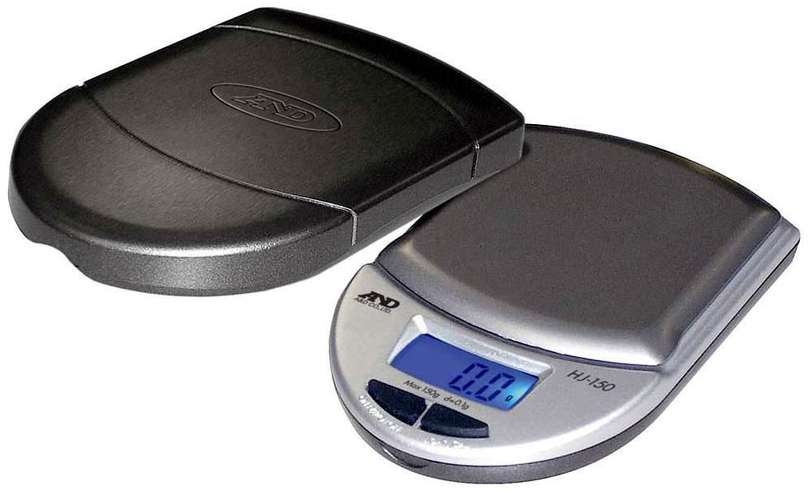

Aug 16, 2005 Equipped with blue backlight, HJ-150 pocket scale displays readings to its max capacity of 150 g with 0.1 g resolution. Unit, capable of weighing in grams or ounces, comes with 100 g calibration mass and 2 AAA batteries. Portable unit is suited for use at home or in industry applications.

A & D Weighing    Milpitas, CA 95035

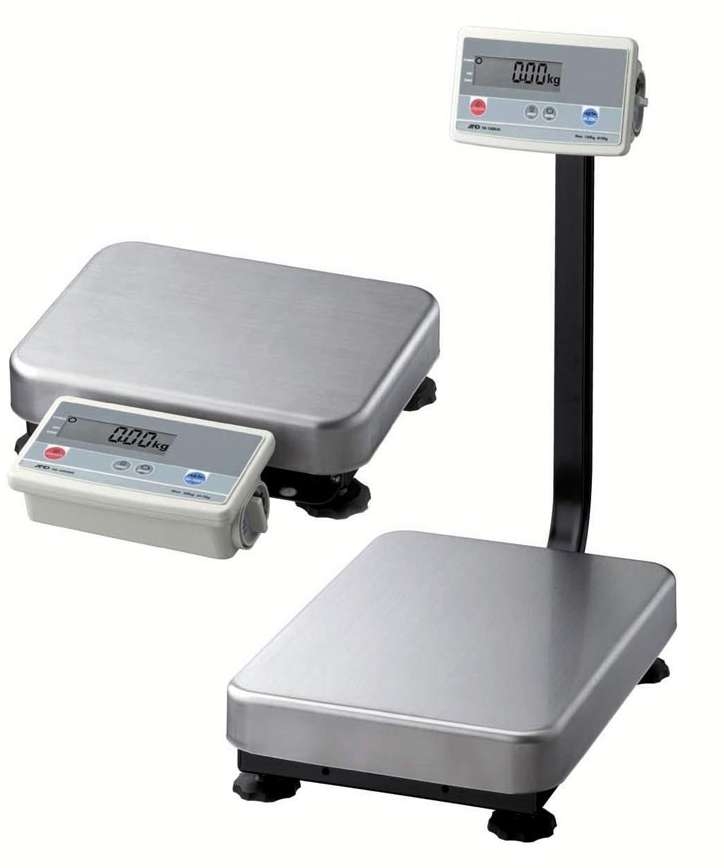

Aug 16, 2005 Featuring capacities from 60-300 lb, Series FG-k is equipped with one-piece stainless steel pan in sizes of 300 x 380 mm or 390 x 530 mm. Large pan models come with or without columns. Operating on ac or battery power, scales offer 3 weighing resolutions to choose from.

A & D Weighing    Milpitas, CA 95035
Aug 16, 2005 While AD-5300 has stainless steel housing and AD-5200 is housed in painted steel, both offer 4 relay I/O's, pushbutton operation, and no parallel port. Modes of operation include Fill to Set-point, Over/Under Checkweigh, Vehicle Weigh-in/out, Multi-container/axle auto weighing, Auto Axle weighing (long scales), ID Tare (print and total), and Peak hold mode.

CyberResearch, Inc.    Branford, CT 06405 2932
Aug 16, 2005 FoldAwayâ„¢ GFM 1501 helps minimize risk of command errors in hazardous industrial and laboratory settings. Unit packs 15 in. color monitor, full-travel 105-key Windows® keyboard, and 3-button trackball into steel rack drawer that fits in 1U height. Monitor provides 250 nits of light at contrast ratio of 350:1, resolution of 1,024 x 768 pixels, and 16 M color. It accepts analog VGA input signals and automatically turns off when folded into tray.

CONCOA    Virginia Beach, VA 23454
Aug 16, 2005 Designed for 600 Series switchover/623 delivery systems, Series 629 is made of 9 in. brass bar stock with 24-72 in. Teflon® or stainless lined hoses. Configured as gas manifold with ½ in. ID flow path, system facilitates flow from liquid cans or high-pressure cylinders to pressure control device. Configured as vent manifold, it provides headspace equalization for multiple liquid cylinders. Manifold has four ¼ in. female NPT, one ½ in. female inlet, and ½ in. male NPT outlet.

Telatemp Corp.    Fullerton, CA 92831
Aug 16, 2005 Appropriate for use as temperature calibration standard, thermistor-based digital Model 4400T has range of -20 to 130°F with accuracy to ±0.03°C from -5 to 70°C and ±0.05°C over rest of range. LCD features low battery indicator as well as rate-of-change arrows, which flash relative to speed of change in temperature. Rubber rocker switch lets user select between °C and °F. Powered by 9 Vdc alkaline battery, thermometer includes 7 in. stainless steel probe and 6 ft cable.

TechniDrill Systems Inc.    Kent, OH 44240

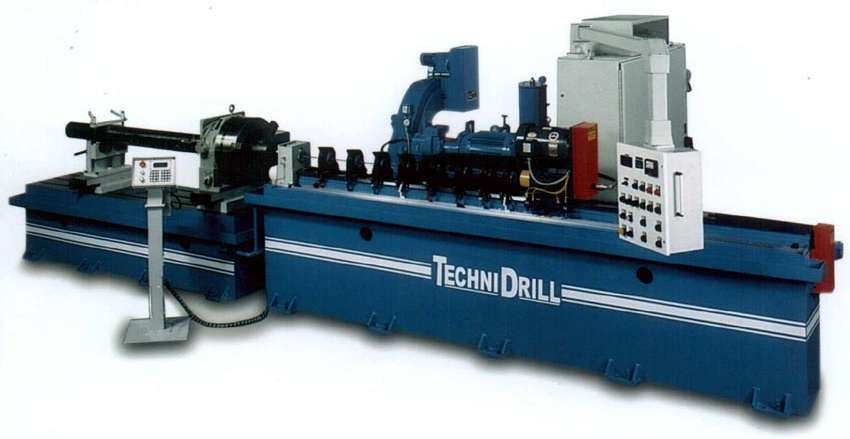

Aug 16, 2005 Suited for oil field manufacturing, 100 Series hole drilling system can drill 3/16 in. dia hole to 96 in. lengths in Inconel®. Utilizing bolt circle indexer, machine is capable of maintaining wall thickness of ±.020 in. for full 96 in. of drilling. Options include coolant refrigeration system, chip removal system, programmable touch screen controls, and full machine enclosures. Unit can also be used in automotive, aerospace, medical, and industrial applications.

Balluff, Inc.    Florence, KY 41042-0937

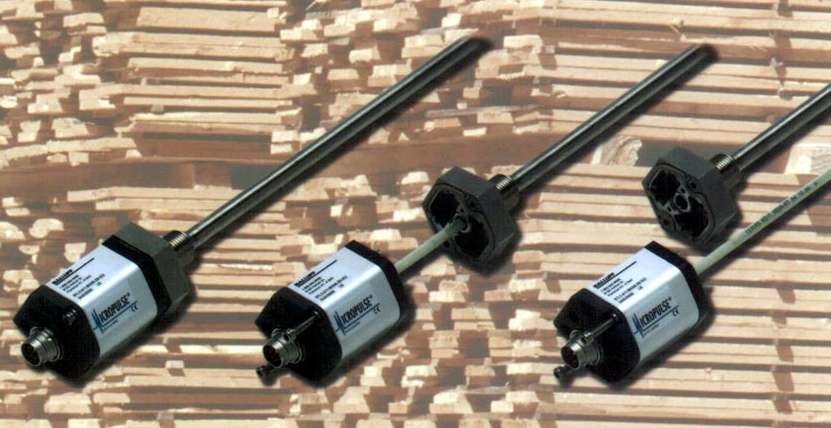

Aug 16, 2005 Micropulseâ„¢ Rapid Replacement Module (RRM) facilitates change-out of rod-style transducer electronics by allowing field replacement without removal of pressure tube from hydraulic cylinder. During replacement process, there is no danger from oil spillage and no need for environmental containment procedures. Module is dimensionally identical to Z style Micropulseâ„¢ transducers and available for all Balluff transducer types, except Profibus, CANopen, and ProSet 4.

Durham Manufacturing Company, The    Durham, CT 06422-2108

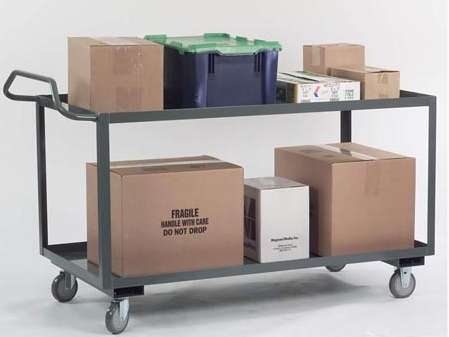

Aug 16, 2005 Featuring all-welded construction, 2-shelf Utility Carts include 14 gauge steel shelves, each with 1,200 lb weight bearing capacity. Models are offered in 4 sizes from 24 x 48 x 35 in. to 30 x 60 x 35 in. with ergonomically designed handle. Both shelf lips are 1½ in. high for product retention. Low profile models also come in 4 sizes, from 18 x 30 x 27 in. to 30 x 60 x 27 in. Handle is tubular, raised and offset 10 in. above flush top shelf.

Novell    Waltham, MA 02451
Aug 16, 2005 Open Enterprise Server enables NetWare® and Windows® customers to move key workgroup services to Linux, all at once or gradually. Secure suite delivers file, print, directory, management, collaboration, and application services. Novell iFolder® v3.0 enables file sharing along with personal file backup and anytime, anywhere access. Novell Clientâ„¢ allows secure authentication, access to services and applications, and automatic drive mapping.

CI Displays    Holbrook, NY 11741

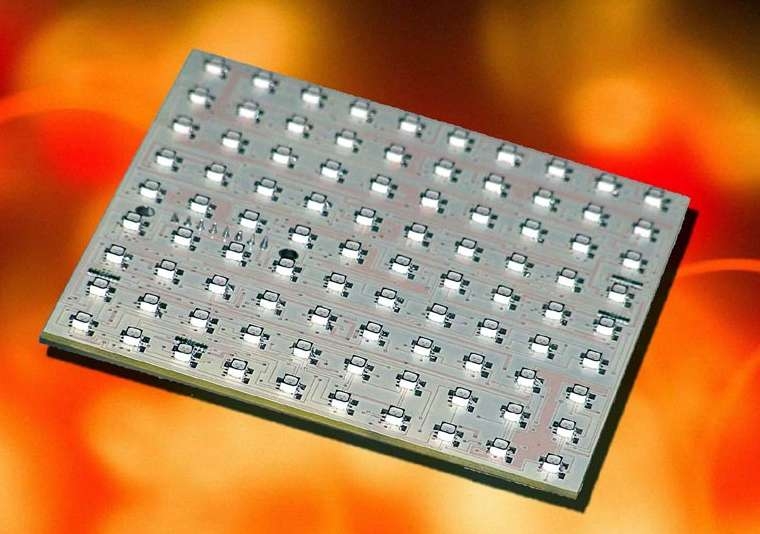

Aug 16, 2005 Direct and edge-lit backlight LED systems offer full brightness at temperatures as low as -40°C and dimming to 0.5 nits with no flicker. Whether for new or retrofit installations, CCFLs can be replaced with LED strips that provide identical form, fit, and function. LED backlighting offers display life of more than 100,000 hours for applications including consumer displays, kiosks, medical devices, and military/aerospace equipment.
