Quanticus S.A. de C.V    Queretaro, Qro   Mexico
Aug 19, 2005 Operating on Windows platforms, DBxtra v6.0 enables users to connect to various data sources and create ad hoc queries and reports. Users can design data report and publish it to Intranet or Internet server as ASP page, without knowledge of ASP, HTML, or Programming. Page can be viewed from any computer with DBxtra software or from any Internet browser. Created reports can be printed; exported to HTML, ASP, Excel, XML or PDF; sent by email; or uploaded to FTP server.

SoftInform    Minsk   Belarus
Aug 19, 2005 Multi-window browser, iNetAdviser v4.5, combines ad and pop-up blocker, bookmarks manager, and image manager. It lets users manage opened Internet Explorer windows, translate and invoice Web pages, and form quick groups with thematic pages and URL aliases. Imported images with comments can get rated and bound to one or multiple rubrics. When mouse hovers over link, program provides pop-up hints containing page-related information.

Watermark Factory    Seattle, WA 98124-1069
Aug 19, 2005 Watermark Factory v2.0 helps create visible protection without marring aesthetic impression of image. Tools enable users to create text or logo watermark and integrate it into image. Once created and saved, watermark can be retrieved and used again on any project. Program operates with single images as well as image folders and offers ability to add image-specific information. Tools create visual effects for text and logos and offer 3 positioning modes.

Uson L.P.    Houston, TX 77041
Aug 19, 2005 Qualipak leak testers, ranging from one-test devices to multi-channel, multi-test systems, provide tools for quantitative testing. Used in food, medical, cosmetic and pharmaceutical industries, devices perform non-destructive testing. All test procedures are verifiable, and results are automatically displayed and collected. Products detect small but potentially serious leaks as well as process faults that would otherwise lead to production of flawed products.

Novell    Waltham, MA 02451
Aug 19, 2005 Able to run on multiple OS platforms, Novell® GroupWise® v7 delivers secure collaboration platform with integrated e-mail and instant messaging, Microsoft Outlook support, and pre-bundled license of SUSEâ„¢ Linux Enterprise Server. It manages collaboration functions while protecting against vulnerabilities and attacks. Software keep users connected regardless of location, device, or platform.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055

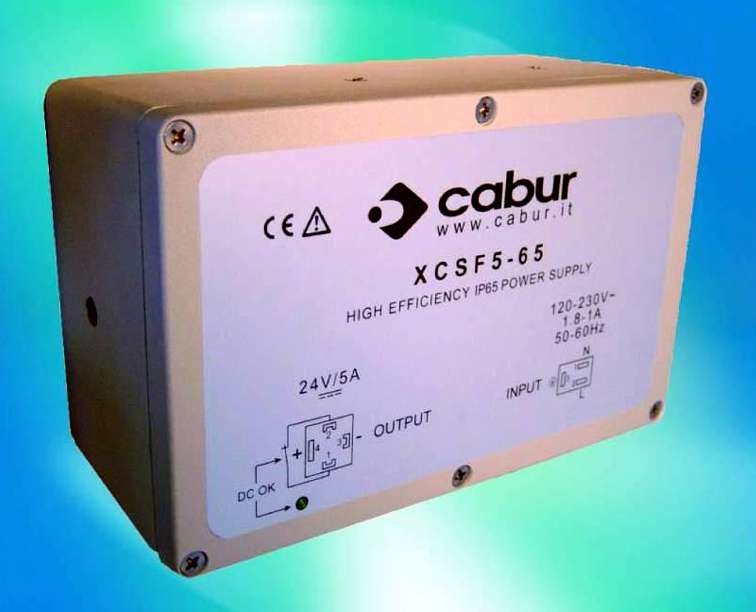

Aug 19, 2005 With 90-264 Vac/110-300 Vdc input voltage and continuous current of 5 A at 45ºC, IP65 Single Phase Switching Power Supply features sealed aluminum enclosure that withstands harsh environmental conditions. UL listed power supply can be mounted directly onto machinery frame, making it suitable for applications where machinery is sprayed down, such as in food, beverage, and pharmaceutical industries.

Samtec, Inc.    New Albany, IN 47151 1147

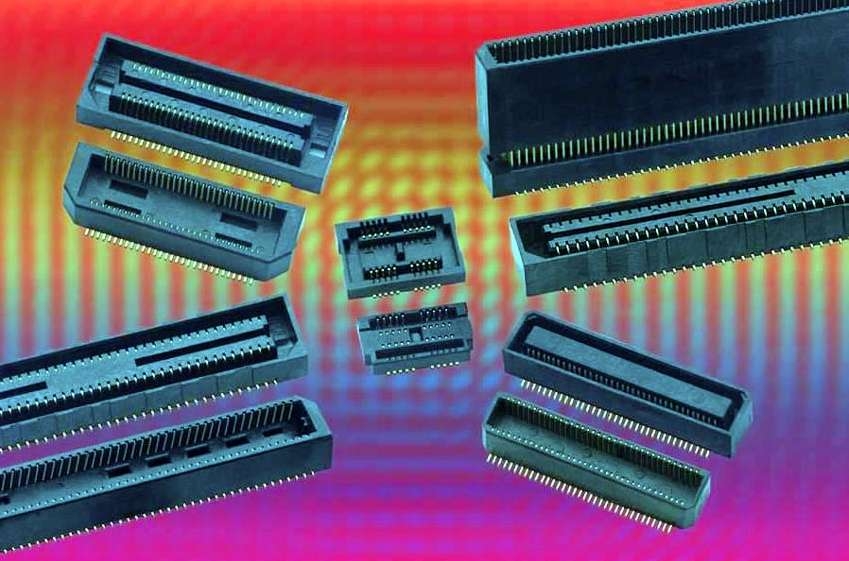

Aug 18, 2005 With blade and beam construction, sub-millimeter interfaces are offered on .0197 in. pitch for .197 in. board spacing (BTH/BSH Series) and for low-profile applications (LTH/LSH Series) with .091 in. mated height. Connector sets offer pin counts up to 360 in only 775 mm² board space, while lower profile options offer up to 100 I/Os in 185 mm². QTS/QSS Series (.025 in. pitch) and BTE/BSE Series (.0315 in. pitch) are available with up to 300 and 240 I/Os, respectively.

American Zettler, Inc.    Aliso Viejo, CA 92656 4115
Aug 18, 2005 Used anywhere waterproof socket is needed, ST9721-U4 is designed to fit AZ973 shrouded relay, which includes relay gasket and uses push to seat terminations. Wire seals are also available, and all components are of UL-recognized materials with chemical- and V2 or better flame-resistance. Offering universal fit for most sealed terminals, 1 socket and 2 sizes of wire seals fit all wire ranges. This 5-way socket converts to 4-way.

Yamaha Robotics    Edgemont, PA 19028
Aug 18, 2005 With respective arm lengths of 180 and 220 mm, YK180X and YK220X feature installation footprint as small as 112 x 105 mm and are designed for payload capacity of 1 kg. They offer flexibility in system design, with XY positional repeatability of ±0.01 mm and cycle time of 0.39 sec. Robots are suited for assembly of small parts.

Conta-Clip    Hillsborough, NJ 08844

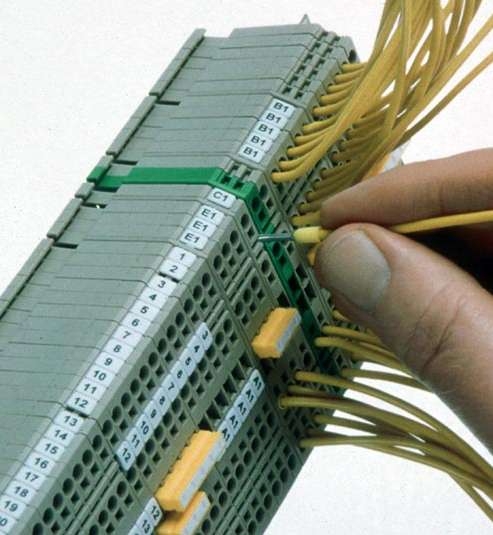

Aug 18, 2005 Utilizing stainless steel leaf spring clamp connection, FRK Series includes Feed Through and Ground Terminal Blocks in 2-, 3-, and 4-clamp configurations. System requires no tools and allows fingertip wire installation. Able to terminate solid wire or stranded wire with ferrule, vibration- and corrosion-resistant system employs copper alloy conducting element. Block widths of 4, 5, and 6 mm accommodate respective wire sizes up to No. 16, 12, and 10 AWG.

Hayward Industrial Products Inc., Hayward Flow Control Systems    Clemmons, NC 27012
Aug 18, 2005 Rated for full 225 psi, fully repairable EA Series has true union design and incorporates 110 Vac electric actuator with output torque of 140 lb-in. Built-in, automatic resetting thermal overload protector prevents motor burnout, and 25% duty cycle motor drives valve through permanently lubricated gear train. Featuring EPDM seals and PTFE seats, PVC valve is available in sizes for ½â€“2 in. pipelines with socket or threaded end connections.

Hayward Industrial Products Inc., Hayward Filtration    Elizabeth, NJ 07207
Aug 18, 2005 Offered in several filter styles, CLEARGAFâ„¢ Filter Bags deliver fully FDA compliant materials per 21CFR177 and fully EC compliant materials per 90/128/EEC. Low migration media minimizes substances introduced to fluids. Sentinel® Ring Bag Seals and all-welded construction eliminate fluid bypass through needle holes on felt and multilayer bags. Single packaging in protective plastic keeps bags free from contamination during shipping, storage, and installation.

Fisher Electric Technology    St. Petersburg, FL 33716
Aug 18, 2005 Featuring 10-pole rotor configuration that utilizes Samarium Cobalt rare earth magnets, Model M3-2.5AF develops 11.2 kW continuously and provides 12 lb-ft torque. Forced air-cooled unit measures 5.00 OD x 8.3 in. long. Electronic controller, Model BDN100A40AC, is comprised of 3-phase brushless servo amplifier with built-in rectifier in 10.6 x 9.2 x 6.3 in. package. Analog input of 0–10 V or external potentiometer controls motor shaft speed set points.

Solutions Cubed    Chico, CA 95928
Aug 18, 2005 Capable of controlling 1 brushed dc motor, Motion Mind provides 9 A continuous and 25 A peak. Open loop control can operate with serial data input, button presses, analog control signals from 0–5 V, and pulse control from R/C type signal. Closed loop control requires 2-channel quadrature encoder or analog feedback signal from 0-5 V. Electrically, Motion Mind can communicate at RS232 levels through on-board translator IC, or TTL serial interface with open-collector output.

Linear Technology Corp.    Milpitas, CA 95035
Aug 18, 2005 Suited for cell phone LED displays, 850 kHz Model LTC3208 features input voltage of 2.9-4.5 V and 1 A total output current. It can drive up to 17 LED current sources including 1-4 main, 1-2 sub, 1-3 RGB, 1-4 camera, and 1-4 auxiliary displays. Each display has digital control with independent dimming and programming via 2-wire I2C(TM) serial interface. Housed in 5 x 5 mm QFN-32 package, Model LT3208 utilizes 1x/1.5x/2x charge pump for optimal efficiency.

Leonard Valve Co.    Cranston, RI 02910
Aug 18, 2005 Surfashower® comes in variety of preassembled models including single temperature, thermostatic, pressure balanced, single or multiple users, and ADA compliant. Each comes with 18-gauge stainless steel cover, vandal-resistant design, and installed or hand-held showerhead. Options include water-saving timed push-buttons, built-in shutoff for single handle operation, soap dishes, stainless steel extensions, back inlet connections, and color-coded dials.

Lin Engineering    Santa Clara, CA 95054
Aug 18, 2005 Offered in body lengths of 2.52, 2.96, and 3.89 in., SilverPak 23D integrates NEMA 23, 1.8° step motor and microstepping driver. Unit operates from 15–48 Vdc with phase current ranges from 0.3–3 A peak. It provides jumper configurable step resolutions from 2x–256x microstepping and 4 selectable damping modes. It includes optically isolated step, direction and disable/enable inputs, as well as under-voltage and over-temperature protection.

Linear Technology Corp.    Milpitas, CA 95035
Aug 18, 2005 Standalone linear Models LTC4065/LTC4065A charge single-cell Li-Ion batteries up to 750 mA without overheating device or surrounding components. They offer timer termination, recharge, trickle charge, and C/10 detection. Units require no external MOSFET, sense resistor, or blocking diode. Featuring charge current monitor output, 4.2 V 0.5% accurate float voltage, and 5% charge accuracy, ICs are suited for digital still cameras, cell phones, PDAs, and USB handheld devices.

Linear Technology Corp.    Milpitas, CA 95035
Aug 18, 2005 Providing ac and dc load and line regulation, H-Grade version of LTC1772 provides ±2.5% output voltage accuracy and consumes 270 µA of quiescent current. Current mode, step down, dc/dc controller incorporates undervoltage lockout feature for when input voltage falls below 2.0 V. Configured for Burst Mode® operation, product comes in 6-lead ThinSOT(TM) package, delivers efficiencies up to 94%, and offers constant frequency 550 kHz operation.

Linear Technology Corp.    Milpitas, CA 95035
Aug 18, 2005 Suited for applications subject to high ambient temperatures, 36 V step-down H-Grade Model LT1936 features internal 1.9 A power switch and is housed in 8-lead, thermally enhanced MSOP package. It offers adjustable output down to 1.20 V and 500 kHz fixed frequency operation. With input range of 3.6-36 V, current-mode PWM converter is suitable for regulating power from unregulated wall transformers, 24 V industrial supplies, and automotive batteries.
