Speedline Technologies Inc.    Franklin, MA 02038
Aug 26, 2005 Benchmark v5.0 for Camalot XyflexPro dispensing system includes Flip Chip Calculator, which determines underfill weight and volume for both die within cavity and standard assembly methods. TurnBack function allows any Dispense Unit or Pump to be reversed, giving precise control of material on needle tip, and eliminating material balling or dripping due to backpressure. Die Edge Detection simultaneously finds all 4 edges of Flip Chip, ensuring pinpoint positioning.

KUKA Robotics Corp.    Clinton Township, MI 48036
Aug 26, 2005 Able to be floor- or ceiling-mounted, self-contained, single-axis KUKA Linear Slide adds 7th or 8th axis when used with another robot. Range of movement is managed by programmable software limit switches, with safeguard of mechanical stops. Driven by brushless ac servomotor with rack and pinion gearing, KUKA KL 250/2, KUKA KL 100, and KUKA KL 1500/2 are designed for robots with payload capacities of 6-16, 30-60, and 100-500 kg, respectively.

Binks ITW Industrial Finishing    Glendale Heights, IL 60139
Aug 26, 2005 Used for high-volume dispensing of filled polyester resin and catalyst material, Bossâ„¢ pump offers 5 gpm @ 20 cycles/min standard output and 15 gpm max output. It delivers uninterrupted operation and features reversible sharp-edge carbide seats, hard chrome-plated cylinder and rod, as well as spring-loaded u-cup seals with no packings. Additional features include integrated muffler in air motor and removable foot valve and cylinder.

Spantech, LLC    Glasgow, KY 42141
Aug 25, 2005 Useful for cooling, curing, and time delays, Spiral Elevator rests stationery on spiral chain and travels up or down at speeds to 250 fpm. Product requires no pressure or controls and employs Variable Frequency Drive as standard. Able to handle products up to 10 in. long, unit is available for clockwise or counterclockwise operation. Feed-in and feed-out have 4 available positions, and product may be ordered with drum diameter to 30 in. and chain width to 9.67 in.

Donaldson Co., Inc.    Minneapolis, MN 55440-1299
Aug 25, 2005 DS Series removes condensate from compressed air system, wherever it forms, and discharges it in environmentally sound manner. When oil is present, condensate is purified to 100 ppm levels of residual oil content before discharged to public water treatment systems. Compressed air condensate oil/water separators feature multiple condensate inlet ports, tapered carbon bag chambers, knob-adjustable oil skimming tray, and attached, hinged lid.

Pfeiffer Vacuum Inc.    Nashua, NH 03063

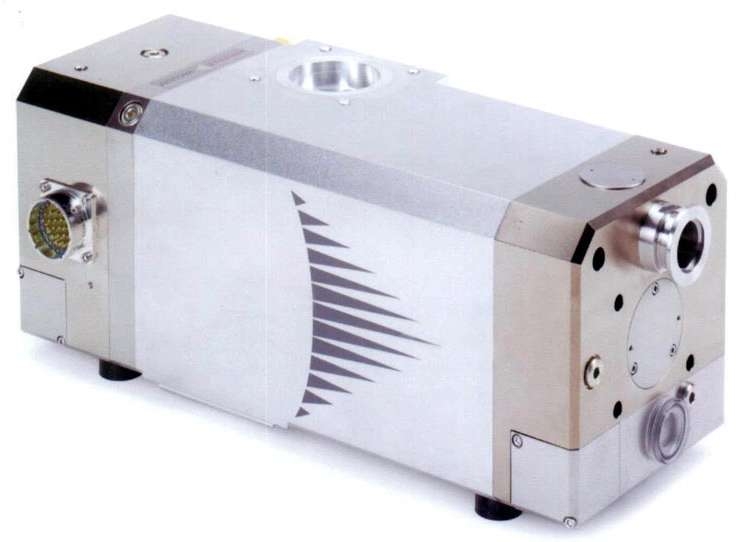

Aug 25, 2005 Used as standalone unit or as backing pump for turbopumps, OnTool(TM) Booster pump provides one-pump solution for achieving high vacuum. It eliminates need for backing pump due to its pumping speed of 130 m³/h and pressure of less than 1 x 10^-5 mbar. Suited for clean applications that operate without any particulate matter, corrosive gases, or condensation, product produces minimal vibration level, which prevents wafer or critical parts movement.

Valenite, Inc.    Madison Heights, MI 48071 9636
Aug 25, 2005 Capable of achieving surface finishes of Ra 0.3–0.8, MODCO® BHR (Brazed Head Reamer) Reamer series is offered with choice of ValProâ„¢ carbide grades, sizes, and shank styles. Though custom-configured to specific job needs, standard construction consists of shank and interchangeable cutting head module. Reamers, engineered for blind hole or through hole applications, offer full working diameter range of head sizes for finishing holes from 9.75–32.50 mm.

LEESON Electric Corp.    Grafton, WI 53024-0241
Aug 25, 2005 Performance matched for continuous duty service over 60:1 speed range, OS 300 gearmotors offer constant torque when powered by full-wave unfiltered SCR-type adjustable speed control with form factor of 1.3–1.4. Motors feature matched steel gears with first stage steel helical gear followed by spur-type, as well as hardened steel shafts. Designed for battery power, they can also be used with low-voltage controller, and are mountable at any angle.

Hypertherm, Inc.    Hanover, NH 03755 0010
Aug 25, 2005 Designed for HyPerformanceâ„¢ Plasma systems and FASTLaserâ„¢ processes, Automation CNC v6.0 provides HPR interface with full-screen diagnostics, configurable Watch Windows, and ability to create custom cut chart databases. HPR130 auto gas console features allow users to setup plasma supply operations. Along with facility for determining focal position, software offers Dynamic Pierce Control, auto process control, and laser marking capabilities.

Airguard Industries, Inc.    Louisville, KY 40218

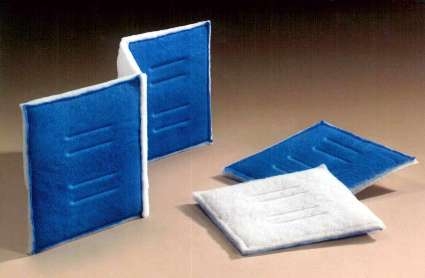

Aug 25, 2005 Designed with layers of multi-denier polyester fibers, Activator Series ring panels and links capture particles throughout filter's depth. Units come in 2, 3, and 4-ply models to meet requirements of MERV 6, 7, and 8, respectively. Media layers are heat-sealed around 9-gauge internal wire frame with cross wire supports to hold media in place. Tackified adhesive is applied to air-leaving side of each panel to prevent particle migration downstream.

Ophir Optronics, Inc.    Danvers, MA 01923
Aug 25, 2005 BeamStar FX Beam Profiler Systems include camera, filters, plug-and-play PC card, and version 1.10 software. Users can align Major/Minor axes instead of X and Y for beam shapes not aligned to X and Y. With Point-to-Point Distance Measurement, users can right click mouse and move, then right click again to measure distance between any 2 points. Additional features include M² measurement capabilities, 2D Gaussian Fit, and Region of Interest capabilities.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Aug 25, 2005 Series FGA and FGS have dual psi and corresponding °F scale calibrated for both R-12 and R-22 refrigerants. Measuring 2.5 in. in diameter, Series FGA offers full scale accuracy of 2.5%, while Series FGS is 4 in. in diameter and offers 1.6% full scale accuracy.

FastPic Systems    Westbrook, ME 04092

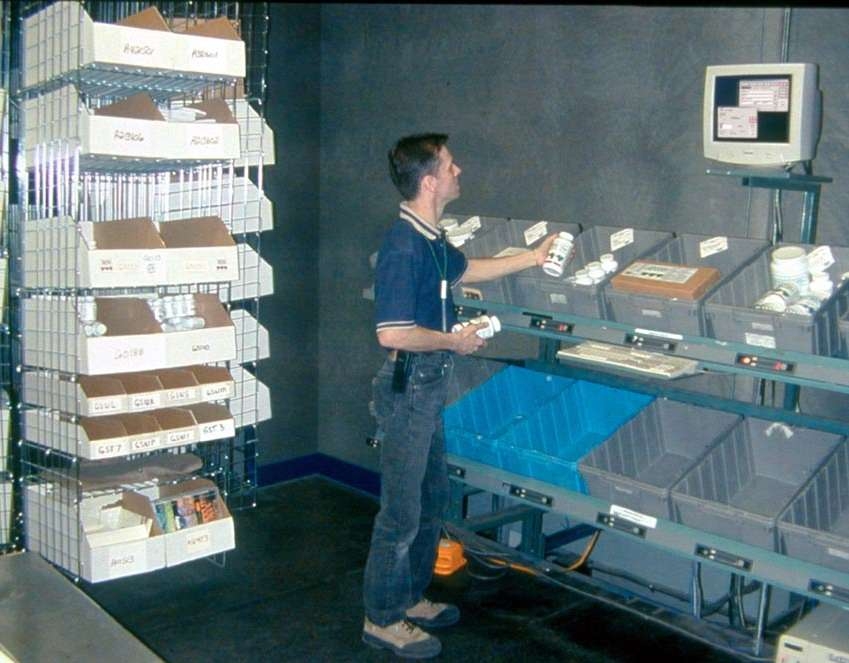

Aug 25, 2005 Kitting module, designed for use by manufacturers for assembly or distribution, allows individual SKUs to be picked, stored, and managed as kit. While bundled SKUs help speed up operations by eliminating need to enter multiple individual line items, module retains ability to manage and track individual parts. Product seamlessly integrates with FastPic IC software, which can be used independently or integrated with ERP, WMS, and legacy host systems.

Nippon Pulse America, Inc.    Radford, VA 24141

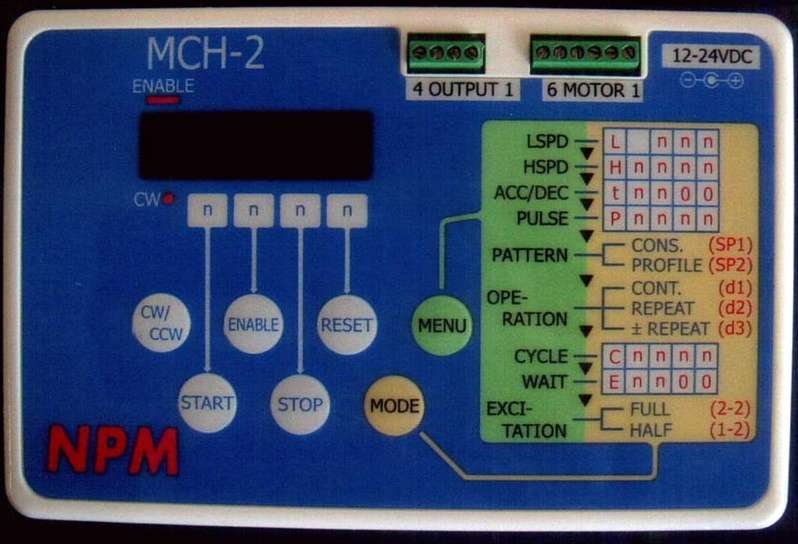

Aug 25, 2005 Palm-sized Motion Checkerâ„¢ MCH-2 integrates constant voltage driver, intended for tin-can type stepper motors, that is available in bipolar or unipolar configuration. Operated by front panel controls, users can create constant-speed motion or trapezoidal motion with programmable low and high speeds as well as ramp-up/down times. Unit, suited for field-testing and inspection, lets motion profiles be set to run indefinitely or for set number of times.

Minster Machine Co., The    Minster, OH 45865
Aug 25, 2005 Single-point unitized frame straightside machines are offered in 3 models with capacities from 110–200 metric tons. Suited for those who need to run close-tolerance progressive dies, stamping presses feature 2-stage planetary gear transmission and link motion with 45% slide velocity slowdown during working portion of stroke. S-frame utilizes one-piece frame side plates with reinforcements, providing zero angular deflection under loads up to max press capacity.

United Grinding Technologies, Inc.    Miamisburg, OH 45342
Aug 25, 2005 Studer S12cnc utilizes drive/guide system, based on precision positionable linear motors, that allows infeed movement to be programmed in 10 nm steps. Machine features 150 mm between centers, 175 mm center height, and 500 mm grinding wheel dia. In addition to magnetically pretensioned guide tables, it incorporates hydrostatic X-axis with linear motor or linear guideways and hydrostatic Z-axis with linear motor or guideways with knob-structure.

Eye Lighting International    Mentor, OH 44060
Aug 25, 2005 EYE Cera Arc® 250 W Ceramic Metal Halide lamps have compact T15 bulb shape and 4,000 K color temperature. They feature consistent bulb to bulb color and maintain 80–85% lumens at end of lamp life. Offered as direct replacement for 250 W HPS lamps, they operate on standard ballasts and are suitable for new installations and as retrofit. Both base up or base down burning positions, as well as horizontal burning position versions are available.

Door Engineering & Mfg. Co.    Kasota, MN 56050
Aug 25, 2005 Constructed with dual shear points for increased strength, Precision Hinges feature fully concealed dual thrust and needle bearings for smooth motion under large loads. Non-removable, hardened steel hinge pins ensure safe, secure fit. Hinges are available for 4-fold and swing door systems for commercial, industrial, security, and custom applications.

Peter Paul Electronics Co., Inc.    New Britain, CT 06050

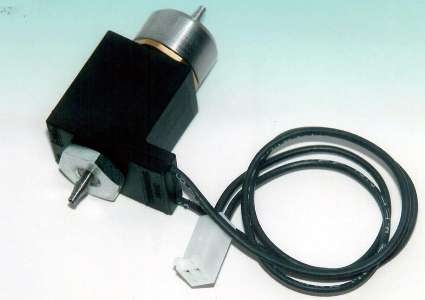

Aug 25, 2005 Available at either 3.5 or 0.9 W, SERIES 58 subminiature 2-way, normally closed valve measures 2 x 1 x 5/8 in. Max operating pressure is 300 psi, burst pressure is 1,500 psi, operating temperature range is -5 to 122°F, and coil voltage is 6–220 Vac 50–60 Hz, -2 to 150 Vdc. Series can be operated directly from programmable controllers, and is suited for interfacing to circuit boards and miniaturized components with pneumatic outputs.

CDF Corporation    Plymouth, MA 02360

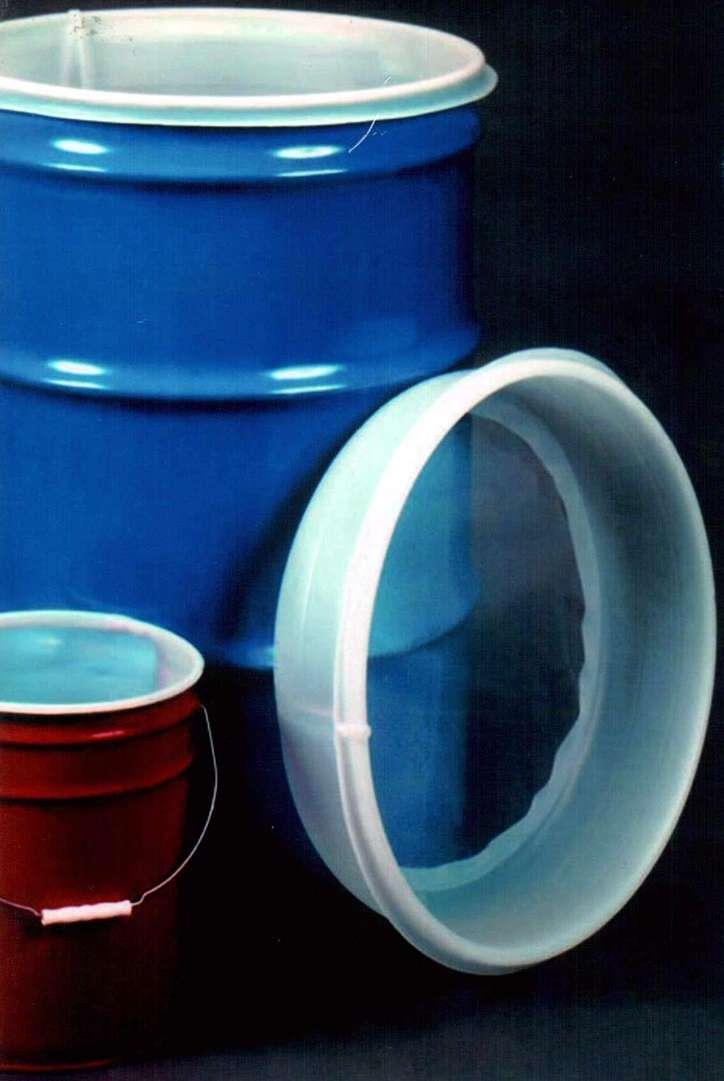

Aug 25, 2005 Hung from top of any open-headed 55 gal drum or 5 gal pail, EZ-Strainerâ„¢ insert strains unwanted particles from liquid without possibility of being pulled inside. It stays in place, even when used with heavy, viscous products and may be used with or without liner inside drum or pail. Molded from high molecular weight high-density polyethylene, it is available with center screen in 100 ultra-fine nylon or 200, 400, and 600 multi-element mesh (fine, medium, or coarse).
