TTI, Inc.    Williston, VT 05495
Oct 04, 2005 Capable of measuring flows from ultra-pure water to sludges and slurries, Duosonics flow meter automatically switches between Pulse Doppler and Transit Time technologies depending on fluid conditions in pipe. It can also measure different fluids flowing through same pipe. Non-invasive, clamp-on design results in no contamination, no pressure drop, and no system down-time. Applications include food and beverage processing, oil, wastewater/sewage, and paint.

Linear Technology Corp.    Milpitas, CA 95035
Oct 04, 2005 Standalone, dual-input LTC4076 and LTC4077 charge single-cell Li-Ion batteries from wall adapter or USB power sources. They use constant-current/constant-voltage algorithm for charging, with charge current programmable up to 950 mA from wall adapter supply or 650 mA from USB supply, while auto-sensing presence of voltage at each input. Model LTC4076 features programmable C/x charge current termination, while LTC4077 offers fixed C/10 termination.

Sanyo Denki America Inc.    Torrance, CA 90501

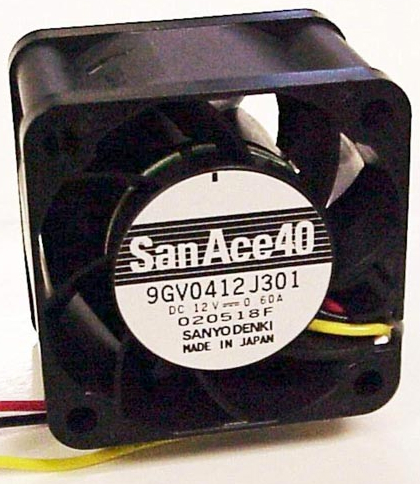

Oct 04, 2005 Available in 12 V, G- and J-speed models, RoHS-compliant San Ace 40GV produces max airflow to 24 cfm while consuming 7.2 W power. It measures 1.57 x 1.57 x 1.1 in. and has L10 life expectancy of 40,000 hr @ 60ºC. Impeller and frame design provide quiet operation. In addition to tachometer sensor and lock rotor sensor outputs, options include PWM control that permits fan's rotational speed to be controlled to attenuate noise and power consumption.

Linear Technology Corp.    Milpitas, CA 95035

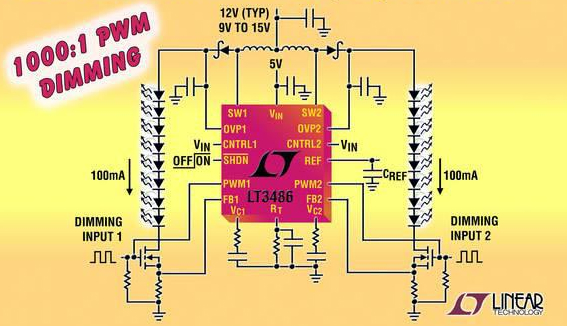

Oct 04, 2005 Designed to drive up to 16 white LEDs, dual step-up dc/dc converter, Model LT3586 includes PWM driver, which allows for 1,000:1 dimming range. Two independent converters are capable of driving asymmetric LED strings, up to 8 in series per converter, from input voltage of 2.5-24 V, delivering efficiencies up to 85%. Housed in 5 x 3 mm DFN or TSSOP package, Model LT3586 features fixed frequency up to 2 MHz, soft-start/inrush current limiting, and open LED protection.

International Rectifier Corp.    El Segundo, CA 90245
Oct 04, 2005 Rated at 160 A, 75 V, D2pak HEXFET® Model IRF2907ZS-7PPbF provides additional safety factor against surge current in switching applications. With on-resistance of 3.8 mΩ and 7-pin leadframe that allows large-diameter wire bonding, MOSFET is suited for server switch mode power supply rectification with 12 V output, active ORing for telecom 48 V rails, and 24 V input dc-dc converters. RoHS lead-free unit is qualified to Q101 grade and moisture sensitivity MSL1.

Dell Marking Systems, Inc.    Ferndale, MI 48220 2657

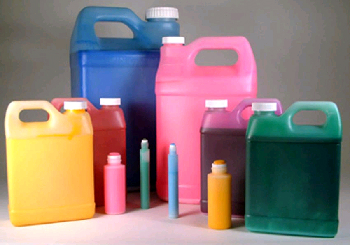

Oct 04, 2005 Available in pigmented and non-pigmented versions, Marking Inks come in standard and special formulations for marking any surface where requirements call for permanent or removable mark. Pigmented inks are visible on almost any material, including dark surfaces, while non-pigmented inks provide minimal film thickness and are visible on bright surfaces. Special inks are available for detection by optical, fluorescent, UV, and color sensors.

Universal Instruments Corp.    Binghamton, NY 13902 0825

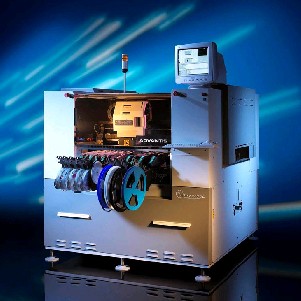

Oct 04, 2005 Delivering accuracies of ±9 microns at ±3 sigma, AdVantis XS(TM) is designed for convergence of semiconductor and standard surface mount assembly. System delivers capabilities and functionality demanded by high-end assembly including high magnification cameras, flip chip algorithms, heated spindles, fluxing, dispensing, and variety of feeder types. It is also Class 1000 clean room compatible.

Arcom Control Systems    Overland Park, MO 66085

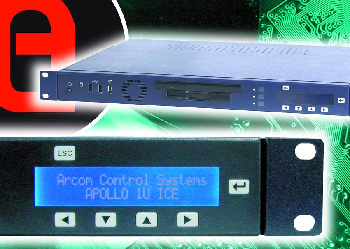

Oct 04, 2005 Housed in 1U 19 in. enclosure less than 14 in. deep, APOLLO ICE is fitted with 1.6 GHz Pentium M CPU, 512 Mbytes of DDR memory, and 180 W ac power supply. It offers dual independent display capability, dual Ethernet with Gigabit Ethernet port, dual FireWire ports, 4 USB 2.0 channels, and 2 serial ports. Able to accommodate 2 PCI add-on cards, system supports DVD/CDRW drive, slip floppy disk drive, and high shock rated 2.5 in. HDD.

Linear Technology Corp.    Milpitas, CA 95035
Oct 04, 2005 Featuring dynamic range of 90 dB, Model LT5537 allows accurate measurement of lower levels of RF and IF signals. Cascading chain of limiting amplifiers provide constant, linear 20 mV/dB logarithmic detection function, while on-chip compensation circuitry yields stable output under varying temperatures. Housed in 3 x 2 mm surface-mount DFN package, device measures signals within error of ±1 dB over worst-case temperature extremes, and can detect RF signal levels as low as -82 dBm.

Igus, Inc.    East Providence, RI 02914 0349
Oct 04, 2005 System E2 Energy Tubes protect cables and hoses from debris and contaminants. Fully enclosed Energy Chains are opened with snap-open hinges to facilitate repair or replacement of cables therein housed. Hinges are located on inner or outer radius of lid, depending on preference. Products are suited for machine tool or other applications where items such as wood chips, metal shavings, dirt, or dust are prevalent. Multiple sizes and styles are available.

Igus, Inc.    East Providence, RI 02914 0349

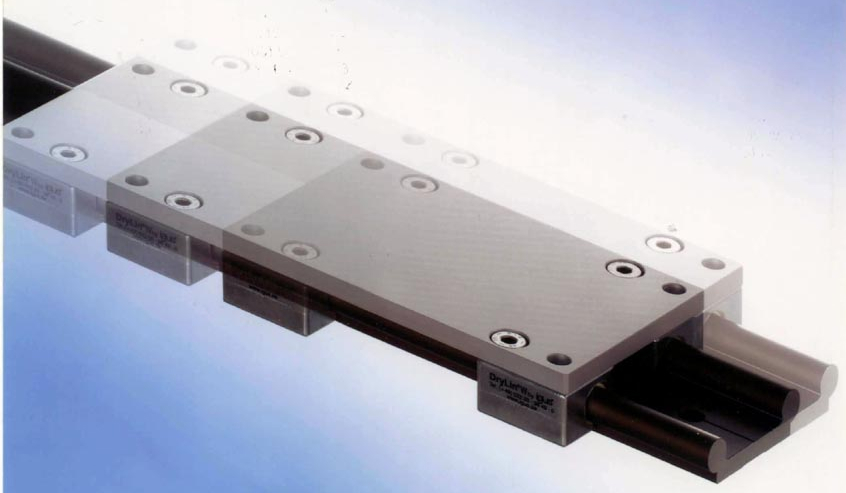

Oct 04, 2005 DryLin® W linear guide systems, comprised of linear bearings and slides with plastic glide elements, are self-lubricating, maintenance-free, and contaminant-resistant. With overall height of 14 mm, products are available as combination of 2 supported round shafts in one profile, in split rail configuration, or with square rails. Slides, comprised of 2 or 4 gliding carriages, are made of pressure die-cast zinc, and spacing can be pre-selected at 100, 150, or 200 mm.

COMET North America, Inc.    Stamford, CT 06902
Oct 04, 2005 Powered by FEINFOCUS Graphical User Interface (FGUI) software, SMT Version of COUGAR-VXP (Versatile X-ray Platform) has 1 m² footprint and features microfocus X-ray tube up to 160 Kv. It provides feature recognition down to 1 µm with total magnification of up to 6,000x and True X-ray Intensity (TXI) Control(TM). Features include 5-axis manipulator with Auto Isocentric Motion Technology(TM) and FEINFOCUS HDX-ray(TM) real-time 16-bit image processing.

LEDtronics, Inc.    Torrance, CA 90505
Oct 04, 2005 Measuring 4.92 in. high and 2.24 in. in diameter, larger LED Candle Light operates for more than 100,000 hr and can last for 658 hr on two replaceable AA batteries. Solid-state design renders LEDs impervious to electrical and mechanical shock, vibration, frequent switching, and environmental fluctuation. Products may be used as portable light source for window displays and lend to decor ambiance and mood lighting. Products come with frosted glass candleholders.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Oct 04, 2005 With 12 IR light beam array, PROSCAN series allows size and direction of sensing field to be customized to satisfy specific application requirements. It also includes auto-teach capability that recognizes changing environments. Able to detect people or vehicles by light emissions, product is suited for monitoring front of automatic pedestrian doors or detecting approaching people for machine activation at self-service terminals.

Delavan Ag Pumps, Inc.    Minneapolis, MN 55403

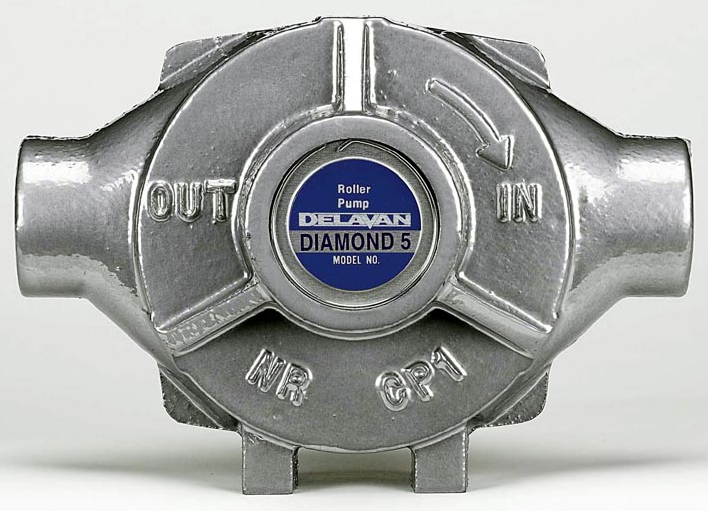

Oct 04, 2005 Equipped with alloy body and end plate suited for harsh chemical applications, 5-roller Diamond Series 5500 Pumps have max flow output of 46.5 gpm at 1,000 rpm and handle fluid temperatures to 140ºF. Buna-N seal ring provides positive seal between end plate and pump body, and ultra-rollers provide smooth, clockwise operation. Weighing 19 lb, pumps come with 1 in. NPT port and 15/16 in., solid 416 stainless steel shaft. Options include PTO adapters and reverse rotation.

Kennametal Inc., Advanced Materials Div.    Latrobe, PA 15650-0231
Oct 04, 2005 Engineered for finish-turning to medium machining of all steel workpieces, turning grade KC9105 incorporates core carbide substrate with deformation resistance that allows dry machining and long cuts. Cobalt enrichment at periphery lends to insert edge security, while chemical vapor deposition coating technology ensures wear and thermal resistance. Product is available in KennaPerfect Kenloc geometries -FF, -FN, -MN, -RP, -RN, -FW, and -MW.

Para Light Corp.    Walnut, CA 91789
Oct 04, 2005 Available in 3 and 5 W versions, 700 mA EP4 enhanced-power LEDs come in single colors - blue, green, amber, red, and cyan - as well as lighting strips and modules. Package includes zener diode and thermal conductive copper. Along with 60°, 90°, and 100° viewing angles, products feature output intensity from 2-10 candelas and total flux from 30-100 lumens. They are also available in heat-sink versions mounted on aluminum printed circuit boards.

Sealed Air Corp., Engineered Products Div.    Danbury, CT 06810
Oct 04, 2005 Available in 5 sizes, Instapak Quick® Room Temperature foam packaging bags provide custom-fit protective cushion suited for small- to medium-volume packaging applications. Products, without use of warmer, enable users to produce protective foam cushions at any location and support multiple packaging areas. Each bag contains 2 liquid components that, when mixed, provide cushioning, blocking, bracing, and void-fill protection.

Aremco Products, Inc.    Valley Cottage, NY 10989

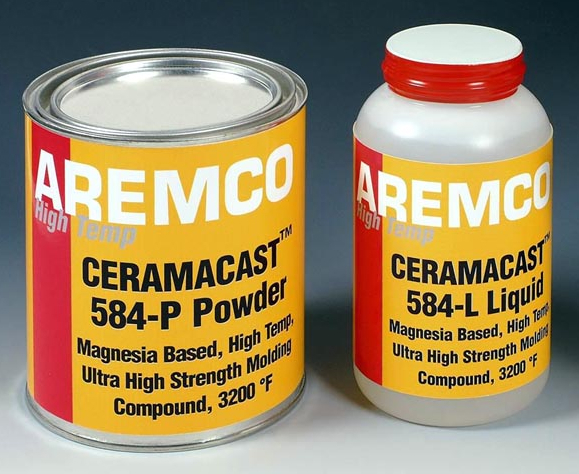

Oct 04, 2005 Used to pot heaters and thermocouples as well as cast parts, Ceramacast(TM) 584 is supplied as kit comprised of 584-P Powder and 584-L Liquid Binder. Magnesium oxide-based, silica-bonded ceramic compound exhibits 100 V/mil dielectric strength and 109 Ω-cm volume resistivity. With 4,500 psi compressive strength and 6.5 ppm/°F CTE, product sets within 5-10 min at room temperature. Full cure is achieved by step curing for 2 hr each at 200 and 250°F.

Fluke Corp.    Everett, WA 98203
Oct 04, 2005 In one package, 1587/MDT Advanced Motor and Drive Troubleshooting Kit provides all tools necessary to troubleshoot motor and variable frequency drive electrical problems. Included Fluke 1587 Insulation Multimeter provides insulation resistance testing up to 2 GW, with 5 output voltages from 50-1,000 V. Also included, Fluke i400 Current Clamp measures 1-400 A ac without breaking circuit, while Fluke 9040 Rotary Field Indicator enables user to check rotation of 3-phase motors.
