Flir Systems, Inc.    North Billerica, MA 01862
Oct 12, 2005 ThermaCAM P25F and P50F are designed for monitoring industrial furnaces, heaters, and boilers to ensure safe and efficient operation. Along with uncooled microbolometer technology that enables use of products in less than 1 min, IR cameras have burst recording feature that records and archives series of images while in operation. Both models provide accurate temperature readings across entire furnace/boiler/heater surface during IR scan in real-time.

Midwest Motion Products    Watertown, MN 55388

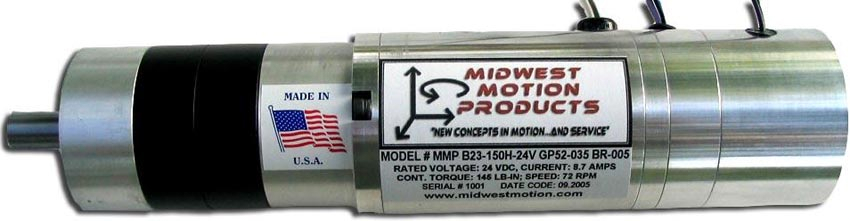

Oct 12, 2005 Featuring Hall Cell Commutation, Model No. MMP-B23-150H-24V GP52-035 BR-005 carries IP 54 rating for operation in harsh environments. It measures 2.3 in. in diameter x 9.2 in. long and has keyed output shaft that measures 12 mm in diameter x 25 mm long. Output is rated for 16.4 Nm continuous torque @ 100 rpm and 18.0 Nm peak, and unit requires 8.5 A @ 24 Vdc to generate full load output torque. Mounting is accomplished via 4 face-mount M5 threaded holes.

Emerson Process Management / Process Liquid Division / Uniloc Division    Irvine, CA 92606
Oct 12, 2005 Model 398 TUpH® pH/ORP Sensor employs PEEK plastic helical reference pathway that protects reference element from chemical attack. Resistant to oxidants and organic solvents, sensor integrates AccuGlass pH electrode to resist cracking and SILCORE triple-seal contaminant barrier to protect integrity of pH measurement. Product is constructed of chemical-resistant titanium and Tefzel® and suited for applications in pulp and paper, chemical, and plastics manufacturing.

Texas Instruments, Inc., Sensors & Controls    Attleboro, MA 02703 0964
Oct 12, 2005 Engineered for heavy truck, marine, and industrial applications, F-Series Klixon® Circuit Breakers feature 35-150 A ratings, 5,000 A interrupt capability, and ¼ or 3/8 in. stud terminals for high torque connections. Trip-free safety mechanism allows circuit breaker to trip in over-current situation regardless of position of reset button. Internal components are enclosed in vibration-resistant, weatherproof casing to protect against harsh environments.

ERICO    Solon, OH 44139-2631
Oct 11, 2005 Stamped from copper alloy or aluminum, LP302 universal air-terminal bases mount horizontally or vertically to provide lightning-protection installer with one product for adhesive or screw-down applications. Stampings' spring-like property keeps cable under pressure, while protrusions on bases prevent loosening and optimize cable-pullout strength. Bases, suitable for use with Class I up to 4/0 cable sizes, have cutout design that allows air terminal to be adjusted vertically.

Econocorp. Inc.    Randolph, MA 02368

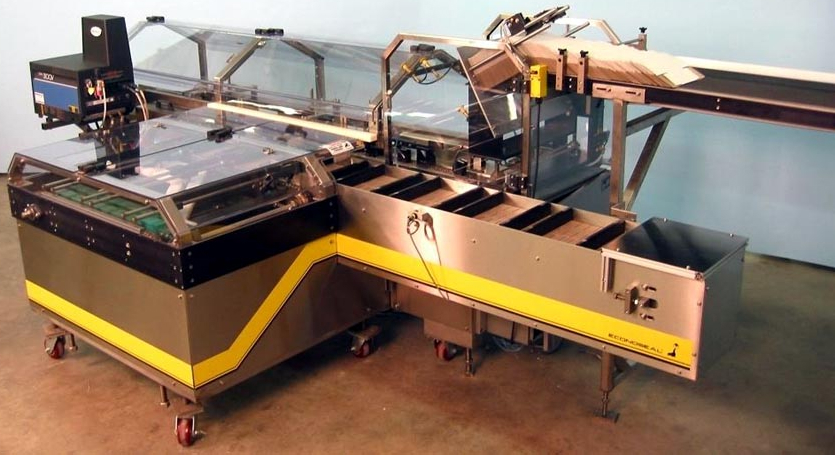

Oct 11, 2005 Featuring base frame footprint of 115 x 30 in., ECONOSEAL PEGASUS continuous motion cartoner erects, loads (optional), and closes end load style cartons at speeds to 120 cpm. Modular, build-on concept allows users to start in manual product loading mode and add further automation as required. Unit accepts cartons from 2 x 1 x 5 in. to 8 x 3 x 12 in. and handles up to 7,200 cartons/hr depending on size, style, and other factors.

Handi-Ramp, Inc.    Libertyville, IL 60048
Oct 11, 2005 Offered in 10, 11, or 12 ft lengths, Ambulance Ramp System is comprised of 1,500 lb capacity channel track ramps with anti-slip tape and inherent wheel guide, 3,000 lb capacity winch, 1,500 lb capacity block and tackle, cordura tow straps, and MX-Pro 1,600 lb capacity bariatric gurney. System allows EMS workers to load patient into ambulance without having to lift, pull, or push. Extruded aluminum tracks feature 6 in. ID and 2 in. safety curb that keeps gurney on tracks.

Saelig Co., Inc.    Pittsford, NY 14534
Oct 11, 2005 Suited for audio and telephone equipment, Series EXFS consists of extended foil polystyrene capacitors sealed in fluid- and temperature-resistant case, and vertically mounted for high packing density. Values from 47-8200 pF are available with tolerance of 1% and working voltage of 63 Vdc. Insulation resistance is greater than 500 GΩ with loss factor of 0.0003 and tempco of 110 ppm/°C.

Sterling Instrument    New Hyde Park, NY 11042-5416

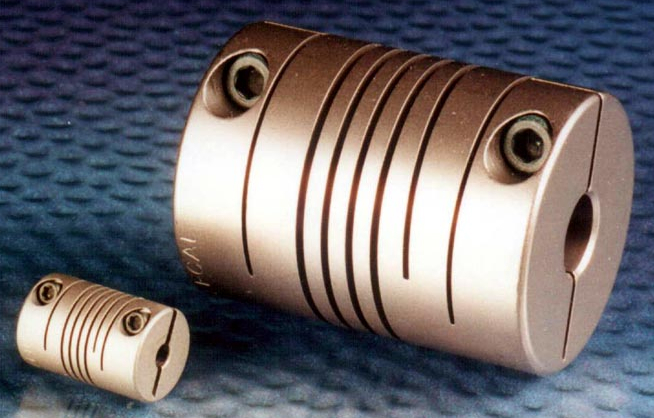

Oct 11, 2005 Flexible helical couplings in S50HAWM (metric) and S50HAA- (inch) Series have one-piece Anodized Aluminum construction with set screw type or integral clamp split-hub type designs for fastening to both shafts. Able to adapt to high- and low-speed applications, fatigue-resistant products fit shafts diameters from 3-12 mm and 3/32-1 ½ in. Angular misalignment compensation is 5°, with max parallel offset range of ±.010 in. and axial motion range of ±.010 in.

Saelig Co., Inc.    Pittsford, NY 14534

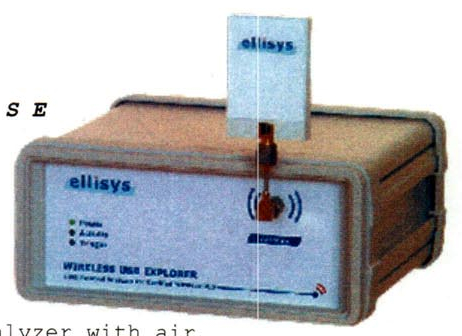

Oct 11, 2005 Wireless USB Explorer 300(TM) can record and decode WiMedia(TM) ultra wideband and Certified Wireless USB protocols from wireless or direct connection. It records traffic exchanged over air between devices through external omni-directional antenna and captures traffic between MAC and PHY from boards during design phase. Unit helps verify data encryption, optimize performance, tune power management, optimize communication reliability, and prevent interoperability issues.

Rollprint Packaging Products, Inc.    Addison, IL 60101

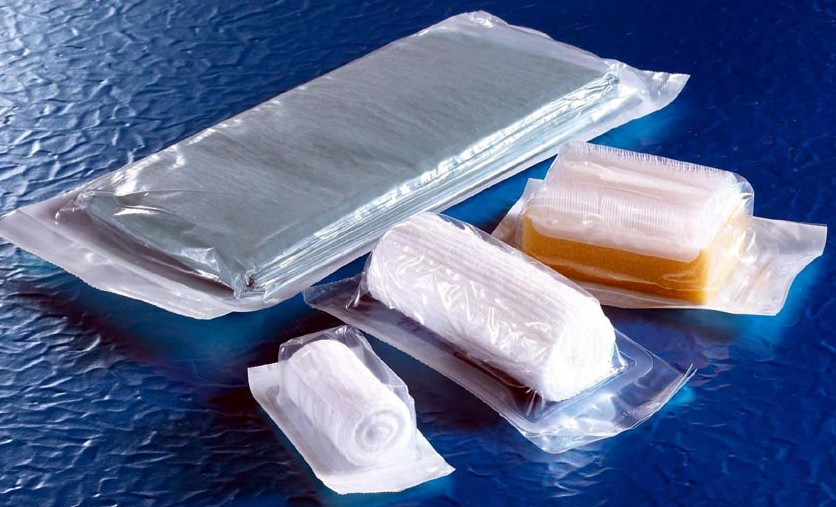

Oct 11, 2005 ClearForm(TM) copolymer blend exhibits clarity for thermoform/fill/seal applications in medical and frozen food markets. Offered as alternative to bottom webs such as EVA/Surlyn/EVA, nylon coextruded films, and other PE-based polymeric blends, product is suitable for EtO and gamma sterilization. When coupled with Allegro® peelable top webs, total package offers machine-friendly forming and sealing characteristics and smooth, peelable, tamper-evident seal.

Metabo Corp.    West Chester, PA 19380 4243

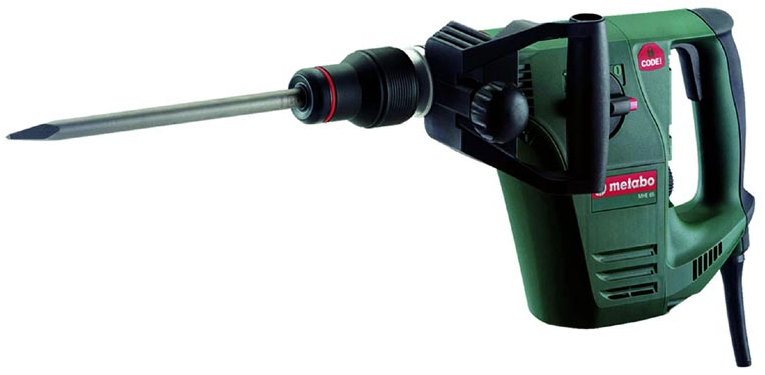

Oct 11, 2005 Able to work with stone, concrete, and brick, MHE 65 SDS-Max Chipping Hammer employs 10.5 A motor that provides 1,325-2,650 bpm and 1.0-10.0 joules of single blow energy. Vario-Tacho-Constamatic electronic speed control maintains constant speed between load and no-load. Other features include magnesium die-cast gear housing, auto-stop carbon brushes, spring-loaded lip seal, winding protection grid, and pneumatic hammer mechanism.

Toshiba Machine Co., America    Elk Grove Village, IL 60007

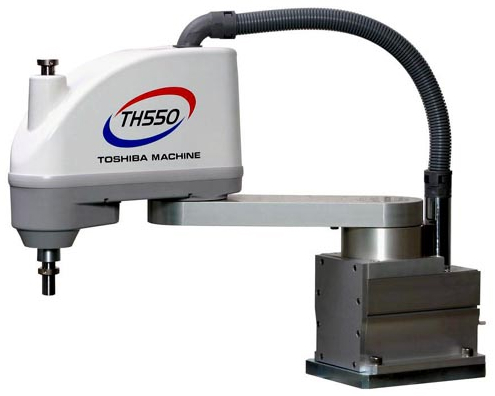

Oct 11, 2005 With respective max payloads of 5 and 20 kg, TH550 and TH850 feature low-profile, heavy-duty housings that lend to stable performance. Both models have compact bodies and 3-axis speeds of 2,000 mm/s. Features include TS Controller for up to 5 simultaneous axes and absolute system that eliminates difficulties with home return. Total arm length of TH550 and TH850 is 550 and 850 mm, respectively, and positioning repeatability is ±0.015 and 0.03 mm.

LINPAC Materials Handling    Georgetown, KY 40324
Oct 11, 2005 Measuring 88 x 44 x 100 in., MAX3(TM) 8844 features one-piece molded base with wood flooring and can be compartmentalized with up to 3 tiers of interior shelving. Water-resistant product, constructed of HDPE with rigid sidewalls, supports 4-way fork entry and holds up to 3,000 lb. RFID-ready containers are recyclable and stackable up to 3-high when empty, 2-high when loaded. Weighing 450 lb, unit offers 190 ft³ storage volume.

Mocon    Minneapolis, MN 55428
Oct 11, 2005 PAC CHECK® Model 820 Package Integrity Test System measures residual headspace oxygen as well as package leak rate in one analysis. Unit produces absolute leak number based on Poiseuille's law, which yields total hole diameter leak size based on measurements of pressure and flow. It can save up to 400 data points in internal memory and send information to computer via RS-232 data line. Backlit display features 128 x 68 LCD-style graphics.

Aremco Products, Inc.    Valley Cottage, NY 10989
Oct 11, 2005 Formulated using high-purity silver flake, Aremco-Bond(TM) 556 is used to produce electronic and high-vacuum components for applications to 340°F. Product sets at room temperature in 24 hr or can be heat cured in 2 or 4 hr at 210 or 170°F respectively. Silver-filled, electrically and thermally conductive, 2-part adhesive exhibits 0.0052 ohm-cm volume resistivity at room temperature and 65.0 Btu-in/hr-ft²-°F thermal conductivity. Tensile shear strength is 2,500 psi.

Beswick Engineering Co., Inc.    Greenland, NH 03840
Oct 11, 2005 With 7/8 in. dial diameter and depth of 1 7/64 in., Miniature Vacuum Gauge features dual scale for indicating vacuum from 0 to -30 in. Hg. Brass-geared movement contributes to accuracy specification of 3-2-3%, and dual threads allow choice of fitting connections: external 1/8-27 NPT center back brass external connection and 10-32 UNF center back internal connection. Applications include hydrogen fuel cells, medical equipment, aerospace equipment, and industrial robots.

AEC, Inc.    Wood Dale, IL 60191
Oct 11, 2005 With 35 in. wide design, Model RTCW features digitally controlled magnetic bearing system consisting of permanent magnets and electromagnets that replaces conventional lubricated bearings. It utilizes 2 independent centrifugal compressor circuits, shell and tube evaporator, and condenser components ranging from 120-190 ton capacity. Touch screen controller allows user to retain cause of current fault and display last 25 fault conditions for troubleshooting.

GE Fanuc Embedded Systems    Huntsville, AL 35803
Oct 11, 2005 With 32 channels of optically isolated, digital change-of-state (COS) inputs, Model VMIVME-1184 can be programmed to issue interrupt upon specific state changes. Input voltage is field configurable on channel-by-channel basis and includes 5, 12, or 24-28 V ranges. Available with standard VME or IEEE 1101.10 front panel, board includes LED status indicator for each input, sequence of event monitoring, and ability to store up to 512 state changes if COS logic is enabled.

Directed Perception Inc.    Burlingame, CA 94010
Oct 11, 2005 Featuring all-weather design, computer-controlled, pan-tilt Model PTU-D300 supports fixed and mobile antenna and communications laser positioning applications. Built-in dynamic control capabilities include on-the-fly speed and position command changes at over 30 Hz for real-time tracking. Remote control of unit is provided through RS-232 or RS-485 serial interfaces with multiple software options. Pan and tilt speeds range from 0.00643-50°/sec with accuracy of ±0.00643°.
