Haydon Switch & Instrument, Inc.    Waterbury, CT 06705 3910

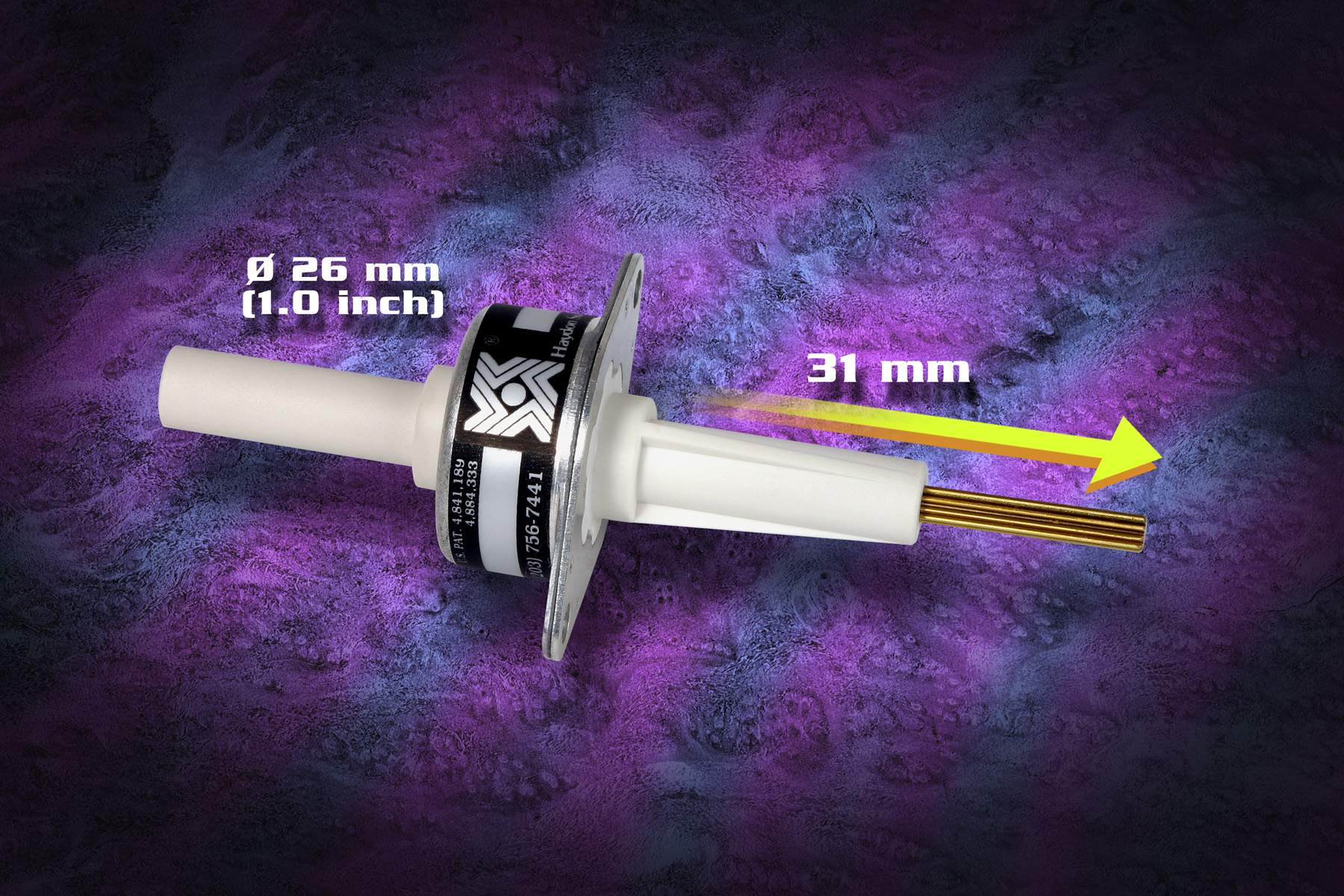

Sep 15, 2005 Captive linear actuators in Z26000 Series are offered with 31 mm stroke that is available for resolutions from 0.0127-0.1016 mm per step and offers up to 4.5 kg of force. Utilizing rare earth magnets, products enable OEMs to reduce components and simplify designs by replacing rotary motors that generate linear movement through belts and pulleys or rack and pinions with Z26000 actuators. Applications include medical devices, small machinery, and instrumentation.

Advanced Power Technology - Europe    Merignac 33700  France

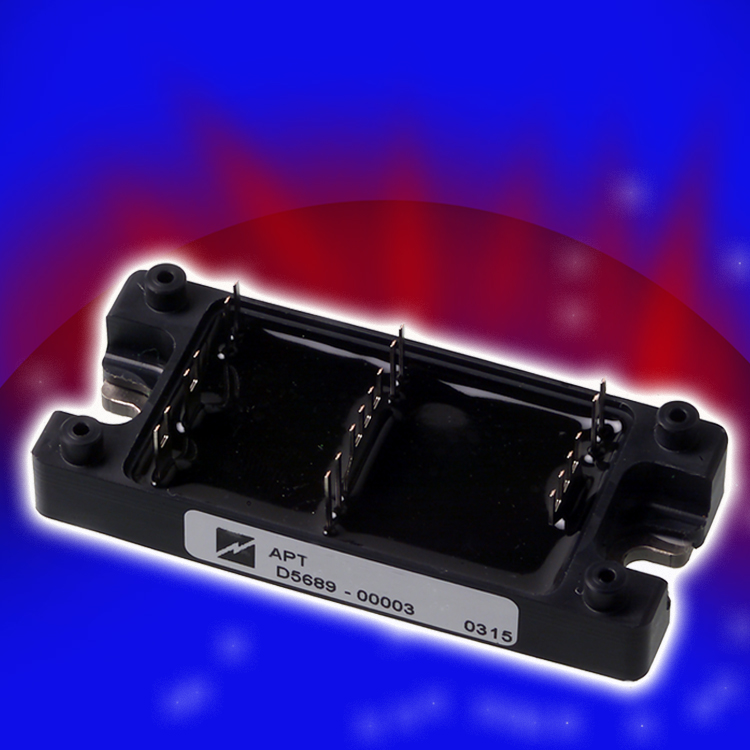

Sep 15, 2005 Manufactured in SP4 and SP6 packages, fast diode power modules are offered in 100 and 200 A full rectifier bridge configurations, respectively. SP6 is also offered in 400 A dual common anode, dual common cathode, and dual diode configurations. Low, 17 mm profile is compatible in height with MOSFET or IGBT modules. SP4 package has solderable terminals, while SP6 module provides M5 screw connections. All modules incorporate fast recovery diodes with voltage ratings from 200-1,700 V.

Taiyo Yuden (USA) Inc. / Power Systems Group    San Marcos, CA 92069

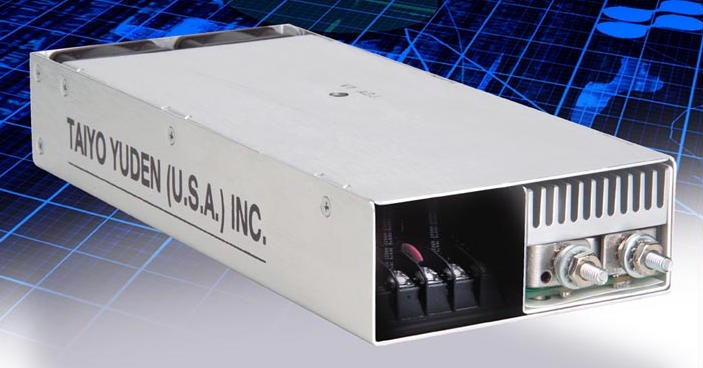

Sep 15, 2005 With operating efficiencies to 92%, AAD600S provides single, isolated (floating) output of up to 600 W continuous power and corrects input current waveform to better than 99% power factor at full rated load. User may select any of factory-set output voltages/currents, including 12 V/42 A, 15 V/36 A, 24 V/22 A, 28 V/20 A, 36 V/16 A, and 48 V/12.5 A. Features include remote sense, remote On/Off, DCOK, single wire current share, and power fail signal.

Capital Safety Group (Australia) Pty Ltd    Silverwater NSW 2128   Australia

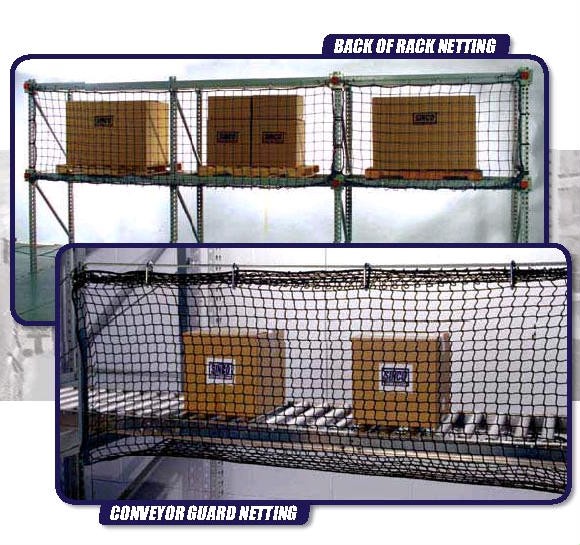

Sep 15, 2005 Networks(TM) pre-packaged netting systems protect staff and customers from objects and stock that could fall off pallet racks, conveyors, mezzanines, and shelving. Kits are available for all types of locations including rear, front, or end of racks; over-stock locations; below conveyors; or anywhere product is moved or stored above or around people. They can be installed and relocated as needed.

Signal Forge, LLC    Austin, TX 78733

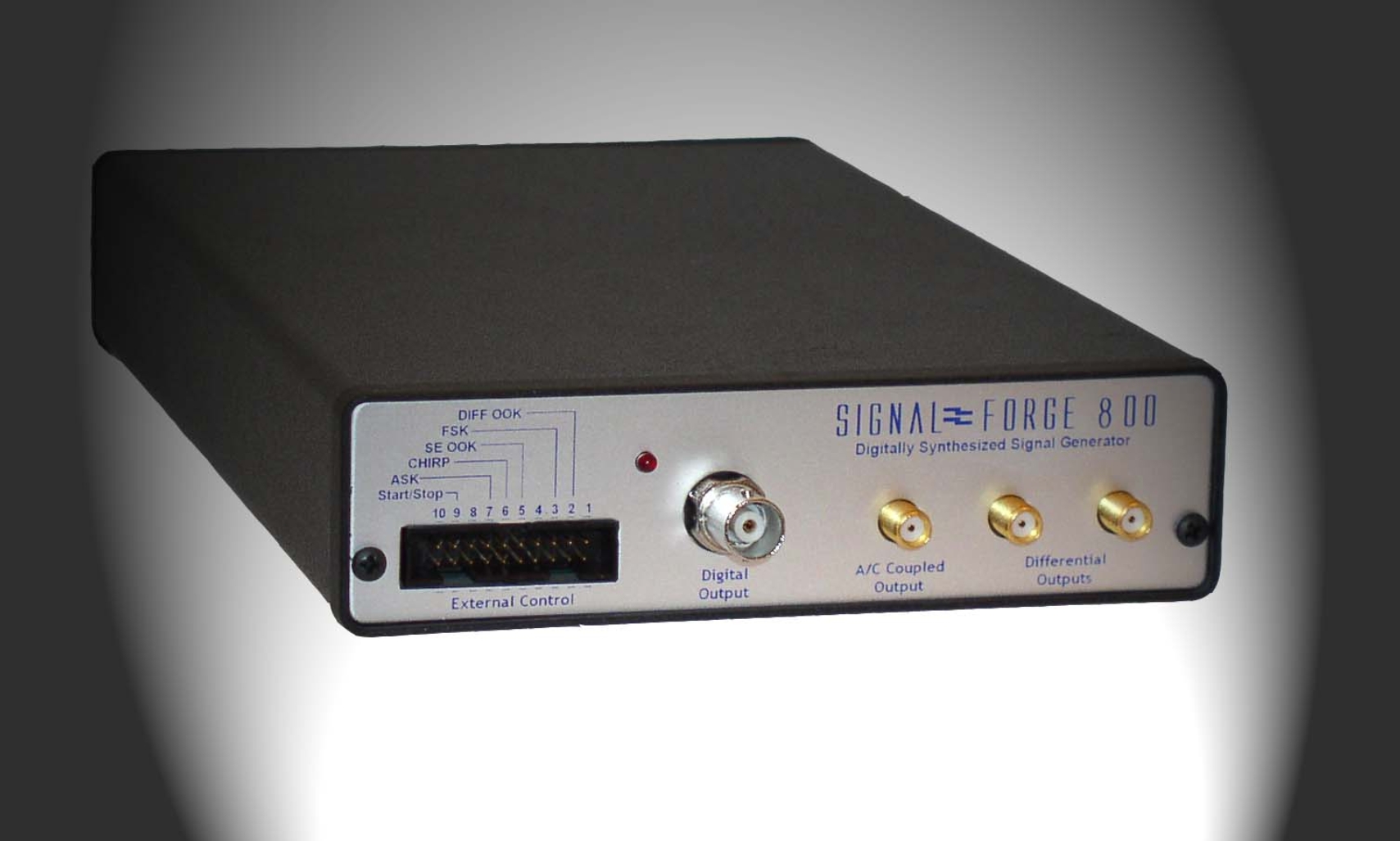

Sep 15, 2005 Digitally synthesized Signal Forge 800 has dedicated digital output with programmable voltage levels for testing digital systems and ICs. Unit also provides ac-coupled and differential output for testing wireless and RF devices. Along with multiple waveform modulation capabilities, product incorporates low-noise TCXO and utilizes digitally synthesized signals and embedded microprocessor. It produces sine and square waves across 1 kHz to 1 GHz range with 1 Hz resolution.

Pico Technology Ltd    St Neots Cambridge PE19 1QB  United Kingdom

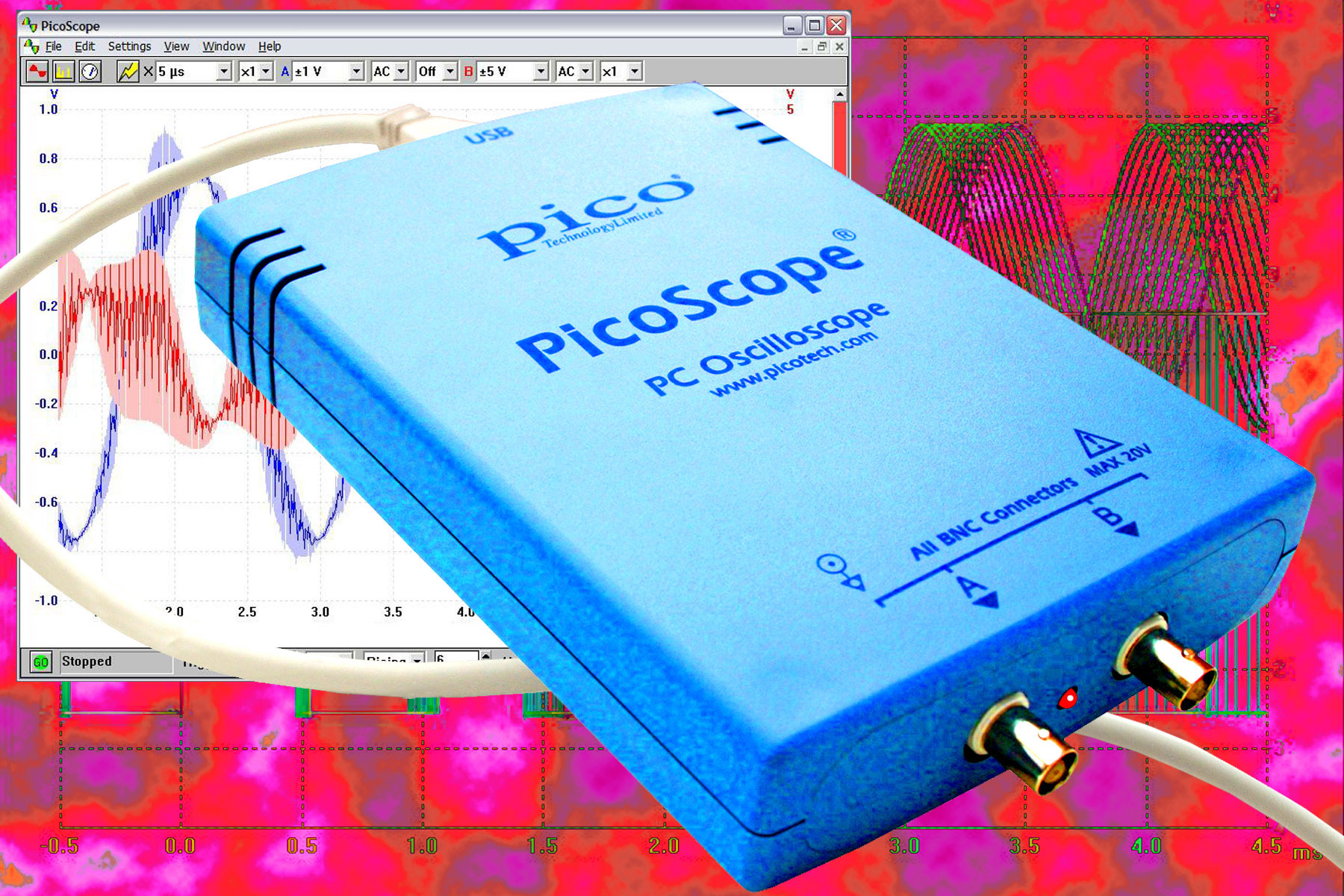

Sep 15, 2005 PicoScope 3224 is powered via USB 2.0 connection that also facilitates installation and allows smooth, responsive waveform display. Waveforms can be vertically zoomed to reveal greater detail, and 512 KS memory buffer allows long-duration signals to be captured at top sampling speed of 20 MS/s. Along with 1% voltage accuracy and 100 ppm timebase accuracy, product has 72 dB dynamic range and comes with PicoScope and PicoLog software applications.

AMETEK Solidstate Controls    Columbus, OH 43085

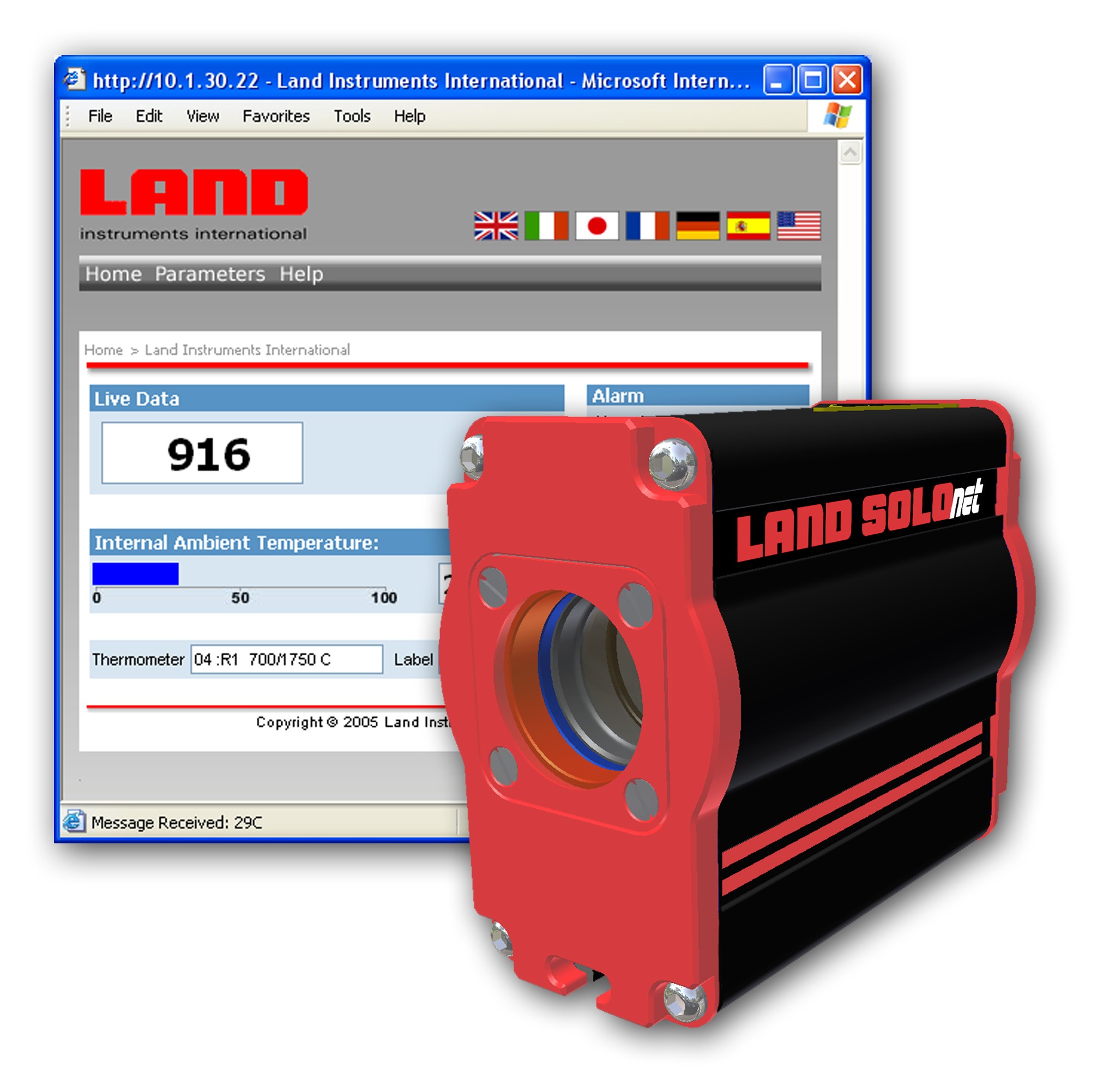

Sep 15, 2005 Set up remotely from computer, SOLOnet Digital Thermometer can be connected and monitored on company-wide network. Unit can be interrogated from any location via web/Ethernet interface using standard web browser. Optics may be focused at 9.8, 19.7, 39.4 in. or infinity by changing position of lens holder and 3 spacers. Minimum target size at 9.8 in. focus is 0.1 in. dia. Four models offer ranges of 1,022-3,182, 482-2,372, 392-2,012, and 1,292-3,182°F.

Littelfuse, Inc.    Des Plaines, IL 60016

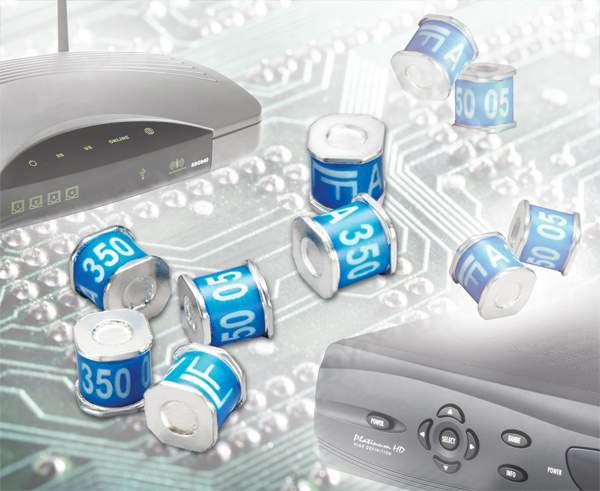

Sep 15, 2005 Lead-free and RoHS-compliant, Greentube(TM) Series SL0902 offers alternative to silicon surge protectors when high bandwidth and low capacitance are required. Products combine low insertion loss, no capacitance variation with voltage and temperature, and voltage clamping to prevent surge damage while maintaining data integrity. Units can be accommodated on D0-214AA solder pads.

Lochinvar Corp.    Lebanon, TN 37090

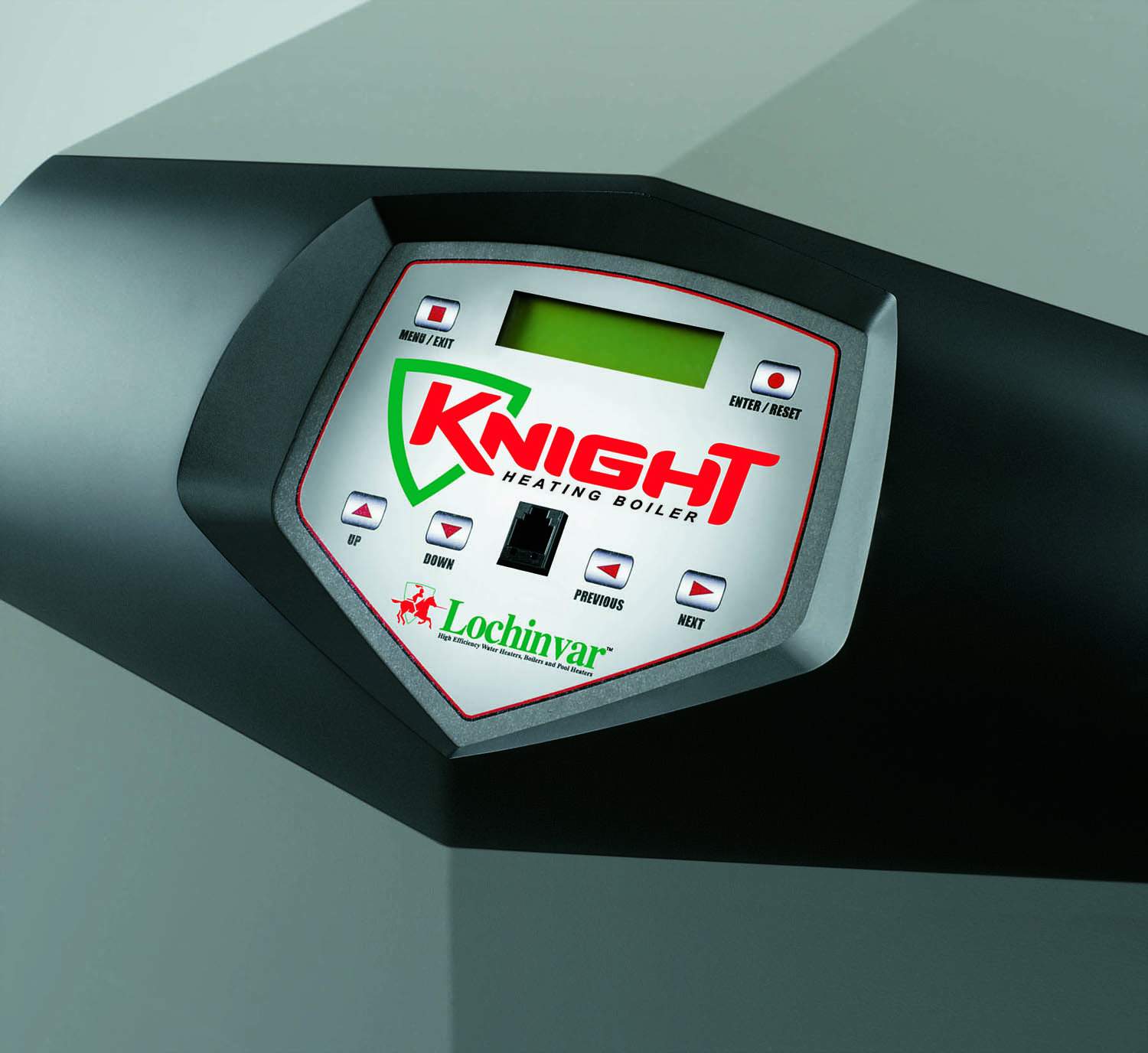

Sep 15, 2005 KNIGHT(TM) Boiler incorporates operating controls with 2-line, 16-character backlit LCD display that communicates in words rather than alphanumeric codes. Along with self-diagnostic features, product offers 10-day logging and trending, password protection, and service indicator light. Whisper-quiet boiler offers fully modulating burner with 5:1 turndown and has 93% DOE AFUE efficiency rating. It vents up to 100 ft of air intake and flue gas exhaust with PVC.

Dorner Mfg. Corp.    Hartland, WI 53029 0020
Sep 15, 2005 Featuring stainless steel frame with no horizontal surfaces, AquaPruf 7400 Series Sanitary conveyor platform can be completely disassembled, without tools, in 3 minutes. Elimination of bolt heads on conveyor means there are fewer areas for loose food particles and bacteria to collect. Solid UHMW wear strips facilitate cleaning, and each piece is identical and interchangeable. HabaGUARD® conveyor belting prevents growth of microorganisms on belt surfaces.

Baumer Ltd.    Southington, CT 06489 1534
Sep 15, 2005 Designed for use on newspapers, magazines, and other printed media in publishing and other industrial applications, SCATEC-J copy- and edge-counting, non-contact laser sensor can also be used in applications involving lap or shingle stream edge counting. Unit counts multi-colored, thicker printed items, detecting packages as thin as 1.5 mm at rates to 280,000 pieces/hr. Measuring range is 0-55 mm, with object speed of 0-2 m/sec.

Integrated Sensors, Inc.    Utica, NY 13502
Sep 15, 2005 NavPax Sensor Units integrate 3-axis MEMS gyros, accelerometers, compass, signal processing, and GPS information to provide complete package for real-time, land-based vehicle tracking solutions. They are used as part of RFID-aided warehouse tracking system that tracks position of each forklift, unique cargo identification, and pick-up and put-down locations of inventory with accuracy to 99%.

Hotsy    Camas, WA 98607

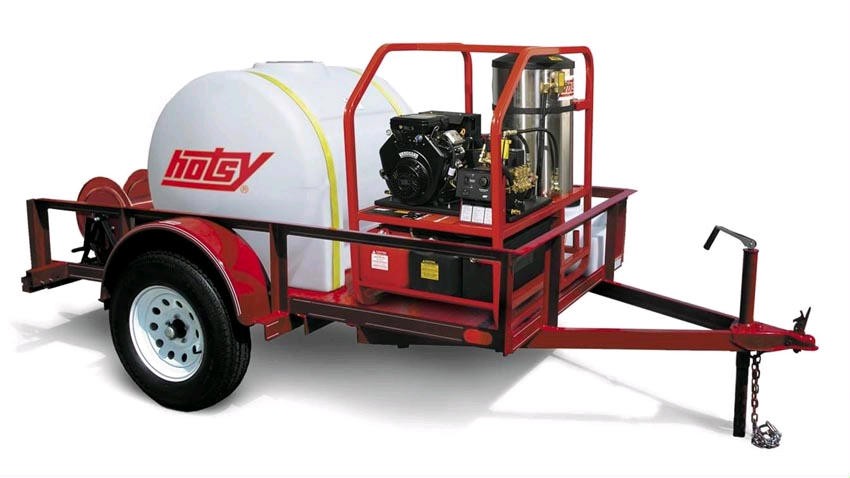

Sep 15, 2005 Offered in 8 models, gas-powered Series 1200 uses diesel to heat water and produces cleaning power from 3,000-4,000 psi of water pressure and 4.3-5.6 gpm flow volume. Self-contained, skid-mounted units are powered by Vanguard or Honda engine with electric start. They include Schedule 80 heating coil with stainless steel skin, 10-gauge engine mount, thermal rupture disk, belt-drive pump, and welded roll cage that secures heating coil and helps protect machine.

Fluke Corp.    Everett, WA 98203
Sep 15, 2005 Suited for HVAC and IAQ professionals, pocket-sized Model 971 measures temperature, dew point, or wet bulb from -4 to 140°F, ±1.0°F and relative humidity from 5-95%, ±2.5% RH. Unit includes LCD display with backlight and low battery indicator, as well as 99-point data storage capacity, allowing users to take multiple readings and store them for later analysis.

Simplex, Div. Of Templeton, Kenly & Co.    Broadview, IL 60153
Sep 15, 2005 Suited for jacking applications that require heavy-duty lifting capacities and ease of transport/placement, Simplex Silver-Lite Aluminum Cylinders come in 13 models with capacities from 30-150 tons and strokes of 2-10 in. Hard anodized housings and pistons stand up to harsh environments, while heavy-duty springs, combined with Simplex Suc-O-Matic power pumps, ensure full retraction of cylinders. Bearing surfaces provide protection from cylinder side loading.

Mearthane Products Corp.    Cranston, RI 02921

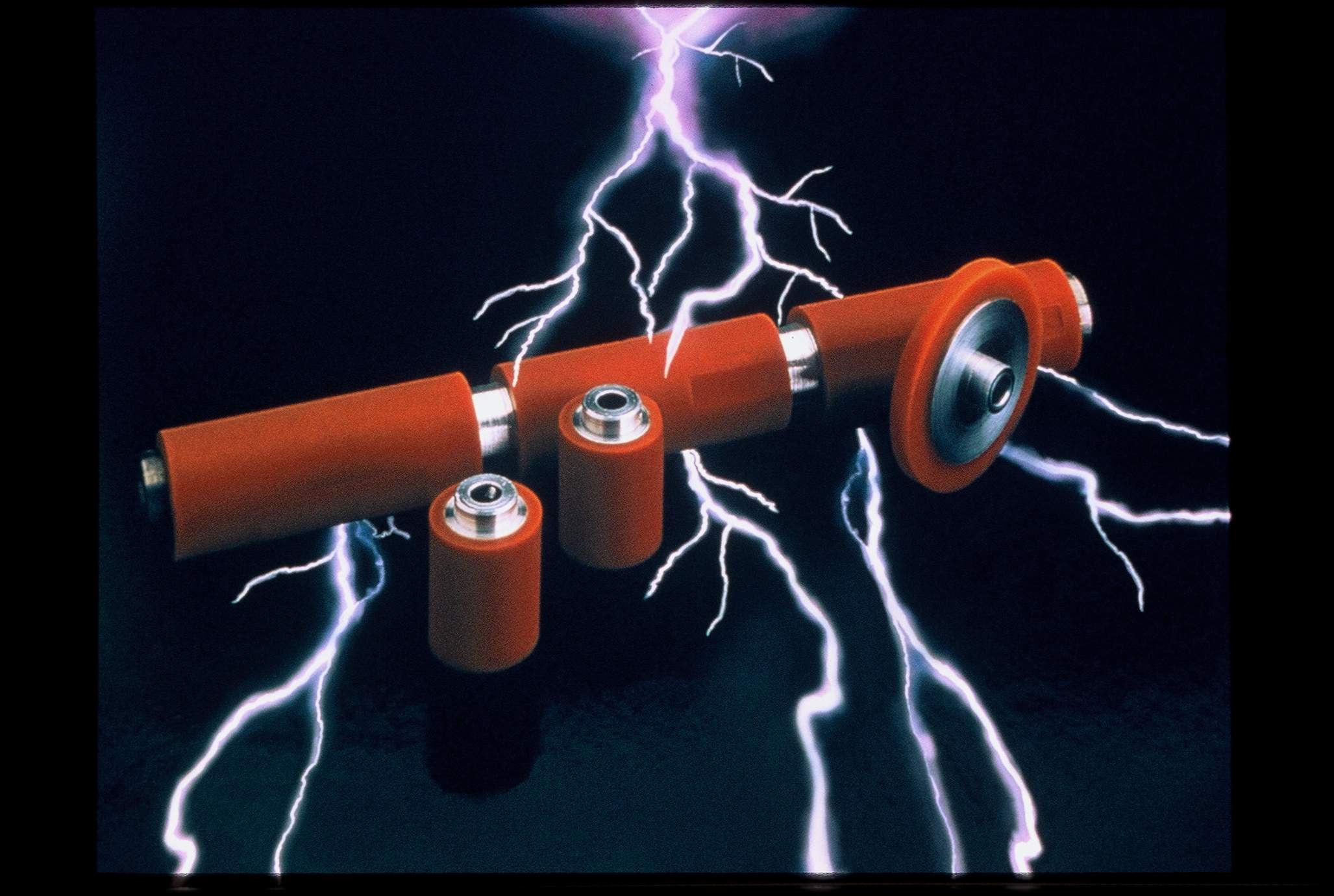

Sep 15, 2005 Durethane(TM) C offers range of electrostatic dissipation properties that eliminate damaging electrostatic discharges in electronic machines. Produced as machinable solid thermoset polyurethane or as foam, formulation can also be used to supply specific charge density on surfaces. Material provides volume resistivity in solid urethane from E5-E10 â"¦-cm at hardness of 5 Shore A to 70 Shore D and in open- or closed-cell foams from E7-E10 â"¦-cm at hardness of 1A-90A.

Universal Lighting Technologies    Nashville, TN 37214

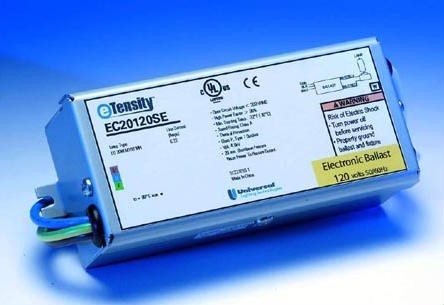

Sep 15, 2005 E-Tensity ballasts are suited for HID lighting applications with lamp types from 20 W ceramic up to 400 W pulse start. They help lamps maintain original lumens to keep designed light levels and extend effective life of lamp. Available with SuperDim technology, which is compatible with 0-10 V dimming controls, ballasts have sound rating of A and may be used with photocells and occupancy sensors for energy savings and bi-level switching.

Underwater Kinetics    Poway, CA 92064

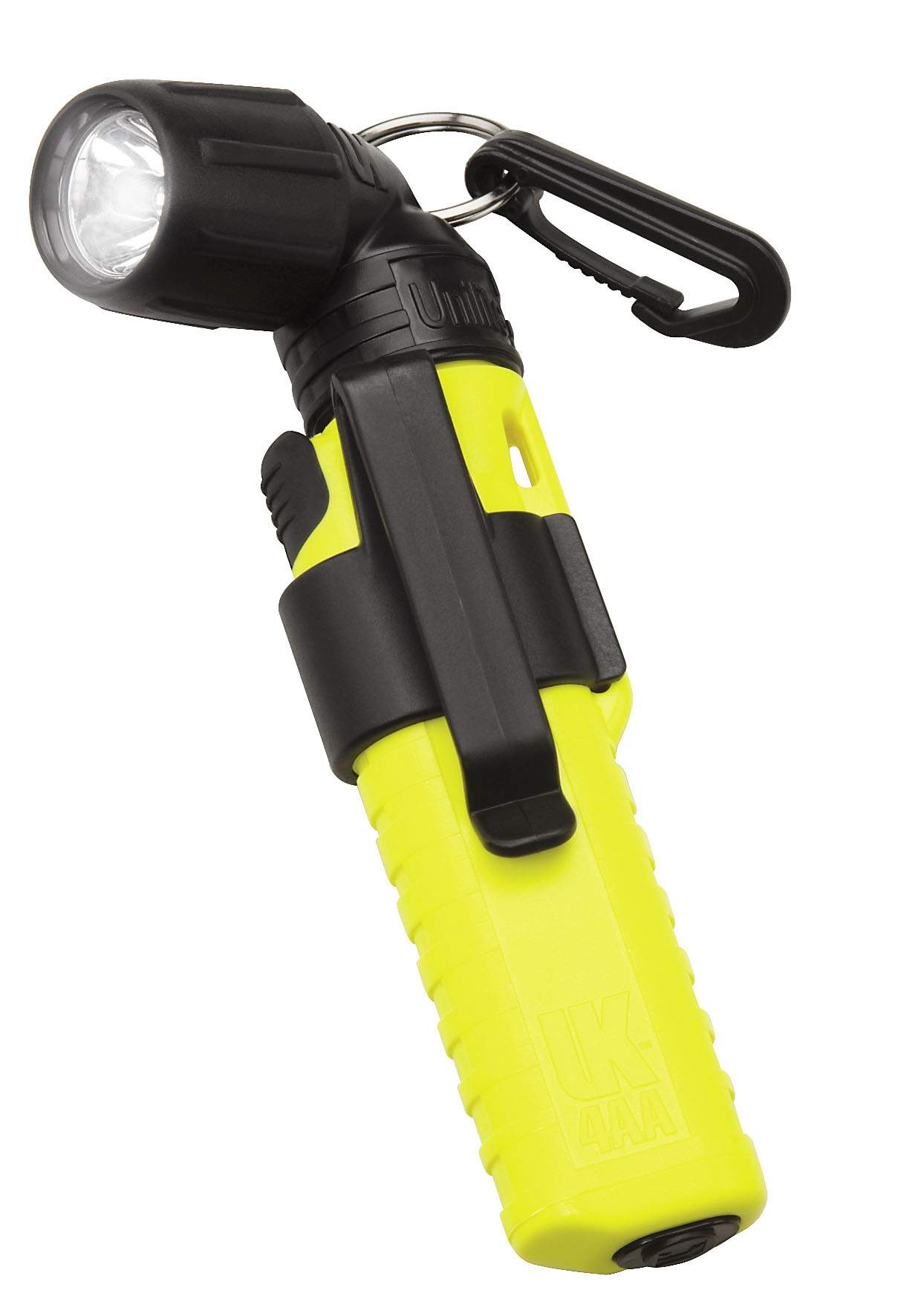

Sep 15, 2005 Offering 360° rotating head, eLED UniLite features white LED lamp that projects soft-edged disk for even illumination rather than bright center spot. Housed in non-conductive, non-corroding ABS/polycarbonate case with O-ring seal, unit is submersible to 10 ft and withstands 6 ft drop onto concrete. Flashlight can be used with Xenon or LED lamp, and includes nylon pocket clip, stainless steel ring attachment, and optional wall mount.

Robohand, A De-Sta-Co Div.    Madison Heights, MI 48071
Sep 15, 2005 Offered in 3 models, B-Series Grippers cover wide range of applications. Sealed against chips or particles, Model BPW features wide body for handling large and wide parts using long fingers. Heavy-duty Model BRP has hardened tool steel jaws that are sealed to protect internal mechanism from chips and coolant. Low profile Model BRP handles different size parts with same fingers. Jaws and supports are hardened tool steel and body is lightweight hard anodized aluminum.

DTIC Dispensing Technologies    South Lancaster, MA 01561

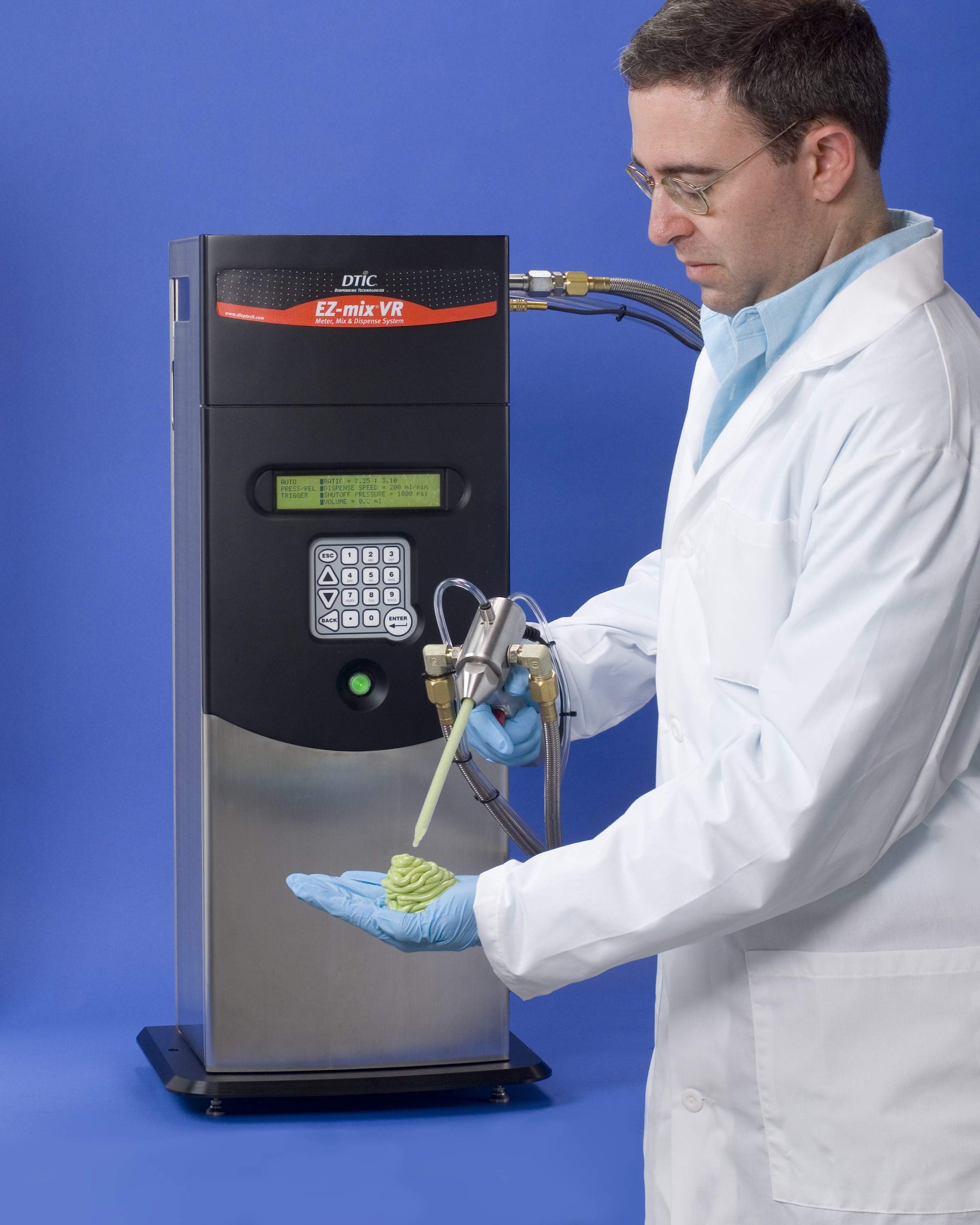

Sep 15, 2005 Dispensing continuous, uniform bead with 0.1 mil accuracy, EZ-mix®VR Variable Ratio Meter-Mix Dispense System features 4 piston pumps that achieve pressures greater than 2,000 psi. Each pump has stainless steel piston, hard-coated steel cylinder walls, Teflon® seals, and ceramic valves. Pumps are controlled by stepper motors and encoders to provide positive displacement, closed-loop dispensing. Desired mix ratio is user-programmable and can be changed on-the-fly.
