Lighting Control & Design    Los Angeles, CA 90065
Sep 22, 2005 Part of digital GR 2400 lighting control system providing daylight harvesting and distributed controls, SmartBreaker(TM) seamlessly integrates with GR 2400 Relay Panel, MicroPanel, digital switches, photo sensors, and up to 127 digital devices. Users can mix controlled and conventional breakers in same panel board using solenoid-operated, thermal magnetic breakers. Remote and local control of each breaker is possible over bus.

CIS Corp.    Portland, OR -

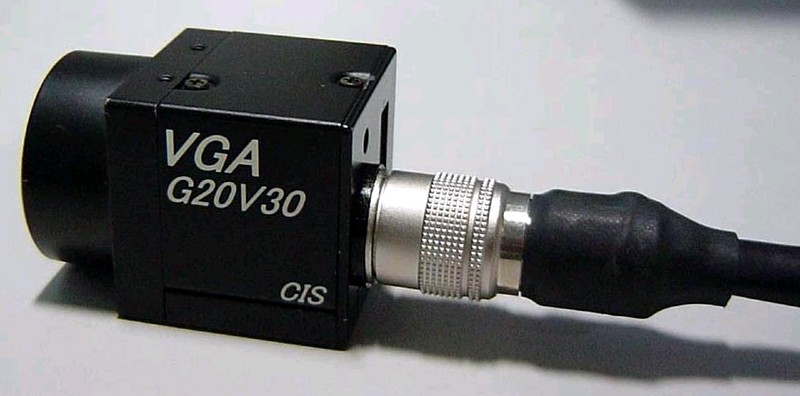

Sep 22, 2005 Utilizing AIA Camera Link® Mini-CL connector, Series G21, G22, and G23 are 2X, 4X, and 6X CCD cameras with data clocks of 25, 49, and 72 MHz, respectively. Units are available in VGA, XGA, SXGA, and UXGA formats, as well as B/W and color versions. Frame rate for G22 Series goes up to 120 fps for VGA, 48 fps for XGA, 25 fps for SXGA, and 20 fps for UXGA. Series G32 delivers 38 fps for SXGA and 30 fps for UXGA in both B/W and color.

Microscan Systems, Inc.    Renton, WA 98057

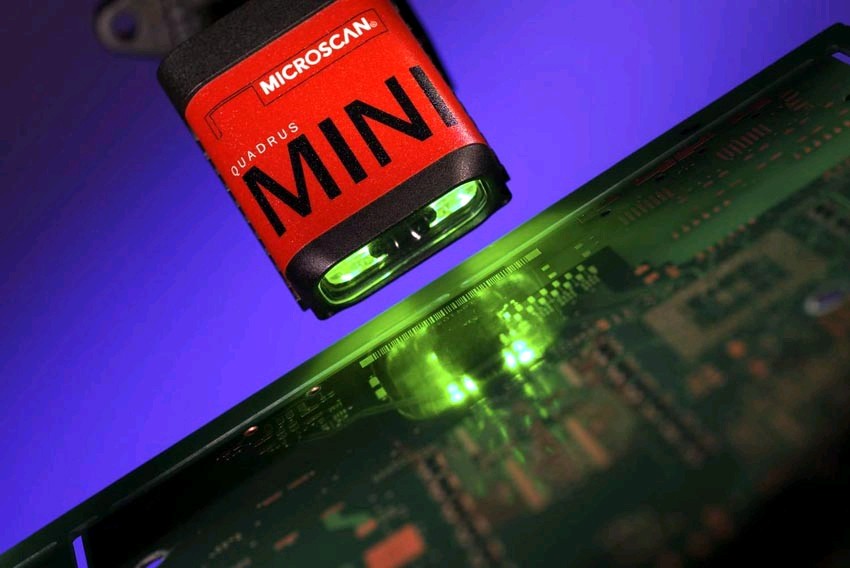

Sep 22, 2005 Miniature mega pixel imager, Quadrus MINI reads both linear bar codes and 2D codes, such as Data Matrix, directly marked on boards and components. For operation, user plugs in unit, points at object of interest, and pushes EZ button. Imager focuses and sets exposure time, gain, and illumination intensity. MINI can be embedded inside pick-and-place robotic equipment or mounted at entrance and exit points of work cells for process verification.

GE Fanuc Embedded Systems    Huntsville, AL 35803

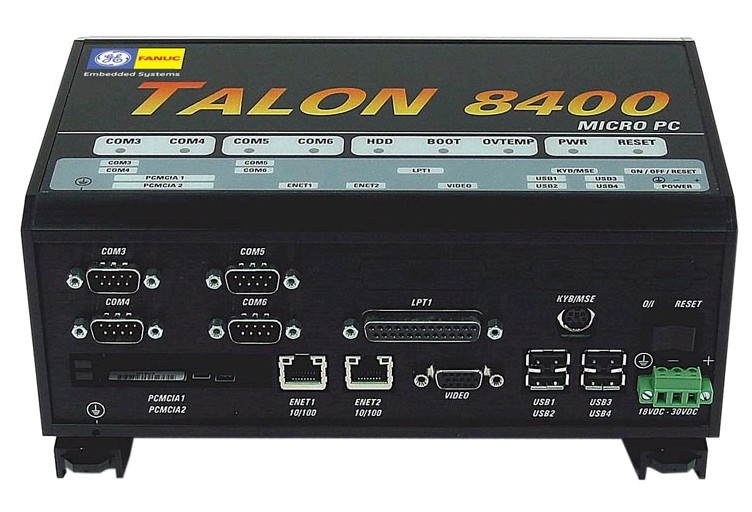

Sep 22, 2005 Utilizing Intel Celeron M processor, Talon 8400 features 256 MB PC100/PC133 SDRAM and 20 GB hard drive. It includes 2 fast Ethernet ports, 4 USB 2.0 ports, SVGA connector, 1 IEEE 1284 port, and 4 RS232/485 serial ports. Talon supports wireless connectivity by way of 2 open PCMCIA slots. Featuring aluminum housing, PC performs in harsh conditions with operating temperature of 5-40°C, optionally extended to -20 to 50°C. It can be DIN rail, panel, or tabletop mounted.

GE Fanuc Embedded Systems    Huntsville, AL 35803

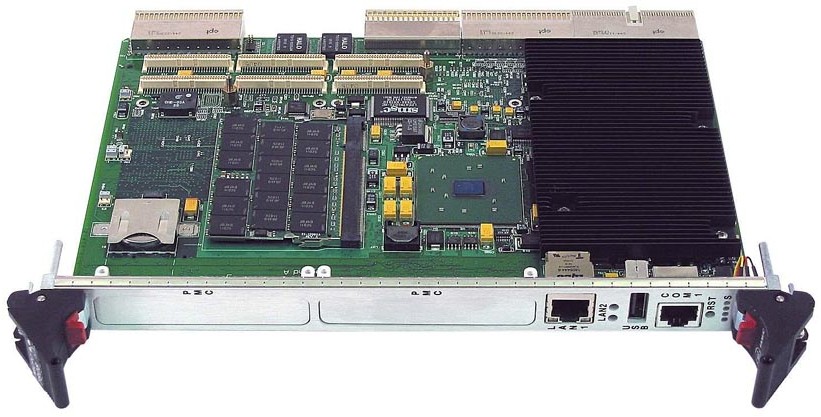

Sep 22, 2005 Single-slot CPCI-7808 is powered by Intel Pentium M or Celeron M processors with 400 MHz system bus. It incorporates Intel 855GME graphics memory controller with up to 2 GB DDR SDRAM and is compliant with PICMG 2.16 CompactPCI/PSB specifications. Along with 1.4 GHz Pentium M and CompactFlash options, SBC offers dual PMC sites (64-bit/66 MHz PCI and 32-bit/33 MHz PCI), parallel and serial ATA, dual integrated serial ports, and 3 USB ports.

Techno Sommer Automatic    New Hyde Park, NY 11040

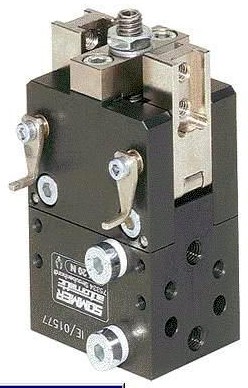

Sep 22, 2005 GK Series is comprised of six 180° opening (2 x 90°) angular grippers suited for applications that must be performed within limited work area. Along with 0-180° stroke-limiting screws, product features gripping torques from 40-4,000 Ncm, C45 K steel jaws, and aluminum body. When jaws are completely opened, work piece can be freed without having to retract gripper. From open position, force generated by jaw tips increases as they near fully closed position and become self-locking.

EFD Inc., Solder Paste Group    Lincoln, RI 02865

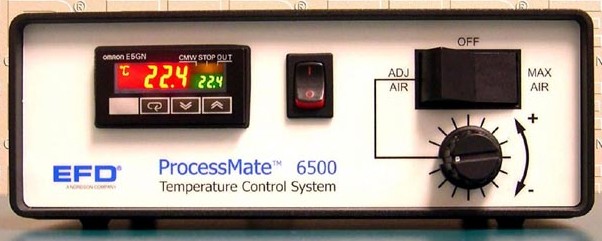

Sep 22, 2005 ProcessMate(TM) 6500 eliminates temperature fluctuations that can cause variations in shot size, viscosity, and pot life when dispensing solder pastes, adhesives, and other assembly fluids. Designed for use with air-powered benchtop dispensers and automated dispense valves, stand-alone unit maintains temperature control within ±0.1°C over 10°-40°C operating range for consistent fluid deposits and optimal process control.

Gardner Denver - Thomas Products Division    Sheboygan, WI 53082-0029
Sep 22, 2005 Gas-tight, oil-less Model 1101 utilizes rolling diaphragm design, which combines rotary and diaphragm pump features. Measuring 2.75 in. long x 1 in. dia, miniature compressor offers max flow rate of 3.2 lpm and max pressure of 7.3 psi. Offered in 5.5 and 12 Vdc versions, pump has motor enclosure and built-in resonator that limit noise level to 45 dBA. Unit incorporates EPDM diaphragms and valves and suits medical, laboratory, and industrial applications.

PPT Vision, Inc.    Eden Prairie, MN 55344

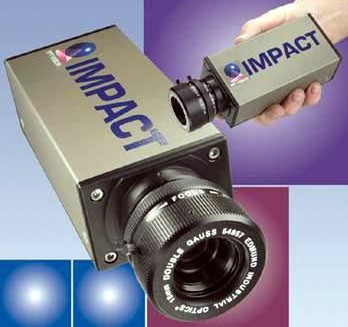

Sep 22, 2005 Featuring ½ in. CCD, IMPACT T22 is designed as drop-in replacement for obsolete or underpowered vision systems. Its image processing computer is located inside camera, enabling unit to be deployed without additional image processing hardware. Suitable as replacement for analog and digital systems, product may be incorporated in older vision engines to achieve 100% real-time inspection while reusing existing optical and lighting components.

Fluke Corp.    Everett, WA 98203
Sep 22, 2005 Featuring remote test probe, Model 1507 provides insulation resistance testing up to 10 gigohms with 5 output voltages from 50-1,000 V, while Model 1503 tests up to 2,000 Megohms of resistance with either 500 or 1,000 V. Model 1507 includes compare function as well as automatic one-button calculation of polarization index and dielectric absorption ratio. Both testers include 600 V Cat IV overvoltage rating and withstand voltage spikes of 8 kV.

Techno Sommer Automatic    New Hyde Park, NY 11040

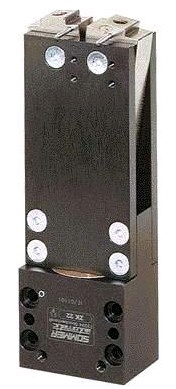

Sep 22, 2005 Designed to hold, squeeze, or cut wires, cables, and chains, Series ZK features hard-coated aluminum housing and chrome-plated hardened steel working parts. Model ZK22 cuts up to 3.5 mm OD copper wire, while Model ZK33 cuts up to 6 mm wire. With gripper in closed position, toggle is extended and guarantees mechanical self-locking. Two pins mounted on jaws can be used with optional mounting blocks for proximity switches to monitor gripper.

Techno Sommer Automatic    New Hyde Park, NY 11040
Sep 22, 2005 Providing up to 1,450 N force, 6-finger GS Series picks up O-rings, expands them to slip over shaft, then ejects them into groove machined into shaft. Operating from 58-145 psi air pressure, 2 pistons that are pneumatically driven independently of each other actuate gripper motions. Standard pin sizes handle O-rings ranging from 4-60 mm diameter. Optional sensing can be accomplished with 2 proximity switches, which attach to sides of gripper.

WinSystems, Inc.    Arlington, TX 76011
Sep 22, 2005 Based upon AMD GX500@1W processor with x86-native instruction set and 32 KB L1 cache, Model EPX-GX supports 11 on-board I/O functions with more I/O expansion options via PC/104 modules. Low power design allows unit to operate over industrial temperature range of -40 to +85°C without fan. Onboard I/O support includes 10/100 Ethernet, 802.11 miniPCI connector, 2 USB ports, 4 COM ports, 24 parallel digital I/O, and 4x AGP Video with CRT and digital flat panel interface.

Electro Industries/Gaugetech    Westbury, NY 11590
Sep 22, 2005 From allocating apartment unit energy costs to tracking in-plant departmental energy expenditures, Shark100-S provides solution for residential, commercial, and industrial sub-metering needs. It offers standard interfaces using Modbus serial, RJ45 Ethernet Modbus TCP, or 802.11 Wireless Ethernet Modbus TCP. Standard Modbus interface allows unit to be interfaced to almost all energy management and SCADA systems, eliminating need for software and communication channels.

Fluke Corp.    Everett, WA 98203
Sep 22, 2005 Designed to help professionals safely determine correct connections and phase sequence, Model 9040 indicates presence of all 3 phases, together with phase rotation direction, on LCD display. With voltage range of 40-700 V, unit is powered from circuit under test and does not require battery. Test probes have variable clamping range for safe contact and use in industrial sockets.

Meter-Treater Inc.    Lake Park, FL 33403
Sep 22, 2005 Parallel-installed MST Series includes models for all standard electrical services and provides 57 kA of surge energy handling per phase. Units incorporate single, self-contained MT57 protection module, which includes fusing and diagnostic circuitry. In event of module failure, user can replace MT57 in field, eliminating need to remove entire unit from service.

SoftNoze USA, Inc.    Frankfort, NY 13340-5100
Sep 22, 2005 With low-profile, 0.197 in. thick LSM Mounts, full-sized and miniature DIN limit switch devices can be adjusted by up to 1.18 in. and 0.50 in., respectively. Using screwdriver for adjustment, accurate switching and sensing is assured. Mounts are fabricated from corrosion-resistant aluminum and include stainless steel fasteners.

Nord Gear Corp.    Waunakee, WI 53597
Sep 22, 2005 Flexbloc(TM) right angle worm gear speed reducers stop oil leaks and lower operational noise due Unicase® one-piece, aluminum alloy housing. Various bolt-on components can be configured to meet specific application requirements, and choice of C-face motor adaptor or solid input shaft enables additional customization. Products are available in single, helical, or double worm configurations with ratios from 5:1-3000:1 and torque capacity up to 3859 lb-in.

CAT PUMPS    Minneapolis, MN 55449
Sep 22, 2005 Available in 4 models with flows to 320 gpm and pressures to 2,700 psi, reciprocating triplex R-Series Pumps are designed for reverse osmosis desalination and process applications. They feature duplex stainless steel heads, V-packing design, and concentric solid ceramic plungers. Self-lubricating chevron packings require no packing adjustment. Made of SG cast-iron, crankcase offers vibration dampening and flame/spark resistance in harsh environments.

Midwest Motion Products    Watertown, MN 55388
Sep 22, 2005 Accepting any 24 V dc source, Model No. MMP-TM55-24V GP52-046 is rated IP 54 for harsh environments and requires 3.5 A @ 24 Vdc to generate full load output torque. Mounting is accomplished with 4 face mount M5 threaded holes, equally spaced on 40 mm dia B.C. Available with optional 12 and 36 V windings, product measures 2.14 in. in dia x 7.25 in. long and has keyed output shaft that measures 12 mm dia x 25 mm long.
