Industrial Specialties Mfg, Inc.    Englewood, CO 80110
Oct 28, 2005 Offered in straight, tee, and elbow styles in various sizes from 1/8 through ¾ tapered NPT, fittings exhibit resistance to chemicals, handle pressures up to 200 psi, and withstand temperatures to 140°F. Suitable for air, vacuum, and liquid systems, series can be used in compressed air, plumbing, and oil feed applications as well as paint, sprinkler, cooling, dispensing, acetic, pharmaceutical, and disposal systems.

Parker Hannifin Corp., Tube Fittings Div.    Columbus, OH 43228
Oct 28, 2005 Offering nominal ratings from 65-480 microns, Protective Screen Fittings are available in sizes -4 through -12 for use with Triple-Lok® 37° flare and Seal-Lok(TM) O-ring face seal fittings. Constructed with stainless steel screen elements, -4 size features basket-style screen, while remaining sizes are dome style. Screen fittings are suited for gauge and instrumentation protection, as well as shielding of critical hydraulic components.

Dell Marking Systems, Inc.    Ferndale, MI 48220 2657
Oct 28, 2005 DellMarko Refillable Marker System includes filling station engineered to refill holder with one push on 1-way valve. It requires no funnels or pouring, and operator does not come into contact with fluids. Users can order colors from stock or select from extensive line of formulations and colors in Dell system. Markers can also be formulated to meet particular requirements.

Dell Marking Systems, Inc.    Ferndale, MI 48220 2657
Oct 28, 2005 Setup and working within minutes, contact marking system employs ¼ and 5/8 in. dia marker tip sizes. Valve-action tip produces round color spot on any smooth, dry work piece. System requires no handling of fluids, and each compression feeds proper amount of yellow, red, green, blue, or white ink to spring loaded tip. System is suited for manual and automatic marking of critical inspection areas of manufactured or machined parts and assemblies.

Dell Marking Systems, Inc.    Ferndale, MI 48220 2657
Oct 28, 2005 Dell Touch Markers, available with ¼ and 5/8 in. dia tip sizes, use yellow, red, green, and blue ink approved by automotive manufacturers. When attached to double-acting air cylinder, markers' valve action tip produces round color spot on smooth, dry work piece. Quick-loading design fits Dell spring-loaded holders, and ink is gravity-fed direct from reservoir. Each compression feeds proper amount to spring loaded tip.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416
Oct 28, 2005 Available with 15-120 grooves, A 6D51- (Inch) and A 6D51M (Metric) Series include 44, 2 mm pitch GT®2 pulleys made of clear anodized aluminum alloy. Fairloc® integral hub fastening design eliminates need for separate hub clamp devices, enables frequent position adjustment, and adds positive metal-to-metal fastening strength along entire hub surface. Designed for 6 mm belts, pulleys are offered in double- or no-flange types with ODs from .356-2.988 in. and 9-75.9 mm.

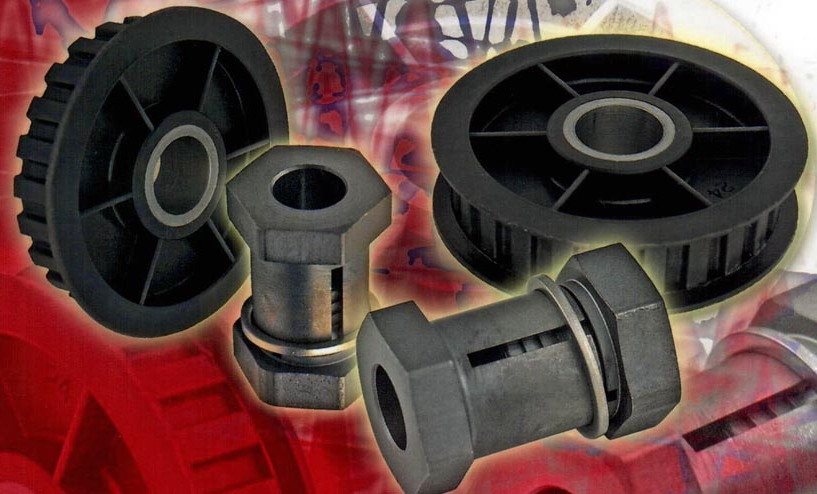

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416
Oct 28, 2005 Shaftloc(TM) rotating component fastening device secures shaft-mounted parts to unmachined inch and metric shafts from 1/8-½ in. Product consists of 2 slotted sleeves: outer sleeve with hexagonal head; cylindrical OD; and threaded ID, and inner sleeve with threaded OD and cylindrical ID. Thread is not symmetrical and creates continuous inclined surface to amplify forces, resulting in increased torque transmission capability between component and shaft.

Rockwell Automation    Milwaukee, WI 53204
Oct 28, 2005 Using hand-held PC with Pocket DriveExplorer software, users can wirelessly program, troubleshoot, and monitor Allen-Bradley PowerFlex AC drives as well as legacy SCANport-enabled Allen-Bradley drives. Software, run from Wireless Interface Modules (WIM), permits access to drives through Bluetooth or Wi-Fi networks, eliminating need for direct, wired connection. Built-in security features help limit access to drives, and alarms notify users abnormal drive operation.

Alfa Laval Inc.    Richmond, VA 23231
Oct 28, 2005 Measuring approximately 13 ft, Model T50 has 20 in. port on plate with 38 sq-ft of heat transfer area and is suited for sea cooling applications in large plants. Plate is available in low-theta, medium-theta, and high-theta versions that can be combined in 5 channel combinations to provide optimized design for specific temperature programs. Unit can be supplied with options such as reinforced feet, extended connections, and earthing lugs.

Richco, Inc.    Chicago, IL 60680
Oct 28, 2005 Along with flexible rubber center, standoffs in HSCBS Series feature flexible tension wings on ends that provide additional shock protection. They accommodate panel thicknesses from .031-.078 in. Natural-colored ends are molded in flame-retardant Nylon 6/6 UL94 V0 material, and center spacer is of black TPE material. Both materials are RoHS-Compliant, and part design facilitates installation by hand.

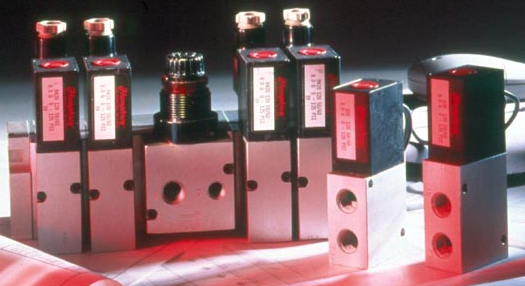

Humphrey Products    Kalamazoo, MI 49003
Oct 28, 2005 Series 310 and 410 valves are comprised of 1/8 in. ported, 3- and 4-way, direct-acting solenoid valves suited for pneumatic applications. Mounted in-line or on subbase, products have short-stroke balanced poppet design that requires no lubrication and tolerates impurities in air system to ensure positive sealing. Series 310 has 0.12 Cv, 410 Series has 0.14 Cv, and both are rated for air and inert gas from vacuum @ 28 in. Hg to 125 psig.

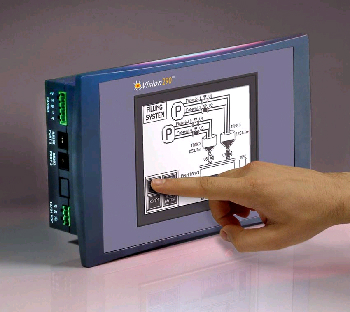

Unitronics Inc.    Quincy, MA 02169
Oct 28, 2005 Vision290(TM) includes 5.7 in. graphic HMI screen that displays touchable images and text. Trends Graphs, user-designed or imported images, text instructions, and variable data are displayed according to run-time conditions. Operator can enter data into PLC via virtual keypad that is displayed on screen whenever application requires. Vision290 offers PID with internal auto-tune, 120 K database for recipes/data logging, remote access, and remote programming.

National Instruments Corp.    Austin, TX 78759-3504
Oct 28, 2005 LabVIEW Simulation Interface Toolkit v3.0 gives control system design and test engineers link between LabVIEW graphical development environment and Simulink® software. It offers configuration-based functionality, enabling engineers to create custom hardware-in-the-loop test systems with CAN, reconfigurable I/O, and CompactRIO FPGA-based I/O. Users can build custom LabVIEW user interfaces to view and control Simulink model during run time.

Kamweld Technologies, Inc.    Norwood, MA 02062
Oct 28, 2005 Series KHD evenly heats acrylic and other thermoplastic sheets to make straight-line bends for creating freestanding signs and other plastic-based structures. Tools consist of 2 rectangular aluminum bars, 2 temperature control switches, and aluminum retention units. Both bars contain electric heating element that provides uniform, continuous heat on either side of plastic sheet. Tools are available for bending sheets up to 144 in. wide and ¾ in. thick.

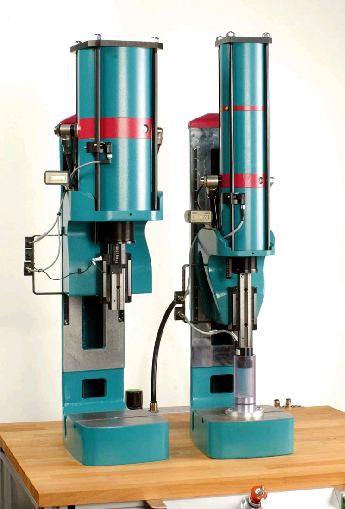

TOX-Pressotechnik L.L.C.    Warrenville, IL 60555
Oct 28, 2005 Offering force ranges from 450-12,800 lb, TOX®-FinePress line comprises Toggle, Rack-and-Pinion, Pneumatic, and Pneumatic-Assisted Hand-Lever Presses. All feature heavy-duty linear ball rail guides, machined cast steel frames, and height adjustment over integrated cranking mechanism. Standard tool fixture with quick chuck system ensures safe clamping of tools. Basic tool set is also included with each press.

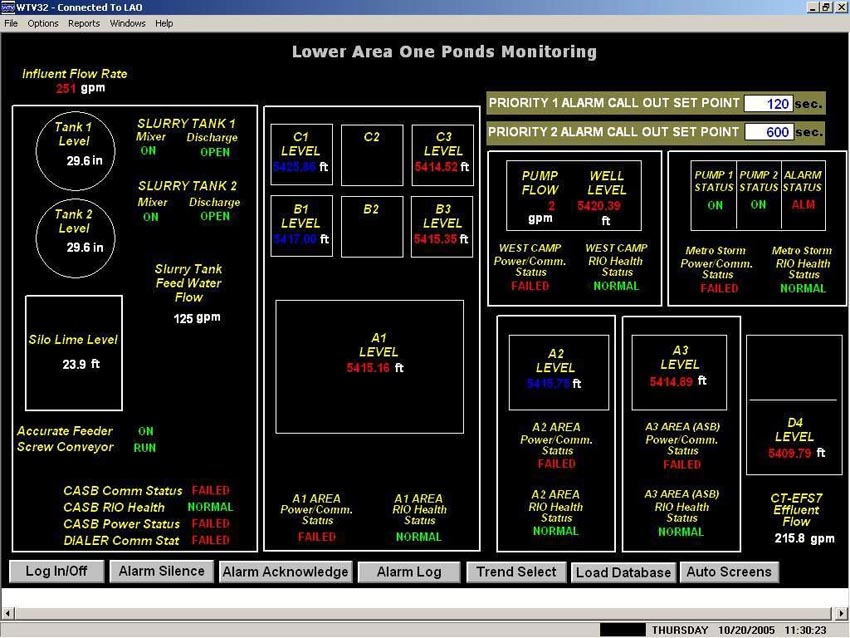

MSE Technology Applications, Inc.    Butte, MT 59702
Oct 28, 2005 Plant Control System provides voltage control, VAR control, breaker control, generator start/stop, synchronization, pump control, and multi-generator load control in one integrated system. Performing up to 73 MIPS, G4 Remote Terminal Unit features real-time OS, multiple interfaces, and protocol support. Software includes MC3000 SCADA Master in real-time Linux, dynamic port assignments, communications analyzer, DNP 3.0 and Modbus support, Ethernet connectivity, and web server.

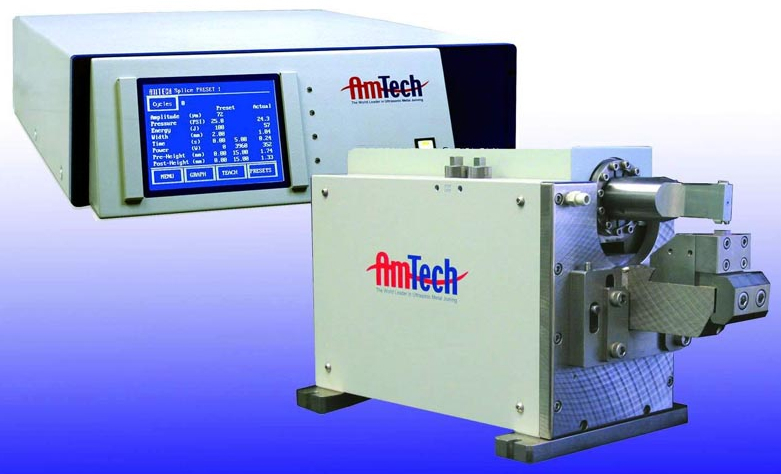

AmTech    Danbury, CT 06813
Oct 28, 2005 With total stroke of 1.9 in., 20 kHz Ultraweld Linear 20 employs actuator that works in linear up/down motion and may be tooled for nonferrous welding applications. Vertical stroke makes tooling parallel front to back at all times. Along with precision roller bearing slide, system features dovetail mounting, flow controls, and adjustable upper and lower positive stops. Polar mounted ultrasonic stack facilitates linear and axial setup.

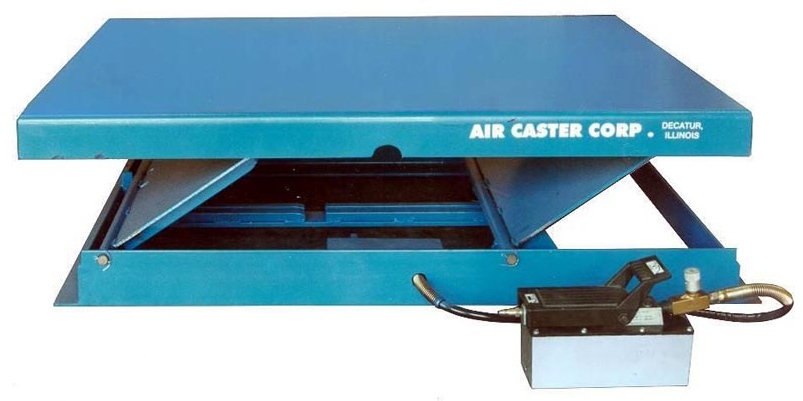

Air Caster Corp.    Decatur, IL 62526
Oct 28, 2005 Ergostand Adjustable Height Work Platforms enable operators to raise or lower working height for maximum working efficiency and ergonomics. Products are constructed of steel and fully adjustable throughout 10 in. lift range via pneumatic foot valve control. With lowered height of 4½ in. and raised height of 14½ in., platforms are offered in 6 standard deck sizes from 36 x 48 in. to 48 x 72 in.; custom sizes are also available.

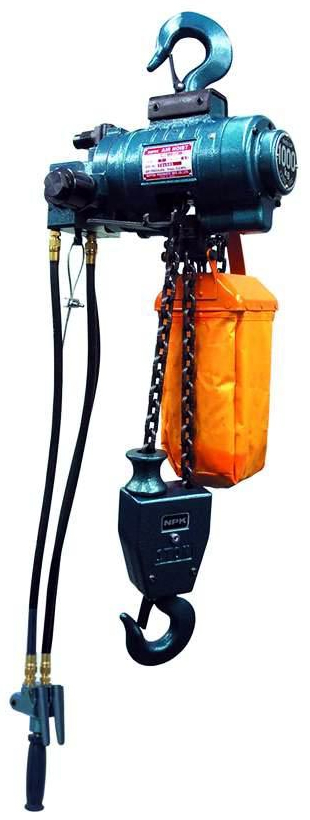

Michigan Pneumatic Tool, Inc.    Detroit, MI 48204-1184
Oct 28, 2005 NPK NRE-1000 Hoist, offered with one ton capacity, features Automatic Load Limiter that prevents lifting of weight that exceeds hoist's load rating. Load limiter constantly monitors air pressure supplied to air motor during lifting and automatically stops hoist when attempting to lift more than hoist capacity.

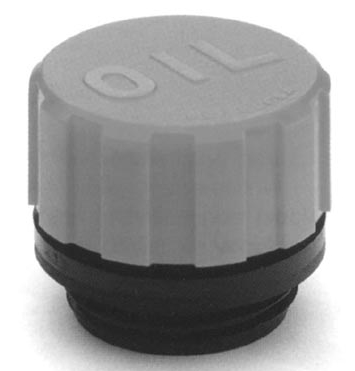

J. W. Winco, Inc.    New Berlin, WI 53151
Oct 28, 2005 Suited for hydraulic power packs, oil breather plugs are made of orange polyamide technopolymer plastic with oil label. Threaded body is black technopolymer plastic, and air filter is polyester polyurethane foam mesh. Resistant to solvents, oils, grease, and other chemical agents, plugs are offered with NPT pipe threads as standard or metric and BSPP threads upon request. Products are rated at continuous operating temperature of up to 250ºF.
